ECE1466 Modern Optics Course Notes Part 3

1

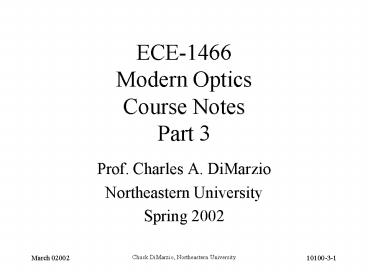

ECE-1466Modern OpticsCourse NotesPart 3

• Prof. Charles A. DiMarzio
• Northeastern University
• Spring 2002

2
Diffraction

• Fresnel-Kirchoff Integral
• Fraunhofer Approximation
• Some Common Examples
• Fourier Optics
• Generalized Pupil Function
• Optical Testing
• Diffraction Gratings
• Gaussian Beams

3
Fresnel-Kirchoff Integral (1)

• The Basic Equation
• An Approximation

4
Fresnel-Kirchoff Integral (2)
5
Paraxial Approximation
x1
x
z
6
Circular Aperture, Uniform Field
7
Square Aperture, Uniform Field
8
No Aperture, Gaussian Field
9
Fraunhoffer Examples
10
Single-Mode Optical Fiber
Beam too Large (lost power at edges)
Beam too Small (lost power through cladding)
11
Resolution Rayleigh Criterion
12
Fourier Optics

• Revisit of the Fresnel-Kirchoff Integral
• The Fourier Transform
• Definition of the Spatial Frequencies
• Relation to Pupils
• Some Examples
• Optical Testing
• Gratings

13
Fraunhofer Diffraction (1)
14
Fraunhofer Diffraction (2)
15
Linear Systems Approach to Imaging
x
x
Any Optical System
Exit Window
Entrance Window
Isoplanatic
16
Terminology

• h is called the point spread function (PSF)
• H is called the optical transfer function (OTF)
• Magnitude is called Modulation Transfer Function
  (MTF)
• Phase is Phase Transfer Function (PTF)
• fx and fy are spatial frequencies

Uimage
Uobject
Uimage
Uobject
17
Concepts of Fourier Optics
Any Isoplanatic Optical System
Exit Window
Exit Pupil
Entrance Pupil
Entrance Window
Scale x,y and Multiply by OTF
Fourier Transform
Fourier Transform
18
Kohler Illumination

• Illumination Source in a Pupil Plane
• Incoherent Source
• Fourier Transform Has Uniform Power
• Homework Exercise

19
Some Resolution Charts (1)
Edge
Point and Lines
Sinusoidal Chart
Bar Charts
20
Some Resolution Charts (2)
Air Force
ISO
Bar Charts
21
Radial Target and Image
Colorbar for all
Object
Point-Spread Function of System
22
Grating Equation
sin(qd)
5
1
4
3
0.5
sin(qi)
2
1
0
n0
-sin(qi)
-0.5
-1
-2
-1
-100
0
100
200
-3
Reflected Orders
Transmitted Orders
degrees
23
Grating Fourier Analysis
Grating
Diffraction Pattern
Sinc
Slit
Convolve
Multiply
Repetition Pattern
Result
Multiply
Convolve
Apodization
Result
24
Laser Tuning
Gain
f
Cavity Modes
f
qi
25
Acousto-Optical Modulator
Sound Source
Absorber
26
The Spherical-Gaussian Beam

• Gaussian Profile
• Rayleigh Range

• Diameter
• Radius of Curvature
• Axial Irradiance

27
Visualization of Gaussian Beam
w
r
z0
Center of Curvature
28
Parameters vs. Axial Distance
m4053
m4053
29
Complex Radius of Curvature Physical Results
30
Making a Laser Cavity
Make the Mirror Curvatures Match Those of the
Beam You Want.
31
Sample Hermite Gaussian Beams
00
01
03
(01)i(10) Donut Mode
10
11
13
20
21
23
Most lasers prefer rectangular modes because
something breaks the circular symmetry.
50
51
53
from matlab program 10021.m
Note Irradiance Images rendered with g0.5
