THE LATE PALEOZOIC

1

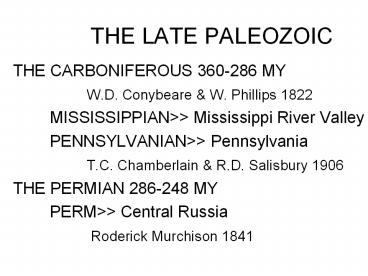

THE LATE PALEOZOIC

• THE CARBONIFEROUS 360-286 MY
• W.D. Conybeare W. Phillips 1822
• MISSISSIPPIANgtgt Mississippi River Valley
• PENNSYLVANIANgtgt Pennsylvania
• T.C. Chamberlain R.D. Salisbury 1906
• THE PERMIAN 286-248 MY
• PERMgtgt Central Russia
• Roderick Murchison 1841

2
(No Transcript)
3
INTRODUCTION

• Mississippian- 40 MY
• Pennsylvanian- 34 MY
• Permian- 38 MY Duration
• Suturing of Pangea
• Alleghenian and Hercynian Orogenies
• Western terrane accretions in North America
• Formation of the Ural Mountains

4
INTRODUCTION

• Tropical Climates around the Tethys Ocean
• High stands of sea level (Mississippian
  epicontinental seas)
• Tropical swamps during the Pennsylvanian (coal
  measures)
• Land plant diversity, insects evolved, reptiles
  evolved
• Permian redbeds (tropical desert climate)
• Glaciations in Gondwana

5
Paleogeography
6
Paleogeography
7
PALEOGEOGRAPHY

• Opening of the Tethys Ocean
• Kazakhstan closed on Baltica
• Continuation of Antler Orogeny
• Other terranes collided with Canada
• Beginning of Hercynian Orogeny in southern Europe
• Final collision of Gondwana to Laurentia in
  Pennsylvanian
• Alleghenian (E US) and Ouachita Orogenies (S US
  S. AM)
• S. Am collided with TX forming ancestral Rockies
• Well defined Tethys Ocean in the Permian

8
PALEOGEOGRAPHY

• Pangea formed a large U-shaped super-continent
  stretching from pole to pole
• Tethys Ocean formed an equatorial reentrant basin
  on the east
• The Panthallassic Ocean covered the rest of the
  globe

9
PALEOGEOGRAPHY
10
Paleogeography

• Pangea almost complete by the Permian except for
  a few microcontinents that assembled in the
  Triassic and Jurassic
• Late Paleozoic most widespread period of
  collisional mountain building
• The major orogeny of the Permian was the Uralian
  Orogenygtgt Ural Mountains
• The final formation of the Appalachians

11
TECTONIC EVENTS

• The Hercynian Orogeny
• Southern Europe-Baltica
• 6000km long, lasted 30my, intense metamorphism,
  volcanism and plutonism
• The North American Cordillera
• Continuation of Antler Orogeny
• Ellesmere Orogeny (Canada and Alaska)
• The Alleghenian and Ouachita Orogenies
• Final phase of Appalachians- Thrust sheets
• Ancestral Rockies uplifted
• The Uralian Orogeny

12
Location of the Principal Highland Areas of the
SW US During the Pennsylvanian
13
OrogenicDevelopmentOf the EasternUS
14
The Appalachians

• Valley and Ridge
• folded faulted sedimentary rks
• Blue Ridge Province
• metamorphosed Precambrian and Paleozoic Rks
• Inner Piedmont
• high grade metamorphic rks intruded by granites
• Charlotte Carolina Slate Belt
• metamorphosed folded late Proterozoic
  Cambrian sediments and volcanics

15
Physiographic Provinces of the Appalachian Region
16
Late Paleozoic Continental Collisions
17
Highland Areas Associated with the Antler Orogeny
of California- Nevada
Collision of Antler arc with North American
craton during the Mississippian creating the
Roberts Mountains
18
An interpretation of conditions in the
Cordilleran orogenic belt in Early Mississippian
time, shortly after the Antler orogeny.
19
NEOPROTEROZOIC TO CENOZOIC TRANSGRESSIONS AND
REGRESSIONS OBSERVED ON THE CRATON
Variable sea level represented sequences of
sediments bounded by unconformities on all of the
cratons -
Major unconformity due to regression
Craton remained intact while collisions occurred
on all sides Sea levels remained high during the
Permo-Carboniferous and especially during the
Mississippian Sea level occilations on the
order of 200m and 1600km occurred 2 to 3 times
every million year
20
CYCLOTHEMS

• Cratonic sediments dominated by cycles
• Rock types repeat in a cyclic manner
• Rock units of a meter or so can be traced for
  100s of kilometers
• Coal Measures- 10 to 20 m sections of 10 rock
  units showing a regression/transgression
  separated by a coal seam (typical, mid continent)

21
CYCLOTHEMS

• 150-200m changes in sea level
• Represented in Illinois by 60 cyclothems
• Representing 20 to 25 my
• Representing a 300,000 year cycle
• Changes in global sea level caused by waxing and
  waning of Gondwana glaciations

22
Coal Bearing Cyclothem Idealized Sequence of 10
Layers
Illinois Cyclothem
23
The Permian Midland and Delaware Basins of West
Texas
750km of reefs sponges, algae, brachiopods and
bryozoans
Deep marine basins 400-1000m below sea level
Arid conditions represented by red beds and
evaporites
24
Permian of West Texas
Lagoonal sediments and evaporites
Reef front- Phylloid Algae, sponge frame work
Black carbonate mud deep water sedimentation with
some reef ruble
25
(No Transcript)
26
Economic Deposits

• Coal- Rapid accumulations of partially decayed
  vascular plant tissue in anoxic conditions
  peatgtlignitegtbituminous
• Pennsylvanian Appalachian and Illinois Basin
• Oil Gas
• Permian West Texas North Sea

27
Coal Seams in fluvial cross-bedded Mississippian
Sandstones
28
Formation of Oil and Gas

• Most Oil formed in marine environments
• Organic rich sediments are deposited fast and
  buried before decomposition
• These sediments are mainly younger than 500
  Million Years
• Organic material converted to oil and natural gas
  (hydrocarbons, e.g. CH4) upon burial, by
  geothermal heat (150- 200F)
• Oil and gas migrate from source rock to permeable
  rock
• If trapped oil and gas can be recovered

29
Formation of Oil and Gas

• Decay of algae and bacteria
• Burial
• Cooking (temperature pressure)
• Formation of Hydrocarbon
• Favorable Preservation Conditions
• High organic production (over 10)
• Anaerobic depositional systems
• Moderate to low rate of sedimentation

30
Hydrocarbon Needs

• Source Rock
• Reservoir Rock
• Trapping Mechanism
• Timing

31
(No Transcript)
32
(No Transcript)
33
Economic Deposits

• Sodium Potassium salts
• Phosphates (Fertilizers)
• Phosphoria Fm.
• Metal ores (tin, copper, zinc, lead, silver,
  gold, platinum)
• Appalachian Orogeny

34
Late-Paleozoic Climates

• Coal formation in low and high latitudes
• W. Europe and E. North America tropical climates
• cool moist climates in Siberia, China and
  Australia

35
Late-Paleozoic Climates

• Strong zonation in climates
• Glacial climates in Gondwana
• Tillites and dropstones Africa, S. America and
  India
• Hot arid climates in low latitudes
• Redbeds and evaporites in central and western
  North America

36
Paleoclimatic Indicators
Red- Coal Blue-Tillites Green- Evaporites
37
LATE PALEOZOIC LIFE

• Land Plants
• Radiation of the Insects
• Radiation of the Amphibians
• The Origin of Reptiles
• Mammal-like Reptiles
• Pelycosaurs and Therapsids

38
Marine Environment

• Radiation of brachiopods, ammonoids, bryozoans,
  crinoids, forams and calcareous algae after
  Devonian extinction
• Mississippian Age of Crinoids
• Phylloid Algal mounds of the Pennsylvanian
• Sponge-Bryozoan reefs
• Fusulinid foraminifera of the Pennsylvanian and
  Permian

39
Life of the Mississippian
Crinoids
40
Radiation of the Insects

• Co-evolution of plants, insects and amphibians
• Number of families appear in the Early
  Pennsylvanian
• Wingless insects (hexapods)
• Winged insects
• Fixed and folding wings

41
Evolution of Amphibians
10s of million of years of evolutionary
history between crossopterygian fishes and true
amphibians
42
Reptilian evolution from amphibian ancestor
took 22 my First reptile in Late Mississippian 4
major groups of reptiles Anapsida Synapsida Diapsi
da Euryapsida
43
Reptilian Amniote Egg
44
Anapsids no opening (Turtles)
Synapsids and Euryapsids one opening
low/ high (therapsids- ancestors to mammals/
ich- thyosaurs
Diapsids two openings (lizards, snakes, dinosaurs)
45
Pelycosaur Dimetrodon
46
Mammal-Like Reptiles- Cynognathus (carnivorous)
Kannemeyeria (plant eating therapsid reptile)
Mammals acquired most characteristics (50) in
the last 8 my of Permian
47
The Bear Gulch and Mazon Creek Faunas

• Soft part preservation
• Bear Gulch Mississippian finely laminated
  limestone deposits of Montana preserving fish
  fossils
• Mazon Creek Pennsylvanian deltaic storm deposit
  of Illinois containing concretions with fossil
  plants and soft bodied marine fossils

48
Mass Extinctions
49
Permian Mass Extinction

• 90 of marine species became extinct
• 54 of the families
• Final 10 my of Permian

50
Permian Mass Extinction

• Fauna Flora that became extinct
• All Paleozoic Corals, all Fusilinids, all
  Trilobites, Eurypterids and Blastoids and most
  sea urchins, brachiopods, crinoids, bryozoans
  Glossopteris flora and many insects
• Causes
• Glaciations (drop in sea level), reduction in
  area of shallow seas
• changes in climate due to Siberian flood basalts
  (CO3), drop in oxygen from 33 to 14
