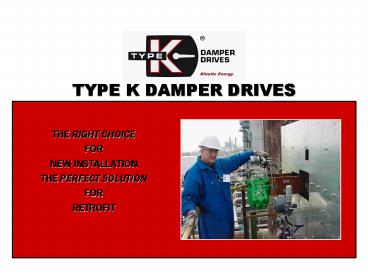

TYPE K DAMPER DRIVES

1
TYPE K DAMPER DRIVES

• THE RIGHT CHOICE
• FOR
• NEW INSTALLATION
• THE PERFECT SOLUTION
• FOR
• RETROFIT

2
TYPE K DAMPER DRIVES

• ABOUT US
• INDUSTRIES
• PRODUCTS
• APPLICATIONS
• TRAINING FIELD SERVICE

3
TYPE K DAMPER DRIVES

• ABOUT US
• TYPE K DAMPER DRIVES, Div. of Controls
  International, Inc. founded in Dallas, Texas in
  1973
• TYPE K is the world leader in retrofit technology
  and Drop it in for ease of installation in a
  few hours replacing existing damper drives
• TYPE K high-performance pneumatic rotary drives
  and linear drives
• 5 YEAR PERFORMANCE WARRANTY

4
TYPE K DAMPER DRIVES

• INDUSTRIES
• TYPE K Drives are ideally suited thrive in
  difficult harsh duty high ambient temperature
  environments. TYPE K has earned a reputation for
  superior performance of reliability and value in
  the heavy industry facilities such as
• Power Utilities 65
• Petroleum Refineries 25
• Steel Aluminum Foundries
• Chemical Petro-Chemical
• Pulp Paper 10
• Pharmaceutical
• Food Beverages

5
TYPE K DAMPER DRIVES

• PRODUCTS

Pedestal Mount Rotary Drive
Direct Mount Rotary Drive
Fail-Safe Open or Closed Rotary Drive
Series JR Linear Burner Drive
Quarter-Turn Valve Automation
Series LX Linear Drive
6
TYPE K DAMPER DRIVES

• DAMPER APPLICATIONS
• FD /ID /PA /GR Fans
• Seal Air Fan
• Mill Primary/Volume/Hot Air
• Mill Shut-Off
• Alstom CE T-Fired Windbox Fuel Air Aux Air
• Alstom CE T-Fired Burner Nozzle Tilt Drives
• SOFA Box Dampers Tilts
• SCR System Dampers
• Burner Air Registers

• Air Heater Inlet / Outlet Bypass
• Superheat Pass Damper
• Reheat Pass Damper
• Gas Recirc. Tempering Bypass
• Fluid Drive Coupling Control
• Overfire Air Ports
• Wall-Fired Burner Main Sliding Air (Shroud)
  Dampers
• Baghouse Cell Isolation

7
TYPE K DAMPER DRIVES

• TRAINING FIELD SERVICE
• On-site Training
• Training of drive installation, operating
  performance, calibration, explanation of all
  drive components, instruction in drive repair

8
TYPE K DAMPER DRIVES

• Retrofit Procedure
• TYPE K Sales representatives factory personnel
  are available to provide on-site installation
  instructions of the drives, connecting rods
  drive levers etc. for retrofit or new
  construction projects

9
TYPE K DAMPER DRIVE

• On-site Surveys
• TYPE K engineers and CAD designers are available
  to conduct field surveys with plant personnel to
  replace existing drives, and design new mounting
  hardware for complex applications

10
TYPE K DAMPER DRIVES

• Why has TXU used TYPE K?
• Product Reliability
• No actuator failures with over 2000 TYPE K DAMPER
  DRIVES installed
• TYPE K can provide the precision TXU needs for
  their Low NOx projects
• TYPE K is in close proximity to all of TXUs
  Power Stations
• TYPE K provides great local service to each TXUs
  Power Stations
• The technicians know TYPE K
• TYPE K is setup in each Power Stations Stores /
  Warehouses
• TYPE K representatives visit each Power Station
  frequently

11
TYPE K ROTARY DAMPERDRIVES
12
TYPE K DAMPER DRIVES

• Over 30 Years of Experience
• Used By Every Major Utility in the U.S.
• Made in the U.S.A.
• Industry Leading 5 Year Performance Warranty

13
TYPE K DAMPER DRIVES

• Highest Precision Repeatability
• Expect 10 Years Maintenance Free Performance
• Rugged and Thrives in Harsh Duty Environments
• 300º F Ambient Temperature Rated (Optional)
• Linear Torque Output
• Infinite Starts Per Hour Continuous Duty
  Service
• Advanced Diagnostics Capabilities
• Foundation Fieldbus, Profibus HART

The Most Rugged and Reliable Drive in the Industry
14
TYPE K DAMPER DRIVES
C-400 Positioner
Custom drive lever
Stainless tubing fittings (long-lasting,
trouble-free)
K-TORK Actuator (exclusive)
Custom Designed Pedestal Base (drops onto
existing mounting)
NEMA 4X Construction (dirt moisture stay out)
15
(No Transcript)
16
TYPE K DAMPER DRIVES
Direct-Mount style
Pedestal Style
Foster-Wheeler job_at_ AES Albright
Foster-Wheeler job _at_ PSNH-Newington
17
TYPICAL DAMPER DRIVEAPPLICATIONS
18
TYPE K DAMPER DRIVES
Type K DrivesApplied to F.D I.D Fans

• Torque to gt20,000 ft. lbs
• Rapid response, 3.5 sec. f.s
• Respond to input changes of lt0.5 f.s
• Improve furnace pressure control
• Analog or digital control
• Lower maintenance cost

19
TYPE K DAMPER DRIVES
20
TYPE K DAMPER DRIVES

• Variety of mounting options
• High-temp. construction
• Engineered to fit in tight spaces
• Pneumatic or electronic inputs
• NEMA 4X construction
• Built-in position feedback, limits (better
  control)

21
TYPE K DAMPER DRIVES
22
TYPE K DAMPER DRIVES
23
TYPE K DAMPER DRIVES
AEPs Knox Lee Station
TXUs Big Brown Station
NRGs Limestone Station
24
TYPE K DAMPER DRIVES

• TYPE K VALVE AUTOMATION
• For Retrofit or New Installation
• Can be installed on any rotary ¼ turn valve
• Forget About It Reliability

25
TYPE K DAMPER DRIVES
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
