PAIRWISE ALIGNMENT ALIGNMENT OF TWO NUCLEOTIDE OR TWO AMINOACID SEQUENCES

1

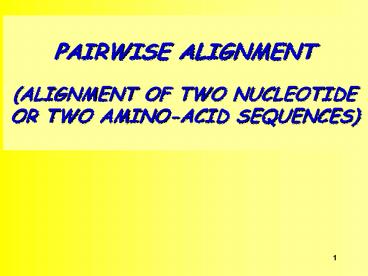

PAIRWISE ALIGNMENT (ALIGNMENT OF TWO
NUCLEOTIDEOR TWO AMINO-ACID SEQUENCES)
2
Assumptions Life is monophyletic Biological
entities share common ancestry
3
Any two organisms or two sequences share a common
ancestor in their past
4
(5 MYA)
5
(120 MYA)
ancestor
6
(1,500 MYA)
ancestor
7
(1) Speciation events, (2) Gene duplication, and
(3) Duplicative transposition result in
homologous entities
8
Homology Aterm was coined by Richard Owen in
1843. Definition Similarity resulting from
common ancestry.
9
Homology

• There are three types of homology orthology,
  paralogy, and xenology.
• The distinction among the three types of homology
  was introduced by Walter Fitch in 1970.

10
Homology General Definition

• Homology designates a qualitative relationship of
  common descent between entities
• Two genes are either homologs or not!
• it doesnt make sense to say two genes are 43
  homologous.
• it doesnt make sense to say Linda is 43
  pregnant.

11
Orthology vs. Paralogy

• Two genes are orthologs if they originated from a
  single ancestral gene in the most recent common
  ancestor of their respective genomes
• Two genes are paralogs if they are related by
  duplication

12
(No Transcript)
13
Gene death
14
Xenology is due to horizontal (lateral) gene
transfer (HGT or LGT)
XA and XB are xenologs
Distinguishing orthologs from xenologs is
impossible in pairwise genomic comparisons, but
possible when multiple genomes are compared
15
Orthology, Paralogy, Xenology(Fitch, Trends in
Genetics, 2000. 16(5)227-231)
16
Homology
By comparing homologous characters, we can
reconstruct the evolutionary events that have led
to the formation of the extant sequences from the
common ancestor.
17
Homology
When dealing with sequences, we are interested in
POSITIONAL HOMOLOGY. We identify positional
homology by ALIGNMENT.
18
Sequence alignment involves the identification of
the correct location of deletions and insertions
that have occurred in either of the two lineages
since their divergence from a common ancestor.
19
ACTGGGCCCAAATC
1 deletion 1 substitution
1 insertion 1 substitution
AACAGGGCCCAAATC
CTGGGCCCAGATC
Correct alignment
Incorrect alignment
CTGGGCCCAGATC-- AACAGGGCCCAAATC ..........
--CTGGGCCCAGATC AACAGGGCCCAAATC ..
20
Unknown!
unknown processes
unknown processes
AACAGGGCCCAAATC
CTGGGCCCAGATC
Correct alignment?
Incorrect alignment?
CTGGGCCCAGATC-- AACAGGGCCCAAATC ..........
--CTGGGCCCAGATC AACAGGGCCCAAATC ..
21
ACCTGAATTTGCCC
T9 G5T ACA12
-A6 -A7 T8A G2
ACCTTAATTGCACACC
AGCCTGATTGCCC
ACCTTAATTGCACACC
AGCCTGATTGCCC---
C2G, T4C, A6G, A12C, -ACC14
22
There are two modes of alignment. Local
alignment determines if sub-segments of one
sequence (A) are present in another (B). Local
alignment methods have their greatest utility in
database searching and retrieval (e.g., BLAST).
In global alignment, each element of sequence A
is compared with each element in sequence B.
Global alignment algorithms are used in
comparative and evolutionary studies.
23
For reasons of computational complexity, sequence
alignment is divided into two categories
Pairwise alignment (i.e., the alignment of two
sequences). Multiple-sequence alignment (i.e.,
the alignment of three or more sequences).
Pairwise alignment problems have exact
solutions. Multiple-sequence alignment problems
have approximate (heuristic) solutions.
24
Positional homology in pairwise alignment A
pair of nucleotides from two aligned sequences
that have descended from one nucleotide in the
ancestor of the two sequences.
Alignment A hypothesis concerning positional
homology among residues in a sequence.
25
A pairwise alignment consists of a series of
paired bases, one base from each sequence. There
are three types of pairs(1) matches the same
nucleotide appears in both sequences. (2)
mismatches different nucleotides are found in
the two sequences. (3) gaps a base in one
sequence and a null base in the other.
GCGGCCCATCAGGTAGTTGGTG-G GCGTTCCATC--CTGGTTGGTGTG
26
-Two DNA sequences A and B.-Lengths are m and
n, respectively. -The number of matched pairs is
x. -The number of mismatched pairs is y. -
Total number of bases in gaps is z.
27
There are internal and terminal gaps.
GCGG-CCATCAGGTAGTTGGTG-- GCGTTCCATC--CTGGTTGGTGTG
28
A terminal gap may indicate missing data.
GCGG-CCATCAGGTAGTTGGTG-- GCGTTCCATC--CTGGTTGGTGTG
29
An internal gap indicates that a deletion or an
insertion has occurred in one of the two
lineages.
GCGG-CCATCAGGTAGTTGGTG-- GCGTTCCATC--CTGGTTGGTGTG
30
The alignment is the first step in many
evolutionary and functional studies. Errors in
alignment tend to amplify in later computational
stages.
31
Motivation for sequence alignment

• Study function
• Sequences that are similar probably have similar
  functions.
• Study evolution
• Similarity is mostly indicative of common
  ancestry.

32
Some definitions
33
An example of pairwise alignment of an unknown
protein with a known one

• Glutaredoxin, Bacteriophage T4 from E. coli, 87
  aa
• (B) Unknown protein - 93 aa

Unknown protein, Bacteriophage 65 from Aeromonas
sp. 93 aa
10 20 30 40
50 Glutar KVYGYDSNIHKCVYCDNAKRLLTVK
KQPFEFINIMPEKGV---FDDEKIAELLTKLGR ..
.. . .. .. . . .
.. . Unknow EIYGIPEDVAKCSGCISAIRLCFEKGYDYEIIPVLKK
ANNQLGFDYILEKFDECKARANM 10 20
30 40 50 60
60 70 80 Glutar
DTQIGLTMPQVFAPDGSHIGGFDQLREYF ..
..... .... ... .Unknow QTR-PTSFPRIFV-DGQYI
GSLKQFKDLY 70 80 90
Is the unknown protein a glutaredoxin?
34
Methods of alignment 1. Manual 2. Dot
matrix 3. Distance Matrix 4. Combined (Distance
Manual)
35

• Manual alignment. When there are few gaps and the
  two sequences are not too different from each
  other, a reasonable alignment can be obtained by
  visual inspection.

GCG-TCCATCAGGTAGTTGGTGTG GCGATCCATCAGGTGGTTGGTGTG
36
Advantages of manual alignment (1) use of a
powerful and trainable tool (the brain, well
some brains).(2) ability to integrate
additional data, e.g., domain structure,
biological function.
37
(No Transcript)
38
Protein Alignment may be guided by Secondary and
Tertiary Structures
Escherichia coli DjlA protein
Homo sapiens DjlA protein
39
Disadvantages of manual alignment The method
is subjective and unscalable.
40
The dot-matrix method (Gibbs and McIntyre, 1970)
The two sequences are written out as column and
row headings of a two-dimensional matrix. A dot
is put in the dot-matrix plot at a position where
the nucleotides in the two sequences are
identical.
41
The alignment is defined by a path from the
upper-left element to the lower-right element.
42
There are 4 possible steps in the path

• (1) a diagonal step through a dot match.
• (2) a diagonal step through an empty element of
  the matrix mismatch.
• (3) a horizontal step a gap in the sequence on
  the top of the matrix.
• (4) a vertical step a gap in the sequence on
  the left of the matrix.

43
A dot matrix may become cluttered. With DNA
sequences, 25 of the elements will be occupied
by dots by chance alone.
44
window size 1 stringency 1 alphabet size 4
The number of spurious matches is determined by
window size, stringency, alphabet size.
45
window size 1 stringency 1 alphabet size 4
window size 3 stringency 2 alphabet size 4
46
window size 1 stringency 1 alphabet size 20
47
Dot-matrix methodsAdvantages May unravel
information on the evolution of
sequences.Disadvantages May not identify the
best possible alignment.
48
Window size 60 amino acids Stringency 24
matches
Advantages Highlighting Information
49
Window size 60 amino acids Stringency 24
matches
Advantages Highlighting Information
The two pairs of diagonally oriented parallel
lines most probably indicate that two small
internal duplications occurred in the bacterial
gene.
50
Disadvantages Not possible to identify the
best alignment.
51
Scoring Matrices Gap Penalties
52
The true alignment between two sequences is the
one that reflects accurately the evolutionary
relationships between the sequences. Since the
true alignment is unknown, in practice we look
for the optimal alignment, which is the one in
which the numbers of mismatches and gaps are
minimized according to certain criteria.
53
Unfortunately, reducing the number of mismatches
results in an increase in the number of gaps, and
vice versa.
54
a matches b mismatches g nucleotides in
gaps d gaps
55
The scoring scheme comprises a gap penalty and a
scoring matrix, M(a,b), that specifies the score
for each type of match (a b) or mismatch (a ?
b). The units in a scoring matrix may be the
nucleotides in DNA or RNA sequences, the codons
in protein-coding regions, or the amino acids in
protein sequences.
56
DNA scoring matrices are usually simple. In the
simplest scheme all mismatches are given the same
penalty. M(a,b) is positive if a b and
negative otherwise. In more complicated
matrices a distinction may be made between
transition and transversion mismatches or each
type of mismatch may be penalized differently.
57
Further complications Distinguishing among
different matches and mismatches.For example, a
mismatched pair consisting of Leu Ile, which
are very similar biochemically to each other, may
be given a lesser penalty than a mismatched pair
consisting of Arg Glu, which are very
dissimilar from each other.
58
Lesser penalty than
59
BLOSUM62 (BLOcks of amino acid SUbstitution Matrix
60
Gap penalty (or cost) is a factor (or a set of
factors) by which the gap values (numbers and
lengths of gaps) are multiplied to make the gaps
equivalent in value to the mismatches. The gap
penalties are based on our assessment of how
frequent different types of insertions and
deletions occur in evolution in comparison with
the frequency of occurrence of point
substitutions.
61
The gap penalty has two components a gap-opening
penalty and a gap-extension penalty.
62
Three main systems (1) Fixed gap-penalty
system 0 gap-extension costs. (2) Linear
gap-penalty system the gap-extension cost is
calculated by multiplying the gap length minus 1
by a constant representing the gap-extension
penalty for increasing the gap by 1. (3)
Logarithmic gap-penalty system the
gap-extension penalty increases with the
logarithm of the gap length, i.e., slower.
63
(No Transcript)
64
Alignment algorithms
65
Aim Given certain criteria, find the alignment
associated with the best score from among all
possible alignments.The OPTIMAL ALIGNMENT
66
The number of possible alignments may be
astronomical.
where n and m are the lengths of the two
sequences to be aligned.
67
The number of possible alignments may be
astronomical. For example, when two sequences
300 residues long each are compared, there are
1088 possible alignments. In comparison, the
number of elementary particles in the universe is
only 1080.
68
There are computer algorithms for finding the
optimal alignment between two sequences that do
not require an exhaustive search of all the
possibilities.
69
The Needleman-Wunsch (1970) algorithmuses
Dynamic Programming
70
Dynamic programming a computational technique.
It is applicable when large searches can be
divided into a succession of small stages, such
that (1) the solution of the initial search stage
is trivial, (2) each partial solution in a later
stage can be calculated by reference to only a
small number of solutions in an earlier stage,
and (3) the last stage contains the overall
solution.
71
Dynamic programming can be applied to problems of
alignment because ALIGNMENT SCORES obey the
following rules
72
Path Graph for aligning two sequences
73
allowed
74
not allowed
75
(No Transcript)
76
No penalty for mismatches. No scores for matches.
77
(No Transcript)
78
(No Transcript)
79
(No Transcript)
80
(No Transcript)
81
(No Transcript)
82
(No Transcript)
83
(No Transcript)
84
(No Transcript)
85
The alignment is produced by starting at the
highest similarity score in either the rightmost
column or the bottom row, and proceeding from
right to left by following the best pointers.
This stage is called the traceback. The graph of
pointers in the traceback is also referred to as
the path graph because it defines the paths
through the matrix that correspond to the optimal
alignment or alignments.
86
Scoring Matrices
Mismatch and gap penalties should be inversely
proportional to the frequencies with which
changes occur.
87
Transitions (68) occur more frequently than
transversions (32). Mismatch penalties for
transitions should be smaller than those for
transversions.
88
Empirical substitution matrices
PAM (Percent/Point Accepted Mutation) BLOSUM
(BLOcks SUbstitution Matrix)
89
PAM

• Developed by Margaret Dayhoff in 1978.
• Based on comparisons of very similar protein
  sequences.

90
Log-odds ratios

• A scoring matrix is a table of values that
  describe the probability of a residue (amino acid
  or base) pair occurring in an alignment.
• The values in a scoring matrix are log ratios of
  two probabilities.
• One is the random probability. The other
  is the probability of a empirical pair
  occurrence.
• Because the scores are logarithms of probability
  ratios, they can be added to give a meaningful
  score for the entire alignment. The more
  positive the score, the better the alignment!

91
The PAM matrices (Percent accepted mutations)

• Align sequences that are at least 85 identical.
• Minimizes ambiguity in alignments and the number
  of coincident mutations.
• Reconstruct phylogenetic trees and infer
  ancestral sequences.
• Tally replacements "accepted" by natural
  selection, in all pairwise comparisons.
• Meaning, the number of times j was replaced by i
  in all comparisons.
• Compute amino acid mutability (i.e., the
  propensity of a given amino acid, j, to be
  replaced).

92
The PAM matrices

• Combine data to produce a Mutation Probability
  Matrix for one PAM of evolutionary distance,
  which is used to calculate the Log Odds Matrix
  for similarity scoring.
• Thus, depending on the protein family used,
  various PAM matrices result - some of which are
  good at locating evolutionary distant conserved
  mutations and some that are good at locating
  evolutionary close conserved mutations.

93
More on log-odds ratios
In PAM log-odds scores are multiplied by 10 to
avoid decimals. Therefore, a PAM score of 2
actually corresponds to a log-odds ratio of 0.2.
0.2 substitioni to j log10 (observed ij
mutation rate) / (expected rate) The value
0.2 is log10 of the relative expectation value of
the mutation. Therefore, the expectation value
is 100.2 1.6. So, a PAM score of 2 indicates
that (in related sequences) the mutation would be
expected to occur 1.6 times more frequently than
random.
94
PAM250

• Calculated for families of related proteins (gt85
  identity)
• 1 PAM is the amount of evolutionary change that
  yields, on average, one substitution in 100 amino
  acid residues
• A positive score signifies a common replacement
  whereas a negative score signifies an unlikely
  replacement
• PAM250 matrix assumes/is optimized for sequences
  separated by 250 PAM, i.e. 250 substitutions in
  100 amino acids (longer evolutionary time)

95
PAM250
Sequence alignment matrix that allows 250
accepted point mutations per 100 amino acids.
PAM250 is suitable for comparing distantly
related sequences, while a lower PAM is suitable
for comparing more closely related sequences.
96
Selecting a PAM Matrix

• Low PAM numbers short sequences, strong local
  similarities.
• High PAM numbers long sequences, weak
  similarities.
• PAM60 for close relations (60 identity)
• PAM120 recommended for general use (40 identity)
• PAM250 for distant relations (20 identity)
• If uncertain, try several different matrices
• PAM40, PAM120, PAM250 recommended.

97
BLOSUM

• Blocks Substitution Matrix
• Steven and Jorga G. Henikoff (1992).
• Based on BLOCKS database (www.blocks.fhcrc.org)
• Families of proteins with identical function.
• Highly conserved protein domains.
• Ungapped local alignment to identify motifs
• Each motif is a block of local alignment.
• Counts amino acids observed in same column.
• Symmetrical model of substitution.

98
BLOSUM62

• BLOSUM matrices are based on local alignments
  (blocks or conserved amino acid patterns).
• BLOSUM 62 is a matrix calculated from comparisons
  of sequences with no less than 62 divergence.
• All BLOSUM matrices are based on observed
  alignments they are not extrapolated from
  comparisons of closely related proteins.
• BLOSUM 62 is the default matrix in BLAST 2.0.

99
BLOSUM Matrices

• Different BLOSUMn matrices are calculated
  independently from BLOCKS
• BLOSUMn is based on sequences that are at most n
  percent identical.

100
BLOSUM62
The procedure for calculating a BLOSUM matrix is
based on a likelihood method estimating the
occurrence of each possible pairwise
substitution. Only aligned blocks are used to
calculate the BLOSUMs. The higher the score The
more closely related sequences.
101
Why is BLOSUM62 called BLOSUM62?
Because all blocks whose members shared at least
62 identity with ANY other member of that block
were averaged and represented as 1 sequence.
102
Selecting a BLOSUM Matrix

• For BLOSUMn, higher n suitable for sequences
  which are more similar
• BLOSUM62 recommended for general use
• BLOSUM80 for close relations
• BLOSUM45 for distant relations

103

• Equivalent PAM and Blosum matricesThe following
  matrices are roughly equivalent...
• PAM100 gt Blosum90
• PAM120 gt Blosum80
• PAM160 gt Blosum60
• PAM200 gt Blosum52
• PAM250 gt Blosum45Generally speaking...
• The Blosum matrices are best for detecting local
  alignments.
• The Blosum62 matrix is the best for detecting the
  majority of weak protein similarities.
• The Blosum45 matrix is the best for detecting
  long and weak alignments.

Less divergent
More divergent
104
Comparison of PAM250 and BLOSUM62
The relationship between BLOSUM and PAM
substitution matrices BLOSUM matrices with
higher numbers and PAM matrices with low numbers
are both designed for comparisons of closely
related sequences. BLOSUM matrices with low
numbers and PAM matrices with high numbers are
designed for comparisons of distantly related
proteins. If distant relatives of the query
sequence are specifically being sought, the
matrix can be tailored to that type of search.
105
Scoring matrices commonly used

• PAM250
• Shown to be appropriate for searching for
  sequences of 17-27 identity.
• BLOSUM62
• Though it is tailored for comparisons of
  moderately distant proteins, it performs well in
  detecting closer relationships.
• BLOSUM50
• Shown to be better for FASTA searches.

106
Effect of gap penalties on amino-acid alignment
Human pancreatic hormone precursor versus
chicken pancreatic hormone (a) Penalty
for gaps is 0 (b) Penalty for a gap of size k
nucleotides is wk 1 0.1k (c) The same
alignment as in (b), only the similarity between
the two sequences is further enhanced by showing
pairs of biochemically similar amino acids
107
An Alignment
108
Local vs. Global Alignment

• The Global Alignment Problem tries to find the
  longest path between vertices (0,0) and (n,m) in
  the edit graph.
• The Local Alignment Problem tries to find the
  longest path among paths between arbitrary
  vertices (i,j) and (i,j) in the edit graph.

109
Local vs. Global Alignment

• Global Alignment
• Local Alignmentbetter alignment to find
  conserved segment

--T-CC-C-AGT-TATGT-CAGGGGACACGA-GCATGCAGA-G
AC


AATTGCCGCC-GTCGT-T-TTCAG----CA-GTTATGT-CAGAT-
-C
tccCAGTTATGTCAGgggacacgagcatgcagag
ac

aattgccgccgtcgttttcagCAGTTATGTCAGatc
110
Local Alignments Why?

• Two genes in different species may be similar
  over short conserved regions and dissimilar over
  remaining regions.
• Example
• Homeobox genes have a short region called the
  homeodomain that is highly conserved between
  species.
• A global alignment would not find the homeodomain
  because it would try to align the ENTIRE sequence

111
Link for Dynamic Programming tutorial

• http//www.sbc.su.se/pjk/molbioinfo2001/dynprog/d
  ynamic.html
