Case Report

1
Radiological Category
Principal Modality (1) Principal Modality (2)
Genitourinary
CT
CR

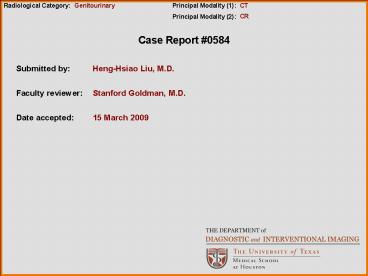

Case Report 0584
Submitted by
Heng-Hsiao Liu M.D.
Faculty reviewer
Stanford Goldman M.D.
Date accepted
15 March 2009
2
Case History

• 40 year old male with no past medical history
  status post motor vehicle collision.

3
Radiological Presentations

Coronal enhanced CT
4
Radiological Presentations

Delayed axial enhanced CT
5
Test Your Diagnosis
Which one of the following is your choice for the
appropriate diagnosis After your selection go
to next page.

• Transitional cell carcinoma
• Ureterocele
• Urinary calculus
• Bladder diverticulum

6
Additional Images

Oblique pelvic radiograph during contrast
excretion
7
There is cystic dilatation and telescoping of the
distal left ureter into the bladder best seen on
delayed images with proximal hydronephrosis of
the left kidney. No calculus or soft tissue
density is identified at the ureteropelvic
junction. Pelvic radiograph revealed the classic
cobra head sign a contrast-filled ureter
draining into the bulbous dilatation of its
distal end with a surrounding radiolucent halo
seen within the bladder. These findings are
consistent a simple ureterocele.
Findings
8
Differentials

• Transitional cell carcinoma
• Urinary calculus
• Bladder diverticulum
• Urachal cyst

9
Discussion

• A ureterocele is defined as a cystic dilatation
  of a prolapsed intravesical segment of the
  distal ureter. This may be due to a congential
  narrowing of the ureteral meatus which then
  dilates and eventually prolapses into the
  bladder. Inflammation or trauma leading to
  fibrosis of the ureteral meatus later in life may
  also precede the development of a ureterocele.
  Adult-type ureteroceles are more common in women.

Fig 1. Simple uretocele. Berrocal et. al. (1)
10
Discussion

• Ureteroceles are classified as simple or ectopic.

• In simple ureteroceles the orifce of the ureter
  and the ureterocele itself are intravesical. They
  are incidental findings in asymptomatic adult
  patients but when large they can cause
  obstruction of the bladder neck along with
  obstruction of the ipsilateral ureter.
• The ectopic ureterocele lies within the submucosa
  of the bladder and some part of it may extend
  into the bladder neck or urethra. It is usually
  diagnosed in childhood and almost always seen in
  association with duplex ureters typically
  arising from the upper pole ureter.

Fig. 2. Prolapsed ureterocele. Berrocal et. al.
(1)
11
Discussion

• Fig. 3. Sonographic findings are characteristic
  usually seen as a rounded sonolucent mass with
  echogenic walls that projects into the bladder.
• Berrocal et. al. (1)

12
Discussion

• An important differential consideration is
  pseudoureterocele which is defined as an
  incomplete distal ureteral obstruction associated
  with a tumor or calculus. Stone impaction at the
  ureteropelvic junction with surrounding edema or
  tumor overgrowth at the distal ureter may both
  present with the classic cobra head sign.
  Therefore one must carefully inspect the
  cobras hood for focal areas of thickening
  irregularity or loss of definition. Other
  suspicious findings include irregularities of the
  bladder wall moderate to severe obstruction of
  the proximal ureter or stones elsewhere in the
  urinary tract.
• Cystoscopic evaluation may be helpful in
  difficult cases.

Fig. 4. Impacted ureteral stone. Dyer et. al. (3)
Fig. 5. Transitional cell carcinoma. Dyer et. al.
(3)
13
Additional Images

Axial CT Lung Window
14
Additional Images

Axial CT Lung Window
15
Additional Images

Axial enhanced CT
16
Additional Images

Cystogram
17
CT revealed a small amount of free air in the
abdomen and a tiny amount of free fluid in the
pelvis. The bladder was decompressed with a Foley
but otherwise unremarkable. No pelvic fractures
were identified. A cystogram performed to
work-up the patients hematuria revealed
intraperitoneal bladder rupture.
Intraoperatively no bowel injury was seen. It is
suspected that the Foley drained most of the free
fluid in the pelvis and introduced a small amount
of air.
Findings
18
Discussion

• Bladder injury may result from blunt or
  penetrating trauma and the propensity for
  rupture is related to the degree of distension at
  the time of impact. Delayed diagnosis may
  significantly increase mortality.
• Bladder injury is classified into five types
• 1 Contusion
• 2 Intraperitoneal
• 3 Interstitial
• 4 Extraperitoneal
• 5 Combined intraperitoneal and extraperitoneal

Fig. 6. Type 2 bladder rupture. Vaccaro et. al.
(4)
19
Discussion

• Types 1 3 are managed conservatively type 4
  needs catheter drainage types 2 5 require
  surgical treatment.
• CT with intravenous contrast is inadequate to
  diagnose bladder injury as there is inadequate
  distension from the antegrade flow of contrast
  from the ureters.
• A retrograde cystogram or CT cystography can be
  performed to assess for bladder injury which may
  be suspected in the presence of pelvic fractures
  intraperitoneal free fluid or gross hematuria.

Fig. 7. Contrast between bowel loops in a type 2
bladder injury. Vaccaro et. al. (4)
20
Intraperitoneal Bladder Rupture with Left Simple
Ureterocele
Diagnosis
21
1. Chavhan GB. The cobra head sign. Radiology.
2002 Dec225(3)781-2. 2. Berrocal T
López-Pereira P Arjonilla A Gutiérrez J.
Anomalies of the distal ureter bladder and
urethra in children embryologic radiologic and
pathologic features. Radiographics. 2002
Sep-Oct22(5)1139-64. 3. Dyer RB Chen MY
Zagoria RJ. Classic signs in uroradiology.
Radiographics. 2004 Oct24 Suppl 1S247-80.4.
Vaccaro JP Brody JM. CT cystography in the
evaluation of major bladder trauma.
Radiographics. 2000 Sep-Oct20(5)1373-81. 5.
Sandler CM Hall JT Rodriguez MB Corriere JN
Jr. Bladder injury in blunt pelvic trauma.
Radiology. 1986 Mar158(3)633-8.
References
