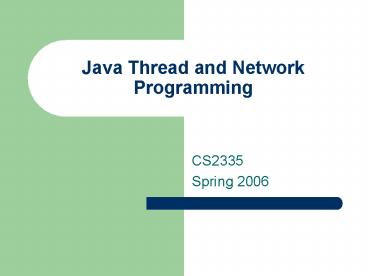

Java Thread and Network Programming

1
Java Thread and Network Programming

• CS2335
• Spring 2006

2
Concurrency/Threading

• Pretending to do more than 1 thing at a time.
• Process vs. Thread
• Process Own instance of JVM (Heavyweight)
• Separate address space
• Separate resources
• Threads Run in same JVM (Lightweight)
• Use same address space
• Share same resources

3
Threads

• Executes its own code sequentially
• Keeps its own program counter/Stack
• Under control of JVM after start
• Should execute clear atomic task
• Threads impact performance (unless multiple
  processors), so use only when necessary

4
Java 1.5 New Concurrency Constructs

• See package java.util.concurrent
• Article at
• http//java.sun.com/developer/technicalArticles/J2
  SE/concurrency/
• Understanding theory in CS2200
• We just learn mechanics of programming in 2335!

5
Life Cycle of a Thread
6
Making a Thread in Java

• Preferred Implement the Runnable interface
• public class MyTask implements Runnable
• public void run( )
• //your code here
• (JDK 1.4) Then create a thread and pass your
  Runnable object.
• //driver
• Thread t new Thread(new MyTask( ), MyName)
• (JDK 1.4) Then start the thread.
• t.start()

7
Java 1.5 Thread Pool

• Creating threads is expensive.
• Let JVM create some threads, keep them around and
  use them to execute your Runnable objects.
• Java.util.concurrent.ExecutorService can manage
  threads
• CachedPool
• FixedPool
• ScheduledPool
• (JDK 1.5) Create a thread pool.
• ExecutorService pool Executor.newFixedThreadPool
  (5)
• (JDK 1.5) Start the thread
• pool.execute(new MyTask())

8
Making a Thread in Java (2)

• Alternative Subclass Thread class
• public class MyThread extends Thread
• public void run( )
• public MyThread ( String s )
• super(s)
• Then create the thread and start it
• //in Driver
• MyThread mt new MyThread(My ID)
• mt.start()

9
Thread Problems

• Calling run( ) instead of start( ).
• Messing up priorities (if it aint broke, dont
  fix it!)
• Need to wakeup/terminate a thread?
  t.interrupt() (not t.stop()!!!!)
• Need to let someone else go? t.yield()
• Need to wait for a thread to finish? t.join()
• Race Conditions use synchronized or new
  concurrency constructs (ReentrantLock) to protect
  critical parts of your code.
• Deadlock await( ), signalAll( ), signal( ), 1.5
  constructs
• await must have a signalAll/signal somewhere
• signalAll/signal must be after a lock

10
GUI and Thread Problems

• Symptom Application stops responding.
• Cause Listener (handler) takes too long.

AWT Event Queue
Mouse/Key Events
Native OS
AWT Event Dispatch Thread
Processes
Your listener code executes in the Event Dispatch
Thread. Long code No events get processed!
11
Solutions

• Keep Listener code execution time short
• What if I have a lot to do?
• Make a SwingWorker (download from Sun)
• Use FoxTrot (download from SourceForge)
• Only perform GUI updates (paint etc) from the
  event dispatch thread (Swing not thread-safe).
• Use
• java.awt.EventQueue.invokeLater(someRunnable )
• java.awt.EventQueue.invokeAndWait(someRunnable)
• (note) javax.swing.SwingUtilities wraps
  EventQueue

12
Example
public static void main(String args)
//Schedule a job for the event-dispatching
thread //creating and showing this
application's GUI. java.awt.EventQueue.invok
eLater( new Runnable()
public void run()
createAndShowGUI()
)
13
Networking

• Talking to other computers
• Two models
• Client/Server
• Peer to Peer
• Communications uses Protocols an agreed upon
  format for messages
• TCP/IP is standard for internet
• Connection is a host port

14
TCP/IP in Java

• Reliable (TCP) (Can test Server with Telnet)
• Socket
• ServerSocket
• Unreliable (UDP)
• DatagramSocket
• Multicast (Usually for Peer to Peer)
• MulticastSocket
• These all block (wait) until data is available to
  read.

15
Non-blocking IO (nio)

• Can have multiple clients without threads
• Server must maintain all state for every client
• ServerSocketChannel
• SocketChannel

16
Remote Method Invocation (RMI)

• Call methods in other processes directly
• Even if other process is on different machine!
• Security Issues make it tough to get up on all
  machines
• All apps must be Java apps.
• NOT SUPPORTED IN CS2335. Use prohibited on some
  labs (like Lab 3).

17
Java-Specific Network Libraries

• JSDT Java Shared Data Toolkit
• Building groupware, chat, whiteboards, etc.
• JXTA Java P2P Framework

18
Basic Sequence (TCP)

• Server starts up a server socket on a particular
  port number and waits for a client to try and
  connect
• Client creates a socket to a particular host and
  port.
• Server accepts the connection. Starts a thread
  to handle the new client with a dedicated socket.
• Server and client send messages over streams
• Client disconnects at end of session

19
Most Common Method

• Reliable Connection (TCP)
• Simple Server (1 client at a time)
• public void run( )
• ServerSocket theServer new
  ServerSocket(43902)
• Socket theClient null
• while (true)
• theClient theServer.accept( )
• handleClient(theClient)

Note This handles one client request at a time!
20
After Connection

• Can get client information
• theClient.getInetAddress().getHostName()
• Can get streams to interact
• theClient.getInputStream( )
• theClient.getOutputStream( )
• Remember to flush streams
• Typically wrap input in BufferedReader
• Typically wrap output in PrintWriter

21
A Simple Client

• We make a socket to connect to host
• Socket s new Socket (localhost, 43902)
• Then we grab the streams just like in the Server
  example.

22
What about multiple clients

• We have to have the server fire off a thread to
  handle each connection.
• In our SimpleServer, instead of calling
  handleClient method, we have to create a thread
  with the handler code, and start that thread up.
• After starting the thread, the server can go back
  immediately to accepting connections.

23
(No Transcript)
24
What about complex data?

• So what if we do not want a text-based protocol?
• We can serialize objects across the network
  connection, just like strings.
• ObjectInputStream / ObjectOutputStream
• All apps must be in Java

25
Tricks to ObjectStreams

• When stream first made, Java sends version number
  and sync information, therefore
• Always open the output stream first and flush
• Then open the input stream. Otherwise the input
  will block looking for version info, and there is
  none.
• When sending many objects, watch out for
  buffering problems
• Use readUnshared/writeUnshared as opposed to
  readObject/writeObject

26
Where do I start????

• First have to decide on a PROTOCOL
• What kind of information goes between the
  distributed machines?
• Typically Data and Commands
• Text Strings (SMTP Example RFC 821)
• Client MAIL FROMwatersr_at_cc.gatech.edu \n
• Server 250 OK \n
• Client QUIT \n
• Server 250 smtp.cc.gatech.edu \n

27
Protocols

• Text is nice for cross platform, ease of testing
  (can use telnet to test servers/clients)
• What about binary data?
• MIME / UUENCODE etc.
• Object Serialization
• Restricts you to Java only
• Protocol consists of message objects that are
  commands and data.
• Must build client/servers in parallel and more
  expensive test harness
• Binary/Text data transmission is transparent

28
Protocols

• How much does the server need to remember between
  messages
• Stateless servers Server keeps no information,
  each client request is atomic Request-Response
• State servers Server keeps information about
  previous client exchanges. Knows where it is at
  any point.

29
Protocol Design for Simple Game

• Guess a number, clients connect to a server and
  send guesses, server notifies client if they win.
• State vs. Stateless
• Important Phases
• Connect / Setup
• Commands
• Data
• Disconnect / Cleanup

30
Now we design the client/server

• Need just one client at a time guessing?
• Single thread client/server
• RMI
• Multiple clients guessing at a time?
• Multi threaded server
• RMI
• NIO
• Multiple clients sharing guesses?
• Multicast
• JXTA Peer-to-Peer
