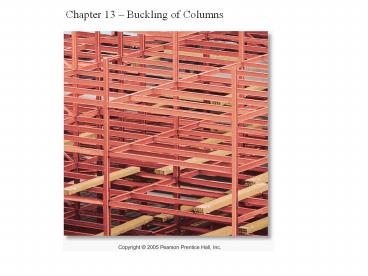

Chapter 13 Buckling of Columns

1
Chapter 13 Buckling of Columns
2
Failure mode of column buckling (i.e. not
stress) At Pcr, stress less than yield strength!
3
At Pcr, column is on verge of being unstable so
small lateral force, F will cause column to
buckle.
When F is removed, stays buckled. If P reduced
to below Pcr will straighten out, if P increased
beyond Pcr will increase lateral deflection
Load P can be increased until failure occurs by
yield or fracture
4
Derivation of Eulers Equation
Homogeneous, second order, linear DE with
constant coefficients.
5
Solution to DE is
C1 and C2 constants of integration. u0 at x0
so C20.
Which leaves
Which is satisfied if
Smallest value of P??
6
(No Transcript)
7
Eulers Equation
PCR critical or maximum axial load on the
column just before it begins to buckle. E
modulus of elasticity for the material I least
moment of inertia of the columns cross-section L
unsupported length of the column, whose ends
are pinned
8
(No Transcript)
9
Examples
10
(No Transcript)
11
(No Transcript)
