Title: OpenGL Tutorial CISC 640440 Computer Graphics


1

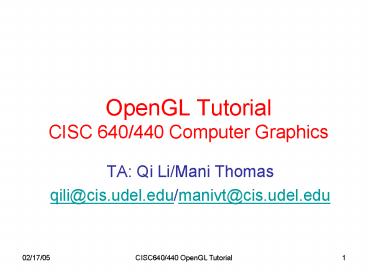

OpenGL Tutorial CISC 640/440 Computer Graphics
  • TA Qi Li/Mani Thomas
  • qili_at_cis.udel.edu/manivt_at_cis.udel.edu

2
Outline
  • Submission policy
  • OpenGL Basics and setup
  • Draw geometry primitives
  • Transformations in OpenGL
  • Sample codes
  • Office hour

3
Submission Policy
  • How to submit
  • What to submit
  • On late submission

4
How to Submit
  • Tar/zip file
  • Unix
  • gt tar -cf lastname_projectNum.tar projectDir
  • gt gzip lastname_projectNum.tar
  • Windows
  • get a winzip application (if you don't have)
  • go the directory storing your assignments
  • right click your mouse to zip the directory
  • Submit the tar/zip file through the course web
    (More details will be announced later)

5
What to Submit
  • Must contain
  • readme
  • Makefile
  • Source codes
  • Output figures (if any)
  • Must NOT contain
  • obj intermediate files
  • obj data files

6
What to Submit Readme
  • My name
  • My email myemail_at_udel.edu
  • Project Num
  • Part 1 description of this project
  • This project is to apply xxx algorithm to
    plot xxx,
  • Part 2 what I did and what I didn't do
  • I completed all/most/some functionalities
    required in this project.
  • The system is robust and the rendering is
    fairly efficient,
  • I didn't do . The reason is .
  • Part 3 What files contained
  • Part 4 How to compile and how to run
  • The project is developed in windows system
    and tested in stimpy (strauss) unix system,

7
What to Submit Makefile for EECIS
  • Makefile for EECIS
  • uncomment the following line for the C
    compiler(cc)
  • CC cc CC CC
  • TOP /usr/local/mesa
  • list the name of the executable you wish to
    produce
  • exec hello
  • list all your object files separated by spaces
  • objects hello.o
  • list all your header files separated by spaces
  • includes lines5.h lines5_2.h

  • LINKDIR -L(TOP)/lib -L/usr/openwin/lib
  • INCLUDEDIR (TOP)/include
  • LLDLIBS -lGL -lglut -lMesaGLU -lMesaGL -lm
    -lX11 -lXext -lXmu \ -lXt -lXi
  • (exec) (objects)
  • (CC) -o _at_ (LINKDIR) (objects) (LLDLIBS)
  • (objects) (includes) (CC) -c -I(INCLUDEDIR)
    lt
  • .PHONY clean
  • clean -rm -f (objects) (exec)

8
What to Submit Makefile for Composer
  • Makefile for Composer/Strauss
  • uncomment the following line for the C
    compiler(cc)
  • CC cc CC CC
  • TOP /home/base/usrb/chandrak/640/OpenGL/Mesa-2.6
  • list the name of the executable you wish to
    produce
  • exec hello
  • list all your object files separated by spaces
  • objects hello.o
  • list all your header files separated by spaces
  • includes lines5.h lines5_2.h

  • LINKDIR -L(TOP)/lib -L/usr/openwin/lib
  • INCLUDEDIR (TOP)/include
  • LLDLIBS -lGL -lglut -lMesaGLU -lMesaGL -lm
    -lX11 -lXext -lXmu \ -lXt -lXi
  • (exec) (objects)
  • (CC) -o _at_ (LINKDIR) (objects) (LLDLIBS)
  • (objects) (includes) (CC) -c -I(INCLUDEDIR)
    lt
  • .PHONY clean
  • clean -rm -f (objects) (exec)

9
Late Submission
  • N 10 percent of the points you got deducted if
    there are N (lt5) late days (not counting
    weekends). No acceptance for the submission more
    than 5-day late
  • Each student has three free (i.e. without any
    penalty) late days for entire semester. You
    should notify the TA the use of free late days
    ahead

10
Outline
  • Submission policy
  • OpenGL Basics and setup
  • Draw geometry primitives
  • Transformations in OpenGL
  • Sample codes
  • Office hour

11
OpenGL What is It?
  • GL (Graphics Library) Library of 2-D, 3-D
    drawing primitives and operations
  • API for 3-D hardware acceleration
  • GLU (GL Utilities) Miscellaneous functions
    dealing with camera set-up and higher-level shape
    descriptions
  • GLUT (GL Utility Toolkit) Window-system
    independent toolkit with numerous utility
    functions, mostly dealing with user interface

12
OpenGL Setup in Unix
  • Unix (strongly recommended)
  • add the following command in your .cshrc
  • EECIS setenv
    LD_LIBRARY_PATH /usr/local/mesa/lib/usr/openwin/l
    ib
  • Composor setenv LD_LIBRARY_PATH
    /home/usra/usrb/chandrak/640/OpenGL/Mesa-2.6/usr/
    openwin/lib
  • Download Makefile (for hello.c)
  • Makefile_eecis, or
  • Makefile_composor
  • remote display (If your local machine is not
    stimpy or strauss, you need to do the following)
  • localmachine gt ssh stimpy.cis.udel.edu
  • Compile stimpygt make
  • Run stimpy gt hello

13
OpenGL Setup in Windows
  • Windows/VC 6.0
  • Get glut http//www.xmission.com/nate/glut.html
  • An excellent source for the setup of openGL on
    Windows/VC 6.0 is available at
  • http//www.lighthouse3d.com/opengl/glut/index.php

14
OpenGL Setup in Windows
  • Windows (step 1 create new project)

15
OpenGL Setup in Windows
  • Windows (step 2 create new project)

16
OpenGL Setup in Windows
  • Windows (step 3 insert file)

17
OpenGL Setup in Windows
  • Windows (step 4 project setting)

18
OpenGL Setup in Windows
  • Windows (step 5 project setting)

19
Outline
  • Submission policy
  • OpenGL Basics and setup
  • Draw geometry primitives
  • Transformations in OpenGL
  • Sample codes
  • Office hour

20
OpenGL Geometric Primitives
21
Specifying Geometric Primitives
  • Primitives are specified using
  • glBegin(primType)
  • ...
  • glEnd()
  • primType determines how vertices are combined

GLfloat red, green, blue GLfloat x,
y glBegin(primType) for (i 0 i lt nVerts
i) glColor3f(red, green, blue)
glVertex2f(x, y) ... // change coord.
values glEnd()
22
OpenGL Vertex/Color Command Formats
glVertex3fv( v )
glColor3fv( v )
Number of components
Data Type
Vector
b - byte ub - unsigned byte s - short us -
unsigned short i - int ui - unsigned int f -
float d - double
omit v for scalar form e.g., glVertex2f(x,
y) glColor3f(r, g, b)
2 - (x,y) 3 - (x,y,z), (r,g,b) 4 -
(x,y,z,w), (r,g,b,a)
23
Outline
  • Policy
  • OpenGL Basics and setup
  • Draw geometry primitives
  • Transformations in OpenGL
  • Sample codes
  • Office hour

24
OpenGL 3-D coordinates
  • Right-handed system
  • From point of view of camera looking out
    into scene
  • X right, -X left
  • Y up, -Y down
  • Z behind camera, -Z in front
  • Positive rotations are counterclockwise around
    axis of rotation

25
Transformations in OpenGl
  • Modeling transformation
  • Viewing transformation
  • Projection transformation

26
Modeling Transformation
  • Refer to the transformation of models (i.e., the
    scenes, or objects)
  • Generally,
  • glMultMatrixf(M_i)
  • Some simple transformations
  • Translation glTranslate(x,y,z)
  • Scale glScale(sx,sy,sz)
  • Rotation glRotate(theta, x,y,z)
  • x,y,z are components of vector defining axis of
    rotation
  • Angle in degrees direction is counterclockwise

27
Viewing Transformation
  • Refer to the transformation on the camera
  • Using glTranslate() and glRotate()
  • Using gluLookAt()
  • gluLookAt (eyeX, eyeY, eyeZ, centerX, centerY,
    centerZ, upX, upY, upZ)
  • eye (eyeX, eyeY, eyeZ)T Desired camera
    position
  • center (centerX, centerY, centerZ)T Where
    camera is looking
  • up (upX, upY, upZ)T Cameras up vector

28
Viewing Transformation
from Woo et al
29
Projection Transformation
  • Refer to the transformation from scene to image
  • Orthographic projection
  • glOrtho (left, right, bottom, top, near, far)

from Hill
30
Projection Transformation
  • Refer to the transformation from scene to image
  • Orthographic projection
  • glOrtho (left, right, bottom, top, near, far)
  • Perspective projection
  • glFrustum (left, right, bottom, top, near, far)

31
Projection Transformation
  • Refer to the transformation from scene to image
  • Orthographic projection
  • glOrtho (left, right, bottom, top, near, far)
  • Perspective projection
  • glFrustum (left, right, bottom, top, near, far)

32
Notes on openGl transformations
  • Before applying modeling or viewing
    transformations, need to set glMatrixMode(GL_MODE
    LVIEW)
  • Before applying projection transformations, need
    to set glMatrixMode(GL_Projection)
  • Replacement by either following
    commands glLoadIdentity() glLoadMatrix(M)
  • Multiple transformations (either in modeling or
    viewing) are applied in reverse order

33
Notes on openGl transformations
  • Before applying modeling or viewing
    transformations, need to set glMatrixMode(GL_MODE
    LVIEW)
  • Before applying projection transformations, need
    to set glMatrixMode(GL_Projection)
  • Replacement by either following
    commands glLoadIdentity() glLoadMatrix(M)
  • Multiple transformations (either in modeling or
    viewing) are applied in reverse order

34
Outline
  • Policy
  • OpenGL Basics and setup
  • Draw 2-D primitives
  • Transformation in OpenGL
  • Sample codes
  • Office hour

35
Sample codes
  • void main(int, char)
  • void init (void)
  • void reshape (int, int)
  • void display (void)
  • void menu (void)
  • void dda_line (int, int, int, int)
  • void midpoint_line (int, int, int, int)
  • void gl_line (int, int, int, int)
  • void mouse (int, int, int, int)
  • void keyboard (unsigned char, int, int)

36
Sample code main function
int main (int argc, char argv) glutInit
(argc, argv) glutInitDisplayMode (GLUT_SINGLE
GLUT_RGB) glutInitWindowSize (400, 400)
glutInitWindowPosition (400, 350)
glutCreateWindow ("Scan Conversion
Algorithms") init () glutDisplayFunc
(display) glutReshapeFunc (reshape)
glutMouseFunc (mouse) glutKeyboardFunc
(keyboard) menu () glutMainLoop ()
return (0) / ANSI C requires main to return
int. /
37
Sample code init
void init (void) / select clearing color
/ / this color is white --- full red,
green, and blue components / / the last
component is alpha(transparency) --- use zero /
glClearColor (1.0, 1.0, 1.0, 0.0)
38
Sample code reshape
void reshape (int w, int h) / This routine
is called when the initial GL window is created
and when the window is resized. It is
followed in execution by the 'display'
routine. / / initialize viewing values /
glViewport (0, 0, (GLint) w - 1, (GLint) h - 1)
glMatrixMode (GL_PROJECTION) glLoadIdentity
() glOrtho (0.0, (GLdouble) w, 0.0, (GLdouble)
h, -1.0, 1.0)
39
Sample code display
void display (void) / clear all pixels /
glClear (GL_COLOR_BUFFER_BIT) / don't wait!
start processing buffered OpenGL routines
/ glFlush ()
40
Sample code gl_line
void gl_line (int x0, int y0, int x1, int y1)
glColor3ub (0, 255, 0) / green / glBegin
(GL_LINES) glVertex2i (x0, y0)
glVertex2i (x1, y1) glEnd ()
41
Sample code mouse
void mouse (int button, int state, int x, int
y) switch (button) case
GLUT_LEFT_BUTTON if (state GLUT_DOWN)
printf ("x d, y d\n", x, y)
break case GLUT_RIGHT_BUTTON if
(state GLUT_DOWN) exit (0)
break default break
42
Outline
  • Policy
  • OpenGL Basics and setup
  • Draw 2-D primitives
  • Transformation in OpenGL
  • Sample codes
  • Office hour

43
Office hour of CISC640
  • Monday 300-500pm Pearson 115B
  • Email qili_at_cis.udel.edu
  • Webpage http//www.cis.udel.edu/qili/

44
Office hour of CISC440
  • Wed 500-700pm Pearson 115B
  • Email manivt_at_cis.udel.edu
  • Webpage http//www.cis.udel.edu/manivt/
Write a Comment
User Comments (0)
About PowerShow.com
