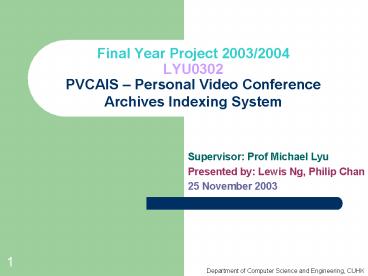

Final Year Project 20032004 LYU0302 PVCAIS Personal Video Conference Archives Indexing System

1
Final Year Project 2003/2004LYU0302PVCAIS
Personal Video Conference Archives Indexing
System

• Supervisor Prof Michael Lyu
• Presented by Lewis Ng, Philip Chan
• 25 November 2003

2
Outline

• Introduction
• Motivation
• Architecture of PVCAIS
• - Media Acquisition Module
• - Archive Indexing Module
• - Videoconference Accessing Module
• Implementation in First Term
• Future Work
• Conclusion

3
Introduction

• PVCAIS stands for
• Personal Video Conference Archives Indexing
  System
• A system that provides the convenient searching
  and browsing support for videoconferencing users
  on past videoconference archives

4
Introduction

• What is video conference?
• A real-time communication technology which
  combines different media
• audio, video, text chat, file transfer,
  whiteboard and shared communications
• - More precisely is multimedia conference

5
Motivation

• Videoconference is becoming popular in
• education, business, personal communication
• Participants wish to keep videoconference
  archives for later references
• Normal video and audio files are neither
  searchable nor helpful to recall their contents
• Indexing of videoconference archives has not been
  investigated till now

6
Architecture of PVCAIS

• Consists of 3 modules
• - Media Acquisition Module
• - Archive Indexing Module
• - Videoconference Accessing Module

7
Architecture of PVCAIS
Archive Indexing
Media Acquisition
Videoconference Accessing
8
Media Acquisition

• Extracts channel data and forms media files
• Videoconferencing physically contains 4 types of
  channels Audio, Video, Data and Control
• Audio and Video channels transmit incoming/
  outgoing audio and video information
• Data channel carries information for user
  application such as Text Chat, Whiteboard and
  File Transfer
• Control channel transmits system control
  information such as Member Information

9
Media Acquisition

• Video-in and Video-out channel
• Reduce redundancy just store key-frames
• Detect scene change in real time
• Each key frame picture is stored with a timestamp

10
Media Acquisition

• Audio-in and Audio-out channel
• mixed into one stream after videoconference
• will be used for Speech Recognition

• Text Chat channel
• sender, receiver
• message
• store with timestamp

11
Media Acquisition

• Whiteboard channel
• Consists of a text-based index file and a number
  of snapshot pictures
• Index file records timestamp for each whiteboard
  update event and the path of the corresponding
  snapshot picture
• Update of this channel happens in a period of
  time -gt need to detect when update begins and
  ends by monitoring data transfer in this channel

12
Media Acquisition

• File Transfer channel
• Will have a copy of the sent/received files to
  the directory of archive and an index file
• Index file includes senders and recipients user
  names and the path of the files

• Control channel
• Contains timestamp and information of each event
  such as member joined and member left

13
Media Acquisition

14
Archive Indexing

• 7 raw files are extracted in Media Acquisition
  Module
• Need to implement some indexing functions to
  retrieve more informationThese includes Face
  Detection, Face Recognition, Speech Recognition,
  OCR, Time-based Text Merging, Keyword Selection,
  Title Generation

15
Archive Indexing

• Face Detection
• - distinguish between Slides and Faces
• - if face is detected, find out the face region

Face Detection
Slide
Face Detection
Face
16
Archive Indexing

• Face Recognition
• - Associate human faces in Video-in with name
• - Need to keep a face base
• - If no match in the face base, ask remote user
  to enter the name

17
Archive Indexing

• Speech Recognition
• - Generate speech script from audio archive-
  Speech of a videoconferencing contains the most
  information
• - Can use commercial library Microsoft SAPI,
  IBM Via Voice

• OCR
• - Take the slide archive as input and recognizes
  text from them
• - Need to identify and localize text on the
  complex background

18
Archive Indexing

• Time-based Text Merging
• - Merge the Speech transcript, Chat script,
  Whiteboard script and slide text archive to Text
  source according to their timestamp

• Keyword Selection
• - takes the Text source as input
• - generates keyword for the videoconference

19
Archive Indexing

• Title Generation
• - takes the Text source as input
• - automatically generates a title for the
  videoconference

• Generate XML index file
• - integrates all the archives
• - stores all the related files of a
  videoconference into a single directory

20
Videoconference Accessing

• Provides an interface for user to manage, search
  and review all indexed conference.
• Allows user to modify the content of a
  conference, such as editing title or keywords, or
  delete a conference.
• Allows user to search for a conference by
  different criteria, such as member name or
  keyword.
• Allows user to review a conference by playing
  back the audio or the key frames.

21
Implementation

• NetMeeting 3.0
• A Windows feature that provide Internet
  conferencing function.
• Support video, audio and data conferencing
  including application sharing, chat, whiteboard
  and file transfer.
• Other features include remote desktop sharing.

22
Implementation

• NetMeeting 3.0 SDK
• An extension of NetMeeting, provides an interface
  for programmers and Web developers to integrate
  conferencing capabilities into their
  applications.
• API is in the form of COM interfaces and
  functions.

23
Implementation

• A simple NetMeeting compatible videoconference
  program built on top of the NetMeeting 3.0 SDK.
• Support
• Video
• Audio
• Text message
• File Transfer
• Whiteboard

24
Implementation

• By directly using the functions of the API, the
  following raw data can be obtained
• the members information
• file transfer record
• text messages record
• Video, audio and whiteboard data cannot be
  directly obtained.

25
Implementation

• Video
• create a thread to check the display of the video
  windows
• if scene change is detected, the video will be
  captured and stored as a still image.
• the stored images are key frames of the
  conference and will be used for face detection
  and recognition after the conference.

26
Implementation

• Audio
• create a thread to record the local audio from
  the microphone.
• when certain amount of audio data is recorded,
  send the audio data to all members of the
  conference.
• all the received audio files and locally recorded
  audio files will be combined to generate a single
  audio file.
• the final audio file will be used for voice
  recognition, the voice engine used is Microsoft
  SAPI.

27
Implementation

• Whiteboard
• cannot capture the NetMeeting whiteboard
  information because the format of the data is not
  stated in the API.
• solution create our own whiteboard function and
• data format.

28
Conclusion

• We developed a videoconferencing agent
• All channel data except whiteboard can be
  collected.
• Speech Recognition and Face Detection
  Recognition is integrated into the system but
  accuracy needs to be improved
• Simple searching can be performed on stored
  archives

29
Future Work

• Whiteboard
• Improve accuracy of Voice Recognition
• XML
• Better searching method
• OCR for slide in video
• Improve User Interface

30

• Q A Session
