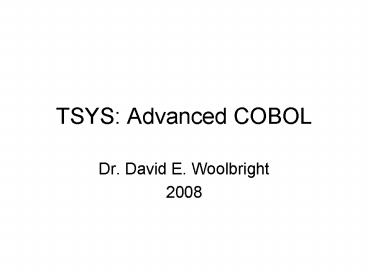

TSYS Advanced COBOL

• Dr. David E. Woolbright
• 2008

2
Documentation

• IBM Enterprise COBOL for z/OS
• http//www-306.ibm.com/software/awdtools/cobol/zos
  /library/
• Especially helpful for programmers
• Language Reference Manual
• Programming Guide

3
Course Outline

• QSAM File Processing
• Defining files
• Dynamic File processing in COBOL
• Subprograms
• CALL
• Parameter passing techniques
• CANCEL
• Nested programs
• Recursion
• Tables
• Single Dimension
• Multi-Dimension
• Subscripts and Indexes
• Searching

4
Course Outline

• Debugging
• Basics
• Dumps
• XML and COBOL
• Introduction to XML
• Parsers
• Cobol Features
• Parsing
• Events

5
Course Outline

• Files with Variable Length Records
• Strings
• STRING
• UNSTRING
• INSPECT
• Reference modification
• Pointers
• VSAM File Processing

6
Course Outline

• Files with Variable Length Records
• Strings
• STRING
• UNSTRING
• INSPECT
• Reference modification
• Pointers
• VSAM File Processing

7
QSAM File Processing

• Queued Sequential Access Method

8
QSAM Files

• Unkeyed, Sequentially created and processed
• Records cannot change length or position
• QSAM files on direct access storage can be
  modified with REWRITE
• ENVIRONMENT DIVISION.
• FILE-CONTROL paragraph
• SELECT
• I-O-CONTOL paragraph
• APPLY WRITE-ONLY
• DATA DIVISION
• FILE SECTION
• FD

9
(No Transcript)
10
Environment Division - File Control

• SELECT file-name1
• OPTIONAL
• ASSIGN assignment-name
• TO

11
Environment Division File-CONTROL

• Optional used for files opened in I-O, INPUT,
  or EXTEND. File doesnt have to be present when
  the program is executed.
• File-name1 identifies an FD entry (internal
  file name)
• Assignment-name identifies the external file.
  If name component of the SELECT clause is found
  in the JCL it is treated as a DD name. If not
  found in the JCL, then name is treated an an
  environment variable

12
QSAM File Name

• name
• label- S-

• Label documents for the programmer the device
  and device class to which the file is assigned.
  No effect on execution. Must end with a dash
• S Optional. Indicates sequential
  organization

13
Environment Variables
14
Exercise A (Dynamic Files)

• Statically allocate and read BCST.SICCC01.TESTPDS(
  DYNAMDAT)
• This file contains member names of other members
  in BCST.SICCC01.TESTPDS
• Dynamically Read each member that is listed and
  display the records in each member
• After you can display all the records, try
  writing out the records to a dynamically
  allocated file
• Use BCST.SICCC01.PDSLIB(DYNAM2) to help you read
  a file dynamically
• Use BCSC.SICCC01.PDSLIB(DYNAM1) to help you write
  a file dynamically

15
Environment Variables

• Defined as WORKING-STORAGE fields using value
  clauses
• 01 FILE-ENV-VAR PIC X(39)
• VALUE DYNFILEDSN(INPUT.FILE) SHR.

16
Reserve Clause (optional)

• RESERVE integer
•
  AREA
•
  AREAS

17
RESERVE Clause

• Specifies the number of I/O buffers allocated the
  file at run-time
• If omitted, the number of buffers is taken from
  the DD statement. If none are specified, the
  system default is taken

18
QSAM Buffering

• QSAM buffers can be allocated above the 16 MB
  line if all of the following are true
• - Enterprise COBOL
• - z/OS Language Environment
• - the programs are compiled with RENT and
  DATA(31)
• or
• compiled with NORENT and RMODE(ANY)
• - the program is executing in AMODE 31
• - the program is executing on MVS
• - the ALL31(ON) run-time option is used (for
  EXTERNAL files)

19
ORGANIZATION Clause (optional)

• ORGANIZATION IS SEQUENTIAL
• Other non-QSAM options INDEXED, RELATIVE, LINE
  SEQUENTIAL
• Records are read and written in a serial manner

20
PADDING Clause

• PADDING data
  name
• CHARACTER IS literal
•


Specifies a character for block padding on
sequential files Data name a one character
field Literal a one character alphanumeric
literal or national symbol
21
ACCESS MODE Clause

• ACCESS SEQUENTIAL
• MODE IS

Default mode is SEQUENTIAL Options for other
types of files include RANDOM and DYNAMIC
22
FILE STATUS Clause

• STATUS dname1
• FILE IS
  dname2

• - The operating system moves a value to dname1
  and possibly dname2 after each I/O operation.
• dname1 - a two character alphanumeric or
  national field
• dname2 used for VSAM

23
Environment DivisionI-O-CONTROL

• ENVIRONMENT DIVISION.
• INPUT-OUTPUT SECTION.
• FILE-CONTROL.
• SELECT
• I-O-CONTROL.
• APPLY WRITE-ONLY ON MYFILE.
• (Used for sequential variable blocked files.)

24
Defining QSAM Files and Records

• FILE-CONTROL.
• SELECT CUSTOMER-MASTER
• ASSIGN TO CUSTMAST
• ORGANIZATION IS SEQUENTIAL
• ACCESS MODE IS SEQUENTIAL
• FILE STATUS IS RC.

25
DATA DIVISIONFILE SECTION - Sequential
26
(No Transcript)
27
DATA DIVISIONFILE SECTION - FD
28
EXTERNAL

• The EXTERNAL clause specifies that a file
  connector is external, permitting file sharing
  between two programs in the same run unit

29
GLOBAL

• GLOBAL clause specifies the file-connector name
  is available to the declaring program and all
  programs contained directly or indirectly
• Used for nested programs

30
BLOCK CONTAINS

• BLOCK CONTAINS 0 RECORDS
• If this clause is omitted, records are unblocked
  by default!
• Allows the blocksize to be specified in the JCL
  or by the operating system
• Code this Statement! (TSYS Standard)

31
RECORD Clause

• Specifies the number of bytes in a record (fixed
  or variable)
• When omitted, the compiler determines lengths
  based on record descriptions.
• RECORD CONTAINS 80 CHARACTERS
• RECORD CONTAINS 50 TO 80 CHARACTERS
• RECORD IS VARYING IN SIZE
• FROM 40 TO 60 CHARACTERS
• DEPENDING ON REC-COUNT.

32
RECORDING MODE

• Specifies the format of physical records in a
  QSAM file (ignored for VSAM)
• F fixed size, V variable size, U unblocked,
  fixed or variable, S spanned, large records
  that span a block
• RECORDING MODE IS F
• RECORDING MODE IS V
• RECORDING MODE IS U
• RECORDING MODE IS S

33
DATA RECORD Clause

• DATA RECORD clause identifies the data areas
  associated with the file
• Syntax checked but is only documentation
• DATA RECORD IS INPUT-AREA.
• DATA RECORDS ARE INPUT-AREA1
• INPUT-AREA2

34
FD Example

• FD IN-FILE IS GLOBAL
• RECORDING MODE F
• BLOCK CONTAINS 0 RECORDS
• LABEL RECORDS ARE STANDARD
• RECORD CONTAINS 80 CHARACTERS
• DATA RECORD IS IN-AREA.
• 01 IN-AREA.
• 05

35
LABEL RECORDS

• Label records are records written at the
  beginning and end of DASD and Tape files that
  provide information about file
• Enterprise COBOL only supports standard labels
• LABEL RECORDS ARE STANDARD
• LABEL RECORDS ARE OMITTED

36
Subprograms
37
Calling a Subprogram

• Syntax for CALL
• CALL subprog name
• USING BY REFERENCE BY CONTENT
• ident1
• END-CALL
• The subprog name usually refers to an 8 byte
  field that contains the program name to be called
• Static call is made when subprogram name is
  hard-coded and compiler option NODYNAM
• Subprogram can be written in any supported
  language

38
Calling a Subprogram

• CALL variable-name
• USING BY REFERENCE
• BY CONTENT
• BY CONTENT LENGTH OF
• BY CONTENT ADDRESS OF
• ident1
• END-CALL
• The variable-name usually refers to an 8 byte
  field that contains the program name to be called
• Names can be longer with Enterprise COBOL
• The variable-name can be modified as the program
  is running to call different programs

39
Calling a Subprogram

• Linking to the called program is dynamic
• At TSYS, all calls are dynamic ( DYNAM compiler
  option)
• BY REFERENCE is the default
• BY REFERENCE provides the subprogram with access
  to a main program variable. The receiving
  variable is an alias for the passed variable
• BY CONTENT provides the subprogram with access to
  a copy of a main program variable

40
Calling a Subprogram

• BY CONTENT ADDRESS OF provides a copy of the
  address of the passed variable (must be a linkage
  area name)
• BY CONTENT LENGTH provides a copy of the length
  of a variable

41
Example Parameters
42
The Called Program

• Specifies the names of the receiving variables
  with a USING statement in the PROCEDURE DIVISION
  statement or in an ENTRY statement
• PROCEDURE DIVISION USING A.
• Or
• ENTRY COMPUTE USING COST RESULT.
• Or
• PROCEDURE DIVISION USING A COST RESULT.
• The variables in the using statement are 01
  group items defined in the LINKAGE SECTION or 77
  items
• LINKAGE SECTION.
• 01 A PIC X(8).
• O1 COST PIC S9(5) PACKED-DECIMAL.
• 01 RESULT PIC S9(5) BINARY.

43
The Called Program

• The called program can return values to the
  calling program by modifying variables that are
  passed by reference
• PROCEDURE DIVISION USING
• COST.
• MOVE ITEM-COST TO COST

44
Exercise 1

• Create a main program that calls a subprogram
• Print I am in the main program in the main
  program
• Call the subprogram
• Print I am in the subprogram in the subprogram
• Print I am back in the main program in the main.

45
Exercise 2

• Create a two variables X and Y in the main
  program (you pick the type and value).
• Print the values of X and Y in the main program
• Pass X BY REFERENCE and Y BY CONTENT to the
  subprogram
• Print the variables in the subprogram
• Change the values of each variable in the
  subprogram
• Print the length of x by passing the length using
  BY CONTENT LENGTH (Receiving variable PIC S9(8)
  BINARY)
• Print the values of the variables again in the
  main program

46
Canceling a Subprogram

• CANCEL syntax
• CANCEL literal
• CANCEL identifier
• Canceling a program means the program will be in
  its initial state if the program is called again
• Canceling a program closes all files associated
  with an internal file connector of the canceled
  program
• No action is taken when canceling a previously
  canceled program or one that has not been
  dynamically called

47
Exercise 3

• Have the main program call a subprogram four
  times.
• Create a local numeric variable Z in the
  subprogram with initial value 1.
• Each time the program is called, print Z and then
  add 1 to it.
• Repeat the experiment after adding IS INITIAL
  to the PROGRAM-ID
• PROGRAM-ID. MYPROG IS INITIAL.

48
Subprograms

• Subprograms remain in their last used state when
  they terminate with EXIT PROGRAM or GOBACK
• A program that is coded with INITIAL will always
  be called with its initial state

49
Exercise 4

• Repeat Exercise 3, canceling each program after
  each subprogram call

50
Return Codes

• Use the RETURN-CODE special register to test and
  transmit return codes through register 15
• After calling a subprogram, test RETURN-CODE to
  see if the subprogram completed normally
• At the end of a suprogram, set RETURN-CODE to
  indicate the results of the call

51
Exercise 5

• Write a main program that passes a numeric
  parameter, say X, to a subprogram. If the
  parameter is negative have the subprogram set a
  return code of 4. If the parameter is
  non-negative, the subprogram should set the
  return code to 0. Have the main program test the
  return code after the subprogram has completed.
  The main program should print a message
  indicating the type of number the subprogram
  received. Try running the main program passing
  negative and non-negative values for X.

52
External Files

• Files can be shared by multiple programs in the
  same run unit.
• Each program declares the file to be EXTERNAL
• FD MYFILE IS EXTERNAL
• RECORD CONTAINS 80 CHARACTERS
• RECORDING MODE IS F.
• 01 MY-RECORD.

53
External Files

• Each program has the same SELECT statement
• SELECT MY-FILE
• ASSIGN TO MYFILE
• FILE STATUS IS MYSTATUS
• ORGANIZATION IS SEQUENTIAL.

54
External Files

• Make the file status field external so there is
  only one shared field for all programs. Each
  program declares
• 01 MYSTATUS PIC 99 EXTERNAL.
• Be sure to work in locate-mode.

55
Exercise 6

• Write a main program that opens a sequential file
  and calls a subprogram each time it needs a
  record. Write a subprogram that reads a single
  record and returns to the main program. Have the
  main program print all the records in the
  sequential file and then close the file.
• Share the same file between the two programs by
  making the file external with a shared file
  status field.

56
PROCEDURE DIVISIONRETURNING

• An alternate form of passing information back to
  a calling program is provided
• PROCEDURE DIVISION RETURNING dataname
• To call a Function the invocation is
• CALL program-name RETURNING dataname
• Avoid this alternative in favor of Pass By
  Reference.

57
Nested Programs

• Avoided in production programs at TSYS
• Convenient for developing (one file, one
  compilation)
• Nested programs can be separated easily into
  regular programs after debugging
• Can be used instead of PERFORM
• CALL to a nested program is as efficient as a
  PERFORM
• Each program ends with END PROGRAM

58
Nested Program Structure

• ID DIVISION.
• PROGRAM-ID. X.
• PROCEDURE DIVISION.
• CALL X1
• GOBACK
• .
• ID DIVISION.
• PROGRAM-ID. X1.
• PROCEDURE DIVISION.
• DISPLAY I AM IN X1
• GOBACK
• .
• END PROGRAM X1.
• END PROGRAM X.

PROGRAM X
PROGRAM X1
59
Exercise 7

• Convert one of your main programs and subprograms
  to a nested program version
• Canceling only makes sense for dynamically called
  programs
• Cause an abend in your subprogram. Look at the
  storage dump and error information. Is it any
  harder to debug than a regular program?

60
COBOL is Recursive Now

• A COBOL program can call itself
• To make a program recursive, add IS RECURSIVE
  to the PROGRAM-ID statement
• PROGRAM-ID. SUBPROG IS RECURSIVE.
• Nested programs cannot be recursive

61
Passing a Parm with JCL

• A parm can be coded on the EXEC statement in
  order to pass a parameter to the program that is
  being executed
• // EXEC PGMPROGNAME,PARMHI there!'
• The COBOL program will receive the parm through
  the LINKAGE SECTION
• Code a LINKAGE SECTION description similar to
  this
• 01 PARM-BUFF.
• 05 PARM-LEN PIC S9(4) BINARY.
• 05 PARM-DATA PIC X(256).
• Code a using statement on the PROCEDURE DIVISION
• PROCEDURE DIVISION USING PARM-BUFF.

62
Passing a Parm with JCL

• The parm field is variable in length
• Use the length field and reference modification
  to move variable length data
• MOVE PARM-DATA(1PARM-LEN)TO PARMO

63
Exercise 8

• Try coding a main program that receives a parm
  and prints it out
• Run the program with the following EXEC
  statements
• // EXEC PGMPROGNAME,PARMHI!
• // EXEC PGMPROGNAME,PARMHI THERE!
• // EXEC PGMPROGNAME,PARMABCDEFGHIJKLMNOPQRSTUV'

64
Omitted Parameters

• You can leave out some arguments when coding a
  CALL statement by coding OMITTED in place of the
  passed variable
• CALL THATPROG USING P1,OMITTED,P3
• Test for the OMITTED parameter by checking to see
  if the address of the received parm is NULL.
• PROCEDURE DIVISION USING X Y Z.
• IF ADDRESS OF Y NULL
• DISPLAY PARM Y WAS NOT PASSED
• END-IF

65
Tables
66
Creating A Single Dimension Table

• Build a storage area with list of data values
  defined with multiple picture clauses
• Redefine the storage area as a single dimension
  table by defining a typical table entry as an
  occuring item.

67
Creating A Single Dimension Table
01 DAY-TABLE-VALUES. 05
PIC X(9) VALUE 'SUNDAY '. 05
PIC X(9) VALUE 'MONDAY '. 05
PIC X(9) VALUE 'TUESDAY '. 05
PIC X(9) VALUE 'WEDNESDAY'. 05
PIC X(9) VALUE 'THURSDAY '. 05
PIC X(9) VALUE 'FRIDAY '.
05 PIC X(9) VALUE 'SATURDAY
'. 01 DAY-TABLE REDEFINES
DAY-TABLE-VALUES. 05 WEEKDAY PIC
X(9) OCCURS 7 TIMES.
68
Fat Single-Dimension Tables

• 01 EMPLOYEE-TABLE.
• 05 EMPLOYEE-REC OCCURS 100 TIMES.
• 15 EMP-NO PIC X(5).
• 15 NAME PIC X(20).
• 15 LOC-CODE.
• 25 TERR-NO PIC XX.
• 25 OFFICE-NO PIC XX.

69
Employee Table
EMPLOYEE-REC(1)
12345 Joe Brown
10 20
12345 Joe Brown
10 20
12345 Joe Brown
10 20
54321 Betty Smith
30 40
54555 Joy Dokes
31 45
54321 Jim Doyle
32 90
LOC-CODE(3)
NAME(3)
EMP-NO(4)
70
Exercise 9

• Implement a single dimension table of days.
  Print the table from beginning to end
• Turn the table into a fat table by adding a
  column with the number of letters in each day
  name.
• Print each day name and the number of letters it
  contains.

71
Multi-Dimension Tables

• COBOL supports up to 7 dimensions in tables
• Use OCCURS within OCCURS to add multiple
  dimensions
• 01 EMP-TABLE
• 05 EMPLOYEE OCCURS 100 TIMES.
• 10 NAME PIC X(30).
• 10 HOURS PIC S99 OCCURS 7 TIMES.

72
Multi-Dimension Table

• 01 EMP-TABLE.
• 05 EMPLOYEE OCCURS 3 TIMES.
• 10 NAME PIC X(30).
• 10 HRS PIC S99 OCCURS 3 TIMES.

NAME(1)
HRS(1,1)
HRS(1,2)
HRS(1,3)
NAME(2)
HRS(2,2)
HRS(2,3)
HRS(2,1)
NAME(3)
HRS(3,1)
HRS(3,3)
HRS(3,2)
EMPLOYEE(3)
73
Exercise 10

• Create a table of integers with 4 rows and 5
  columns.
• Print the table row by row
• Print the table column by column
• Compute and print the sum of each row
• Compute and print the sum of each column
• Compute and print the sum of all entries in the
  table

74
Creating Tables with Indexes

• 01 EMPLOYEE TABLE.
• 05 EMPLOYEE OCCURS 100 TIMES
• INDEXED BY I,J.
• 01 SALES-TABLE.
• 05 MONTH-RECORD OCCURS 12 TIMES
• INDEXED BY M.
• 10 NAME PIC X(30).
• 2O AMOUNT PIC 9(5)V99 PACKED-DECIMAL
• OCCURS 31 TIMES
• INDEXED BY D.

75
Subscripts vs Indexes

• Subscripts
• Represent an occurrence number
• User defined as a numeric field best to choose
  USAGE IS BINARY
• Printable (since they are numeric)
• Can use relative subscripts J1 or J-3
• Manipulated with PERFORM loops, assignments, and
  arithmetic commands

76
Subscripts vs Indexes

• Indexes
• Represent a displacement value from the start of
  a table.
• More efficient than subscripts
• Created automatically when a table is defined
  with indexes
• Cant be printed
• Manipulated with PERFORM loops, and SET
  statements

77
SET Statements

• Examples
• SET J TO K
• SET J TO 1
• SET K UP BY 1
• SET K DOWN BY 1
• SET K TO K 1

78
Exercise 11

• Convert Exercise 10 so that you are using
  indexes instead of subscripts

79
Sequential Search

• COBOL provides a SEARCH command that provides a
  sequential search for tables that have indexes
• Table entries do not have to be sorted
• AT END clause provides code in the situation that
  the search is unsuccessful
• Searching starts with the current index value

80
SEARCH
81
Sequential Searching

• 01 EMPLOYEE-TABLE.
• 05 EMPLOYEE OCCURS 100 TIMES
• INDEXED BY I-NDX.
• 10 EMP-NO PIC 9(5).
• 10 EMP-RANK PIC X(5).
• SET I-NDX TO 1
• SEARCH EMPLOYEE
• AT END
• DISPLAY NOT FOUND
• WHEN EMP-NO(I-NDX) 12345
• DISPLAY EMP-RANK(I-NDX)
• END-SEARCH

82
Sequential Searching

• 01 EMPLOYEE-TABLE.
• 05 EMPLOYEE OCCURS 100 TIMES
• INDEXED BY I-NDX.
• 10 EMP-NO PIC 9(5).
• 10 EMP-RANK PIC X(5).
• SET I-NDX TO 1
• SEARCH EMPLOYEE
• AT END
• DISPLAY NOT FOUND
• WHEN EMP-NO(I-NDX)
• DISPLAY EMP-RANK(I-NDX)
• WHEN EMP-NO(I-NDX) 2000
• DISPLAY EMP-RANK(I-NDX)
• END-SEARCH

83
Exercise 12

• Create a fat single dimension table with the data
  in the file DATA1. Read the file and store the
  second (Item ) and third fields (Item name) in
  the table.
• Assume a fixed size table of 40 items.
• Sequentially search the table for item 400 and
  450. Print out the results of the search.

84
Binary Searching

• Entire table is searched. No need to initialize
  an index
• Table must have an ASCENDING or DESCENDING KEY IS
  clause. Table must be sorted.
• Only one When clause and WHEN clause is one or
  more equal tests joined by AND operators
• AT END clause is invoked if the WHEN clause is
  never satisfied

85
Binary Search
86
Binary Searching

• 01 EMPLOYEE-TABLE.
• 05 EMPLOYEE OCCURS 100 TIMES
• ASCENDING KEY IS EMP-NO
• INDEXED BY I-NDX.
• 10 EMP-NO PIC 9(5).
• 10 EMP-RANK PIC X(5).
• SEARCH ALL EMPLOYEE
• AT END
• DISPLAY NOT FOUND
• WHEN EMP-NO(I-NDX) 12345
• DISPLAY EMP-RANK(I-NDX)
• END-SEARCH

87
SEARCH ALL

• SEARCH ALL performs a binary search with an index
• ENTRIES MUST BE IN ORDER
• No SET necessary (whole table searched)
• 01 SALES-TAX.
• 05 TAB-ENTRIES OCCURS 100 TIMES
• ASCENDING KEY
  ZIPCODE
• INDEXED BY K.
• 10 ZIPCODE PIC 9(5).
• 10 RATE PIC V999.
• SEARCH ALL TAB-ENTRIES
• AT END MOVE 0 TO TAX
• WHEN ZIPCODE(K) ZIPIN
• COMPUTE TAX RATE(K) AMOUNT
• END-SEARCH

88
SEARCH ALL CONSTRAINTS

• The condition following WHEN must test for
  equality
• Compound conditions with ANDs not Ors
• Only one WHEN clause
• VARYING not allowed
• OCCURS item and its index must appear on the left
  of the equal sign
• WHEN TEMP(K) 80

89
SEARCH ALL Constraints

• Table must indicate ASCENDING or DESCENDING KEY
• 01 TABLE.
• 05 CUST-REC OCCURS 40 TIMES
• ASCENDING KEY CUST
• INDEXED BY K.
• 10 CUST PIC 9(4).
• 10 RATE PIC V999.

90
Exercise 13

• Convert Exercise 12 to a binary search.

91
Variable Length Tables

• Storage for variable length tables is statically
  created
• To create a variable length table, use an
  alternative version of OCCURS
• Example OCCURS 1 TO 100 TIMES
• To create a variable length table add a DEPENDING
  ON clause to the table definition
• Example DEPENDING ON REC-COUNT

92
Variable Length Tables

• After loading the table with entries, set the
  index to point at the last item. Move the index
  to the DEPENDING ON field
• 01 CUST-TABLE.
• 05 CUSTOMER OCCURS 1 TO 50 TIMES
• DEPENDING ON C-COUNT
• ASCENDING KEY IS AGE
• INDEXED BY I.
• 10 NAME PIC X(20).
• 10 AGE PIS S999.

93
Exercise 14

• Convert Exercise 12 to a variable length table.
• Assume you dont know how many items will be in
  the table, but the range is 30 to 100 items.

94
Intrinsic Functions

• MEAN ( ARG1, ARG2,)
• MEDIAN (ARG1, ARG2)
• STANDARD-DEVIATION(ARG1,ARG2,)
• VARIANCE (ARG1,ARG2, )
• RANGE (ARG1, ARG2, )
• MAX (ARG1, ARG2, )
• MIN (ARG1, ARG2, )
• ORD-MIN (ARG1,ARG2,)
• ORD-MAX (ARG1,ARG2,)
• SUM (ARG1, ARG2, )

95
Intrinsic Functions

• CURRENT-DATE
• UPPER-CASE (ARG)
• LOWER-CASE(ARG)
• ANNUITY(RATE,NO-OF-PAYMENTS)- returns a decimal
  fraction that when multiplied by loan amount
  produces the payment. Rate must be consistent
  with payment period.
• PRESENT-VALUE(RATE,AMT1,AMT2,) returns the
  present value of future payments

96
Intrinsic Functions

• SQRT(ARG)
• REM(ARG1,ARG2) returns the remainder of arg1
  divided by arg2
• MOD(ARG1,ARG2)- similar to REM but with integer
  arguments
• INTEGER(ARG) the greatest integer less than or
  equal to ARG
• INTEGER-PART(ARG) the integer part of ARG
• NUMVAL(ARG) the numeric value of an argument
  that contains leading spaces, sign, or decimal
  point

97
Intrinsic Function Syntax

• FUNCTION function-name (arg1
• Arguments can be literals, variables,
  expressions, other functions
• Functions can operate on tables by using the word
  ALL for the subscript
• COMPUTE X FUNCTION SUM(SALARY(ALL))
• COMPUTE Y FUNCTION SUM(PRICE(1 ALL))
• Usually used with COMPUTE or MOVE

98
Exercise 15

• Using Exercise 10 and intrinsic functions,
  compute the minimum value of each row and the
  mean of the entire array.

99
Reconsidering Tables

• With vast amounts of main storage today, you
  should consider the types of file operations you
  are using and whether or not an application could
  benefit by pulling an entire file (or part of a
  file) into main storage. Working directly with
  records in memory is very efficient and can speed
  up an application greatly
• Most of the time spent in an application is in
  I/O.

100
Files with Variable Length Records
101
Variable Length Records

• FD CUSTFILE
• RECORD IS VARYING IN SIZE
• FROM 1 TO 80 CHARACTERS
• DEPENDING ON RECSIZE.
• When a record is read from a file, defined with
  the RECORD IS VARYING IN SIZE.. DEPENDING ON
  ident phrase, the size of the record read into
  the buffer is moved into the data-item ident
• To write to a file, defined with the RECORD IS
  VARYING IN SIZE.. DEPENDING ON ident phrase, the
  size of the record to be written must first be
  moved to ident data-item, and then the WRITE
  statement must be executed.

102
Exercise 16

• Use program WRITEVAR as a model. Run the
  program to create a variable length record file.
• Write a program READVAR that reads the file and
  prints out the total sales for each person

103
Strings
104
Joining Strings

• Use STRING to join multiple parts of strings into
  an entirely new string
• STRING ident1 DELIMITED ident2
• literal BY literal
• size
• INTO ident3
• POINTER ident4
• WITH
• OVERFLOW imperative stmt
• ON

105
Joining Strings

• NOT OVERFLOW imperative stmt
  END-STRING

106
Example String Operation

• STRING ID-1 DELIMITED BY
• ID-2 ID-3 DELIMITED BY SIZE
• INTO ID-4 WITH POINTER PTR
• END-STRING

ID-1 ABCDE
ID-3 XYZ
PTR 13
ID-2 12345
ID-4 (Assume PIC X(20) ABC12345XYZ
Assume PTR is Initially 1
107
STRING
108
STRING Operation

• String does not replace rightmost character with
  spaces
• The POINTER field is a numeric field that
  afterwards contains the position of the next
  byte in the receiving field that would have been
  processed. (Max string length 1)

109
Exercise 17

• Read the file DATA1.
• Create three fields in the input record
• 1) cols 1 11
• 2) cols 15-18
• 3) cols 40-65
• Remove the first part of field 1 up to the .
• Remove all of field 2.
• Remove all of field 3 up to the first space
• String these three fields together. For
  example the first record would produce
• 66660066PEANUT
• Print the results of each record.

110
UNSTRING
111
UNSTRING

• Extracts a field into multiple strings and stores
  them into one or more fields
• DELIMITED BY indicates how each subfield ends
• If ALL is specified for a delimiter, successive
  occurrences of the delimiter are treated as one
• UNSTRING ADDRESS DELIMITED BY ALL
• INTO STATE ZIP
• WITH POINTER PTR
• END-UNSTRING

112
UNSTRING

• UNSTRING copies Characters from the source string
  to the destination strings according to the rules
  for alphanumeric moves.
• UNSTRING uses space filling.
• The DELIMITED BY clause causes data movement from
  the source string to the current destination
  string to end when
• 1) a delimiter is encountered in the source
  string
• 2) the end of the source string is reached.

113
UNSTRING

• If DELIMITED BY is not used, data movement
  terminates when
• 1) the destination string is full
• 2) the end of the source string is reached
• The UNSTRING terminates when
• 1) All the characters in the source string
  have been processed
• 2) All the destination strings have been
  processed
• 3) An OVERFLOW condition is encountered when
  the pointer is pointing outside the source
  string.

114
UNSTRING EXAMPLE

• UNSTRING ADDRESS DELIMITED BY ALL
• INTO STATE COUNT IN STCNT
• ZIP COUNT IN ZIPCNT
• WITH POINTER PTR
• END-UNSTRING

115
UNSTRING Example

• UNSTRING ADDRESS DELIMITED BY ","
• INTO LINE(1)
• LINE(2)
• LINE(3)
• Line(4)
• TALLYING IN NOLINES
• END-UNSTRING.
• Tallying leaves the number of receiving fields
  that receive data in the named variable

116
Exercise 18

• Read the file DATA1.
• For each record in the file, UNSTRING field 1-11
  into two parts (separate at the ). Print each
  part.

117
INSPECT Statement
118
INSPECT Statement
119
Formats

• INSPECT has four formats
• 1) TALLYING used to count characters in a
  string.
• 2) REPLACING used to replace a group of
  characters in a string with another group of
  characters.
• 3) TALLYINGREPLACING combines both
  operations in one statement.
• 4) INSPECT CONVERTING converts each of a
  set of characters to its corresponding character
  in another set of characters.

120
TALLYING

• INSPECT LINE TALLYING ACOUNT
• FOR ALL A
• INSPECT LINE TALLYING XCOUNT
• FOR ALL X"
• AFTER INITIAL S"
• BEFORE INITIAL E".

121
REPLACING

• INSPECT MYSTRING
• REPLACING ALL X BY Y"
• AFTER INITIAL A"
• BEFORE INITIAL Z
• INSPECT MYSTRING
• REPLACING ALL XXXX" BY ABCD
• AFTER INITIAL A
• BEFORE INITIAL P"

122
TALLYING REPLACING

• INSPECT LINE TALLYING ACOUNT
• FOR ALL A
• REPLACING ALL X BY Y"
• AFTER INITIAL A"
• BEFORE INITIAL Z

123
CONVERTING

• INSPECT MYTEXT
• CONVERTING "abcdefghijklmnopqrstuvwxyz
• TO "ABCDEFGHIJKLMNOPQRSTUVWXYZ

124
Pointers
125
Creating a Pointer

• 05 PTR USAGE IS POINTER.
• 05 A-PTR POINTER.
• These definitions create 4 byte fullwords capable
  of containing addresses of memory locations

126
Setting a Pointer

• SET PTR TO ADDRESS OF X
• SET PTR1 TO PTR2

127
Dropping a Linkage Area

• To position a linkage section item onto a storage
  area, use SET ADDRESS
• Linkage Section.
• 01 X PIC X(8).
• SET ADDRESS OF X TO PTR

128
Exercise 19

• Try running programs LINKED and LINKED1 in
  BCST.SICCC01.PDSLIB

129
VSAM File Processing

• Virtual Storage Access Method

130
VSAM File Types

• ESDS Entry Sequenced Data Set
• Allows sequential processing
• RRDS Relative Record Data Set
• Allows sequential or random access by relative
  record number
• KSDS Key-Sequenced Data Set
• Allows sequential, skip sequential, and random
  processing by key

131
VSAM

• VSAM data sets are known as Clusters
• For ESDS or RRDS the cluster consists of a data
  component
• For KSDS the cluster consists of a data component
  and an index component
• VSAM data is stored on DASD in control intervals
  which are grouped into control areas

132
VSAM

• The Control Interval (CI) is the unit of data
  that transfers between the disk and virtual
  storage
• CI sizes are multiples of 2K with 4k being common
• CIs can be constructed with free space to
  accommodate additions to the file
• Control Areas (CA) can be constructed with free
  space to accommodate additions

133
VSAM

• VSAM dynamically manages the file by maintaining
  information in each CI and CA
• When a CI becomes too full the data it contains
  is split into two CIs
• When a CA becomes too full the data it contains
  is split into two CAs
• VSAM tries to keep records that are logically
  close together, physically close as well

134
VSAM Indexes
135
VSAM Components
136
Access Method Services (AMS)

• AMS is a VSAM utility that provides numerous
  options
• DEFINE CLUSTER
• PRINT
• REPRO
• LISTCAT
• DELETE
• DEFINE ALTERNATEINDEX
• DEFINE PATH
• BLDINDEX

137
VSAM JCL

• Unlike QSAM files, VSAM files must be allocated
  in a separate job step before data can be written
  to the file
• VSAM cluster can be created by deleting and then
  defining the cluster
• After the cluster is defined, a job can run which
  writes data to the file

138
VSAM JCL

• Parameters
• INDEXED KSDS
• NONINDEXED ESDS
• NUMBERED RRDS
• KEYS ( len off) primary key info
• CISZ (size) control interval size
• FREESPACE (ci ca) free space s

139
MAKEKSDS

• 000100 //TSYSAD2C JOB 'YOUR NAME',USERTSYSAD2,REG
  ION2048K,MSGCLASSV
• 000200 //MAIN CLASSTSYSC,USERTSYSAD2
• 000300 //DEFINE EXEC PGMIDCAMS
• 000400 //SYSPRINT DD SYSOUT
• 000500 //SYSIN DD
• 000600 DELETE TSYSAD2.PAYROLL.MASTER
• 000700 DEFINE CLUSTER
  -
• 000800 (NAME(TSYSAD2.PAYROLL.MA
  STER) -
• 000900 INDEXED
  -
• 001000 RECORDSIZE(31 31)
  -
• 001100 KEYS(5 0)
  -
• 001200 MGMTCLAS(STANDARD)
  -
• 001210 FREESPACE(0 0)
  -
• 001220 SHAREOPTIONS (3 3))
  -
• 001230 DATA (NAME(TSYSAD2.PAYROLL.MA
  STER.DATA) -
• 001240 TRK(1 1)
  -
• 001250 CONTROLINTERVALSIZE(409
  6)) -
• 001260 INDEX (NAME(TSYSAD2.PAYROLL.MA
  STER.INDEX) -
• 001270 TRK(1 1))

140
IDCAMS PRINT

• 000100 //TSYSAD2P JOB 'A.STUDENT',USERTSYSAD2,REG
  ION2048K,MSGCLASSV
• 000200 //MAIN CLASSTSYSC,USERTSYSAD2
• 000210 // THIS IS AN IDCAMS PRINT
• 000220 //PRINT EXEC PGMIDCAMS
• 000230 //SYSPRINT DD SYSOUT
• 000240 //SYSIN DD
• 000250 PRINT INFILE(IFILE) -
• 000251 DUMP
• 000252 /
• 000253 //IFILE DD DSNTSYSAD2.PAYROLL.MASTER,
  DISPSHR
• 000254 //

141
IDCAMS REPRO

• 000100 //TSYSAD2R JOB 'A.STUDENT',USERTSYSAD2,REG
  ION2048K,MSGCLASSV
• 000200 //MAIN CLASSTSYSC,USERTSYSAD2
• 000210 // THIS AN IDCAMS REPRO
• 000220 //REPRO EXEC PGMIDCAMS
• 000230 //FILEIN DD DSNTSYSAD2.PGM1.RESULTS,DI
  SPSHR
• 000240 //FILEOUT DD DSNTSYSAD2.I10.PGM1.RESULT
  S,DISP(NEW,CATLG,DELETE),
• 000250 // UNITSYSDA,DCB(RECFMFB,LRECL80
  ),
• 000251 // SPACE(TRK,(1,1),RLSE)
• 000252 //SYSIN DD
• 000253 REPRO -
• 000254 INFILE(FILEIN) -
• 000255 OUTFILE(FILEOUT)
• 000256 /
• 000257 //AMSDUMP DD SYSOUT
• 000258 //

142
Creating a VSAM File

• 000100 IDENTIFICATION DIVISION.
• 000200 PROGRAM-ID. VSAM1.
• 000300 ENVIRONMENT DIVISION.
• 000400 INPUT-OUTPUT SECTION.
• 000500 FILE-CONTROL.
• 000600 SELECT PAYROLL-MASTER-OUT ASSIGN TO
  PAYMASTO
• 000610 ORGANIZATION IS INDEXED
• 000620 ACCESS IS SEQUENTIAL
• 000630 RECORD KEY IS ID-OUT
• 000640 FILE STATUS IS PM-STATUS.
• 000700 SELECT PAYROLL-MASTER-IN ASSIGN TO
  PAYMASTI.

143
Creating a VSAM File

• 004410 01 PM-STATUS.
• 004430 05 PM-STAT1 PIC X.
• 004440 05 PM-STAT2 PIC X.
• 004441 PROCEDURE DIVISION.
• 004450 OPEN INPUT PAYROLL-MASTER-IN
• 004460 OPEN OUTPUT PAYROLL-MASTER-OUT
• 004461 IF PM-STATUS NOT '00'
• 004462 PERFORM 300-PRINT-STATUS
• 004463 END-IF
• 004470 PERFORM UNTIL ARE-THERE-MORE-RECORDS
  'NO '
• 004480 READ PAYROLL-MASTER-IN
• 004490 AT END
• 004500 MOVE 'NO ' TO
  ARE-THERE-MORE-RECORDS
• 004600 NOT AT END
• 004700 PERFORM 200-READ-MODULE
• 004800 END-READ
• 004900 END-PERFORM
• 005000 CLOSE PAYROLL-MASTER-IN
• 005100 PAYROLL-MASTER-OUT

144
Creating a VSAM File

• 005130 200-READ-MODULE.
• 005410 MOVE ID-IN TO ID-OUT
• 005420 MOVE NAME-IN TO NAME-OUT
• 005430 MOVE HOURS-IN TO HOURS-OUT
• 005440 MOVE RATE-IN TO RATE-OUT
• 005450 DISPLAY MASTER-REC-OUT
• 005500 WRITE MASTER-REC-OUT
• 005510 IF PM-STATUS NOT '00'
• 005520 PERFORM 300-PRINT-STATUS
• 005530 END-IF
• 005600 .
• 005700 300-PRINT-STATUS.
• 005800 DISPLAY 'FILE STATUS CODE'
  PM-STATUS
• 005900 GOBACK
• 006000 .

145
VSAM Error Strategy

• VSAM returns a status code after each operation
• It is imperative that you check each status code
  after each operation to insure that the program
  is proceeding normally
• The status code is a two byte field

146
OPEN

• OPEN INPUT file-name
• OPEN OUTPUT file-name
• OPEN I-O file-name
• OPEN EXTEND file-name
• For EXTEND, access mode must be sequential

147
Reading for Sequential Access

• READ file-name NEXT RECORD
• INTO data-name
• AT END imperative stmt
• NOT AT END imperative stmt
• END-READ
• Specify NEXT if access is DYNAMIC and you want
  sequential processing
• Can be omitted when access is SEQUENTIAL
• INTO provides move mode I/O
• Omitting INTO provides locate mode I/O

148
Reading for Random Access

• READ file-name RECORD
• INTO data-name
• INVALID KEY imperative stmt
• NOT INVALID KEY imperative stmt
• END-READ
• Be sure to set the key of the record you wish to
  read beforehand

149
Writing

• WRITE record-name FROM data-name
• INVALID KEY imperative stmt
• NOT INVALID KEY imperative stmt
• END-WRITE

150
REWRITE

• REWRITE record-name FROM data-name
• INVALID KEY imperative stmt
• NOT INVALID KEY imperative stmt
• END-REWRITE
• A typical scenario is to read the record, modify
  it (cant change the key field), and then rewrite
  it.
• For random and dynamic access, you can REWRITE a
  record without first reading it.

151
DELETE

• DELETE file-name RECORD
• INVALID KEY imperative stmt
• NOT INVALID KEY imperative stmt
• END-DELETE
• DELETE can only be used for a file in I-O mode
• If file is in sequential mode, the DELETE can
  only be used after executing a READ statement for
  that record. (Omit INVALID KEY)
• If file is in random or dynamic mode, a DELETE
  can be issued without previously reading the
  record (specify INVALID KEY)

152
START

• START file-name
• KEY IS EQUAL TO data-name
• GREATER THAN
• NOT LESS THAN
• NOT
• INVALID KEY imperative stmt
• NOT INVALID KEY imperative stmt
• END-START
• Used for sequential and skip-sequential
  processing
• Does not return a record positions you in the
  file

153
File Status Codes

• 00 Operation completed successfully
• 02 Duplicate Key was found
• 04 Invalid fixed length record
• 05 The file was created when opened - Successful
  Completion
• 07 CLOSE with REEL or NO REWIND executed for non
  tape dataset.
• 10 End of File encountered
• 14 Attempted to READ a relative record outside
  file boundary
• 21 Invalid Key - Sequence error
• 22 Invalid Key - Duplicate Key found
• 23 Invalid key - No record found
• 24 Invalid Key - key outside boundary of file.

154
File Status Codes

• 30 Permanent I/O Error34 Permanent I/O Error -
  Record outside file boundary
• 35 OPEN, but file not found
• 37 OPEN with wrong mode
• 38 Tried to OPEN a LOCKed file
• 39 OPEN failed, conflicting file attributes
• 41 Tried to OPEN a file that is already open
• 42 Tried to CLOSE a file that is not OPEN
• 43 Tried to REWRITE without READing a record
  first
• 44 Tried to REWRITE a record of a different
  length
• 46 Tried to READ beyond End-of-file
• 47 Tried to READ from a file that was not opened
  I-O or INPUT
• 48 Tried to WRITE to a file that was not opened
  I-O or OUTPUT
• 49 Tried to DELETE or REWRITE to a file that was
  not opened I-O

155
File Status Codes

• 91 Password or authorization failed
• 92 Logic Error
• 93 Resource was not available (may be allocated
  to CICS or another user)
• 94 Sequential record unavailable or concurrent
  OPEN error
• 95 File Information invalid or incomplete
• 96 No DD statement for the file
• 97 OPEN successful and file integrity verified
• 98 File is Locked - OPEN failed
• 99 Record Locked - record access failed.

156
Exercise 20

• Create a data file of records which is sorted on
  a key field (choose a 5 byte key). Creating an
  80 byte record in a PDS is easiest. Let some of
  the keys be in the 10000 19999 range, some in
  range 20000 29999, some in range 30000 39999,
  and some in range 40000-49999. (VSAMDATA)
• Read the file and output a fixed size record VSAM
  file.

157
Exercise 21

• Read the VSAM file you created in Exercise 20 and
  print out the records (your choice of format).

158
Exercise 22

• Create a small file of keys. Some of the keys
  should match records in your VSAM file and some
  should not. (VSAMKEYS)
• Process the VSAM file randomly. Take each key,
  print it, and print the record if it is on the
  file, otherwise print a message indicating the
  record was not found.

159
Exercise 23

• Process the VSAM file dynamically with
  skip-sequential processing.
• Issue a Start statement and print the records
  with keys in the range 20000-29999. Issue
  another START and print the records in the range
  40000 49999.

160
Exercise 24

• Create a small file of keys. Some of the keys
  should match records in your VSAM file and some
  should not.
• Process the VSAM file randomly. Take each key,
  read the VSAM file, and delete each record that
  is found. If the record is not found print a
  message indicating this.

161
Alternate Indexes

• An alternate index provides a way to navigate
  through a VSAM cluster using an alternate key
• Creating an alternate index is a 3 step process
• DEFINE ALTERNATE INDEX
• DEFINE PATH
• BLDINDEX

162
Define Alternateindex

• //KC02107X JOB 'WOOLBRIGHT',REGION2M,MSGCLASSQ,M
  SGLEVEL(0,0),
• // NOTIFYKC02107
• //-----------------------------------------------
  -----------
• // VSAM
• //-----------------------------------------------
  -----------
• //STEPMAKE EXEC PGMIDCAMS
• //SYSPRINT DD SYSOUT
• //SYSIN DD
• DELETE KC02107.SICCC01.MYVSAM.AIX
• DEFINE ALTERNATEINDEX
  -
• (NAME (KC02107.SICCC01.MYVSAM.AIX)
  -
• RELATE (KC02107.SICCC01.MYVSAM)
  -
• KEYS (20 5)
  -
• NONUNIQUEKEY
  -
• UPGRADE
  -
• REUSE )
  -
• DATA (NAME (KC02107.SICCC01.MYVSAM.AIX.DATA)
  -
• TRACKS(1 1))
  -
• INDEX (NAME (KC02107.SICCC01.MYVSAM.AIX.INDEX)
  )

163
BLDINDEX

• //KC02107X JOB 'WOOLBRIGHT',REGION2M,MSGCLASSQ,M
  SGLEVEL(0,0),
• // NOTIFYKC02107
• //-----------------------------------------------
  -----------
• // VSAM BLDNDX CLUSTER

• //-----------------------------------------------
  -----------
• //STEPMAKE EXEC PGMIDCAMS
• //SYSPRINT DD SYSOUT
• //SYSIN DD
• BLDINDEX INDATASET(KC02107.SICCC01.MYVSAM) -
• OUTDATASET(KC02107.SICCC01.MYVSAM.AIX)
• /
• //

164
VSAM REPRO

• //KC02107X JOB 'WOOLBRIGHT',REGION2M,MSGCLASSQ,M
  SGLEVEL(0,0),
• // NOTIFYKC02107
• //-----------------------------------------------
  -----------
• // VSAM REPRO CLUSTER

• //-----------------------------------------------
  -----------
• //STEPMAKE EXEC PGMIDCAMS
• //SYSPRINT DD SYSOUT
• //SYSIN DD
• REPRO INDATASET(KC02107.ASM.DAT(VSAMDATA)) -
• OUTDATASET(KC02107.SICCC01.MYVSAM)
• /
• //

165
Debugging
166
Learn Hex Basics

• Decimal
• 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
• Hexadecimal
• 0 1 2 3 4 5 6 7 9 9 A B C D E F

167
Learn Binary Basics

• Every digit is a power of 2
• 1 1 1 0 1 0 0 1
• 128 32 8 2 1
• 64 16 4
• 1286432080 01 233

168
Binary to Hex

• Conversion rule Remove blocks of 4 binary
  digits and replace them with a single hex digit
• 1 1 0 1 1 1 0 0 0 0 1 1 1 0 1 1
• D C 3 B
• Hex dumps are made of hex digits and represent
  binary values that are stored in memory a
  short-hand notation
• 2 HEX DIGITS 1 BYTE

169
EBCDIC Characters

• CHAR HEX CHAR HEX CHAR HEX CHAR HEX
• 0 F0 A C1 J D1
• 1 F1 B C2 K D2 S E2
• 2 F2 C C3 L D3 T E3
• 3 F3 D C4 M D4 U E4
• 4 F4 E C5 N D5 V E5
• 5 F5 F C6 O D6 W E6
• 6 F6 G C7 P D7 X E7
• 7 F7 H C8 Q D8 Y E8
• 8 F8 I C9 R D9 Z E9
• F9
• SPACE 40 COMMA 6B PERIOD 4B 5C
• MINUS 60

170
Zoned Decimal Format

• Byte 8 bits
• Leftmost 4 bits zone part
• Rightmost 4 bits numeric part
• PIC S9999
• PIC 99
• PIC 99V99
• One digit per byte sign in zone portion of last
  byte. Preferred signs C , D
• Signs A C E F B D -

ZONE NUMERIC
171
Zoned Decimal Format

• PIC S999 VALUE 123 F1F2C3
• PIC 99V99 VALUE 12.34 F1F2F3C4
• PIC S99 VALUE -12 F1D2
• PIC S999 VALUE 0 F0F0C0

172
Packed Decimal Format

• Two decimal digits per byte
• Sign stored in numeric portion of the rightmost
  byte 12345C
• Decimal points are implied (not stored)
• Always an odd number of decimal digits
• Good choice for business arithmetic

173
Packed Decimal

• PIC S999 PACKED-DECIMAL VALUE 123
• 123C
• PIC S9(3)V99 PACKED-DECIMAL VALUE -123
• 00123D
• PIC S9(4) PACKED-DECIMAL VALUE -98
• 00098D
• PIC 9(7) PACKED-DECIMAL VALUE -32
• COMPILE ERROR
• PIC 9(7) PACKED-DECIMAL VALUE 32
• 0000032C

174
Binary Data

• 1-4 digits 2 bytes halfword
• 5-9 digits 4 bytes fullword
• 10-18 digits 8 bytes doubleword
• PIC S9(4) BINARY 2 BYTES
• PIC S9(5) BINARY 4 BYTES
• PIC S9(9) BINARY 4 BYTES
• PIC 9(8) BINARY 4 BYTES

175
Signed Binary

• Signed binary data is stored in 2s complement
  format
• High order bit is a sign 1 is negative, 0 is
  positive
• 0001101 13 in decimal
• 1110010 -14
• Conversion rule Change the 1s to 0s and 0s to
  1s, then add 1. This computes the 2s complement

176
Pointers

• USAGE IS POINTER A 4 BYTE FULLWORD STORED IN
  BINARY

177
Signed Binary

• Example 111111
• Changing 000000
• Add 1 000000 1 000001
• 1 is the complement so 111111 is -1
• Example 110011
• Changing 001100
• Add 1 001100 1 001101 13
• 110011 -13

178
Display

• The answer to all debugging problems is to gain
  more information. DISPLAY can provide it.

179
Finding the Problem

• Display Filter View Print Options Help

• -------------------------------------------------
  ------------------------------
• SDSF OUTPUT DISPLAY SICCC01A JOB22537 DSID
  102 LINE 116 COLUMNS 02- 81
• COMMAND INPUT
  SCROLL CSR
• Data Division Map

• Data Definition Attribute codes (rightmost
  column) have the following meanings
• D Object of OCCURS DEPENDING G GLOBAL
  S
• E EXTERNAL O Has
  OCCURS clause U
• F Fixed-length file OG Group
  has own length definition V
• FB Fixed-length blocked file R
  REDEFINES VB
• Source Hierarchy and
  Base Hex-Displac
• LineID Data Name
  Locator Blk Struc
• 2 PROGRAM-ID BOMB1--------------------------
  ------------------------------
• 6 1 MYTABLE-VALUES. . . . . . . . . . . .
  . . . . BLW00000 000
• 7 2 FILLER. . . . . . . . . . . . . . .
  . . . . BLW00000 000 0 000
• 8 2 MYPTR1. . . . . . . . . . . . . . .
  . . . . BLW00000 010 0 000
• 9 2 FILLER. . . . . . . . . . . . . . .
  . . . . BLW00000 014 0 000
• 10 2 FILLER. . . . . . . . . . . . . . .
  . . . . BLW00000 024 0 000
• 11 2 FILLER. . . . . . . . . . . . . . .
  . . . . BLW00000 034 0 000

180
Data Division Map

• 0Source Hierarchy and
  Base Hex-Displa
• LineID Data Name
  Locator Blk Stru
• 2 PROGRAM-ID BOMB1-------------------------
  ------------------------------
• 6 1 MYTABLE-VALUES. . . . . . . . . . .
  . . . . . BLW00000 000
• 7 2 FILLER. . . . . . . . . . . . . .
  . . . . . BLW00000 000 0 00
• 8 2 MYPTR1. . . . . . . . . . . . . .
  . . . . . BLW00000 010 0 00
• 9 2 FILLER. . . . . . . . . . . . . .
  . . . . . BLW00000 014 0 00
• 10 2 FILLER. . . . . . . . . . . . . .
  . . . . . BLW00000 024 0 00
• 11 2 FILLER. . . . . . . . . . . . . .
  . . . . . BLW00000 034 0 00
• 12 2 FILLER. . . . . . . . . . . . . .
  . . . . . BLW00000 044 0 00
• 13 2 FILLER. . . . . . . . . . . . . .
  . . . . . BLW00000
