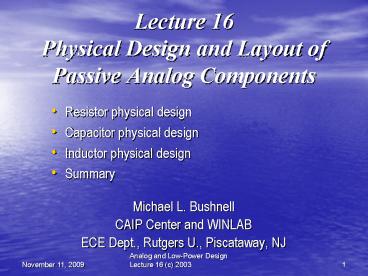

Lecture 16 Physical Design and Layout of Passive Analog Components

1
Lecture 16Physical Design and Layout of Passive
Analog Components

• Resistor physical design
• Capacitor physical design
• Inductor physical design
• Summary

• Michael L. Bushnell
• CAIP Center and WINLAB
• ECE Dept., Rutgers U., Piscataway, NJ

2
Resistors

• Undoped polysilicon is highly resistive
• Avoid doping the poly if you are making an R
• Can get tera W (1012 W ) resistors
• Mixed-Signal applications
• Use nichrome metal (NiCr) to make Rs
• Laser trimming evaporates parts of the resistor
  while measuring R until it comes within
  specifications
• R in KW / range
• Excellent temperature stability long-term
  reliability
• Note that all Rs in circuit contribute thermal
  noise

3
Resistor Fabrication and Physical Design

• Black lines show path of laser trimming beam

4
Resistor Fabrication Methods

• Doped polysilicon most useful R 20 to 30
  W /
• Silicon process problem R tolerances matching
• Clad-poly process Silicide block mask needed to
  get sufficient R
• Can withstand 100 V between R and substrate
• Can operate beyond VSS to VDD range

5
Resistor Thermal Problems

• Field oxide isolates R thermally
• If R dissipates moderate to large power, get
  permanent R changes due to self-induced annealing
• Poly can melt or crack due to heat, but very good
  for making fuses
• Polysilicon R undesirable for Electro-Static
  Discharge protection

6
n Substrate Diffusion Resistor

• Strip of n diffusion R 30 to 50 W /
• Avalanche breakdown limits voltage to 10 to 15 V

7
p Substrate Diffusion Resistor

• Must bias well above the resistor voltage to
  maintain isolation
• Connect well to more positive R end or to VDD
• Have limited R and low breakdown voltage
• Strip of n-well contacts at either end of R
• Put n substrate diffusion under contacts
  prevents formation of rectifying Schottky barrier

8
p Substrate Resistor Problems

• Notoriously variable resistors
• Slight doping differences
• Out-diffusion
• Voltage modulation of depletion regions
• Surface effects

9
Capacitor Issues

• Want most C for least area
• Fringing C now is very significant use to get
  more C
• Best capacitive coefficient Cgs (gate to
  substrate MOS C)
• 2nd Best Cjap (p diffusion area)
• 3rd Best Cjp (n p diffusion periphery)
• 4th Best Cjan (n diffusion area)
• 5th Best Cm1p (metal 1 to poly C) Cm1d (metal
  1 to diffusion)
• 6th Best Cp (poly over field oxide) and Cm2m1
  (metal2 metal1)

10
More Capacitor Issues

• 7th Best
• Cm1 (metal 1 over field oxide)
• Cm2p (metal 2 to poly)
• Cm2d (metal 2 to diffusion)
• Cm3m2 (metal 3 to Metal 2)
• Problems with Cs coupled to substrate one
  terminal is constrained
• Do not use except when it suits the circuit
• Use fringing C now is more significant than
  substrate capacitance

11
Multi-Dimensional Capacitance

• Used to get more C/unit area of chip surface than
  would be otherwise possible

12
Polysilicon Capacitor

• ONO oxide-nitride-oxide dielectric

13
Trench Polysilicon Capacitors

• Trench C Used for 64 Mbit DRAM 90 fF

14
Fin Capacitor

• Fin C Also used for 64 Mbit DRAM 20 to 30 fF

15
Capacitance Calculation

• Cja junction C / mm2 Cjp periphery C
  / mm
• a diffusion width b diffusion
  length
• Sidewall C facing channel reduced by channel
  depletion region absence of field implant
• As we scale, peripheral C becomes more important
• Cja Cjp are f (junction voltage)
• Cj Cj0 (1 - ) m Cj0
  zero-bias C
• Vj junction voltage Vb built-in potential
  (0.6 V)
• 0.3 (graded junction) m 0.5
  (abrupt junction)

Vj Vb

16
Scaling Effects on Capacitance

• Increasing fringing fields increase C add Cgs0,
  Cgd0, Cgb0 to Cgs, Cgd, Cgb for SPICE
• Caused by poly extension beyond channel other
  overlaps
• Transistor gate C about 4 to 5 X diffusion C
  dominates CL

17
Fringing Capacitance

• Fringing field C
• Approximate routing capacitance between metal
  poly wires and substrate as a parallel plate C

18
Fringing Field Capacitance

• Fringing fields increase
  effective plate area
• Use C A / h
• In order to handle fringing, use
• w conductor width h insulator
  thickness
• t conductor thickness insulator
  permittivity

19
Multiple Conductor Capacitance

• With 3 to 5 routing layers, accurate C
  computation takes too long. Use formulae instead
• Model of Metal 1 3 layers

20
Detailed Multiple Conductor Model

• 3 Potential layers
• Top ground plane
• Interesting conductor
• Bottom ground plane

21
Multi-Layer Capacitances
22
Middle Layer Capacitance

• Interesting conductor C has 3 components
• Line-to-ground C
• Line-to-line C
• Crossover C
• Capacitance of middle layer to ground
• C2 C21 C23 C22
• C21 C23 crossover C formula (for wires on top
  of each other)
• C22 is line-to-line C weighted sum

23
Middle Layer Capacitance (contd)

• C22 AC (line-to-line, 2 ground) BC
  (line-to-line, isolated)
• A B 1
• A R , B O
• (P1 P3) (P1
  P3)
• W1 W3 layer 1-3 widths
• C/e Normalized C per unit conductor length
• S1 - S3 Layer 1-3 spacing between parallel
  wires
• Dielectric permittivity of SiO2
• T1 -- T3 Layer 1-3 conductor thickness
• H Thickness of dielectric between conductors
• R Measure of ground plane coverage

24
Middle Layer Capacitance (contd)

• Line-to-ground C with 1 Ground Plane

(4.19)
25
Middle Layer Capacitance (concl.)

• O Measure of space and hence capacitance to
  ground plane
• Line-to-ground C with 2 Ground Planes

(4.20)
26
Middle Layer Capacitance (contd)

• Line-to-line C with 1 Ground Plane
• Line-to-line C with 2 Ground Planes

(4.21)
(4.22)
27
Crossover Capacitance

• Valid range for formulae 0.3 T/H
  10
• 0.3 W/H 10 0.3
  S/H 10

28
Process Characteristics

• Thicknesses of layers
• Thinox 200 Metal1
  6000
• Field-oxide 6000 M1-M2 Oxide 6000
• Poly 3000 Metal 2
  12000
• M1-poly-oxide 6000 Passivation 20000
• Passivation put over entire chip (except pads) to
  chemically isolate it from the environment.
• Above formulae give C / per unit conductor
  length

29
Method of Getting Lumped C
C

• Lumped C ( ) X SiO2 X conductor length

30
Capacitance Spacing Relationship
31
Layout Etching Conditions

• C calculations must use actual etched layer
  dimensions on chip, not drawn dimensions
• Example Metal wire drawn 1mm wide but is etched
  at 0.75 mm
• Use worst-case values Max width thinnest
  dielectric to compute RC delay power
• Use min. width thickest dielectric to calculate
  gate race conditions

32
Crosstalk Claim

• Mole claim
• As interconnections circuitry scale down,
  cross-talk capacitance decreases
• Reason Required interconnect length decreases
  while cross-talk C / unit length varies little.
• Holds for analog circuits, not necessarily true
  for digital

33
Capacitors

• One plate poly, one plate diffusion (usually
  n-well)

34
Poly Diffusion C

• 0.5 to 1.6 fF / mm2
• Tolerances 20 (only if well kept 1 V above
  poly voltage)
• Problems
• Excessive bottom-plate parasitic junction series
  resistance
• Non-linearity effects at some voltages

35
Inductors

• Need a GHz Voltage-Controlled oscillator in
  sub-micron CMOS
• Choices where phase noise inversely related to
  power consumption
• Ring oscillator
• Phase noise L Dw kT R 2,
  gm 1 / R
• Oscillator based on resonant f of LC tank
• Active Inductor
• Phase noise LDw kT
  2, gm 2 w C

w Dw
)
(
w Dw
(
)
2 w C
36
Inductors (continued)

• Oscillator based on resonant f of LC tank
• Passive Inductor
• Phase noise proportional to power consumption

• LDw kT R 2,
  gm R (w C)2
• Must make R (series resistance of LC loop) as
  small as possible
• Inductor options
• Spiral inductor on Si substrate
• High substrate losses limits Q factor of filter
  due to induced substrate currents

w Dw
(
)
37
Inductors (continued)

• Solution etch substrate away underneath inductor
• Requires extra etching step after normal IC
  processing
• Not allowed for normal mass production
  (Roufourgan Raol and Roufourgan Abidi)

38
Bond Wire Inductors

• Use a bond wire inductance for extremely low
  phase noise
• Bond wire parasitic L 1 nH / mm, very low
  series R
• Form 2 Ls, using 4 bond wires
• Phase noise -115 dBc / Hz
• Offset frequency 200 kHz from 1.8 GHz carrier
• Power consumption 8 mA at 3 V
• Bond wire L not characterized for yield in mass
  production industry is reluctant to use this
  method

39
Bond Wire Inductors
40
Recommended Inductor

• Use a spiral coil on Si substrate without
  modifications
• Bipolar technologies have no substrate losses,
  due to a high R substrate
• Sub-micron CMOS doped substrate leads to large
  currents induced in substrate high losses
• Needs careful optimization of coil design
• Use 2 metal layers
• Hollow spiral inductor
• Power consumption 6 mW
• Phase noise LDw -116 dBc / Hz at 600 KHz
  offset from 1.8 GHz carrier

41
Hollow Spiral Inductors
42
Inductor Problems in RF Circuits

• Present-day systems use off-chip C L devices
• Too expensive to make on-chip L
• Q factor not high enough for cellular telephones
• Use off-chip ceramic core inductors (cheap and
  very precise)
• Q factor of L on chip at 1 GHz went from Q 3
  to Q 6 over last 10 years
• Noise-to-carrier (N/C) ratios vary as much as 20
  dB at 100 kHz offset

43
More Spiral Inductor Problems

• Generalized Impedance
•
  Z
• If one end grounded, really get
• Z R sL
• R series resistance of winding
• L what we want
• C capacitance between metal wire substrate
• Under-etching the inductor defeats C, but you
  still get R

1 sC
44
Prof. Lus Inductor (Rutgers)

• Defeat C in on-chip spiral inductor by
• Using polyimide insulator with better
• Make multiple layers of inductors on top of chip

45
Summary

• Analog physical design is important
• Resistors use a variety of design shapes, each
  allowing laser trimming
• Capacitors use fringing capacitance to get
  higher values
• Inductors substrate eddy currents limit
  effectiveness
• Need to under-etch
