Internet2 Today

1

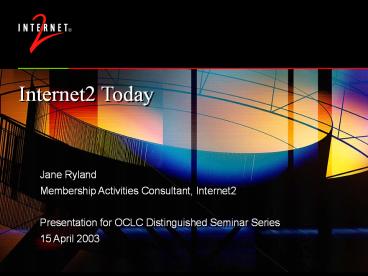

Internet2 Today

• Jane Ryland
• Membership Activities Consultant, Internet2
• Presentation for OCLC Distinguished Seminar
  Series
• 15 April 2003

2
Internet2 Today

• Overview of the Internet2 Initiative
• Focus on Advanced Networking Applications
• Whats in it for Libraries?

3
Internet2 Mission

• Develop and deploy advanced networking
  applications and technologies, accelerating the
  creation of tomorrows Internet.

4
Internet2 Partnerships

• Internet2 universities are recreating the
  partnerships that fostered the Internet in its
  infancy
• Industry
• Government
• International

5
Internet2 Brief History

• Started in 1996 as a project with 34 universities
• Internet2 Backbone Network - Abilene launched
  February 1999
• (Partnership with Qwest, Cisco, Nortel, and
  Indiana University as our Network Operations
  Center)

6
Internet2 Universities202 Universities as of
April 2003
7
Leadership

• University presidents/chancellors are the voting
  representatives
• Strong board university presidents
• Advisory councils with board seats
• Applications Strategy Council
• Network Planning and Policy Council
• Network Research Liaison Council
• Industry Strategy Council

8
Additional Participation

• Over 60 Internet2 Corporate Members
• Over 40 Affiliate Members
• Over 30 International Partners
• 25 SEGPs

9
Internet2 Corporate Partners
10
Affiliate Members

• Government labs
• State and regional networks
• University system offices
  (University of California)
• Other (New World Symphony, Survivors of the SHOAH)

11
International MoU Map
12
International Peering
09 January 2002
Last updated 14 January 2003
STAR TAP/Star Light APAN/TransPAC, CAnet, CERN,
CERNET/CSTNET/NSFCNET, NAUKAnet, GEMnet, HARNET,
KOREN/KREONET2, NORDUnet, SURFnet, SingAREN,
TANET2
Pacific Wave AARNET, APAN/TransPAC, CAnet,
TANET2
NYCM GEANT, HEANET, NORDUnet, SINET, SURFnet
SNVA GEMNET, SINET, SingAREN, WIDE(v6)
LOSA UNINET
OC12
AMPATH ANSP, REUNA2, RNP2, RETINA (REACCIUN-2)
San Diego (CALREN2) CUDI
El Paso (UACJ-UT El Paso) CUDI

• ARNES, ACONET, BELNET, CARNET, CERN, CESnet,
  CYNET, DFN, EENet, GARR, GRNET, HEANET, IUCC,
  JANET, LATNET, LITNET, NORDUNET, RENATER,
  RESTENA, SWITCH, HUNGARNET, GARR-B, POL-34, RCST,
  RedIRIS, SANET, SURFNET
• WIDE/JGN, IMnet, CERNet/CSTnet,/NSFCNET,
  KOREN/KREONET2, SingAREN, TANET2, ThaiSARN

13
Sponsored Education Group Participants (SEGPs)

• California New York
• Florida North Carolina
• Georgia North Dakota
• Hawaii Ohio
• Illinois Oklahoma
• Indiana Oregon
• Iowa Pennsylvania
• Louisiana Rhode Island
• Maryland Utah
• Michigan Virginia
• Minnesota Washington
• Missouri Wisconsin
• New Mexico

14
Internet2 Goals

• Enable new generation of applications
• Re-create leading edge RE network capability
• Transfer technology and experience to the global
  production Internet

15
Internet2 Focus Areas

• Advanced Network Infrastructure
• Engineering
• Advanced Applications
• Middleware
• Recent Initiatives

16
Internet2 Focus Areas

• Advanced Network Infrastructure
• Engineering
• Advanced Applications
• Middleware
• Recent Initiatives

17
Internet2 Network Infrastructure

• Backbones operate at minimum of 2.4 Gbps (OC48)
  capacity today
• GigaPoPs provide regional high-performance
  aggregation points
• Local campus networks provide 100 Mbps to the
  desktop some provide 1Gbps

18
Download of The Matrix DVD(Comparison of the
Internet2 Land Speed Record)
19
Abilene Network Core Map, March 2003
20
Internet2 GigaPoPs
21
Tomorrows Internet2 Network

• Backbone upgrade from 2.4 Gbps to 10 Gbps by
  the end of 2003 (coast to coast 10Gbps already in
  place)
• Extension of contract with Qwest through October
  2006
• Acquiring dark fiber for next-generation upgrade

22
Internet2 Focus Areas

• Advanced Network Infrastructure
• Engineering
• Advanced Applications
• Middleware
• Recent Initiatives

23
Engineering Working Groups

• http//www.internet2.edu/html/working-groups.html
• IPv6
• Measurement
• Multicast
• Quality of Service
• Routing
• Security
• Topology

24
Internet2 Focus Areas

• Advanced Network Infrastructure
• Engineering
• Advanced Applications
• Middleware
• Recent Initiatives

25
Internet2 Applications

• What are Internet2 applications?
• They deliver qualitative and quantitative
  improvements in how we conduct research and
  engage in teaching and learning
• They require advanced networks to work

26
Different Disciplines/Contexts

• Sciences
• Arts
• Humanities
• Health care
• Business/Law
• Administration

• Library
• Classroom
• Clinic
• Office
• Laboratory
• Dorm room

27
Applications

• Interactive collaboration
• Real-time access to remote resources, e.g.,
  instrumentation

28
Space Physics Aeronomy Research Collaboratory
(SPARC)

• The University of
• Michigan

29
Remote Scanning Electron Microscope

• The University of
• Michigan

30
Distributed nanoManipulator

• University of
• North Carolina-
• Chapel Hill

31
Applications

• Large scale, multi-site computation and
  data mining
• Shared virtual
  reality

32
Shared Virtual Reality

• University of Illinois at Chicago
• Virtual Temporal Bone

33
Immersadesk
34
The CAVE
35
Tele-immersive telecubicles Office of the Future
36
CORN

• California Orthopaedic Research Network
• Expanding nationally and internationally
• Focused on training and demonstrations

37
Music Teachingover Internet2

• University of
• Oklahoma

38
Applications

• Digital Video
• Up to broadcast-quality videoconferencingUp
• Live distribution and on-demand access to content
• HDTV-based digital video to

39
Digital LibrariesThe Informedia Digital Video
LibraryCarnegie-Mellon University
40
Digital Video
Up to broadcast quality videoconferencing
Internet2 Virtual Meeting Fall 2001
41
Grid Computing

• Global resources available to communities of
  researchers
• The protocols, services, and applications that
  enable new forms of collaboration

42
Examples

• Network for Earthquake Engineering Simulation
• Collaboration environment for earthquake
  researchers (e.g., structural engineers,
  geotechnical and tsunami scientists)

• Grid Physics Network
• Petabyte scale environment for data-intensive
  applications (Large Hadron Collider, Sloan
  Digital Sky Survey, Laser Interferometer
  Gravitational Wave Observatory)

43
TeraGrid Wide Area Network - NCSA, ANL, SDSC,
Caltech
StarLight International Optical Peering
Point (see www.startap.net)
Abilene
Chicago
DTF Backplane (4x? 40 Gbps)
Indianapolis
Urbana
Los Angeles
Starlight / NW Univ
UIC
San Diego
I-WIRE
Multiple Carrier Hubs
Ill Inst of Tech
ANL
OC-48 (2.5 Gb/s, Abilene)
Univ of Chicago
Indianapolis (Abilene NOC)
Multiple 10 GbE (Qwest)
Multiple 10 GbE (I-WIRE Dark Fiber)
NCSA/UIUC

• Solid lines in place and/or available by October
  2001
• Dashed I-WIRE lines planned for summer 2002

Source Charlie Catlett, Argonne
44
Internet2 Focus Areas

• Advanced Network Infrastructure
• Engineering
• Advanced Applications
• Middleware
• Recent Initiatives

45
Middleware

• A layer of software between the network and the
  applications
• Authentication
• Identification
• Authorization
• Directories
• Security

46
Internet2 Middleware Initiative

• Internet2 community has unique needs and
  capabilities
• Middleware Architecture Committee for Education
• Early Harvest and Early Adopters
• Internet2 Public Key Infrastructure Labs
• Shibboleth (inter-campus authentication)
• Directories
• NSF Middleware Initiative (with EDUCAUSE and
  SURA)

47
Internet2 Focus Areas

• Advanced Network Infrastructure
• Engineering
• Advanced Applications
• Middleware
• Recent Initiatives

48
Recent Initiatives

• Internet2 Commons Services
• End to End Performance
• Cybersecurity

49
Technology Development Yesterday
Applications
Motivate
Enables
Engineering
50
Technology DevelopmentToday
Applications
End-to-end Performance
Security
Motivate
Enable
Middleware
Services
Networks
51
Whats in it for Libraries?
52
Whats in it for Libraries?

• Internet2 capabilities meet library needs
• Higher bandwidth enables fast transfer of large
  datasets, e.g., high-resolution graphic images,
  audio, and video

53
Whats in it for Libraries?

• Internet2 capabilities meet library needs
• Higher bandwidth enables fast transfer of large
  datasets, e.g., high-resolution graphic images,
  audio, and video
• Multicast enables faster transfer of the same
  data to multiple sites

54
Whats in it for Libraries?

• Internet2 capabilities meet library needs
• Higher bandwidth enables fast transfer of large
  datasets, e.g., high-resolution graphic images,
  audio, and video
• Multicast enables faster transfer of the same
  data to multiple sites
• Middleware enhanced security through
  authorization and authentication

55
Whats in it for Libraries?

• Libraries can connect to Abilene
• Academic libraries, part of member universities,
  are automatically connected

56
Whats in it for Libraries?

• Libraries can connect to Abilene
• As a sponsored participant

57
Whats in it for Libraries?

• Libraries can connect to Abilene
• As a sponsored participant
• Requires specific collaboration with Primary
  Member (e.g., Research University)

58
Whats in it for Libraries?

• Libraries can connect to Abilene
• As a sponsored participant
• Requires specific collaboration with Primary
  Member (e.g., Research University)
• Connectivity charge based on connect speed,
  but no Internet2 dues

59
Whats in it for Libraries?

• Libraries can connect to Abilene
• As part of a state education network (SEGP)

60
Whats in it for Libraries?

• Libraries can connect to Abilene
• As part of a state education network (SEGP)
• SEGP pays Internet2 fees (based on state size)

61
Whats in it for Libraries?

• Libraries can connect to Abilene
• As part of a state education network (SEGP)
• SEGP pays Internet2 fees (based on state size)
• SEGP determines how to handle connectivity charges

62
Whats in it for Libraries?

• Libraries can connect to Abilene
• As part of a state education network (SEGP)
• SEGP pays Internet2 fees (based on state size)
• SEGP determines how to handle connectivity
  charges
• Example 134 public libraries in Missouri are
  connected to Internet2 through MOREnet

63
Whats in it for Libraries?

• Even if you dont connect to Abilene
• Enhancement of commodity Internet through
  technology transfer

64
More Internet2 Information

• On the Web
• www.internet2.edu
• www.internet2.edu/html/lists.html
• Email
• info_at_internet2.edu
• jryland_at_internet2.edu

65
www.internet2.edu
