Querying Internet Graphs with Recursive Queries

1

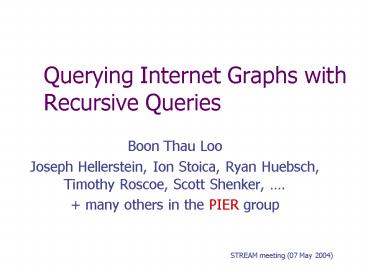

Querying Internet Graphs with Recursive Queries

• Boon Thau Loo
• Joseph Hellerstein, Ion Stoica, Ryan Huebsch,
  Timothy Roscoe, Scott Shenker, .
• many others in the PIER group

STREAM meeting (07 May 2004)
2
Outline

• Introduction
• Applications
• Queries on Distributed Data Streams
• Query Processing and Optimization Early insights

3
Recursive Queries A review

• Hot research topic in the 80s and 90s.
• Citeseer recursive queries (244), transitive
  closure (2745), deductive databases (1276)
• A recursive query allows a query result to be
  defined in terms of itself.
• Useful for querying graph structures.
• Transitive Closure example Computes the set of
  all nodes reachable from a node
• R1 reachable(X,Y) - link(X,Y)
• R2 reachable(X,Y) - link(X,Z) reachable(Z,Y)
• Query ?-reachable(a,N)

L(X,Z)
R(Z,Y)
X
Z
Y
4
Why Recursive Queries?

• The Internet is a graph
• Physical links
• Routing tables
• Multicast trees on overlay networks
• Hypertext structures
• Peer-to-Peer networks
• Recursive queries are a powerful tool for
  understanding and controlling structural
  properties of networks.
• Generic substrate for developing more flexible
  and powerful routing protocols.

5
Why P2P?

• Queried graph is too large and dynamic for
  centralized processing.
• Many network applications inherently
  decentralized. Natural to query them in a
  decentralized fashion.

6
Recursive Network Queries

• Embedded Network Queries
• Each node embeds query processing functionality.
• Query processor at each node has access to local
  nodes routing table.
• External Network Queries
• Query is executed on a separate Distributed Hash
  Table (DHT) based query infrastructure such as
  PIER.

7
Applications
Embedded Network Queries
External Network Queries

• Gnutella Monitoring
• Distributed Web Crawler

Network Monitoring

• DHT Introspection

• End-host Routing Infrastructure
• DHT Routing

• Directed Gnutella Search

Routing
8
App 1 Gnutella Network Monitoring

• Motivated by our earlier work on a DHT-Gnutella
  bridge (IPTPS 2004)
• Can we leverage a distributed set of nodes to
  take an accurate snapshot and perform long-term
  monitoring of a large, dynamic network like
  Gnutella?

9
Crawl as a Query
Distributed Gnutella Crawler R1 node(X,0) -
startset(X) R2 link(X,Y) - node(X,Hop),
gnutellaPing(X,Y) R3 node(Y,Hop) -
node(X,Hop-1), link(X,Y), Hop ?-node(N,D)
What the rules mean R1 Provide a set of seed IP
addresses X of Gnutella nodes. R2 Ping the nodes
on these addresses X, and get the set of
neighbors Y R3 Crawl the neighbors Y as long as
they are within K hops.
10
Other Queries

• Crawl is only one of the many queries we can run.
• Measurement-based queries
• What is the diameter of the Gnutella network?
• What is the robustness of the Gnutella network?
  (number of ways to route from one node to
  another)
• Summarize search horizon (number of ultrapeers,
  number of files)
• Routing-based queries
• Direct search query towards high degree nodes

11
App 2 Network Introspection

• A network needs to monitor its structural
  properties under network churn.
• Important metrics under churn for a Distributed
  Hash Table (DHT)
• Dynamic Resilience
• How many possible live paths are there between
  any two nodes?
• Average Path Length
• Given routing algorithm, what is the average
  number of hops between any two nodes?

12
App 3 Routing Infrastructure
Adapted slide from Karthiks Sahara retreat
presentation
Internet Indirection Infrastructure (i3)

• Applications demand greater flexibility in route
  selection.
• Currently, clients query centralized servers to
  setup application-specific paths.
• Recursive queries supports decentralized
  application-specific routing.

13
App 4 Decentralized Focused Web Crawler (with
Owen Cooper, Sailesh Krishnamurthy)

• Massively distributed web crawler
• P2P users donate excess bandwidth and computation
  resources to crawl the web.
• Completely decentralized organized using
  Distributed Hash tables (DHTs)
• Crawl as a declarative recursive query
• Focused Crawls with user customization
• Seed URLs Pages to begin crawling from?
• Ordering What pages to crawl first?
• Coverage What pages to avoid crawling?
• Distributed PageRank as a recursive query

14
Dynamic Graphs Distributed Data Streams

• In practice, the graphs are distributed, dynamic
  and often based on soft-state
• Queries are also long-running.
• Applications often require real-time information
• Find the current best-route from node a to b
• Is the DHT handling network churn well at this
  moment?
• Direct search query towards high-degree nodes.
• Are there (new) lessons from streaming DB work
  that apply here?

15
Recursive View Maintenance

• Current state of the network (query results) can
  be stored in the DHT as materialized views.
• Long-term statistics
• Routing tables
• Cache to be shared across queries.
• View Maintenance
• As nodes enter and leave the system, the
  materialized view needs to be incrementally
  updated.
• Facts or Tuples derived from expired base tuples
  need to be invalidated and removed from the
  network.

16
Work Sharing

• Sharing within a query
• May get for free during query execution.
• Sharing across queries is critical for
  scalability
• Results of previous queries need to be cached in
  the DHT to be reused in subsequent queries.

Best-path(b,c,path)
b
c
17
Recursive Query Processing with PIER

• PIER A relational query processor over
  Distributed Hash Tables (DHTs)

2. Query Rewrite and Optimization
3. PIER Query
1. Datalog
18
Early Insights

• Our experiments have focused on commonly used
  queries (reachable, shortest-path) over static
  graphs.
• Several query execution techniques
• Semi-naïve (hop-at-a-time) vs Smart
  (Squaring)
• Left vs right recursion
• reachable(X,Y) - link(X,Z), reachable(Z,Y)
• reachable(X,Y) - reachable(X,Z), link(Z,Y)
• Magic sets Avoid sending data/query to
  irrelevant nodes in the network.
• Natural communication patterns
• Reachable query exhibits distance vector-like
  routing protocol.
• Work-sharing or memorization is observed.

19
Early Insights

• Choice of query execution techniques offers
  tradeoffs in latency, work-sharing and
  communication overhead.
• Factors affecting query execution
• Graph topology (size, diameter and density)
• Queries (degree of overlap)
• Dynamic graphs with changing topology means one
  execution strategy may not work for entire query
  duration.

20
References

• http//pier.cs.berkeley.edu
• Reading List
• http//www.cs.berkeley.edu/boonloo/research/pier
  /readinglist.html
• Overview
• Boon Thau Loo, Ryan Huebsch, Joseph M.
  Hellerstein, Timothy Roscoe, and Ion
  Stoica, Analyzing P2P Overlays and Recursive
  Queries, Intel Research, IRB-TR-03-045, Nov. 17,
  2003
• Application
• Boon Thau Loo, Owen Cooper, Sailesh
  Krishnamurthy,. Distributed Web Crawling over
  DHTs. UC Berkeley Technical Report
  UCB//CSD-4-1305, Feb 2004.
• Query Execution and Optimization
• Distributed Network Topology Analysis with
  Recursive Queries Class Project Report
