Title: MK URALMASH

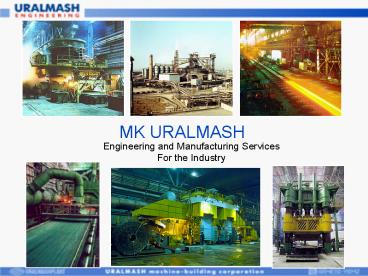

1
MK URALMASH
Engineering and Manufacturing Services For the
Industry
2
OAO ?? URALMASH was founded by Metalloinvest
group and Gazprombank in 2007
Now MK Uralmash is the biggest Russian
machine-building Corporation
3
MK URALMASH
Uralmash-Engineering (Engineering company)
ORMETO-YUMZ plant (Orsk)
Uralmash plant (Ekaterinburg)
Metallurgical equipment
Mining equipment
Drilling rigs (gas, oil)
Cranes equipment
4
History
  • During the last 75 years we have supplied
  • Over 260 sinter and straight grate induration
    machines
  • Over 300 rolling mills and other rolling
    equipment
  • Over 140 continuous casters
  • Over 250 hydraulic presses
  • New equipment, modernization and process
    automation
  • To our customers in 29 countries worldwide

5
Map of deliveries
Finland
Russia
Byelorussia
Ekaterinburg
Poland
Ukraina
Germany
Hungary
Slovakia
Japan
Bulgaria
Romania
Kazakhstan
Serbia
Korea
Turkey
Iran
Cuba
Pakistan
Syria
Algiers
China
India
Egypt
Nigeria
6
???????? ????????? ?????????? Indian references
(metallurgical equipment)
7
Indian references
(metallurgical equipment)
8
Our potentials in India (Metallurgical Equipment)
  • Sintering equipment
  • Straight grate indurations machines
  • Blast furnace equipment
  • Continuous casters (CCM)
  • Rolling mill equipment
  • Rolls for rolling mills
  • Press and forging plants
  • Electric drives and automation

9
Sintering equipment
Since 1934 year we have supplied 119 plants
with sinter (and cooler) machines (sintering area
from 18 to 408 m2) in Russia and
abroad. Now we have project (in progress) for
AKM - 520 m2 (for Mittal Steel, Krivoy Rog,
Ukraine)
Sinter Machine
10
Straight grate induration machines
  • As a result of many years experience in design
    and manufacture, we have created straight grate
    induration machines with effective area of 108,
    306, 520 m2 and associated equipment of required
    capacity to suit various processes.
  • Since 1964 over 50 plants including straight
    grate induration machines have been manufactured
    and commissioned.

11
Blast furnace equipment
Wide range of equipment and components
  • Charging devices
  • Bell beams
  • Skip winches
  • Hopper mechanisms
  • Belless charging devices
  • Iron taphole clay guns
  • Bottom feed systems
  • Spare parts

12
Continuous casters
  • Solutions for a wide range of products
  • 1-, 2-, and 4-strand Slab casters
  • Combined billet bloom casters
  • Spare parts

13
Rolling mill equipment
High-performance rolling of steel and aluminium
  • Hot rolling
  • Long-product mills
  • Flat-product finishing equipment
  • Wheel and ring rolling mills
  • Spare parts
  • Cold rolling
  • Cold rolling mills
  • Strip-processing lines
  • Finishing lines
  • Spare parts

14
Rolls for Rolling mill equipment
High-performance rolls for hot and cold rolling
mills (Chrome up to 5) (up to 52 tonnes and ø up
to 1700 mm)
  • Sheet mill working rolls
  • Sheet mill backup rolls
  • Rolls for blooming and slabbing mills
  • Billet mill rolls
  • Rolls for rail and structured steel mills
  • Vertical rolls for hot rolling mills
  • Herring bone rolls
  • Roll sleeves

15
Press and forging plants
Over 250 Presses A Powerful background of
experience!
Forging presses
Die-forging presses
Horizontal presses
Levelling and stretching machines
Special presses
Pipe-bending machines
16
Press and forging plants
  • Forging presses with force up to 150 MN
  • Stamping presses for die-forging and sheet
    stamping with force up to 300 MN
  • Extrusion presses with force from 16 MN to 200 MN
  • Specialpurpose presses to apply Al sheath to
    power cable with force up to 50 MN
  • Stretchers with force up to 60 MN
  • Pipe bending equipment for pipe branches from
    28mm to 820mm and 1420mm in diameter
  • Specialized hydraulic press equipment

17
Electric drives and automation
  • Goals of Electric Drives and Automation
    Department (EDA)
  • The EDA Department provides integrated solutions
    to electric drive systems and process automations
    systems in all areas of the companys activities.
  • Functions of Electric Drive and Automation
    Department
  • Elaboration of design documentation Designing
    electric drive systems and process automation
    systems (Hard and Soft)
  • Testing Carrying out control system
    performance check, loading and debugging
    application software with participation of the
    customers specialists
  • Project implementation Conducting
    commissioning supervision and setup of electrical
    equipment and process automation system.
    Carrying-out final acceptance tests.

18
Electric drives and automation
  • Areas of activity
  • The EDA Department focuses on the following
  • areas of activity
  • Continuous casters
  • Rolling mill equipment
  • Press- and forging plant equipment
  • Sintering equipment and straight grate
    indurations machines

19
  • Mining equipment

20
20
20
21
Product range
  • For mining, chemical, cement industry
  • Draglines (11.75, 25.90, 40.100, 65.100,
    100.125)
  • Shovels (EKG-5, 12, 20)
  • Crushers (cone, single and double-roll, four-roll
    crushers)
  • Mills (central-discharge, peripheral discharge
    dry rod, autogenous wet and dry,..)

22
Our Indian Partners (mining)
  • National Mineral Development Corp Ltd (NMDC)
  • Western Coalfields Ltd (WCF)
  • Northern Coalfields Ltd (NCL)
  • South Eastern Coalfields Ltd (SECL)
  • Mahanadi Coalfields Ltd (MCL)

23
??????????? ??????????????
23
23
24

Product range1.
Stackers (rotary or non-rotary
single-boom)2. Reclaimers 3. Stacker-reclaimers
4. Blenders5. Rotary-Vane Feeders6. Wagon
tipplers7. Wagon pushers
24
25
1. NTPC Ramagundam2. Visakhapatnam steel plant
(existing project)
Our Indian Customers (store yards)
25
26
Our main existing Indian contracts
  • Visakhapatnam - Sinter equipment for new sinter
    plant (together with Tyazhpromexport)
  • SAIL rolls for rolling mills (for all steel
    plants),
  • SAIL spare parts (for all kind of equipment)
  • Jindal steel - rolls for rolling mills
  • Visakhapatnam steel plant design and
    manufacture of wagon tipplers and wagon pushers.
  • Kudankulam nuclear-power stations cranes
    (earthquake-proof).

27

Main problems
  • Short period for plant/shop tender preparations
    (business trips, visas, drawings and budget
    preparation..)
  • (ideal period 3 months)
  • High level of equipment performance bank
    guaranty for suppliers who has no Indian
    references for last 10 years
  • (50 of total cost of equipment for long
    period 2-3 years).
  • (NCL tender for draglines 25.95)

28
Our main perspectives
  • SAIL tender for rolls (Bokaro global tender)
  • SAIL spare parts (all SAIL plants)
  • Visakhapatnam - tender for rolls
  • Jindal steel - tender for rolls
  • Rourkela tender for sinter plant (together with
    TyazhPromExport)
  • Rourkela - slab CCM (together with
    TyazhPromExport)
  • Durgapur bloom CCM (together with
    TyazhPromExport)
  • Bhilai CCM reconstruction
  • NMDS spare parts for crushers and EKG-5A
  • SECL spare parts for draglines and new tender
    for EKG-5A
  • WCL spare parts for draglines and new tender
    for EKG-5A
  • MCL - spare parts for draglines and new tender
    for EKG-5A
  • NCL - spare parts for draglines and new tender
    for draglines 25.95
  • and 40.100.

29
Our main plans
  • To open MK Uralmash representative office (in
    2008) in Kolkata.
  • To participate in MMMM 2008 exhibition
    (Delhi, November 2008)
  • MK Uralmash has signed the partnership agreement
    with Tyazhpromexport.

30
MK Uralmash Pervoy Pyatiletki sqr.,
620012, Ekaterinburg, Russia Tel. 7 343 228
2201 Fax 7 343 228 2299 www.uralmash.ru Thank
you for your attention !
