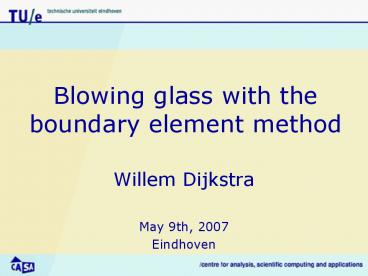

Blowing glass with the boundary element method

1
Blowing glass with the boundary element method

• Willem Dijkstra
• May 9th, 2007
• Eindhoven

2
Problem description
hot air
parison
mould
3
History within CASA

• Konstantin Laevsky (PhD thesis 2003)
• Sandra Allaart-Bruin
• Christina Giannopapa (J. of Manufacturing
  Science and Engineering 2007)
• others

4
Mathematical model
Glass is viscous fluid ? Stokes equations
Boundary conditions
Time integration
5
Boundary Element Method

• Advantages
• Small matrices
• Tracking boundary only

• Disadvantages
• Dense matrices
• Homogeneous fluids only

6
Example blowing
7
Wall detection
8
Wall detection
9
Slip conditions
Slip between glass and mould
10
Example slip conditions
ß 8
ß 10
ß 6
ß 3
11
Example two-stage
12
Example bokma bottle
13
Example with dent
14
Summary

• Full 3D simulation
• Wall detection
• Slip condition

To do

• Improve time integration (e.g. flow method by B.
  Tasic)
