Enhancing Web Data Extraction through Wrapper Usability and Semantic Wrapping

1

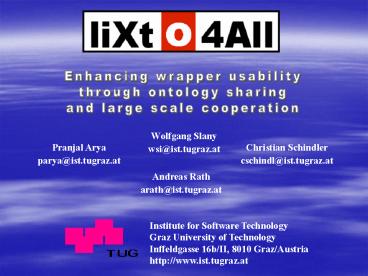

Enhancing wrapper usability through ontology
sharing and large scale cooperation
Wolfgang Slany wsi_at_ist.tugraz.at
Pranjal Arya parya_at_ist.tugraz.at
Christian Schindler cschindl_at_ist.tugraz.at
Andreas Rath arath_at_ist.tugraz.at
Institute for Software TechnologyGraz University
of TechnologyInffeldgasse 16b/II, 8010
Graz/Austriahttp//www.ist.tugraz.at
2
Agenda

• Introduction
• Wrapper Technology
• Lixto4All Project
• Lixto4All Wrapper Usability
• Questions Discussion

3
Introduction

• 317 million hosts connected to the Web (Internet
  Software Consortium) 1
• 80 of web pages are generated from databases 2
• looking for information on the Web isa time
  consuming and tedious task

4
Bridging the Gap

• Human readability
• layout orientation of web pages
• Computer processing
• corporate data processing applications

5
Economic Advantages

• faster data acquisition
• automatic and easy data integration
• cost effective
• aggregation
• personalization
• processing
• decision support

6
Wrapper Technology

• Wrappers are specialized program routines that
  automatically extract data from Internet web
  sites and convert the information into a
  structured format. 2
• The typical tasks 2 of a wrapper
• fetching data from a remote resource
• searching for, recognizing and extracting
  specified data
• saving this data in a suitable structured format
  to enable further manipulation

7
Wrapper Creation

• manual wrapper creation
• basic text processing
• regular expression
• Java, Perl, C, Python,
• wrapper generation tools

8
Wrapper Generation Tools (1/3) 4

• Languages for Wrapper Development
• first attempt
• to ease extraction process
• TSIMMIS, Minerva, WebOQL
• NLP-based Tools
• use natural language processing approachese.g.
  filtering, part-of-speech
• rely on linguistic constraints
• good on plain text, take no advantage of
  structure
• Whisk, Rapier (Robust Automated Production of
  Information Extraction)

9
Wrapper Generation Tools (2/3)

• Wrapper Induction Tools
• rely on structural information and formatting
  features
• need a set of training samples
• Stalker, Wien (Wrapper Induction ENvironment)
• Modeling-based tools
• structure of source document is crucial
• locate portions of data conforming a given
  structure
• DEByE (Data Extraction By Example)NoDoSE
  (Northwestern Document Structure Extractor)

10
Wrapper Generation Tools (3/3)

• HTML-aware Tools
• rely on structural information of web pages
• use HTML parse trees (DOM tree) for extraction
  rule creation (semi-automatically with GUI
  support)
• Lixto, Xwrap
• Ontology-based Tools
• rely on the data itself and not on the structure
  of the source documents
• ontology is used to locate constants and to
  construct objects (extraction ontologies)
• BYU (Brigham Young University) tool

11
Lixto4All
Wrapper Technology for everyone!

• started 02/2005
• funded by the Austrian FFG under the FIT-IT
  program line as part of the NextWrap project
• cooperation withLixto GmbH.
• Products
• Lixto Visual Wrapper
• Lixto Transformation Server

12
Use Cases

• TV program in advance
• notification of films I like to watch
• integration of TV program of different TV station
  web sites into an application
• Top 10 films
• stock market monitoring
• share values
• statistic evaluations

13
L4A Wrapper Usability
is the challenge of making the wrapper
technology available to all kind of users.

• Easy Accessibility
• Easy Configuration
• Graphical User Guidance
• Resistance Adaptability
• Wrapper Algorithm Performance
• Easy Maintenance

Easy Maintenance
Resistance Adaptability
Easy Accessibility
GUG
Wrapper Algorithm Performance
Easy Configuration
14
Easy Accessibility
deals with how users get and use the wrapper
application

• Installation ?
• Security Issues ?
• accessible
• by everyone
• from everywhere
• at any time

browser-based system
15
L4A GUI
16
Embedded Application

• Advantages
• no download or installation
• only requires JavaScript
• wrapper generation on server side

• Disadvantages
• no access to browser internals
• limited to JavaScript possibilities
• wrapping of dynamic content generated by
  scripting languages

17
Easy Configuration

• straight forward and easy to understand
• wrapper suggestion
• different skilled users need different
  configuration options
• user levels
• novice users
• advanced users
• professional users/ enablers

collaboration
18
Graphical User Guidance

• guidance during wrapper creation process
• visual and interactive support
• select, click, drag and drop scenario
• work directly on the visual presentation of the
  web page
• Hand in hand with user levels
• user skills featured GUI
• wrapper creation options
• different steps

19
Resistance Adaptability
Resistance

• minor web page changes
• structure and the content
• added or modified source
• wrapper verification
• less reconfiguration

Adaptability

• work on similar web pages
• applying same wrapper on different sources

20
Wrapper Algorithm Performance

• performance in terms of
• creation time
• wrapping time
• space and memory
• heuristics for classifying wrapped content
• structure based (e.g. lists, tables, )
• semantic based (e.g. ontologies, knowledge bases)
• central server for
• wrapper scheduling
• wrapper task pooling
• transformation and distribution

21
Easy Maintenance

• large scale cooperation
• centralized wrapper configuration and processing
• cooperation of different skilled users
• wrapper creation
• wrapper sharing
• wrapper subscriptions
• creation, contribution and sharing of
• semantic concepts (e.g. regular expressions)
• ontologies (e.g. OWL, RDFS, )

WikiWikiWeb
22
Status Quo

• web-based application
• tree based extraction mechanism
• basic standard user interface
• simple wrapper creation
• navigation
• correct presentation of the web page
• wrapper scheduling

23
Future Work

• Enhancing extraction mechanism
• WikiWikiWeb integration
• configuration
• collaboration
• maintenance
• wrapping script generated parts of web pages
• accessing remote services (wordnet, wikipedia)
• wrapper configuration ontology

24
Questions Discussion
25
References

• 1 Internet Software Consortium, www.isc.org,
  Jannuary 2005
• 2 Arnaud Sahuguet and Fabien Azavant. Web
  ecology Recycling HTML pages as XML documents
  using w4f. WebDB (Informal Proceedings), pages
  31-36, 1999
• 3 Stefan Kuhlins and Ross Tredwell. Toolkits
  for generating wrappers. NetObjectDays 2002
  Erfurt, Springer
• 4 Alberto H. F. Laender, Ribeiro-Neto, et.al.,
  A brief survey of web data extraction tools.
  Volume 31, pages 84-93, NY, USA, ACM Press 2002.
