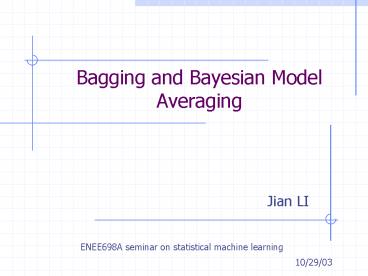

Bagging and Bayesian Model Averaging

1
Bagging and Bayesian Model Averaging
Jian LI
ENEE698A seminar on statistical machine learning
10/29/03
2
Outline

• What is bagging?
• Example
• Theoretical aspect of Bagging
• Bayesian model averaging
• Conclusion

3
What is Bagging?

• Acronym of bootstrap aggregating
• Recall about bootstrap
• Suppose we have a model fit to a set of training
  data. The training set is where
  .
• The basic idea is to randomly draw datasets with
  replacement from the training data. Each sample
  set is the same size as the original training
  set.
• This is done B times and we will have B bootstrap
  datasets.
• We refit the model to each of the bootstrap
  datasets, and examines the behavior over the B
  replications.

4
Review on Bootstrap

• Bootstrapone way to produce replicate data
• Can be used to assess the accuracy of a parameter
  estimate or prediction
• In Bagging, we use it to improve the estimation
  or prediction itself.
• For each bootstrap sample set , b1,2,,B,
  we fit our model, giving prediction ,
  the bagging estimate is
• The average over the prediction reduces variance.


5
Examples in Tree-based methods

• Tree-based methods
• Partition the feature space into a set of
  rectangles, and usually fit a constant in each
  one.
• Some partition are hard to describe
• We restrict attention to recursive binary
  partitions
• First split the space into two regions, and model
  the response in each region by the mean of that
  region. We will choose the variable and split
  point to achieve best fit.
• Do the same thing on the partitioned regions
  until meeting stopping rules.
• Regression model function is

6
Importance of Bagging in CART

• CART Classification and Regression Tree
• To construct the tree, usually MSE or
  Misclassification error is minimized over the
  training sample.
• Tree based methods have very high variance. It is
  unstable because of the hierarchical structure.
• Bagging can average many trees to reduce the
  variance.

7
Example I Tree-based Regression
From Ref. 1
8
Example II Classification Tree
Training Sample
Results from one CART
Bagged Tree Decision Boundary
Fig. From 2
9
Results from Breiman 96
Bagging not suitable for stable Estimators.From
1
10
Theoretical Analysis Bootstrap

• Bootstrap vs. ML and Bayesian Approach
• In essence, bootstrap is a computer
  implementation of non-parametric or parametric
  maximum likelihood. The advantage over ML is that
  it allows us to compute ML estimates of standard
  errors and other quantities when no analytical
  solutions are available.
• The bootstrap mean is approximately an posterior
  average when we assume an non-informative prior
  etc. Compared to Bayesian approach, if we want to
  estimate posterior mean, we avoid specify a prior
  and draw samples from the posterior
  .

11
Analysis on Bagging

• Denote the empirical distribution putting
  equal probability 1/N on each of the data
  points(Xi,Yi). The true bagging estimate is
  defined by
• The formula is actually a
  Monte Carlo estimate of the true bagging
  estimate, approaching it as B-gtinfinity.
• Note the training sample estimate correspond to
  the mode of the posterior while the bagged
  estimate is an approximate posterior Bayesian
  mean.Thats why bagging can often reduce MSE.

12
Bayesian Model Averaging

• A more general frame work. Suppose we have a set
  of candidate models ,m1,,M for our training
  set Z.
• These model may be of same type but different
  parameters or different models for same task.
• Suppose is some quantity of interest, for
  example, a prediction f(x) at some fixed point x.

• Posterior distribution of is

13
More on Model Averaging

• The posterior mean is
• So the Bayesian prediction is a weighted average
  of the individual predictions, with weights
  proportional to the posterior probability of each
  model.
• Different strategies from here
• Committee methods giving equal probability to
  each model. Q Is it the same as bagging?
• Use BIC criterion to calculate the weights
• Minimization over the weights.

14
Formulation

• Given predictions , under
  squared-error loss, we can seek the weights

• such that
• The solution is the population linear regression
  of Y on
• , which is
• So the full regression has smaller error than any
  single model.
• Since the population linear regression in the
  equation is not available, we can replace it with
  the linear regression over the training set.
• Drawback Complicated model will get higher
  weights in this methods. Stacking can handle that
  better.

15
Conclusion

• Bagging can be used to reduce the variance and
  deal with the unstable estimator or predictor
  such as CART.
• Bootstrap distribution essentially approximates
  the posterior distribution under certain
  conditions.
• Bayesian model averaging provide a general frame
  work for model selection or combination.
• Connection with future talks
• Boosting can usually outperform bagging as will
  be discussed later.
• Stacking can take into model complexity into
  account, which will be shown by Arunm in a moment.

16
References

• Lecture slides by Ridgeway, G. et. al.
  http//www.datamininglab.com/pubs/kdd99_elder_ridg
  eway.pdf
• Lecture slides By Higgs, R. et. al.
  http//miner.chem.purdue.edu/Lectures/
  Lecture1620-20Higgs_Ensembles.pdf
• Breiman 96, Bagging Predictors, Machine
  Learning, 26, 123-140
• Leblanc M. and Tibshirani, R., 96, Combining
  estimates in regression and classfication, J. of
  Amer. Stat. Assoc. 911641-1650
• http//www-stat.stanford.edu/jhf/
• Textbook The elements of Statistical Learning
