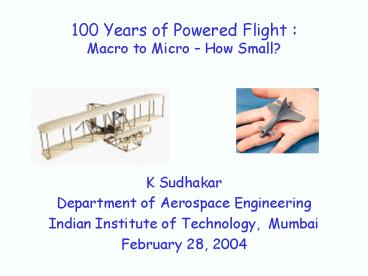

100 Years of Powered Flight Macro to Micro
How Small?

• K Sudhakar
• Department of Aerospace Engineering
• Indian Institute of Technology, Mumbai
• February 28, 2004

2
100 Years of Powered Flight Macro to Micro
How Small?

• Looking back 100 Years?
• Why small aircraft?
• What has been achieved world-wide
• What have we achieved?

3
Looking back 100 Years?
4
Orville Wilbur Wright
1896 Lord Kelvin, I do not have the smallest
molecule of faith in aerial . . 1896 Wright
Brothers start their research 1901 WW to OW
Not within a thousand years would man fly!
Wind tunnel tests with speed and
accuracy. The time later reduced to 50 years
But takes only 2 years.
5
Orville Wilbur Wright

• 1903
• Oct 7 Langleys two failures. Aerodrome
• Dec 8 falls into the Potomac
• Dec 14 Failure for Wright Brothers
• . . need not disturb or hurry us in the least.
  Langley
• needs better scientific data than is contained in
  his
• published works to successfully build a
  man-carrying
• flying Machine

6
December 17, 1903. Historic First Flight
December 14, 2003. India Remembers.
7
Challenges Ahead?
8
Challenges Ahead?
How big can an aircraft get?
Mini ( 15 cm to 200 cm)
Micro (lt 15 cm)
How small can an aircraft get?
9
Why Small Aircraft?

• Surveillance
• Hazard mitigation
• Military applications

10
How to make quantum jumps?
11
What are the issues?
12
Everyone Loses Feel

• Solar Powered ?-aircraft of IIT-Bombay
• Power required 4 watts?
• Weight of 4 watt solar panel in the
• open market? in kgs!

13
Videography Platform - IITB

• Challenge Posed
• (2002)
• Size not to exceed 60 cm
• Weight no to exceed 1 kg
• Time taken lt 6 months
• Distance 600 m
• Height 300 m

14
Videography Platform

• Components

Size 60 cm, Weight 870 gm
15
Comparison
6 (1/4th in size) But folds more complex
24
16
Some of the Investigations _at_IITB

• Propulsion unit 60 by weight
• Propeller efficiency 40
• New propeller designs

Measure upto 40 gms
17
Learning From Nature!
Flapping Wing Flight Birds
Wing Span (m)
18
Early Attempts to Fly

• Leonardo da Vinci
• No success in imitating birds
• Lord Cayley shows the way
• Highly integrated solutions difficult!
• Decompose and conquer

19
Man Made Bird. 1992!
Flapping Flight Efficiencies have been low!
20
Fixed, Flapping, Rotary Wing?

• Nature suggests flapping for small aerial
  vehicles
• Efficiency of flapping wing vehicles built by man
  not very high!

21
Flapping Flight in India
To the sheer amazement of the audience, the
model began beating its wings just like a bird
and started flying!, AVIA August 2003 on Mr K
Nandakumar, Chennai

• Moble Benedict (IIT-B) Designs Flapping Wing
• Involved, Intense Analysis
• Skilled manufacturing
• Innovative Testing

22
Which Way!
23
