Week 8 Quality Management Learning Objectives

1

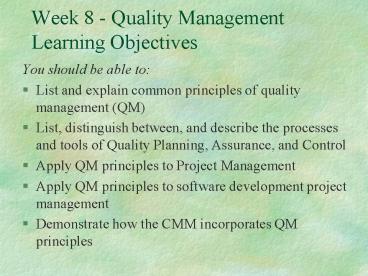

Week 8 - Quality ManagementLearning Objectives

• You should be able to
• List and explain common principles of quality
  management (QM)
• List, distinguish between, and describe the
  processes and tools of Quality Planning,
  Assurance, and Control
• Apply QM principles to Project Management
• Apply QM principles to software development
  project management
• Demonstrate how the CMM incorporates QM
  principles

2
Quality

• is everyones job,
• comes from prevention not inspection,
• means meeting the needs of customers,
• demands teamwork,
• requires continuous improvement,
• involves strategic planning,
• means results,
• requires clear measures of success.

3
History of QM/QC/QA

• Deming plan, do, check, act
• Juran improvement, planning, control
• Crosby zero defects, management commitment
• Ishikawa
• quality circles, root cause of problems
• Taguchi prevention vs. inspection
• Feigenbaum worker responsibility

4
Quality Management

• Organization-wide commitment culture
• Results and measurement focus
• Tools and technical support needed
• Training and learning
• Continuous improvement of each process
• Is it necessary?
• Can it be done better?

5
7 Malcolm Baldrige Award Categories

• Pre-production
• leadership
• information and analysis
• strategic quality planning

• Production
• human resource allocation
• quality assurance

• Post-production
• quality results
• customer satisfaction

6
ISO 9000 Standard5 Elements (500 points)

• Quality Planning
• Performance Information
• Cost of Quality (economics)
• Continuous Improvement
• Customer Satisfaction

7
Quality in Project Management I

• ISO 9000, TQM, CQI principles
• Prevention over inspection
• lower cost, higher productivity, more cust.
  satisfaction
• Management responsibility and team participation
• Plan-do-check-act (re Deming, etc.) - PDCA
• Applied successfully in environments that have
  well-defined processes and products
• More difficult in areas like software development

8
Quality in Project Management II

• Customer satisfaction
• validation the right job done
• Conformance to specifications
• verification the job done right
• Fitness for use
• can be used as intended
• Satisfaction of implied or stated needs
• All project stakeholders considered
• Project Management making implicit needs
  explicit
• Project Processes and Product
• continuous improvement of both

9
Product Description
Quality Standards
Checklists
Quality Management Plan
Quality Planning
Project Scope
Work Results
Quality Policy
Quality Assurance
Operational Definitions
Quality Control
Quality Improvement Actions
10
Quality Planning (QP)

• Identifying relevant quality standards
• Determining how to meet them
• QP inputs
• quality policy adopted, disseminated
• scope and product description
• standards, regulations

11
Software Quality Planning

• Functionality
• features required and optional
• Outputs
• Performance
• volume of data, number of users
• response time, growth rate
• Reliability MTBF (mean time between failures)
• Maintainability

12
QP Outputs

• Quality management plan
• how team will implement quality policy
• structure, responsibilities, resources, processes
• (same as project plan?)
• Operational definitions
• metrics what it is and how its measured
• Checklists
• industry-specific

13
Quality Assurance (QA)

• Evaluating project performance regularly to
  assure progress towards meeting standards
• Inputs
• quality management plan
• operational definitions
• results of measurements
• Outputs
• quality improvement actions
• Tools QP tools, quality audits

14
QP/QA Tools

• Cost / benefit analysis and tradeoffs
• less rework higher productivity, lower costs,
  stakeholder satisfaction
• Design of Experiments
• comparison of options, approaches
• Benchmarking
• comparison of project practices to best practices
• Cause and effect (fishbone, etc., diagrams)

15
Quality Control (QC)

• Monitoring project results
• Measuring compliance with standards
• Determining causes if not in compliance
• Identifying ways to eliminate causes
• Performed throughout project life cycle

16
QC Inputs and Outputs

• Outputs
• Quality Improvement
• Acceptance decisions
• Rework
• Process adjustments
• corrective or preventive actions
• Completed checklists
• project records

• Inputs
• Work results
• Quality Management Plan
• Operational Definitions
• Checklists

17
QC Tools

• Pareto analysis
• 80 / 20 rule
• histogram frequencies
• Statistical sampling
• acceptable deviation
• 6-sigma
• 7-run rule

• Inspection
• measuring, examining, testing products
• Control Charts
• monitor output variables
• detect instability in process
• graphical display of results

18
Statistical Quality Control

• Prevention
• keeping errors out of the process
• Inspection
• keeping defects from the customer
• Sampling attributes and variables
• Tolerances acceptable ranges
• Control limits acceptable levels

19
Testing (Software)

• During most phases of product development
• Unit tests
• Integration testing
• System testing
• User acceptance testing

20
Improving Software Quality

• Leadership
• top management and organization-wide commitment
  to quality
• Costs of quality
• cost of non-conformance
• costs prevention, appraisal, failures, testing
• Work environment

21
PMI Maturity Model 5 levels

• Ad-hoc chaotic, chronic cost schedule delays
• Abbreviated processes in place, but not
  predictable
• Organized documented, standards that are used
• Managed measures are collected
• Adaptive
• feedback enables continuous improvement
• project success is norm

22
Capability Maturity Model (CMM) - 5 levels

• 1. Initial chaotic, heroic efforts,
  unpredictable
• 2. Repeatable processes standards established
• 3. Defined documented standards, training, use
• 4. Managed quantitative measures, predictable
• 5. Optimizing defect-prevention,
  organization-wide continuous improvement

23
CMM and Quality(see Appendix A goals for key
process areas)

• Level 2
• requirements management (customer focus)
• project planning (quality planning)
• project tracking and oversight (quality control)
• software quality assurance
• configuration management (prevention)

24
CMM Level 3 and Quality

• organization process focus (commitment)
• organization process definition (operational
  definitions)
• training program
• software product engineering (prevention)
• intergroup organization (teamwork)
• peer reviews (teamwork)

25
CMM Level 4 and Quality

• Quantitative process improvement
• Software quality management goals
• planned and measured

CMM Level 5 and Quality

• Defect Prevention (prevention)
• Technology and Process Change Management
  (continuous improvement)

26
Achieving Software Quality

• Focus on critical requirements early
• Use metrics early and continuously
• Provide development tools supporting
• configuration control, change control
• test automation, self-documentation
• abstraction, reliability, reuse
• Early and continuous demonstration-based
  evaluations
• Major milestone demonstrations assessed against
  critical requirements

27
Software Quality Measurement

• Software quality measured by ease of change
• Examples of data collected
• Number and types of changes
• number of components / effort (FPs, SLOC,
  classes...)
• number of change orders (SCOs)
• number of defective and fixed components
• Baseline total size (SLOC, FP, classes, etc.)
• Scrap broken code, may or may not be fixed
• Rework healthy early in project, should decrease

28
SCO Software Change Order

• 1. rework a poor quality component (fix)
• 2. rework to improve quality (enhancement)
• 3. accommodate new customer requirement (scope
  change)
• Configured Baseline
• the set of products subject to change control
• size of completed components

29
Software Quality Metrics

• Modularity
• breakage localization extent of change re
  baseline size
• Adaptability
• cost of change (effort needed to resolve and
  retest)
• Maturity
• number of SCOs over time MTBF during testing
• Each of above 3 should decrease over time
• Maintainability
• productivity of rework / productivity of
  development

30
Operational Definitions

• Defects measured by change orders SCOs
• Open rework (breakage)
• broken components measured by SCOs
• Closed rework (fixes)
• fixed SCOs
• Rework effort effort expended fixing SCOs
• Usage time baseline testing in normal use

31
Quantifying Quality Metrics

• Modularity
• breakage / SCOs
• Adaptability
• rework effort / SCOs
• Maturity
• usage time / SCOs (mean time between defects)
• Maintainability
• (percent broken) / (percent rework vs. total
  effort)
• End-product and over time indicators

32
Peer inspections pros and cons

• Pros
• Team development
• Accountability
• Determine causes of defects
• 20 critical components

• Cons
• Superficial
• Not cost effective
• Other QA activities are more effective

33
Project Quality Management (cont.)
34
Quality of IT Projects

• Many people joke about the poor quality of IT
  products (cars and computers joke)
• People seem to accept systems being down
  occasionally or needing to reboot their PCs
• There are many examples in the news about
  quality-related problems

35
What Went Wrong?

• In one of the biggest software errors in banking
  history, Chemical Bank mistakenly deducted about
  15 million from more than 100,000 customer
  accounts one evening. The problem resulted from a
  single line of code in an updated computer
  program that caused the bank to process every
  withdrawal and transfer at its automated teller
  machines (ATMs) twice. For example, a person who
  withdrew 100 from an ATM had 200 deducted from
  his or her account, though the receipt only
  indicated a withdrawal of 100. The mistake
  affected 150,000 transactions from Tuesday night
  through Wednesday afternoon.
• In 1996 Apple Computer's PowerBook 5300 model had
  problems with lithium-ion battery packs catching
  fire, causing Apple to halt shipments and replace
  all the packs with nickel-metal-hydride
  batteries. Other quality problems also surfaced,
  such as cracks in the PowerBook's plastic casing
  and a faulty electric power adapter.
• Hundreds of newspapers and web sites ran stories
  about the "Melissa" virus in March of 1999. The
  rapidly spreading computer virus forced several
  large corporations to shut down their e-mail
  servers as it rode the Internet on a global
  rampage, according to several leading network
  security companies.

36
What Is Project Quality Management?

• The International Organization for
  Standardization (ISO) defines quality as the
  totality of characteristics of an entity that
  bear on its ability to satisfy stated or implied
  needs
• Other experts define quality based on
• conformance to requirements meeting written
  specifications
• fitness for use ensuring a product can be used
  as it was intended

37
Project Quality Management Processes

• Quality planning identifying which quality
  standards are relevant to the project and how to
  satisfy them
• Quality assurance evaluating overall project
  performance to ensure the project will satisfy
  the relevant quality standards
• Quality control monitoring specific project
  results to ensure that they comply with the
  relevant quality standards while identifying ways
  to improve overall quality

38
Modern Quality Management

• Modern quality management
• requires customer satisfaction
• prefers prevention to inspection
• recognizes management responsibility for quality
• Noteworthy quality experts include Deming, Juran,
  Crosby, Ishikawa, Taguchi, and Feigenbaum

39
Quality Experts

• Deming was famous for his work in rebuilding
  Japan and his 14 points
• Juran wrote the Quality Control Handbook and 10
  steps to quality improvement
• Crosby wrote Quality is Free and suggested that
  organizations strive for zero defects
• Ishikawa developed the concept of quality circles
  and using fishbone diagrams
• Taguchi developed methods for optimizing the
  process of engineering experimentation
• Feigenbaum developed the concept of total quality
  control

40
Sample Fishbone or Ishikawa Diagram
41
Malcolm Baldrige Award and ISO 9000

• The Malcolm Baldrige Quality Award was started in
  1987 to recognize companies with world-class
  quality
• ISO 9000 provides minimum requirements for an
  organization to meet their quality certification
  standards

42
Quality Planning

• It is important to design in quality and
  communicate important factors that directly
  contribute to meeting the customers requirements
• Design of experiments helps identify which
  variables have the most influence on the overall
  outcome of a process
• Many scope aspects of IT projects affect quality
  like functionality, features, system outputs,
  performance, reliability, and maintainability

43
Quality Assurance

• Quality assurance includes all the activities
  related to satisfying the relevant quality
  standards for a project
• Another goal of quality assurance is continuous
  quality improvement
• Benchmarking can be used to generate ideas for
  quality improvements
• Quality audits help identify lessons learned that
  can improve performance on current or future
  projects

44
Quality Control

• The main outputs of quality control are
• acceptance decisions
• rework
• process adjustments
• Some tools and techniques include
• pareto analysis
• statistical sampling
• quality control charts
• testing

45
Pareto Analysis

• Pareto analysis involves identifying the vital
  few contributors that account for the most
  quality problems in a system
• Also called the 80-20 rule, meaning that 80 of
  problems are often due to 20 of the causes
• Pareto diagrams are histograms that help identify
  and prioritize problem areas

46
Sample Pareto Diagram
47
Statistical Sampling and Standard Deviation

• Statistical sampling involves choosing part of a
  population of interest for inspection
• The size of a sample depends on how
  representative you want the sample to be
• Sample size formula
• Sample size .25 X (certainty
  Factor/acceptable error)

48
Commonly Used Certainty Factors
95 certainty Sample size 0.25 X (1.960/.05)
384 90 certainty Sample size 0.25 X
(1.645/.10) 68 80 certainty Sample size
0.25 X (1.281/.20) 10
49
Standard Deviation

• Standard deviation measures how much variation
  exists in a distribution of data
• A small standard deviation means that data
  cluster closely around the middle of a
  distribution and there is little variability
  among the data
• A normal distribution is a bell-shaped curve that
  is symmetrical about the mean or average value of
  a population

50
Normal Distribution and Standard Deviation
51
Sigma and Defective Units
52
QC Charts, 6 Sigma, and the Seven Run Rule

• A control chart is a graphic display of data that
  illustrates the results of a process over time.
  It helps prevent defects and allows you to
  determine whether a process is in control or out
  of control
• Operating at a higher sigma value, like 6 sigma,
  means the product tolerance or control limits
  have less variability
• The seven run rule states that if seven data
  points in a row are all below the mean, above the
  mean, or increasing or decreasing, then the
  process needs to be examined for non-random
  problems

53
Sample Quality Control Chart
54
Reducing Defects with Six Sigma
55
Testing

• Many IT professionals think of testing as a stage
  that comes near the end of IT product development
• Testing should be done during almost every phase
  of the IT product development life cycle

56
Testing Tasks in the SDLC
57
Types of Tests

• A unit test is done to test each individual
  component (often a program) to ensure it is as
  defect free as possible
• Integration testing occurs between unit and
  system testing to test functionally grouped
  components
• System testing tests the entire system as one
  entity
• User acceptance testing is an independent test
  performed by the end user prior to accepting the
  delivered system

58
Building Testing into a Project Plan
59
Improving IT Project Quality

• Several suggestions for improving quality for IT
  projects include
• Leadership that promotes quality
• Understanding the cost of quality
• Focusing on organizational influences and
  workplace factors that affect quality
• Following maturity models to improve quality

60
Leadership

• It is most important that top management be
  quality-minded. In the absence of sincere
  manifestation of interest at the top, little will
  happen below. (Juran, 1945)
• A large percentage of quality problems are
  associated with management, not technical issues

61
The Cost of Quality

• The cost of quality is
• the cost of conformance or delivering products
  that meet requirements and fitness for use
• the cost of nonconformance or taking
  responsibility for failures or not meeting
  quality expectations

62
Costs of Downtime Caused by S/W Defects
63
Five Cost Categories Related to Quality

• Prevention cost the cost of planning and
  executing a project so it is error-free or within
  an acceptable error range
• Appraisal cost the cost of evaluating processes
  and their outputs to ensure quality
• Internal failure cost cost incurred to correct
  an identified defect before the customer receives
  the product
• External failure cost cost that relates to all
  errors not detected and corrected before delivery
  to the customer
• Measurement and test equipment costs capital
  cost of equipment used to perform prevention and
  appraisal activities

64
Organization Influences Workplace Factors

• Study by DeMarco and Lister showed that
  organizational issues had a much greater
  influence on programmer productivity than the
  technical environment or programming languages
• Programmer productivity varied by a factor of one
  to ten across organizations, but only by 21
  within the same organization
• Study found no correlation between productivity
  and programming language, years of experience, or
  salary
• A dedicated workspace and a quiet work
  environment were key factors to improving
  programmer productivity

65
Maturity Models

• Maturity models are frameworks for helping
  organizations improve their processes and systems
• Software Quality Function Deployment Model
  focuses on defining user requirements and
  planning software projects
• The Software Engineering Institutes Capability
  Maturity Model provides a generic path to process
  improvement for software development
• Several groups are working on project management
  maturity models

66
Project Management Maturity (PMM) Model

• 1. Ad-Hoc The project management process is
  described as disorganized, and occasionally even
  chaotic. The organization has not defined systems
  and processes, and project success depends on
  individual effort. There are chronic cost and
  schedule problems.
• 2. Abbreviated There are some project management
  processes and systems in place to track cost,
  schedule, and scope. Project success is largely
  unpredictable and cost and schedule problems are
  common.
• 3. Organized There are standardized, documented
  project management processes and systems that are
  integrated into the rest of the organization.
  Project success is more predictable, and cost and
  schedule performance is improved.

67
Project Management Maturity Model (Cont.)

• 4. Managed Management collects and uses detailed
  measures of the effectiveness of project
  management. Project success is more uniform, and
  cost and schedule performance conforms to plan.
• 5. Adaptive Feedback from the project management
  process and from piloting innovative ideas and
  technologies enables continuous improvement.
  Project success is the norm, and cost and
  schedule performance is continuously improving.
