Department of Biomedical, Industrial

1

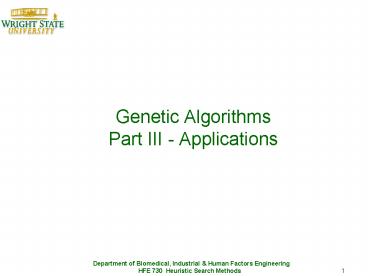

Genetic AlgorithmsPart III - Applications
2
A Genetic Algorithm for the Multidimensional
Knapsack Problem

• P. C. Chu J. E. Beasley

3
Multi-Dimensional Knapsack
4
Pseudo Utility

• Need some way to pick items or drop items so that
  each decision is a best decision
• Natural way is to evaluate items in terms of
  benefit per unit cost
• The bang for the buck approach
• General form of this is the following ui ci /
  vi
• The penalty factor, vi, varies from approach to
  approach
• For single knapsack, it is just the constraint
  coefficient
• For multiple constraints, need some method to
  collapse the cost within each of the
  constraints into a single measure

5
Penalty Factor Approaches

• Resource cost as a function of remaining
  resources in a constraint
• Resources remaining in each constraint if an item
  is selected
• Resource cost in the most constrained resource
• Sum of remaining resources in a constraint
  weighted by some multiplier
• Sum of resource cost in a constraint weighted by
  some multiplier
• There are also various ways to get these
  multipliers
• Chu and Beasley use shadow prices or the Lagrange
  multipliers

6
Finding a Good Trajectory
7
Chu and Beasley GA Design
8
GA Design

• Representation
• Since MKP is a 0-1, combinatorial optimization
  problem, representation is a binary string of
  length n
• Initial population
• Randomly selection, constructed in primal manner
• Not a purely random population
• The initial population is ensured entirely
  feasible
• Subsequent populations are retained in feasible
  status
• Chromosome repair
• As authors point out, not literally repairing
• An accepted term
• Projecting infeasible points back into the
  feasible space
• Projection based on a greedy DROP ADD heuristic

9
GA Design

• Intermediate population
• Selected via tournament selection
• Used binary tournament in increase the selective
  pressure
• Crossover
• Uniform crossover employed
• For each bit, flip a coin, heads from Parent 1,
  tails from Parent 2
• This increases the selective pressure in the
  subsequent populations
• Mutation
• Kept small
• 2 bits changed per string (bits randomly
  selected)
• Actually changing mutation rate based on problem
  chromosome length

10
GA Design

• Repair operation
• Meant to ensure all members remain feasible
• Easier than other approaches, particularly
  penalty methods
• Starts with LP solution to the problem being
  solved
• The shadow prices used to weight each constraint
• Pseudo-utility ratio for each variable is profit
  of the variable divided by the sum of the product
  of the constraint coefficient and that
  constraints assigned weight
• Based on pseudo-utility values, repair the
  solution using a DROP ADD greedy heuristic
• Actually this approach was first mentioned in the
  Senju Toyoda (1968) heuristic paper

11
Other Details

• Add an approach to ensure population members are
  unique
• Delete any duplicate members
• Replace weakest members in the population
• Generate a child via crossover and mutation
• Evaluate that child
• Place child (and its measure) into population
• Return population to steady-state by removing
  weakest member
• Any concerns about this design??
• No duplicates?
• Same greedy repair approach?
• Decreasing mutation rate?

12
Time Complexity

• A measure of algorithm running time as a function
  of problem size
• Generally calculated in terms of basic computing
  operations
• O(n2) says the number of operations is some
  function of the square of the problem size
• The authors list their GA as O(mn) per iteration
• Caveat is that this is per iteration
• Each iteration (generation) similar to entire
  competitor heuristic
• Timing results indicate up to 31 minutes per
  problem

13
Problem Sets
14
Larger Problems
15
Correlation Graph
16
Results

• See Tables in Paper

17
Case Study by Hoff

• Focused on GA Parameterization

18
Initial Parameterization

• Population size, 50
• Single point crossover
• Steady-state regeneration
• Feasible initial population
• Penalize infeasibility
• Run algorithm for 30,000 generations
• Fitness value objective function value
• Test set 57 standard problems
• Small problems referenced by Chu and Beasley

19
Examined Population Size
20
Things Examined

• Mutation
• Max 1 bit per chromosome
• Examined each bit for mutation
• Tried swap mutation
• Used 1/n rate of invert mutation
• Crossover
• Single point
• Two point
• Burst (or uniform) with 50 probability

21
Crossover Results
22
Population Types Considered

• Feasible
• Initial feasible
• Infeasibility allowed, but penalized
• Random
• Uniformly generated
• At least one member feasible
• Weighted Random
• Some portion required to be feasible
• Filtered
• Always maintain feasibility
• Found to work the best
• This was a surprise to the authors

23
Hoff et al. Results

• Good results
• Average 1.6 from optimum
• Actually found the optimal in many cases
• Results better than comparable methods
• Careful GA parameter tuning very useful
• Proximate Optimality Principle
• Extensively test a small subset of problems
• Apply the parameters to the full set

24
Some Experiences on Solving Multiconstraint
Zero-One Knapsack Problems with Genetic Algorithms

• Theil and Voss

25
Overview of Method

• Same standard type of encoding
• Infeasible chromosomes repaired via ADD-DROP
  operation
• Filter operation randomly drops items until
  feasibility achieved
• Evaluation
• Objective function if all in population are
  feasible
• Penalty function if infeasible solutions are
  allowed
• Mutation
• Bit strange
• An item is dropped after which there is an
  attempt to add some other item
• Local search
• Added to solutions implemented a basic tabu
  search

26
Theil and Voss Results

• Tests run on same 57 test problems
• Hard to get feasible solutions from randomly
  generated test problems
• Crossover rate of 90 and mutation of 0.09 were
  deemed best
• Population of 50 and run for 100 generations
• Larger populations overcame some of the problems
  with infeasible solutions
• The tabu search operator allowed the GA to be
  effective with smaller sample sizes

27
Gaining Insights Into Initial Genetic Algorithm
Performance On Multi-Dimensional Knapsack
Problems Under Varied Parameterizations And
Initial Population Compositions

• Masters Thesis
• By
• Chaitr Hiremath
• Advisor Dr. Raymond Hill
• Committee Dr. Frank Ciarallo and Dr. Xinhui Zhang

Department of Biomedical, Industrial, and Human
Factors Engineering Wright State University July
6, 2004
28
Introduction
Figure 1 Notional Best-So-Far Curves
29
Introduction

• Initial Population Generation (Hill, WSC 1999)

Probability of Feasible Random Solutions,
AU(1,40)
Probability of Feasible Random Solutions,
AU(1,15)
New Heuristic Develop a reasonable estimate for
Pr(x1)
30
Introduction

• Initial Population Generation (contd)

Percentage Feasible Solutions Produced by Each
Approach
Average Infeasibility Ratios for Infeasible
Solutions
31
Introduction

• Initial Population Generation (contd)

Average Objective Function Values by Constraint
Slackness Settings
Average Pr(x1) Values by Constraint Slackness
Settings
32
Research Results
Comparing Convergence Results to the Best So Far
33
Research Focus
Comparing Convergence Results to 1 of the Best
So Far
34
Hiremaths Results

• A better way of generating an initial population
  can in fact shift the best-so-far curve to the
  left
• This shifting to the left can result is savings
  of computational requirements
• The GA still needs mechanisms to get to steady
  state but with this improved initial population,
  dynamic parameterization such as changing the
  mutation rate might help jump the best so far
  curve up earlier in the process
• It is also quite possible this result will
  provide more pronounced results when applied to
  higher dimensional problems versus the relatively
  simple 2KP set used in this research
• Also did not examine the Beasley set in this work

35
Final Genetic Algorithm Comments
36
General Comments About GAs

• Coding of the problem move the GA to operate in a
  different space than that of the problem
• Performance of most GA implementations is
  comparable to or better than the performance of
  many other search techniques
• Fails to live up to the high expectations
  engendered by the theory
• GA can be considered as a pressure system
• Strong selective pressure supports premature
  convergence of GA search
• Weak selective pressure can make the search
  ineffective
• Population size has large impact
• Size too small then GA may converge to quickly
• Size too large may waste computational resources

37
GA Summary

• Biological underpinnings of GA
• Search algorithms on genetic processes of
  biological organisms
• GAs are intelligent exploitation of a random
  search
• Successfully deals with a wide range of problem
  areas
• Not guaranteed to find the global optimum
  solutions
• Generally good at finding acceptably good
  solutions acceptably quick
• Extremely robust
• Balance between efficiency and efficacy needed
  for survival in many different environments
• Applicable to a variety of applications

38
GA Summary

• Differences between GA and other search
  algorithms
• Considers may points in the search space
  simultaneously, not a single point
• Work directly on with strings of characters
  representing the parameter set, not he parameters
  themselves
• Domain independent
• Probabilistic rules to guide their search

39
Web Sites

• Hitch-Hiker's Guide to Evolutionary Computation
• http//www.cs.purdue.edu/coast/archive/clife/FAQ/w
  ww/
• Source Code Collection, GA Archive
• http//www.aic.nrl.navy.mil/galist/src/
