Title: NCR Confidential


1

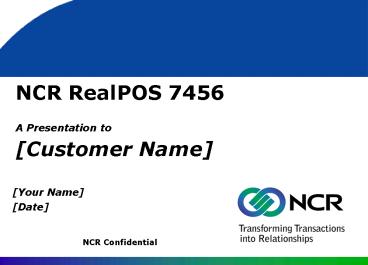

NCR RealPOS 7456 A Presentation to Customer
Name
Your Name Date
  • NCR Confidential

2
NCR RealPOS Terminal Family
  • Worldwide Product Offering for POS
  • Retail-hardened POS Workstations
  • Full Line of Retail Peripherals
  • Open Operating Systems
  • Enabling Platform Software
  • Platform Strategy
  • Leverage Industry Standard PC Technology
  • Retail Enhancements
  • Advanced Human Interfaces

NCR . Protecting Your Technology Investment
3
NCR RealPOS Terminal Family
RealPOS 7452 Full Size POS
RealPOS 7456 Compact POS
RealPOS 7451 Thin Client
RealPOS 7454 Multimedia Touch Screen POS
RealPOS 7448 Entry Level Integrated POS
RealPOS 7455 Integrated DynaKey POS
RealPOS 7460 Low Profile Touch Screen POS
4
NCR RSD Value Statement...
  • NCR Retail Solutions Division (RSD) chooses key
    components and technologies carefully, in order
    to provide the best balance of cost, performance,
    migration, and longevity to our customers.
  • The key point is balance.

5
Principles of - Designing For MigrationBuilding
Bridges
  • Protect application compatibility
  • Support standards in emerging interfaces and key
    legacy interfaces on new products
  • Provide O/S support for strategic O/Ss
  • Convert peripherals systematically to new
    interfaces in step with our customers
    requirements

6
NCR RealPOS 7456 Overview
A powerful, flexible solution designed to provide
maximum investment protection for the dynamic
retail marketplace
  • Scalable performance - to 1GHz PIII
  • Superior connectivity
  • Compact cabinet
  • Retail-hardened design
  • Broad Operating System Support

Unequaled Price / Performance and Value in the
POS Industry
7
RealPOS 7456 Technology Overview
  • Range of performance levels with Intel Celeron or
    Pentium III Socket 370 Processors (up to 1GHz!)
  • 133MHz Memory Bus to take advantage of fast PC133
    SDRAM
  • Ultra DMA 100 support provides a high speed disk
    interface

Scalable performance for today and tomorrow!
8
RealPOS 7456 - Video / Audio
  • Video
  • AGP 2X Graphics with 2D/3D Graphics Engine
  • Support for VGA, SVGA and XGA resolutions
  • Up to 8MB Video Memory (shared with system
    memory)
  • Industry Standard Video Interfaces
  • DVI-I Port (Digital Visual Interface)
  • VGA Port (15-pin D shell) for legacy analog CRT /
    LCD displays
  • Audio
  • Speaker Out / Mic In (model dependent)
  • AC-97 Audio with amplified stereo output (5W /
    channel)
  • SoundBlaster compatible

Delivers rich AGP graphics and audio support for
multimedia applications
9
RealPOS 7456 Expandability
  • Memory expansion from 64MB to 512MB PC133 SDRAM
  • 2 DIMM memory sockets facilitates future memory
    upgrades
  • 2 PCI Slots - 33MHz, 32 bit
  • 3.5 1.44MB Flex Disk Drive
  • 3.5 20GB Hard Disk Drive
  • 64MB Compact Flash Memory option (IDE interface)
  • Slimline CD ROM Drive option (bootable)
  • Integrated Battery Back-up option

Flexible expansion options support current and
future needs
10
RealPOS 7456 Connectivity
  • Powered USB
  • 4 - 6 Powered USB Ports
  • (1) 24V Powered USB Port (all models)
  • (3 or 5) 12V Powered USB Ports (model dependent)
  • RS-232 Connectivity
  • (4) External RS-232 Ports (3 powered with 12V)
  • (1) Internal Serial port dedicated to Integrated
    UPS Battery

Optimized mix of Powered USB and RS-232 provides
maximum flexibility
11
Universal Serial Bus (USB)
  • Benefits of USB
  • Industry standard peripheral interface
  • Fast data transfer speeds
  • Data signal and power (5V) in a single cable
  • Plug-and-Play connect peripherals without
    reconfiguring system
  • Eliminates IRQ assignments, I/O addresses, etc.
  • Hot Plugging connect / disconnect peripherals
    without powering down the system
  • What is Powered USB
  • Emerging defacto standard in retail. Provides
    benefits of USB plus
  • Additional power for retail peripherals (12V or
    24V)
  • Color coded and keyed connectors based on voltage
  • Positive latching connectors

12
RealPOS 7456 Connectivity
  • 10/100 Mbps Ethernet LAN (on-board)
  • Wake on LAN support
  • PXE Boot ROM
  • PS/2 Keyboard / Mouse Port
  • Utilize Y cable for PS/2 Mouse
  • Parallel Port
  • Standard 25 pin D shell
  • Cash Drawer Port
  • Supports two cash drawers with Y cable

Enhanced Connectivity for Retail
13
RealPOS 7456 Back Panel
Cash Drawer
Four Powered USB Ports
A/C Convenience Outlet

PCI
PCI
Four RS-232 Ports
VGA
DVI-I
Parallel
LAN
PS/2
Color coded peripheral ports simplifies
installation and serviceability
14
RealPOS 7456 Back Panel with Audio
Six Powered USB Ports
Mic
Audio
Cash Drawer
A/C Convenience Outlet

PCI
PCI
Four RS-232 Ports
VGA
DVI-I
Parallel
LAN
PS/2
Powered peripheral ports eliminate power bricks
and simplify cable management
15
RealPOS 7456 - Built for Retail
Keylock restricts access to power switch,
external media and internal components
Durable metal enclosure
  • LED Status Lights
  • Power Status
  • Hard Disk Activity
  • LAN Link Integrity

Compact cabinet saves valuable space (12.6 W x
15.8 D x 4.25 H) (32 cm W x 40.1 cm D x 10.8
cm H)
Reliable and secure for demanding retail
environments
16
RealPOS 7456 - Built for Retail
  • Rigorous Testing for Retail Environments
  • Shock and Vibration
  • Packaging / Drop Testing
  • Stress Testing
  • Temperature Cycling
  • Electrical Load and ESD (Electro-Static
    Discharge)
  • Regulatory POS Testing
  • Worldwide Governmental Safety Tests
  • Safety Certifications (UL), Emissions Test (FCC)
  • Platform Integration Testing
  • Terminal, peripherals, multiple operating
    systems, platform software

17
Power Management
  • 237 Watt Power Supply with Powered USB / RS-232
  • Eliminates power bricks for peripherals
  • Improves cable management and reliability
  • Integrated UPS Battery Back-up
  • Allows POS transactions to be completed during
    power loss
  • Facilitates an orderly shutdown of system
  • Advanced Power Management
  • APM 1.2 compliant - supports APM Standby and
    Suspend Modes for reduced power consumption and
    lower energy costs
  • Turn LCD back-light off during periods of
    inactivity

18
Open Software Environments
  • Industry Standard Operating Systems
  • DOS 6.22
  • Windows CE 3.0
  • Windows 2000 Professional
  • Windows XP Professional (planned Q3)
  • Windows XP Embedded (planned Q3)
  • Linux Certified
  • Note Windows 98 and Windows NT available by
    request using SCER process.

19
Enabling Platform Software
NCR Value-Added POS Offering
  • Operating System Gold Images
  • Norton Ghost Crisis Recovery - Every Unit Item
  • OPOS and JPOS POS Peripheral Drivers
  • Fit Client Manager POS Management Software
  • Enhanced PC BIOS Features

20
RealPOS Displays
  • 5953 12.1 DynaKey
  • Advanced User Interface
  • Combined LCD and Keyboard
  • Reduce training time improve productivity
  • 5964 12.1 LCD / Touch Screen
  • Resistive Touch Screen
  • Tilt / Swivel with MSR Option
  • DVI Interface
  • 5942 12.1 LCD Display
  • Small Footprint
  • Operator or Customer Display
  • Analog Interface

21
RealPOS 7167 Printer
  • Two-station Printer
  • Thermal Receipt w/ knife
  • Impact Slip w/ flat slip table
  • High Performance
  • 170mm/sec receipt (50 LPS)
  • 300 CPS Slip (4 LPS)
  • High Reliability
  • Smallest Footprint in the Industry
  • 7.5W x 10.3D x 7.0H
  • Modular Serviceability
  • Receipt, Slip, MICR
  • Two-Color Print
  • Multi-Function Features
  • MICR, Check Flip
  • Auto-Sensing Interface
  • RS-232/USB

22
RealPOS 7197 Printer
  • Single Station Thermal Printer
  • Small Footprint
  • High Performance
  • Modular Serviceability
  • High Reliability
  • Two-Color Print
  • Knife
  • Auto-Sensing Interface (RS-232 or USB)

23
RealPOS 7456 Summary
  • Advanced technology and scalable performance to
    address your requirements today and tomorrow
  • Superior connectivity for retail
  • Compact with flexible expansion options
  • Retail hardened design
  • Advanced human interfaces

Unequaled Price / Performance and Value in the
POS Industry .Exceptional Investment Protection
24
Discussion
25
RealPOS 7456 Base Models
Scalable performance supports a range of
environments
26
Field Installable Kits and Cables
27
RealPOS 7456 Peripherals
  • Operator and Customer Displays
  • 5953 12.1 Color DynaKey
  • 5964 12.1 Color Touch Screen (DVI)
  • 5942-2000 12.1 Analog TFT LCD Display (VGA I/F)
  • 5982 5 Monochrome VGA LCD (requires PCI VGA LCD
    card)
  • 7452-K404 9 Monochrome CRT (VGA I/F)
  • 7452-K419 15 Color CRT (VGA I/F)
  • 5972 2x20 VFD and LCD Customer Displays (powered
    RS-232)

28
RealPOS 7456 Peripherals
  • Retail Keyboards
  • 5932 64-Key Keyboard (PS/2)
  • 5932 Big Ticket Keyboard (PS/2)
  • 5932 USB Big Ticket Keyboard (USB)
  • Printers
  • 7167 / 7158 Thermal Receipt w/ Slip/ MICR, CF,
    Dual I/F
  • 7197 / 7194 Thermal Receipt Printer, Dual I/F
  • 2214-1000 Thermal R/J Fiscal Printer - Italy
  • 7162 Impact R/J/S
  • Cash Drawers
  • 2189 Full Size Cash Drawer
  • 7453-K005 Mid Range Cash Drawer
  • 2182 Compact Cash Drawer

29
RealPOS 7456 Peripherals
  • NCR Scanners
  • 7837 Linear Imaging Hand Held Scanner
  • 7892 Presentation Scanner
  • 7882 Compact Scanner
  • 7872 Scanner / Scale
  • 7875 Scanner / Scale
  • Electronic Payment Devices
  • 5992 Signature Capture Plus
  • 5945 Electronic Payment Terminal
  • Other Peripherals
  • 2336-K024 External CD ROM Drive (Parallel
    Interface)
