Designing for solubility when lowering log P isnt enough

1

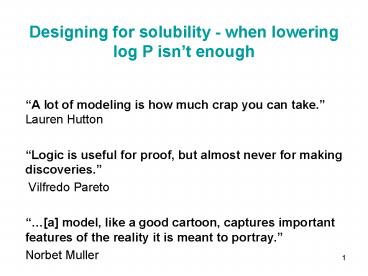

Designing for solubility - when lowering log P
isnt enough

• A lot of modeling is how much crap you can
  take.Lauren Hutton
• Logic is useful for proof, but almost never for
  making discoveries.
• Vilfredo Pareto
• a model, like a good cartoon, captures
  important features of the reality it is meant to
  portray.
• Norbet Muller

2
Many facets of solubility
-Bergström, et al. Eur. J. Pharm. Sci. 22 (2004)
387-398.
3
Solubility model development schema
Iterative approach brings significant risk of
overfitting.
4
Intrinsic Solubility Model

• Data selection
• Non-ionizable compounds from PhysProp
• 250 MW lt 750
• Reasonable structures only selected by hand.
• 199 training cmpds, 20 test cmpds
• Structures
• OEChem Canoncial Smiles, Omega conformer,
  minimized with OPLS2005/water using Bmin.
• Descriptors
• clogP,Volsurf, H-bond acceptors donors
• Feature Selection
• Simulated annealing with MLR/PRESS

5
Intrinsic Solubility Model(Solubility of neutral
form outside of crystal lattice)

• Training Set R20.88, RMSe0.61, N199
• Validation Set R20.93, RMSe0.50, N20
• - constant not used when Xtal packing effects
  included

6
Intrinsic Solubility Model(Solubility of neutral
form outside of crystal lattice)
Pharmaceutically relevant range

• Training Set R20.77, RMSe0.59
• Validation Set R20.87, RMSe0.50
• - constant not used when Xtal packing effects
  included

7
Crystal Lattice Stability

• Hypothesis The extent of disorder of the unit
  cell in response to increasing energy is
  indicative of the stability of a crystal lattice.
• Ansatz Effect is non-linear, with functional
  form

Griseofulvin
8
Crystal Packing Melting Point
Mult. Crystal forms 10 crystal forms of same
compound Project 1 5 compounds from three
chemotypes Project 2 6 compounds from two
chemotypes
9
Error model for pH-solubility curve

• Prediction errors for various terms in model
• Uses 90 confidence interval of intrinsic
  solubility
• 0.5 pKa units from ACD/pKa or Epik. (arbitrary)
• Std. dev. of 3 runs for crystal packing effect.
• 0.2 error for std. dev. of ionization slope.
  (arbitrary)
• Monte Carlo error simulation
• Each error term is considered independent
  normally distributed with the error limits
  (either 90 conf interval or std dev.) defined
  above.
• Predicted solubility generated 1000 times at each
  pH, report median 90 interval.

10
Intrinsic Solubility Predictions

• RMSe0.83, Median err0.63

RMSe0.86 Median err0.41
Intrinsic solubility data from Wassvik, et al
(Euro. J. Pharm. Sci., 29, 2006, 294305) (N25)
11
Solubility Prediction Glyburide

• Crystal packing simulation based on CSD entry
  DUNXAL
• Predicted Xpack1.30.26, log So-5.90.35,
  pKa4.70.5
• Measured log So-7.1, pKa5.4

12
Project Example

• Early members of lead chemotype are potent and
  selective antagonists
• Characterized by poor solubility that is not
  tightly coupled to high logP
• In vivo efficacy established

• 313 compounds with measured solubility
• 30 cmpds sol. gt 1 ?g/ml
• 2 with Ki lt 50 nM

13
Cmpd-1 Solubility Profile

• Model highlights logP size as major factors
• Other parameters have important impact as well
• Lack of significant HPLC LogP correlation hinted
  that crystal packing may play significant role as
  well.

14
Cmpd-1 Solubility Profile
HPLClogP gt 7 Exp. Sol lt 0.1?g/mL Pred. Sol
0.0005 ?g/mL

• Small molecule X-ray shows tight packing into the
  pocket formed by aromatic rings.
• MD simulations show this crystal form to be
  highly stable.

Xpack1.97
15
Cmpd-2
EWG replaced by aliphatic group
HPLClogP3.8 Measured 4 ?g/mL Predicted 0.4
?g/mL

• Xpack simulation used Cmpd-1 x-ray structure as
  a template.
• Xpack 1.4
• Head group leaves aryl pocket in simulation at
  higher T
• Intrinsic solubility pred. 2.5 log units
  improved over cmpd-1

16
Cmpd-7

• Heterocycle replacement for phenyl leads to
  unsymmetrical pocket
• Simulation using modeled structure of Cmpd-7
  based on Cmpd-1 shows that EWG not as stable in
  the modified pocket

HPLCLogP5.2 Exp. Sol 0.2?g/mL Pred. Sol 0.1
?g/mL
17
Cmpd-8

• Solubility _at_pH6.5
• 3.8 - 55 ?g/mL depending on salt/crystal form.

18
Solubility Estimation

• General solubility prediction including
  solvation, ionization, and local crystal packing
  simulation.
• Crystalline material only
• Most 1.0 ?g/mL 0.1 ?g/mL were recorded as soft
  numbers (e.g. lt 1.0 ?g/mL)

19
Trends in Solubility Potency
50-compound moving geometric mean
Cmpd-8 registered
Cmpd-7 X-ray supports strategy
Crystal packing strategy proposed

• Chemistry took knowledge from modeling and
  derived structures to disrupt key crystal
  interaction.
• Improved solubility apparent, with maintained
  potency.

20
Primary Assumptions

• Crystal packing effect falls off with ionization
• Untrue possibly fall off as ionization state
  differs from ionization state of crystal? At
  what rate?
• Crystal packing effect is independent of the free
  energy of solvation.
• Crystal packing can limit aqueous solubility by
  up to 2 orders of magnitude. (arbitrary)
• Ionization effect limit set to 4.25 log units for
  single acid or base, 5.0 for multiple ionizable
  centers. (incorrect)
• Crystal form of a new analog is similar to that
  of solved X-ray of a previous similar analog.
  (very risky)

21
Major sources of error

• Sensitive to quality logP estimate.
• Comparability of crystal packing effect
  simulation is unclear - only relevant compared to
  other compounds in a series?
• No consideration of crystal rearrangement on
  melting
• Hemihydrate water leaves crystal (50 oc) prior
  to melting at 174 oc. Simulation shows this
  structure as unstable at low T.
• Better for compounds with known x-ray unit cell.
• Most common source of error (by far!) are poor
  pKa estimates
• Jaguar calculated pKas can somewhat mitigate
  this at significant added compute time.
• 4-10 cpu hours typical vs. 1 min. for Epik or ACD

22
Summary

• Reasonable performance over pH-solubility curve
  when viewed in entirety, but
• Point estimates of solubility at pH6.5 are often
  dramatically off, usually due to errors in pKa
  estimate
• Individual components of the model can be
  interpreted to provide predicted information on
• Molecular features implicated in intrinsic
  solubility
• pKa
• Influence of crystal packing on limiting
  solubility.
• Complicated, but generally interpretable, model.

23
Acknowledgements

• Collaborators
• Olafur Gudmundsson (Pharmaceutics/PCO)
• Xue-Qing Chen (Pharmaceutics/PCO)
• Denette Murphy (ARD)
• Chemistry
• Numerous colleagues
• Lexicon
• Terry Stouch

• Analytical RD
• Jack Gougoutas
• Mary Malley
• CADD
• Malcolm Davis
• Brian Claus
• Andy Pudzianowksi
• Arthur Doweyko
• Doree Sitkoff
• Stan Krystek
• Dan Cheney

24
Solubility Prediction Algorithm
Effect of Ionization
Effect of Crystal Packing Forces
Solubility at a given pH
Aggregation Number
Intrinsic Solubility
Ionization effect Range
FI is the fraction ionized at pH
Where DT are the diffusion coefficients from an
escalating temperature molecular dynamics
simulation.
25
Solubility Prediction Haloperidol

• HCl salt HALDOL01
• Mesylate modeled on YANMUW

26
If we had a crystal structure

• we wouldnt need to predict solubility.
• Simulate crystal packing by overlaying molecule
  of interest on known crystal structure of related
  compound
• Less reliable as compounds become less related.
• Only suggests if new compound can form the same
  crystal form as the known crystal structure.
