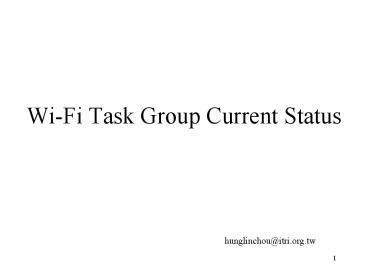

WiFi Task Group Current Status

1
Wi-Fi Task Group Current Status
hunglinchou_at_itri.org.tw
2
Wi-Fi Alliance

• Wi-Fi CERTIFIED
• Based on IEEE 802.11 standards
• Brings interoperability for enhanced user
  experience
• Protects investments and enables industry growth
• More than 200 membership
• More than 2000 products have been Wi-Fi
  CERTIFIED
• 70 increase in certified products in 03-04
• 12 certification labs in 6 countries

3
Wi-Fi Strategic Partnership

• Wi-Fi alliance make strategic partnership with
  Digital Living Network Alliance
• Comprised of CE companies, mobile companies and
  other aligned to seamlessly deliver digital
  information in the home

4
World Wide Wi-Fi Unit Shipments Certified Products
5
2006-2007 IEEE Standard Roadmap
Data from Wi-Fi Alliance
6
Wi-Fi Interoperability Roadmap
Data from Wi-Fi Alliance
7
Current Test Plans

• Wi-Fi 802.11a/WPA Test Plan
• Wi-Fi 802.11b/WPA Test Plan
• Wi-Fi 802.11g/WPA Test Plan
• Wi-Fi PDA Test Plan
• Wi-Fi WMM Test Plan
• Wi-Fi WPA2 Test Plan
• ASD Test Plans

8
Current ASD Test Plans

• Cellular
• 802.11b module within Smart Phone supported by
  Windows CE (IEEE 802.11b and WPA)
• WLAN VoIP Telephone (IEEE 802.11b and WPA)
• Audio
• WAP1 wireless audio module sold by Philips (IEEE
  802.11g and WPA)
• For PCMCIA interface ZyXEL ZyAIR B120 wireless
  audio module (IEEE 802.11b and WPA)
• Wireless Print Server
• Tablet PC
• Terminal Audio
• For the PC/Terminal including WLAN module (IEEE
  802.11b and WPA)
• Network Camera
• Station
• SDIO Client Card
• Compact Flash
• Printer Module
• Miscellaneous Test Plans

9
Wi-Fi Interoperability Certificate
10
All Task Group List
11
Task Groups

• Marketing Task Group
• ??MRD(Marketing Requirement Document)
• ????????????????
• Technical Task Group
• ????????
• ????? Test Plans
• ????? Testbeds
• ???Wi-Fi ???????????

12
2004-2005 Board of Directors
13
The Role of Board of Directors in TGs

• Only the Board of Director(BOD) could create a
  Task Group and have responsibility for process
  supervision
• Monitor the progress of TG through the progress
  reports
• Notify the TG chair is in violation of the TG
  operating rules
• Remove the TG chair from the chair position
• Approve/reject the deliverables submitted by the
  TG
• Only the BOD shall be authorized to terminate the
  operation of a TG

14
Task Group Formation

• Request to Form a TG
• Any member company of Wi-Fi Alliance could
  initiate the TG and submit the formation
  presentation/guidelines to BOD
• Identify a pro-tem chair (could be elected as the
  permanent chair of the TG)
• Board Approval of Formation
• Call for Participation
• The participation is open to all Wi-Fi Alliance
  member equally
• There can be only one voting member per company
• Nomination of Election of TG Officials
• TG Reflector and Conference Call Number
  Assignment
• TG Board Sponsor
• Each TG should have a board liaison that is
  assigned by the board during the approval of the
  TG information

15
Membership in Task Group

• Rights of Non-Voting Members
• Member should ask task group chair to be added to
  the TG as a non-voting member
• The chair shouldnt deny a member joining the TG
  as a non-voting member
• Rights of Voting Members
• Must be a non-voting member first and participate
  in 3 out of 5 consecutive conference calls. After
  the third conference call, member could request
  to become a voting member.
• Member shall loose its voting members right if
  no individual with voting authority on behalf of
  the member is present for 3 out of 5 consecutive
  meetings/conference calls

16
Wi-Fi Simple ConfigSecure Task Group

• Most (estimate 70-80) of wireless networks never
  configure security features
• Many companies develop and deploy different
  proprietary solution to enable simple and secure
  WLAN setup
• Therefore Wi-Fi Alliance has formed the Simple
  Config Task Group(SCTG) to establish a standard
  easy and secure setup solution
• User dont need to understand technology or make
  decision the user does not understand
• Ex SSID or WPA.etc
• Focus on home/Small Business and Home Office
  (SOHO) Wi-Fi Networks. All settings should be
  automatically configured
• This proposal should support WPA/WPA2-Personal
  encrypted wireless network as minimum
  requirements
• Supporting WPA/WPA2-Enterprise networks is
  considered a plus
• AD-HOC support is allowed and welcomed as an
  additional feature

17
802.11 hdj Task Group

• Marketing
• Mail reflector
• list-tghdmarketing_at_wi-fi.org
• Chair
• Sheung Li,Atheros
• Key Focus
• Define requirements for 802.11h/d/j
  interoperability test plans for 802.11a/b/g
• Current Status
• MRD approved
• Plug-fest ? complete
• Technical
• Mail reflector
• list-tghdtech_at_wi-fi.org
• Chair
• Sheung Li,Atheros
• Key Focus
• Developing certification programs including test
  plans and associated interoperability test beds

18
802.11 hdj Task Group

• the TGhdj Marketing Task Group has defined a
  set of requirements for 802.11h-based,
  802.11d-based, and 802.11j-based products.
• Relationship of 11hdj testing to other WFA test
  plans
• 802.11h test-matrix requires regulatory
  certification for 5GHz operation in either USA or
  Europe.
• 802.11j test-matrix requires regulatory
  certification for 5GHz operation in Japan.

• IEEE Std 802.11d-2001 - Specifications for
  operation in additional regulatory domains
• IEEE Std 802.11h-2003 - Spectrum and Transmit
  Power Management Extensions in the 5GHz Band in
  Europe
• IEEE Std 802.11j-2004 - 4.9 GHz-5 GHz Operation
  in Japan

19
Cellular Convergence Task Group

• Marketing
• Mail reflector
• list-cellconvergence_at_wi-fi.org
• Chair
• Paul Meche, Nokia
• Key Focus
• Define MRD for converged devices
• Create a cellular friendly zone within the Wi-Fi
  Alliance
• Current Status
• WCC MRD in progress
• Collaborate with QoS TG on APSD MRD
• Certification launch ?05/2H

20
Cellular Convergence Task Group

• Wi-Fi/Cellular Convergence (WCC) task group
  chartered to support cellular industrys unique
  certification requirements
• Wi-Fi Alliance certifications to complement
  cellular-specific tests, including RF
  conformance, minimum receive sensitivity and
  transmit-output power
• The market for Wi-Fi and cellular converged
  services is estimated at 1.6 billion by 2010 in
  the U.S. alone, with over 29 million subscribers,
  and nearly 55 million subscribers worldwide(UMA
  and Beyond Mobile Operators Benefit from Wi-Fi
  and Cellular Convergence, Jan. 2005, Senza Fili
  Consulting)
• Users look for Wi-Fi CERTIFIED
• 51 of Consumers look for Wi-Fi
  CERTIFIED(Jupiter Research Consumer Survey, 9/04)

21
Cellular Convergence Task Group

• Mission Statement
• To address the unique certification needs of the
  Wi-Fi functions for converged Wi-Fi / Cellular
  devices by creating interoperability
  certification requirements for client devices and
  WLAN infrastructure products.
• Objectives
• Prevent market fragmentation maintain WFA
  relevance
• Initiate outreach towards the manufacturers of
  convergence devices, Associations engaged
  Cellular certification and/or Associations
  focused convergence itself
• Solicit requirements for Wi-Fi functions of
  convergence devices
• Propose mutual access and/or recognition of
  certification programs between WFA and various
  Cellular stake holders
• Create a Market Requirements Document (MRD) to
  guide the development of an interoperability
  certification test plan
• Solicit input for limited conformance testing
• Create and execute a marketing communications plan

22
Cellular Convergence Task Group

• WLAN / Cellular convergence is here now!
• HP iPAQ h6315 Pocket PC, quad-band GSM/GPRS,
  built-in 802.11b Bluetooth, integrated VGA
  camera, 200MHz processor, 64MB of RAM, SD
  expansion slot, 3.5-inch LCD screen
• Motorola CN620 class B GSM. Class 4 capable in
  GSM 850 900 MHz bands, class 1 capable in the
  1800 1900 MHz bands. GPRS class 10 (2 uplink
  and 4 downlink slots). 802.11 b/g(2.4 GHz)
  802.11a(5.24 GHz).
• NEC 900iL dual mode W-CDMA / WLAN terminal
  conforming to standard 802.11b, weighs 123g,
  dimensions 103 x 50 x 30 mm
• Nokia 9500 Communicator Symbian 7.0, Java MIDP
  2.0, tri-band GSM/EDGE, 802.11b, full QWERTY
  keyboard two 65,536-color displays. Integrated
  VGA camera, video recorder, MMS. Security
  SSL/TLS, VPN, Ipsec, WPA. Size 148 x 57 x 24 mm,
  222 g
• Samsung SCH-i600 1xRTT, Smartphone 2003 OS,
  802.11b capable via SDIO card and drivers.
• Others expected

23
Cellular Convergence Task Group

• Many converged devices launched without WFA
  certification
• WFA visibility poor to Cellular handset
  manufacturers
• Trade press contain rumors of public and
  non-public organizations, e.g. SCCAN UMAC,
  creating specifications for convergence products
• WFA Board believes the Alliance is the best place
  to address Wi-Fi aspects of converged product
  certification
• Minimum expectations on WCC devices
• indication of service availability wifi and
  cellular
• user can select (or switch to) different RF
  access
• basic call possible using WLAN, activated by the
  user
• cellular call possible, activated by the user
• voice quality is 'similar to cellular'
• when active on one RF access, users can receive
  calls on it (without noticeable interference due
  to other RF channel operations)
• throughput sufficient for intended uses of the
  device

24
Coexistence Task Group

• Marketing
• Mail reflector
• list-coexistence_at_wi-fi.org
• Co-Chair
• Amer Hassan, Microsoft
• Jan Kruys, Cisco
• Key Focus
• Investigate benefits of etiquette rules for
  license-exempt bands, allowing dissimilar systems
  to share spectrum in a Wi-Fi friendly, controlled
  manner
• Current Status
• SOW complete
• Research Paper ? 05/1Q
• Spectrum Sharing of Dissimilar Systems Whitepaper
  ? 03/12

25
Coexistence Task Group

• 2 dimensions of spectrum sharing
• Vertical sharing
• Between systems with different level of
  regulatory status
• e.g.
• Radar system and Wireless device are both in 5GH
  spectrum
• For a short range transmission in the same
  spectrum
• Horizontal sharing
• Between systems with equal level of regulatory
  status
• Sharing channels or look for a clean piece of
  spectrum
• Interference with different power levels, medium
  access methods
• Different applications require different
  bandwidth
• ..etc
• Need to define Spectrum Common Rules and
  Parameter Values

26
Security Task Group

• Marketing
• Mail reflector
• list-securitymarketing_at_wi-fi.org
• Chair
• David cohen, Broadcom Corporation
• Key Focus
• Focus on deepening interoperability requirements
  for WPA/WPA2-Enterprise through the Extended EAP
  interoperability program
• Current Status
• WPA certification available (about 900 products
  certified)
• WPA2 certification available (about 150 products
  certified)
• Extended EAP certification launch ?05/2Q
• Technical
• Mail reflector
• list-securitytech_at_wi-fi.org
• Chair
• Dorothy Stanley, Agere
• Key Focus
• Develop additional EAP method extensions to the
  WPA/WPA2 (802.11i) test plans

27
Security Task Group

• Security is still a key issue
• 28 of respondents report they have plans to
  deploy Wi-Fi network in 6-18 months

28
Security Task Group

• Challenge of deploying Wi-Fi networks

29
Security Task Group

• WPA/WPA2 Personal/Enterprise
• Current support EAP type
• EAP-TLS
• EAP-TTLS/MSCHAPv2
• PEAPv0/EAP-MSCHAPv2
• PEAPv1/EAP-GTC
• EAP-SIM
• WPA2 New Certification begin April 15,2005
• WPA2 will be mandatory effective March 2006

30
Security Task Group
AP
STA
Radius
After Associate to AP
EAP-Start
Request Identity
Authentication
Check Identity
Response Identity
Radius Access Challenge
EAP-Request
Radius Access Request
EAP-Response
Success
EAP-Success
Key management
Pairwise Key Handshaking
Group Key Handshaking
Connect to internet
31
Security Task Group
32
Consumer Electronics Task Group

• Marketing
• Mail reflector
• list-cetaskgroup_at_wi-fi.org
• Chair
• Ko Togashi, Sony Corporation
• Key Focus
• Define interoperability requirements and
  certification program for Wi-Fi enabled consumer
  electronics products. Partner with DLNA tp align
  certification requirements.
• Wi-Fi CERTIFIED is a prerequisite for DLAN
  certification
• Current Status
• Phase 1 MRD approved
• Phase 1 certification launch ? 2005/Q2
• Phase 2 MRD ? in process
• Phase 2 certification launch ?2005/Q4

33
Consumer Electronics Task Group

• WLAN is also targeted for use in a wide range of
  non-PC centric or consumer electronics devices,
  enabling both multimedia and entertainment
  classes of networks
• TV tuners, Camcorders, DVD players, video game
  consolesetc
• Goals
• To identify the specific requirement, for Wi-Fi
  products, that are targeted for home information
  appliances
• For non-PC based audio-video services in home
• Interoperability requirement for A/V devices
• Define the issues that are CE specific and are
  not being address
• Growing the market for Wi-Fi in CE

34
Consumer Electronics Task Group

• Wi-Fi CE MRD Scope
• Phase 1
• Outline market requirement for a Wi-Fi CE Device
  Certification program required to support DLAN
  v1.0
• Propose ways to simplify Wi-Fi certification of
  CE devices handled by ASD test plans currently
  and support ease of use and Simple
  ConfigSecure Task Group
• Phase 2
• Identify requirements of an improved
  certification program to support DLNA v1.1
• Establish requirements for test methodology and
  platform
• Consider the requirements of 4 classes of CE
  devices
• Video
• Any device that sends/receives MPEG2 content, at
  up to 10.8 Mbps throughput, either by streaming
  or upload/download
• Audio
• Any device that sends/receives Linear PCM content
  up to 1.4 Mbps
• Image
• Any device that handle JPEG files
• Voice
• Any device that sends/receives human voice/audio
  streaming up to 64 kbps

35
Consumer Electronics Task Group

• The available market for Wi-Fi enabled consumer
  product is expected to be more than 150 million
  by 2007

Data from Wi-Fi Alliance
36
Ease of Use Task Group

• Marketing
• Mail reflector
• list-easeofuse_at_wi-fi.org
• list-ezsetup_at_wi-fi.org
• Chair
• Mark Oser, Connexion by Boeing
• Alec Gefrides, intel
• Key Focus
• Enhance ease-of-use and ease-of-setup for Wi-Fi
  products
• Current emphasis on a uniform method for setup up
  security
• In order to reduce technical support calls and
  retail product return rates
• Current Status
• Easy security setup aka simple configuration MRD
  ?2005/1Q
• Easy security setup certification launch ?2006/1Q

37
Ease of Use Task Group

• Develop Wi-Fi Diagnostic Guide Document
• Consider to develop Diagnostic API
• Develop Diagnostic Tool

38
Public Access Task Group

• Marketing
• Mail reflector
• list-publicaccess3_at_wi-fi.org
• Chair
• Ko Togashi, Sony Corporation
• Key Focus
• Enable growth of Wi-Fi public access market
• Current Status
• Wi-Fi Protected Access for PA white-paper?04/11
• Collaborate with WCC Marketing TG to address
  roaming issues, and deliver Client Device/Access
  Point Roaming MRD
• PA certification launch ?05/2H

39
Public Access Task Group

• Technical
• Mail reflector
• list-publicaccesstech_at_wi-fi.org
• Chair
• Greg Hayes, Infonet
• Key Focus
• Establish Wi-Fi as the standard for public WLAN
  access
• The goal of PA TG
• Make it faster, easier and more cost-effective to
  deploy for Operators/Carriers
• Provide Security and Ease-of-use for nomadic
  Wi-Fi Users
• Ensure compatibility with industry roaming and
  settlement common practices/stabdards

40
Public Access Task Group
41
Public Access Task Group

• The same functional components can also support
  browser-based authentication (UAM)
• 1 The wireless station (STA) discovers an 802.11
  access point (AP) and initiates a connection
  request
• 2 The AP (or a network authenticator) responds
  with a request for the STA identity.
• 3 The AP forwards the STA identity as an
  authentication request message to the local
  authentication server/proxy (AAA-V).
• 4 The AAA-V examines the STA identity and decides
  that this is a roaming user. It forwards the
  authentication request on to the AAA server of
  the home provider of that user (AAA-H) (often,
  but not necessarily, via an INT) based on the
  realm name specified in the STA identity.
• 5 The AAA-H authenticates the user via an
  EAP-based challenge-response method that runs
  end-to-end between the AAA-H and the STA. A
  local user database is consulted by AAA-H to
  verify the username and credential provided by
  the STA. The result of the authentication and
  session key material are communicated back to the
  AAA-V, AP, and STA.
• 6 The AP configures link-layer session keys and
  signals that the STA has been successfully
  authenticated. Prior to this time, the AP blocks
  any attempt by the STA to obtain an address or
  access the Internet.
• 7 The AAA-V sends accounting messages to AAA-H
  and possibly to a billing and settlement
  intermediary as well. When the STA disconnects,
  an accounting stop message is sent as the last
  message for that session. The billing and
  settlement components process the accounting data
  and generate charging and billing records.
  Depending upon the processing requirements of the
  billing/settlement components, AAA-V may also
  save the accounting records to a log file and
  send them in batch mode to the billing/settlement
  provider. Note that a billing/settlement
  intermediary may but will not necessarily also
  act as an aggregator for authentication. These
  are independent functions.
• 8 Charging records are exchanged between business
  entities involved in this scenario, and
  settlement occurs.
• 9 The home provider adds charges to the user's
  bill for the public WLAN usage.

42
QoS Task Group

• Marketing
• Mail reflector
• list-qos_at_wi-fi.org
• Chair
• Rolf De Vegt, Airgo Networks
• Key Focus
• Define MRD for products based on the 802.11e
  draft
• Enable data transfer prioritization to ensure
  audio and video streaming application without
  interruption
• Current focus on WMM Power Save issues
• Current Status
• WMM certification available (about 80 products
  certified)
• WMM Power Save features certification launch
  ?05/3Q
• WMM Scheduled Access certification launch ?05/4Q

43
QoS Task Group

• Technical
• WMM Scheduled Access Technical TG
• Mail reflector
• list-qostech_at_wi-fi.org
• Chair
• John Kowalski, Sharp Labs
• Key Focus
• Create specifications and certifying Wireless
  Scheduled Multimedia Qos features including in
  IEEE 802.11e to provide centralized scheduling
• WMM Technical TG
• Mail reflector
• list-qostech_at_wi-fi.org
• Co-Chair
• Thomas Kuehnei, Microsoft
• Stephen Palm, Broadcom
• Key Focus
• Produced WMM certification program based on draft
  IEEE 802.11e to employ a distributed prioritized
  transmission mechanism

44
QoS Task Group

• QoS testing of WMM baseline and features shall be
  optional for devices seeking Wi-Fi certification.

• The rationale for optional certification is that
  as only some applications need QoS functionality
• Also recommend to the WFA Board to include
  certification of product interoperability with
  802.11e optional mechanisms, specifically
  Automatic Power Save Delivery (APSD), Block
  Acknowledgement and etc
• WMM Baseline Requirements
• Priority throughput differentiation achieved
• Priority throughput differentiation achieved in
  an environment with legacy traffic
• Scheduled Access Requirements
• Ability to grant and execute a schedule
• Ability to operate in DCF(Distributed
  Coordination Function) and EDCA(Enhanced
  Distributed Channel Access) environment
• Priority differentiation of traffic
  streams/flows mechanism works in terms of
  throughput priority including background traffic

45
Voice over Wi-Fi

• Marketing
• Mail reflector
• list-voice_at_wi-fi.org
• Chair
• Geri Mitchell-Brown, SpectraLink
• Key Focus
• Define MRD for voice capabilities in client
  devices and WLAN infrastructure products
• Current Status
• 3 potential certification requirements scenarios
  in evaluationselecting optimal approach for the
  MDR development
• VoWi-Fi certification launcg ?06/1Q

46
Voice over Wi-Fi

• About the MRD view of Marketing TG
• The Voice over Wi-Fi Marketing Task Group's
  overall objective was to complete this MRD to be
  used by a Technical Task Group to guide test plan
  development and by the Board of Directors to
  steer their Voice-related strategy discussions.
• Some points in MRD
• The call can be initiated using any of the
  following commonly used voice call protocols
• SIP, H323, Skype
• One voice call is set up with a 1Mb bandwidth
  stream of background traffic? for home network
• Twelve voice calls are set up with a 3 Mb
  bandwidth stream of background traffic ? for
  commercial voice
• Any codec can be used.
• compliant to the requirements of the underlying
  base Wi-Fi certification grant (i.e., 802.11a,
  802.11g, 802.11b, WPA, dual band).

47
Application Specific Device Task Group

• The definition of ASD
• ASDs are 802.11 devices ,e.g., clients or access
  points, that cannot be tested under a standard
  Alliance test plan because they do not comply to
  the standard test configuration and/or because
  they are designed to perform a specific
  application.
• Technical
• Mail reflector
• list-asdtechnical_at_wi-fi.org
• Chair
• Stephen Palm, Broadcom
• Key Focus
• Develop the technical approaches to be used in
  certifying Application Specific Devices
• Short term goal is to provide technical
  information to the Consumer Electronics and Voice
  over Wi-Fi TGs as they develop their MRD
