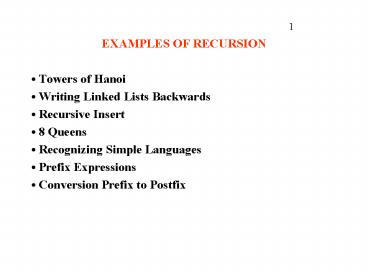

EXAMPLES OF RECURSION

1

• 1
• EXAMPLES OF RECURSION
• Towers of Hanoi
• Writing Linked Lists Backwards
• Recursive Insert
• 8 Queens
• Recognizing Simple Languages
• Prefix Expressions
• Conversion Prefix to Postfix

2

• 2
• How do we transfer all disks from A to C, with
  the following limitations
• 1) Only one disk at a time may be moved.
• 2) A larger disk may never lie on a smaller
  disk.
• The solution is simple and recursive
• Basic idea
• 1) Transfer recursively all but the largest disk
  from A to the temporary
• peg B.
• 2) Transfer the largest disk from A to C.
• 3) Transfer recursively all disks from B to C.

C
B
A
3

• 3
• NOTE
• While you are transferring n-1 disks from A to
  B, you are using C as a
• temporary storage. While you are transferring
  n-1 disks
• from B to C, you are using A as a temporary
  storage.
• Thats it. It is that simple.
• void tow (int cnt, char src, char dst, char spr)
• if (cnt 1)
• cout ltlt src ltlt --gt ltlt dst ltlt endl
• else
• tow (cnt-1, src, spr, dst)
• tow (1, src, dst, spr)
• tow (cnt-1, spr, dst, src)

4
4

• EXAMPLE

NOTE This would work with 3 pegs, even if there
are 4, 5, 6, 7, ... disks! (the pegs just have to
be higher. 8-) -) ). The solution is completely
general.
5
Display the String 5

• You want to write the characters in the string in
  the order in which they appear in the linked
  list
• struct str
• char data
• struct str next
• void writeString(struct str ptr)
• if (str ! NULL)
• cout ltlt str data ltlt endl
• writeString(str next)

6
6

• Writing Linked Lists Backward (recursively)
• Writing this program is very hard iteratively.
• Its very easy recursively
•

• struct str
• char data
• struct str next
• void writeback(struct str ptr)
• if (str ! NULL)
• writeback (str next)
• cout ltlt str data ltlt endl

7

• Assume that data is now a single character!

7
head
T
NULL
C
A
Writeback(head)
str
str
str
str
First call
2nd call
3rd call
Last call
8
Strip a way first character 8

• writeBackward2(in sstring)
• cout ltlt Enter writBackward2 with string
• ltlt sltlt endl
• if (the string is empty)
• Do nothing this is the base case
• else
• ( writedBackward2 (s minus its character ) //
  calling point
• cout ltlt About to write first character of
  string
• ltlt s ltlt endl
• write the first character of s
• cout ltlt leave writeBackward2 with string
• ltlt s ltlt endl

9

• 9
• Insert Revisited
• We will now redo insert into sorted linked
  list. This time recursively. It turns out that
  this is simpler than iterative insert. This
  eliminates the need for trailing pointer and a
  special case for inserting into the beginning of
  the list
• void Insert (struct node L, int X)
• if ((L NULL) (X lt L data))
• struct node p new node
• p data X
• p next L
• L p
• else Insert (L next, X)

10

• 10

Example
head
12
4
8
10
x
Example
head
12
4
8
2
x
11

• The 8 Queens Problem
• We will solve the 8 Queens problem using
• BACKTRACKING. Actually we will solve
• the n Queens problem.
• What is BACKTRACKING?
• What is the 8 Queens problem?
• What is the n Queens problem?

12

• Backtracking
• Backtracking is kind of solving a problem by
  trial and error. However, it is a well organized
  trial and error. We make sure that we never try
  the same thing twice.
• We also make sure that if the problem is finite
  we will eventually try all possibilities
  (assuming there is enough computing power to try
  all possibilities).

13

• The 8 Queens Problem
• Given is a chess board. A chess board has
• 8x8 fields. Is it possible to place 8 queens on
• this board, so that no two queens can attack
• each other?
• NOTES A queen can attack horizontally,
  vertically, and on both diagonals, so it is
  pretty hard to place several queens on one
• board so that they dont attack each other.
• Q

14

• The n Queens problem
• Given is a board of n by n squares.
• Is it possible to place n queens (that behave
  exactly like chess queens) on this board, without
  having any one of them attack any
• other queen?
• Example 2 Queens problem is not solvable.

• Example 2 The 4-queens problem is solvable

15

• Basic idea of solution
• Start with one queen in the first column, first
  row.
• Start with another queen in the second column,
  first row.
• Go down with the second queen until you reach a
• permissible situation.
• Advance to the next column, first row, and do the
  same thing.
• If you cannot find a permissible situation in
  one column and reach the bottom of it, then you
  have to go back to the previous column and move
  one position down there.
• (This is the backtracking step.)
• If you reach a permissible situation in the
  last column of the board, then the problem is
  solved.
• If you have to backtrack BEFORE the first
  column, then the problem is not solvable.

15
16

• 16

illegal
illegal
illegal
illegal
legal
illegal
I cannot go further down in row 3. I cannot go
further down in row 3. I must backtrack!
However, I can not go further down in column 2
either. I must backtrack one more step.
17

• 17
• Now I start in the second column.

Q
Q
18

• 18
• At this point I am at the end of the first
  column. I would have to backtrack again, but
  thats impossible, so the problem is unsolvable.

Q
Q
Q
Q
Q
Q
Q
Q
Q
backtrack
illegal
illegal
illegal
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
illegal
legal
illegal
illegal
bkt/ill
ill/end
19

• 19
• We will work out a successful example also
• QQ Q Q QQ Q Q
• Q Q
• Q Q Q QQ
• Illegal illegal legal illegal illegal
  illegal
• Q QQ Q Q Q
• Q
• Q Q
• Q Q Q Q QQ
• Illegal illegal illegal illegal
  illegal

20

• 20
• Backtrack to column 2. Then backtrack to column
  1. Then go down in column 1.
• Q 3 Q QQ Q Q
• Q ill Q Q Q QQ Q
• steps Q
• Q Q Q Q Q
• Illegal ill
  ill legal
• I placed 4 queens on a 4X4 board.
• Problem solved.

21
21

• Are there other solutions? There must be, due to
  symmetry
• We can continue the program
• to find this and other solutions.
• The program is long and complicated. It certainly

• does not fit onto one screen. It moves from
• one row to the next row with a while loop.
  However,
• it moves from one column to the next column by
• recursion. This is done as follows

22
22

• void PlaceNextQueen (int Column, boardtypes
  Board, boolean Done)
• ..............
• ..............
• PlaceNextQueen(Column1, Board, Done)
• Please study the program in your textbook.
• Good exercise Try to write the FUNCTION
• Attack which is used in the book, but not
• explained. Attack(Board, Row, Column)
• returns TRUE if on the board there is any queen
• that can attack the field in row Row and column
• Column.

23

• Recognizing Simple Languages 23
• A LANGUAGE is a set of strings and symbols.
• A GRAMMAR is a set of rules that defines legal
  sentences of a language.
• A recognizer is a program that incorporates a
• grammar. It takes as input a string and returns
  TRUE if the string conforms to the rules of the
  grammar, and FALSE otherwise.
• Notation
• ltsomethinggt means that the something is a
• variable of the grammar.
• XY means that we can choose X or Y

24

• Example
• ltnumbergt ltdigitgt ltnumbergt ltdigitgt
• ltdigitgt 0 1 2 3 4 5 6 7 8 9
• A number is either a digit or it is another
  number followed by a digit.
• A digit is either 0 or 1 or a 2 or a... or a 9.
  Reminder A valid C identifier consists of one
  or more digits or letters or _. However,the first
  character must be a letter or _. First
• the grammar
• ltidentifiergt
• ltlettergt ltunderscoregt ltidentifiergt ltlettergt
  ltidentifiergt ltdigitgt ltidentifiergt ltunderscoregt

24
25

• ltlettergt A B C ..... Z a b c ...
  z
• ltdigitgt 0 1 2 3 4 5 6 7 8 9
• ltunderscoregt _
• boolean Id(char w, int length)
• if (length 1)
• if ( / w0 is a letter or underscore/)
• return boolean(1)
• else return boolean(0)
• else if ( / wlength-1 is a letter or _ /)
• return Id(w,length-1)
• else if ( / wlength-1 is a digit /)
• return Id(w,length-1)
• else return boolean(0)

25
26
Palindromes 26

• Example RADAR, DEED, MADAM IM ADAM
• ltpalgt ltemptygt ltchgt a ltpalgt a b ltpalgt b
  ...
• ltchgt a b c ...
• ltemptygt
• Note We have to specify all the ...!
• boolean Pal(char w, int first, int last)
• if ( (last - first) lt 0) // 1 or 0 elements
• return boolean(1)
• else if ( wfirst wlast )
• return Pal(w, first1, last-1)
• else
• return boolean(0)

27

• The language
• a n b n
• Examples ab n 1
• aabb n 2
• aaaabbbb n 4
• ltlegalwordgt ltemptygt a ltlegalwordgt b
• ltemptygt

27
28

• boolean recognize(char w, int first, int last)
• if ((last - first) lt 0) // length is zero
• return boolean(1)
• else if ((wfirst a)(wlast b))
• return recognize(w, first1, last-1)
• else
• return boolean(0)

29
INFIX, PREFIX, and POSTFIX 29

• Normal Infix
• a b
• a b c
• (a b) c
• We use priorities and parentheses to make this
• unambiguous.
• PREFIX
• a b
• a b c
• POSTFIX
• a b
• a b c 14

30

• ltpost-expgt ltlettergt
• ltpost-expgt ltpost-expgt ltoperatorgt
• ltoperatorgt - /
• ltlettergt ... as before
• Now we want a program that can recognize a
• prefix expression.
• 15
• Very simplified, this is what we do We look
• for the end of a prefix expression in an array.
• If the end is 0, then there is no prefix
• expression.
• To find the end of a prefix expression, we
• look for an operator, and then we look for the
• end of two more prefix expressions, because
• every operator requires two prefix
• expressions.

31

• int end(char S, int first, int last)
• if ((first lt 0) (first gt last))
• return -1
• else if (/Sfirst is a letter/)
• return first
• else if (/Sfirst is an operator/)
• int tmp end(S, first1, last)
• if (tmp gt 0)
• return end(S, tmp1, last)
• else
• return -1

32

• Converting Prefix to Postfix
• Basic idea
• ltopgt ltpre1gt ltpre2gt
• must become
• ltpost1gt ltpost2gt ltopgt
• AND
• ltpre1gt must become ltpost1gt
• ltpre2gt must become ltpost2gt
• Example
• conv(/AB-CD) ---gt
• conv( /AB -CD) ---gt
• conv(/AB) conv(-CD) ---gt
• conv(A) conv(B) / conv(C) conv(D) - ---gt
• A B C D -
  ---gt
• AB/CD-

33

• The . operator is commonly used in string
  algorithms to stand for concatenation.
• AB . CD is therefore ABCD
• (However, in grammar expressions the . is
  usually not written.)
• Very rough algorithm
• expr Convert(expr)
• if (/expr is a single letter/)
• return expr
• else
• return ( Convert(findpref(expr)) .
• Convert(findpref2(expr)) .
• operatorof(expr) )

34
Proof of EY not a prefix Expression 34

• If E is a prefix expression, then EY is not a
  prefix expression for any nonempty Y (i.e., a
  prefix expression cannot be the initial substring
  of another prefix expression.) We will give a
  proof by induction on E the number of
  characters in E.
• Basis E 1 Definition of prefix implies E is
  a single letter and definition of prefix implies
  EY must begin with an operator.
• Inductive hypothesis For all E with 1 lt E lt n
  and for all nonempty Y, if E is prefix, then EY
  is NOT prefix.
• Inductive step Say E n, then E op E1 E2
  for some E1 and E2, which implies that E1 and E2
  are prefix expressions and that E1 , E2 lt
  n. If EY is prefix for some Y, then EY op W1
  W2 for some W1 and W2, and W1 and W2 are prefix
  expressions

35
Proof of E Y not a prefix Expression 35

• We claim that E1 W1 if not, then one is a
  substring of the other, so both cannot be a
  prefix by inductive hypothesis (E1 lt n).
• Summarizing what we have so far
• E op E1 E2
• and
• E op W1 W2
• E op E1 W2
• E op E1 E2 Y
•
• But this implies that W2 E2Y, which cannot be
  because E2 and W2 are both prefixes and E2 is an
  initial substring of W2.
