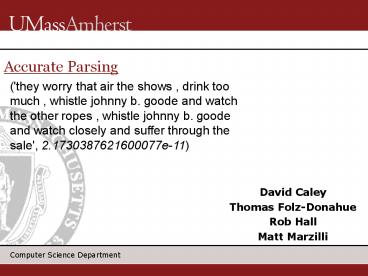

David Caley

1
Accurate Parsing
('they worry that air the shows , drink too much
, whistle johnny b. goode and watch the other
ropes , whistle johnny b. goode and watch closely
and suffer through the sale', 2.1730387621600077e-
11)

• David Caley
• Thomas Folz-Donahue
• Rob Hall
• Matt Marzilli

2
Accurate Parsing Our Goal

• Given a grammar
• For a sentence S, return the parse tree with the
  max probability conditioned upon S.
• arg-max t in T P (t S) where T is the set of
  possible parse trees of sentence S

3
Talking Points

• Using the Penn-Treebank
• Reading in n-ary trees
• Finding Head-tags within n-ary productions
• Converting to Binary Trees
• Inducing a CFG grammar
• Probabilistic CYK
• Handling Unary rules
• Dealing with unknowns
• Dealing with run times
• Beam search, limiting depth of unary rules,
  further optimizations
• Example Parses and Trees
• Lexicalization Attempts

4
Using the Penn-Treebank Our Training Data

• Contains tagged data and n-ary trees used from a
  Wall Street Journal corpus.
• Contains some information unneeded by the parser.
• Questionable Tagging
• (JJ the) ??
• Example

5
Using the Penn-Treebank Handling N-ary trees
( (S (NP-SBJ-1 (NNS Consumers) ) (VP (MD
may) (VP (VB want) (S
(NP-SBJ (-NONE- -1) ) (VP (TO to)
(VP (VB move) (NP (PRP
their) (NNS telephones) )
(ADVP-DIR (NP (DT a) (RB little)
) (RBR closer)
(PP (TO to) (NP (DT the) (NN
TV) (NN set) ))))))))
Functional tags such as NP-SBJ-1 are ignored We
simply call this an NP Also NONE- tags are used
for traces, these are ignored also.
6
Using the Penn-Treebank Head-Tag Finding
Algorithm

• For a context-free rule X -gt Y1 Yn, for each
  rule we can use a function to determine the
  head of the rule.
• In the example above this could be any Y1 Yn
• The head is the most important child tag.
• Head-Tags Algorithm as Outlined in Collins Thesis
• Allow us to determine the head-tags that will be
  used for later binary tree conversion

7
Using the Penn-Treebank Head-Tag Finding
Algorithm
If nothing is found in a list traversal the
head-tag becomes the left or right most element.
8
Using the Penn-Treebank Head-Rule Finding
Algorithm

• Rules for NPs are a bit different
• If the last word is tagged POS, return
  (last-word)
• Else
• Search from right to left for the first child
  which is in the set
• NN, NNP, NNPS, NNS, NX, POS, JJR
• Else
• Search from left to right for first child which
  is an NP
• Else
• Search from right to left for the first child
  which is in the set , ADJP, PRN
• Else
• Do the same with the set CD
• Else
• Do the same with the set JJ, JJS, RB, QP
• Else
• Return the last word

9
Using the Penn-Treebank Binary Tree Conversion

• Now we put the Head-Tags to use
• Necessary for CFG grammar use with probabilistic
  CYK
• R - gt LiLi-1L1LoHRoR1 Ri-1Ri A General
  n-ary rule
• LiLi-1L1LoHRoR1 Ri-1 Ri
• On right side of H-tag we recursively split last
  element to make a new binary rule, left
  recursive. On the left side we do the same by
  removing the first element, right recursive.
• Li Li-1L1LoH

10
Using the Penn-Treebank Grammar Induction
Procedure

• After we have binary trees we can easily begin to
  identify rules and record their frequency
• Identify every production and save them into a
  python dictionary
• Frequencies cached in a local file for later use,
  read-in on subsequent executions
• No immediate smoothing is done on probabilities,
  Grammar is later trimmed to help with performance

11
Probabilistic CYK The Parsing Step

• We use a Probabilistic CYK implementation to
  parse our CFG grammar and also assign
  probabilities to final parse trees.
• Useful to provide multiple parses and
  disambiguate sentences
• New Concerns
• Unary Rules and their lengths
• Runtime (result of incredibly large grammar)

12
Probabilistic CYK Handling Unary Rules within
Grammar

• Unary Rules of the form X-gtY or X-gta are
  ubiquitous in our grammar
• The closure of a constituent is needed to
  determine all the unary productions that can lead
  to that constituent.
• Def Closure(X) UClosure(Y) Y-gtX, i.e all
  non terminals that are reachable, by unary rules,
  from X.
• We implement this iteratively and also maintain a
  closed list and limit depth, to prevent possible
  infinite recursion

13
Probabilistic CYK Dealing with Run times

• Beam Search
• Limit the number of nodes saved in each cell of
  CYK dynamic programming table.
• Using beam width k, All generations are kept
  sorted and the k best are saved for the next
  iteration
• Experiences with 100, 200, 1000?

list size lt k
14
Probabilistic CYK Dealing with Run Times

• Another optimization was to remove all
  productions rules with frequency lt fc
• Used fc 1, 2
• Also limited depth when calculating the unary
  rules (closure) of a constituent present in our
  CYK table
• Extensive unary rules found to greatly slow down
  our parser
• Also long chains of unary productions have
  extremely low probabilities, they are commonly
  pruned by beam search anyway

15
Probabilistic CYK Random Sentences and Example
Trees

• Some random sentences from our grammar with
  associated probabilities.
• ('buy jam , cocoa and other war-rationed
  goodies',0.0046296296296296294)
• ('cartoonist garry trudeau refused to impose
  sanctions , including petroleum equipment , which
  go into semiannual payments , including watches ,
  including three , which the federal government ,
  the same company formed by mrs. yeargin school
  district would be confidential',
  2.9911073159300768e-33)
• ('33 men selling individual copies selling
  securities at the central plaza hotel die',
  7.4942533128815141e-08)

16
Probabilistic CYK Random Sentences and Example
Trees

• ('young people believe criticism is led by south
  korea', 1.3798001044090654e-11)
• ('the purchasing managers believe the art is the
  often amusing , often supercilious , even vicious
  chronicle of bank of the issue yen-support
  intervention', 7.1905882731776209e-1)

17
S(buy) --VP(buy) --VB(buy)
--buy --NP(jam) --NP(jam)-NP(goodi
es) --NP(jam)-CC(and)
--NP(jam)-NP(cocoa) --NP(jam)
--NN(jam)
--jam --,(,)
--, --NP(cocoa)
--NN(cocoa) --cocoa
--CC(and) --and
--NP(goodies) --JJ(other)
--other --NP(goodies)JJ(other)-
--JJ(war-rationed)
--war-rationed --NNS(goodies)
--goodies
S-(VP) --VP --VP-(VB)-NP
--VP-(VB) --VB
--buy --NP --NP-(NP)-NP
--NP-(NP)-CC
--NP-(NP)-NP --NP-(NP)-,
--NP-(NP)
--NP
--NP-(NN)
--NN --jam
--,
--, --NP
--NP-(NN)
--NN --cocoa
--CC --and
--NP --NP-(NNS)JJ-NNS
--JJ
--other --NP-(NNS)JJ-NNS
--JJ
--war-rationed
--NP-(NNS) --NNS
--goodies
18
Accurate Parsing Conclusion

• Massive Lexicalized Grammar
• Working Probabilistic Parser
• Future Work
• Handle sparsity
• Smooth Probabilities
