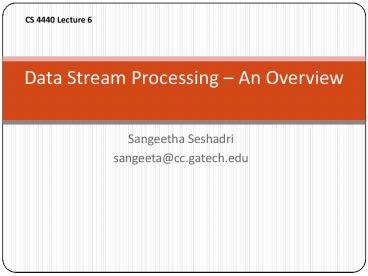

Data Stream Processing An Overview
CS 4440 Lecture 6

• Sangeetha Seshadri
• sangeeta_at_cc.gatech.edu

2
Agenda

• Data Streams
• What are they?
• Why now? Applications..
• DSMS Architecture Issues
• Query Processing

3
Data Streams What and Where?

• Continuous, unbounded, rapid, time-varying
  streams of data elements (tuples).
• Occur in a variety of modern applications
• Network monitoring and traffic engineering
• Sensor networks, RFID tags
• Telecom call records
• Financial applications
• Web logs and click-streams
• Manufacturing processes
• DSMS Data Stream Management System

4
DBMS versus DSMS

• Persistent relations
• One-time queries
• Random access
• Access plan determined by query processor and
  physical DB design

• Transient streams (and persistent relations)
• Continuous queries
• Sequential access
• Unpredictable data characteristics and arrival
  patterns

5
Continuous Queries

• One time queries Run once to completion over
  the current data set.
• Continuous queries Issued once and then
  continuously evaluated over the data.
• Example
• Notify me when the temperature drops below X
• Tell me when prices of stock Y gt 300

6
The (Simplified) Big Picture
DSMS
Scratch Store
Stored Relations
7
(Simplified) Network Monitoring
Intrusion Warnings
Online Performance Metrics
Register Monitoring Queries
DSMS
Network measurements, Packet traces
Scratch Store
Lookup Tables
8
Triggers?

• Recall triggers in traditional DBMSs?
• Why not use triggers to process continuous
  queries over data streams?

9
Making Things Concrete
BOB
ALICE
Outgoing (call_ID, caller, time, event)
Incoming (call_ID, callee, time, event)
DSMS
event start or end
10
Query 1 (self-join)

• Find all outgoing calls longer than 2 minutes
• SELECT O1.call_ID, O1.caller
• FROM Outgoing O1, Outgoing O2
• WHERE (O2.time O1.time gt 2
• AND O1.call_ID O2.call_ID
• AND O1.event start
• AND O2.event end)
• Result requires unbounded storage
• Can provide result as data stream
• Can output after 2 min, without seeing end

11
Query 2 (join)

• Pair up callers and callees
• SELECT O.caller, I.callee
• FROM Outgoing O, Incoming I
• WHERE O.call_ID I.call_ID
• Can still provide result as data stream
• Requires unbounded temporary storage
• unless streams are near-synchronized

12
Query 3 (group-by aggregation)

• Total connection time for each caller
• SELECT O1.caller, sum(O2.time O1.time)
• FROM Outgoing O1, Outgoing O2
• WHERE (O1.call_ID O2.call_ID
• AND O1.event start
• AND O2.event end)
• GROUP BY O1.caller
• Cannot provide result in (append-only) stream
• Output updates?
• Provide current value on demand?
• Memory?

13
DSMS Architecture Issues

• Data streams and stored relations Architectural
  differences.
• Declarative language for registering continuous
  queries
• Flexible query plans and execution strategies
• Centralized ? Distributed ?

14
Agenda

• Data Streams
• What are they?
• Why now? Applications..
• DSMS Architecture Issues
• Query Processing

15
DSMS Issues

• Relation Tuple Set or Sequence?
• Updates Modifications or Appends?
• Query Answer Exact or Approximate?
• Query Evaluation One of multiple Pass?
• Query Plan Fixed or Adaptive?

16
Architectural Issues

• DBMS

• DSMS

• Resource (memory, disk, per-tuple computation)
  rich
• Extremely sophisticated query processing,
  analysis
• Useful to audit query results of data stream
  systems.
• Query Evaluation Arbitrary
• Query Plan Fixed.

• Resource (memory, per-tuple computation) limited
• Reasonably complex, near real time, query
  processing
• Useful to identify what data to populate in
  database
• Query Evaluation One pass
• Query Plan Adaptive

N.Koudas, D. Srivastava (2003) ATT Labs-Research
17
STREAM System Challenges

• Must cope with
• Stream rates that may be high,variable, bursty
• Stream data that may be unpredictable, variable
• Continuous query loads that may be high, variable

18
STREAM System Challenges

• Must cope with
• Stream rates that may be high,variable, bursty
• Stream data that may be unpredictable, variable
• Continuous query loads that may be high, variable
• Overload

19
STREAM System Challenges

• Must cope with
• Stream rates that may be high,variable, bursty
• Stream data that may be unpredictable, variable
• Continuous query loads that may be high, variable
• Overload need to use resources very carefully.
• Changing conditions adaptive strategy.

20
Query Model
User/Application
DSMS
21
Agenda

• Data Streams
• What are they?
• Why now? Applications..
• DSMS Architecture Issues
• Query Processing
• Language
• Operators
• Optimization
• Multi-Query Optimization

22
Stream Query Language

• SQL extension
• Queries reference/produce relations or streams
• Examples GSQL Gigascope, CQL STREAM

Stream or Finite Relation
Stream or Finite Relation
Stream Query Language
23
Example Continuous Query Language CQL

• Start with SQL

• Then add
• Streams as new data type
• Continuous instead of one-time semantics
• Windows on streams (derived from SQL-99)
• Sampling on streams (basic)

24
Impact of Limited Memory

• Continuous streams grow unboundedly
• Queries may require unbounded memory
• One solution Approximate query evaluation

25
Approximate Query Evaluation

• Why?
• Handling load streams coming too fast
• Avoid unbounded storage and computation
• Ad hoc queries need approximate history
• How? Sliding windows, synopsis, samples,
  load-shed
• Major Issues?
• Metric for set-valued queries
• Composition of approximate operators
• How is it understood/controlled by user?
• Integrate into query language
• Query planning and interaction with resource
  allocation
• Accuracy-efficiency-storage tradeoff and global
  metric

26
Windows

• Mechanism for extracting a finite relation from
  an infinite stream
• Various window proposals for restricting operator
  scope.
• Windows based on ordering attribute (e.g. time)
• Windows based on tuple counts
• Windows based on explicit markers (e.g.
  punctuations)
• Variants (e.g., partitioning tuples in a window)

Window specifications
streamify
Stream
Stream
Finite relations manipulated using SQL
N.Koudas, D. Srivastava (2003) ATT Labs-Research
27
Windows

• Terminology

Start time
Current time
t1
t2
t3
t4
t5
time
Sliding Window
time
Tumbling Window
N.Koudas, D. Srivastava (2003) ATT Labs-Research
28
Query Operators

• Selections - Where clause
• Projections - Select clause
• Joins - From clause
• Group-by (Aggregations) Group-by clause

29
Query Operators

• Selections and projections on streams -
  straightforward
• Local per-element operators
• Projection may need to include ordering
  attribute.
• Joins Problematic
• May need to join tuples that are arbitrarily far
  apart.
• Equijoin on stream ordering attributes may be
  tractable.
• Majority of the work focuses on joins using
  windows.

30
Blocking Operators

• Blocking
• No output until entire input seen
• Streams input never ends
• Simple Aggregates output update stream
• Set Output (sort, group-by)
• Root could maintain output data structure
• Intermediate nodes try non-blocking analogs
• Join
• Apply sliding-window restrictions

31
Optimization in DSMS

• Traditionally table based cardinalities used in
  query optimizer.
• Goal of query optimizer Minimize the size of
  intermediate results.
• Problematic in a streaming environment All
  streams are unbounded infinite size!
• Need novel optimization objectives that are
  relevant when the input sources are streams.

N.Koudas, D. Srivastava (2003) ATT Labs-Research
32
Query Optimization in DSMS

• Novel notions of optimization
• Stream rate based e.g. NiagaraCQ
• Resource-based e.g. STREAM
• QoS based e.g. Aurora
• Continuous adaptive optimization
• Possibilities that objectives cannot be met
• Resource constraints
• Bursty arrivals under limited processing
  capabilities.

N.Koudas, D. Srivastava (2003) ATT Labs-Research
33
Stream Projects

• Amazon/Cougar (Cornell) sensors
• Aurora (Brown/MIT) sensor monitoring, dataflow
• Hancock (ATT) telecom streams
• Niagara (OGI/Wisconsin) Internet XML databases
• OpenCQ (Georgia) triggers, incr. view
  maintenance
• Stream (Stanford) general-purpose DSMS
• Tapestry (Xerox) pub/sub content-based
  filtering
• Telegraph (Berkeley) adaptive engine for
  sensors
• Tribeca (Bellcore) network monitoring

34
Optimizing Multiple Distributed Stream Queries
Using Hierarchical Network Partitions

• Sangeetha Seshadri
• Jointly with Vibhore Kumar, Brian F. Cooper,
  Ling Liu and Karsten Schwan
• College of Computing
• Georgia Tech
• Yahoo! Research
• IPDPS07
• March 29th 2007

35
Talk Outline

• Motivation
• Challenges
• Our Approach
• Experimental Results
• Future Work

36
Distributed Data Stream Systems
Can low-capacity flights be cancelled?
Flight information
What is the status of my flight?
Weather
Web sources
Centralized DB
Local Weather
Travel Agent
37
Motivation

• Lots of data produced in lots of places
• Examples operational information systems,
  scientific collaborations, web traffic data,
  financial applications
• Centralized processing does not scale

38
Challenges

• Choosing efficient deployments.
• Fast and efficient initial deployments.
• Utilize reuse opportunities.
• Handling dynamic nature of system.
• Queries arrive or leave.
• Nodes join (recover) or leave (fail).
• Network conditions change.
• Data conditions (e.g. rate) changes.

39
Approach Outline
40
Query Planning
C
B ? C
B
(B ? C) ? A
Sink
(A ? B) ? C
A ? B
A
SELECT FROM A ? B ? C
41
Query Deployment
A ? B
(A ? B) ? C
Sink3
C
N4
Sink1
N3
N1
A
Sink4
N2
N5
Sink2
B
Sink5
42
An Illustrative Example..
SELECT FROM A ? C
SELECT FROM A ? B ? C
43
Why an integrated approach?

• Integrated approach decreases cost by gt 50
• Setup 64 node network, 100 queries over 5 stream
  sources each. Y-axis represents communication
  costs.

44
Problem

• Massive Search Space.
• Example 5 stream sources, 64 nodes
• 2,880,000,000 (approx) plans considered.
• Lemma 1
• Our Solution
• Trade some optimality for smaller search space

45
Solution

• Organize the nodes into a virtual Network
  Hierarchy.
• Operator reuse through Stream Advertisements
• Two approximation based algorithms
• Top-Down
• Bottom-Up

46
Optimization Metric

• Minimize network usage
• Network usage total amount of data in transit
  at any point in time.
• Encapsulates both bandwidth and latency of links.

47
Network Hierarchy

• Cluster network nodes based on cost.
• User defined parameter maxcs

Coordinator Nodes
48
Stream Advertisements for Reuse
A, C and A ? C
B
Coordinator Nodes
B
A
A ? C
C
49
Optimization Algorithms
Top-Down
Bottom-Up
50
Planning algorithms

• Top down

A ? B ? C ? D
C ? D
A ? B ?
D
C
B
A
C ? D
A ? B
?
51
Top-Down Algorithm Features

• Reduced search space
• Search space reduced by a factor ß.
• (h height of hierarchy, N network size, K
  number of sources).
• User defined parameter maxcs allows to tune
  trade-off between search space and
  sub-optimality.
• Operators re-used when beneficial through stream
  advertisements.

52
Planning algorithms

• Bottom up

A ? B
A ? B
A ? B
? C ? D
D
C
B
A
A ? B
A ? B ? C ? D
53
Bottom-Up Algorithm Features

• Reduced search space.
• Deploys only sub-queries within current cluster.
• Analytical bounds Search space reduced by factor
  ß.
• Operators re-used when beneficial.
• But, may choose sub-optimal join-orders.

54
Experiments

• Simulation and prototype based experiments.
• 128 node network Used GT-ITM internetwork
  topology generator.
• Uniformly random workload generator 10 sources,
  100 queries, 2-5 join operators, random sink
  placements.

55
Cost with Bottom-Up Algorithm
56
Comparison with existing approaches
57
Comparison of Search Space
58
Future Work

• We have built a prototype based on IFLOW a
  distributed data stream system built at Georgia
  Tech.
• Aggregations
• Modifying existing deployments at runtime
• Relaxing filter conditions
• Modifying join ordering at runtime.

59
Related Work

• Distributed query optimization
• Distributed INGRES, R, SDD-1
• Stream data processing engines
• Centralized - STREAM, Aurora, TelegraphCQ
• Distributed - Borealis, Flux

60
Conclusion

• Integrated approach to query optimization
• Hierarchical clustering of network and stream
  advertisements.
• Approximation based algorithms
• Top-Down
• Bottom-Up
• Design Highlights
• Trade some optimality for smaller search space.
• Decrease search space while offering bounds on
  the sub-optimality.

61
For further information

• http//www.cc.gatech.edu/sangeeta
• Contact sangeeta_at_cc.gatech.edu

Thank You!
62
Deployment Times
63
Example

• Simple use-case for pushing down selections
• Query 1
• SELECT FLIGHTS.Number, FLIGHTS.Status
  CARRIER_CODES.Name
• FROM FLIGHTS, CARRIER_CODES
• WHERE FLIGHTS.Departing ATLANTA
• AND FLIGHTS.Carrier_Code CARRIER_CODES.Code
• AND FLIGHTS.Departure_terminal TERMINAL
  SOUTH
• Query 2
• SELECT FLIGHTS.Number, FLIGHTS.Status,
  CARRIER_CODES.Name
• FROM FLIGHTS, CARRIER_CODES
• WHERE FLIGHTS.Departing ATLANTA
• AND FLIGHTS.Carrier_Code CARRIER_CODES.Code
• AND FLIGHTS.Departure_terminal TERMINAL
  NORTH'

64
The Big Picture

• Large number of possibilities
• System Model
• Stream processing systems (SQL-style queries)
• Pub-sub systems
• Runtime annotators (keyword-based queries).
• Trade-offs Cost with
• Search space
• Reliability
• Availability.
• Adaptivity
• Admission Control
• Moving operators
• Dropping data
• Migrating plans.

65
Real Enterprise Workload

• Delta Airlines Operational information system
• Q1 (15) Terminal Overhead Display (Lifetime
  12 hours)
• Q2 (80) Gate Agent Query (Lifetime 2 hours)
• Q3 (5) Ad-hoc flight status monitoring queries
  (Lifetime 6 hours)

66
Real Enterprise Workload
67
Backups
68
Data Model

• Append-only
• Call records
• Updates
• Stock tickers
• Deletes
• Transactional data
• Meta-Data
• Control signals, punctuations
• System Internals probably need all above

69
Aurora/STREAM Overview
Output streams
Synopses
Query Plans
Running Op
Ready Op
Applications register continuous queries
p
x
Waiting Op
s
s
x
Users issue continuous and ad-hoc queries
Historical Storage
Administrator monitors query execution and
adjusts run-time parameters
Input streams
70
Sliding Window Approximation
0 1 1 0 0 0 0 1 1 1 0 0 0 0 0 1 0 1 0 1
0

• Why?
• Approximation technique for bounded memory
• Natural in applications (emphasizes recent data)
• Well-specified and deterministic semantics
• Issues
• Extend relational algebra, SQL, query
  optimization
• Algorithmic work
• Timestamps?

71
Adaptivity (Telegraph)
Output Queues
STeMs for join
R
grouped filter (R.A)
EDDY
S
grouped filter (S.B)
R x S x T
T
Input Streams

• Runtime Adaptivity
• Multi-query Optimization
• Framework implements arbitrary schemes

72
Query-Split Scheme (Niagara)
trig.Act.i
trig.Act.j
scan
scan
file i
file j
split
Symbol Const.Value
join
Quotes.XML
constant table
scan
scan

• Aggregate subscription for efficiency
• Split evaluate trigger only when file updated
• Triggers multi-query optimization

73
Shared Predicates Niagara, Telegraph
gt
7
Predicates for R.A
1
11
R.A gt 1 R.A gt 7 R.A gt 11 R.A lt 3 R.A lt 5 R.A
6 R.A 8 R.A ? 9
Agt7
Agt11
Agt1
Tuple A8
lt
3
Alt3
Alt5

6 8
?
9
