Availability and Performance in WideArea Service Composition

1

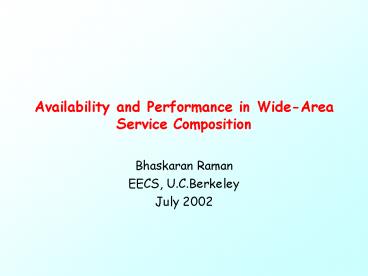

Availability and Performance in Wide-Area Service
Composition

• Bhaskaran Raman
• EECS, U.C.Berkeley
• July 2002

2
Problem Statement
10 of paths have only 95 availability
3
Problem Statement (Continued)
BGP recovery can take several 10s of seconds
Poor availability of wide-area (inter-domain)
Internet paths
4
Why does it matter?

• Streaming applications
• Real-time
• Session-oriented applications
• Client sessions lasting several minutes to hours
• Composed applications

5
Service Composition Motivation
Cellular Phone
Video-on-demand server
Provider A
Provider R
Text to speech
Provider B
Transcoder
Service-Level Path
Email repository
Thin Client
Provider Q
Reuse, Flexibility
Other examples ICEBERG, IETF OPES00
6
Solution Approach Alternate Services and
Alternate Paths
7
Goals, Assumptions and Non-goals

• Goals
• Availability Detect and handle failures quickly
• Performance Choose set of service instances
• Scalability Internet-scale operation
• Operational model
• Service providers deploy different services at
  various network locations
• Next generation portals compose services
• Code is NOT mobile (mutually untrusting service
  providers)
• We do not address service interface issue
• Assume that service instances have no persistent
  state
• Not very restrictive OPES00

8
Related Work

• Other efforts have addressed
• Semantics and interface definitions
• OPES (IETF), COTS (Stanford)
• Fault tolerant composition within a single
  cluster
• TACC (Berkeley)
• Performance constrained choice of service, but
  not for composed services
• SPAND (Berkeley), Harvest (Colorado),
  Tapestry/CAN (Berkeley), RON (MIT)
• None address wide-area network performance or
  failure issues for long-lived composed sessions

9
Outline

• Architecture for robust service-composition
• Failure detection in wide-area Internet paths
• Evaluation of effectiveness/overheads
• Scaling
• Algorithms for load-balancing
• Wide-area experiments demonstrating availability
• Text-to-speech composed application

10
Requirements to achieve goals

• Failure detection/liveness tracking
• Server, Network failures
• Performance information collection
• Load, Network characteristics
• Service location
• Global information is required
• Hop-by-hop approach will not work

11
Design challenges

• Scalability and Global information
• Information about all service instances, and
  network paths in-between should be known
• Quick failure detection and recovery
• Internet dynamics ? intermittent congestion

12
Failure detection trade-off

• What is a failure on an Internet path?
• Outage periods happen for varying durations

Monitoring for liveness of path using keep-alive
heartbeat
Time
Failure detected by timeout
Time
Timeout period
False-positive failure detected incorrectly ?
unnecessary overhead
Time
Timeout period
Theres a trade-off between time-to-detection and
rate of false-positives
13
Is quick failure detection possible?

• Study outage periods using traces
• 12 pairs of hosts
• Berkeley, Stanford, UIUC, CMU, TU-Berlin, UNSW
• Some trans-oceanic links, some within US
  (including Internet2 links)
• Periodic UDP heart-beat, every 300 ms
• Measure gaps between receive-times outage
  periods
• Plot CDF of gap periods

14
CDF of gap durations
Ideal case for failure detection
15
CDF of gap distributions (continued)

• Failure detection close to ideal case
• For a timeout of about 1.8-2sec
• False-positive rate is about 50
• Is this bad?
• Depends on
• Effect on application
• Effect on system stability, absolute rate of
  occurrence

16
Rate of occurrence of outages
Timeout for failure detection
17
Towards an Architecture

• Service execution platforms
• For providers to deploy services
• First-party, or third-party service platforms
• Overlay network of such execution platforms
• Collect performance information
• Exploit redundancy in Internet paths

18
Architecture

• Overlay size how many nodes?
• Akamai O(10,000) nodes
• Cluster ? process/machine failures handled within

19
Key Design Points

• Overlay size
• Could grow much slower than services, or
  clients
• How many nodes?
• A comparison Akamai cache servers
• O(10,000) nodes for Internet-wide operation
• Overlay network is virtual-circuit based
• Switching-state at each node
• E.g. Source/Destination of RTP stream, in
  transcoder
• Failure information need not propagate for
  recovery
• Problem of service-location separated from that
  of performance and liveness
• Cluster ? process/machine failures handled within

20
Software Architecture
Service-Level Path Creation, Maintenance, Recovery
Service-Composition Layer
Link-State Propagation
Finding Overlay Entry/Exit
Location of Service Replicas
Link-State Layer
At-least -once UDP
Perf. Meas.
Liveness Detection
Peer-Peer Layer
Functionalities at the Cluster-Manager
21
Layers of Functionality

• Why Link-State?
• Need full graph information
• Also, quick propagation of failure information
• Link-state flood overheads?
• Service-Composition layer
• Algorithm for service-composition
• Modified version of Dijkstras
• To accommodate for constraints in service-level
  path
• Additive metric (latency)
• Load-balancing metric
• Computational overheads?
• Signaling for path creation, recovery
• Downstream to upstream

22
Link-State Overheads

• Link-state floods
• Twice for each failure
• For a 1,000-node graph
• Estimate edges 10,000
• Failures (gt1.8 sec outage) O(once an hour) in
  the worst case
• Only about 6 floods/second in the entire network!
• Graph computation
• O(kElog(N)) computation time k services
  composed
• For 6,510-node network, this takes 50ms
• Huge overhead, but path caching helps
• Memory a few MB

23
Evaluation Scaling

• Scaling bottleneck
• Simultaneous recovery of all client sessions on a
  failed overlay link
• Parameter
• Load number of client sessions with a single
  overlay node as exit node
• Metric
• Average time-to-recovery of all paths failed and
  recovered

24
Evaluation Emulation Testbed

• Idea Use real implementation, emulate the
  wide-area network behavior (NistNET)
• Opportunity Millennium cluster

Rule for 1?2
App
Emulator
Node 1
Rule for 1?3
Lib
Rule for 3?4
Node 2
Rule for 4?3
Node 3
Node 4
25
Scaling Evaluation Setup

• 20-node overlay network
• Created over 6,510 node physical network
• Physical network generated using GT-ITM
• Latency variation according to Acharya Saltz
  1995
• Load per cluster-manager (CM)
• Vary from 25 to 500
• Paths setup using latency metric
• 12 different runs
• Deterministic failure of link with maximum
  client paths
• Worst-case in single-link failure

26
AverageTime-to-Recovery vs. Load
27
CDF of recovery times of all failed paths
28
Path creation load-balancing metric

• So far used a latency metric
• In combination with modified Dijkstras algorithm
• Not good for balancing load
• How to balance load across service instances?
• During path creation and path recovery
• QoS literature
• Sum(1/available-bandwidth) for bandwidth
  balancing
• Applying this for server load balancing
• Metric Sum(1/(max_load curr_load))
• Study interaction with
• Link-state update interval
• Failure recovery

29
Load variation across replicas
30
Dealing with load variation

• Decreasing link-state update interval
• More messages
• Could lead to instability
• Use path-setup messages to update load
• Do it all along the path
• Each node that sees the path setup message
• Adds its load info to the message
• Records all load info collected so far

31
Load variation with piggy-back
32
Load-balancing effect on path length
33
Fixing the long-path effect
Metric Sum_services(1/(max_load-curr_load))
Sum_noop(0.1/(max_load-curr_load))
34
Fixing the long-path effect
35
Wide-Area experiments setup

• 8 nodes
• Berkeley, Stanford, UCSD, CMU
• Cable modem (Berkeley)
• DSL (San Francisco)
• UNSW (Australia), TU-Berlin (Germany)
• Text-to-speech composed sessions
• Half with destinations at Berkeley, CMU
• Half with recovery algo enabled, other half
  disabled
• 4 paths in system at any time
• Duration of session 2min 30sec
• Run for 4 days
• Metric loss-rate measured in 5sec intervals

36
Loss-rate for a pair of paths
37
CDF of loss-rates of all paths failed
38
CDF of gaps seen at client
39
Improvement in Availability
40
Split of recovery time

• Text-to-Speech application
• Two possible places of failure

41
Split of Recovery Time (continued)

• Recovery time
• Failure detection time
• Signaling time to setup alternate path
• State restoration time
• Experiment using tts application, using emulation
• Recovery time 3,300ms
• 1,800ms failure detection time
• 700ms signaling
• 450ms for state restoration
• New tts engine has to re-process current sentence

42
Summary

• Wide-area Internet paths have poor availability
• Availability issues in composed sessions
• Architecture based on overlay network of service
  clusters
• Failure detection feasible in 2sec
• Software-arch scales with clients
• WA experiments show improvement in availability
