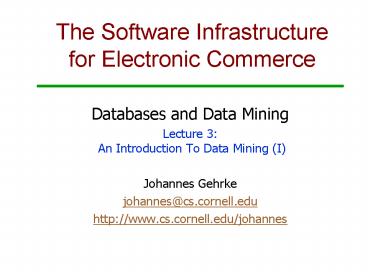

The Software Infrastructurefor Electronic
Commerce

• Databases and Data Mining
• Lecture 3 An Introduction To Data Mining (I)
• Johannes Gehrke
• johannes_at_cs.cornell.edu
• http//www.cs.cornell.edu/johannes

2
Lectures Three and Four

• Data preprocessing
• Multidimensional data analysis
• Data mining
• Association rules
• Classification trees
• Clustering

3
Why Data Preprocessing?

• Quality decisions come from quality data.
• Problems with real life data
• Data needs to be integrated from different
  sources
• Missing values
• Noisy and inconsistent values
• Data is not at the right level of aggregation

4
Recall The Relational Data Model

• A relational database is a set of relations
• A relation has two components
• The relation instance. Basically a table, with
  rows (also records, tuples) and columns (also
  fields, attributes).Number of records in the
  relation instance Cardinality.
• The relation schema. Specifies name of the
  relation, plus name and type of each column.
• Turing award (Nobel price in CS) for Codd in 1981
  for his work on the relational model

5
Example Customer Relation

• Relation schemaCustomers (cid integer, name
  string, byear integer, state string)
• Relation instance

6
Data Integration

• Integrate data from multiple sources into a
  common format for data mining.
• Note A good data warehouse has already taken
  care of this step.

Data Warehouse Server
OLTPDBMSs
Extract, clean,transform, aggregate,load, update
Other Data Sources
Data Marts
7
Data Integration (Contd.)

• Problem Heterogeneous schema integration
• Different attribute names
• Different units Sales in , sales in Yen, sales
  in DM

8
Data Integration (Contd.)

• Problem Heterogeneous schema integration
• Different scales Sales in dollars versus sales
  in pennies
• Derived attributes Annual salary versus monthly
  salary

9
Data Integration (Contd.)

• Problem Inconsistency due to redundancy
• Customer with customer-id 150 has three children
  in relation1 and four children in relation2
• Computation of annual salary from monthly salary
  in relation1 does not match annual-salary
  attribute in relation2

10
Missing Values

• Often the values of some attributes in a record
  are not known.
• Reasons for missing values
• Attribute does not apply (e.g., maiden name)
• Inconsistency with other recorded data
• Equipment malfunction
• Human errors
• Attribute introduced recently (e.g., email
  address)

11
Missing Values Approaches

• Ignore the record
• Complete the missing value
• Manual completion Tedious and likely to be
  infeasible
• Fill in a global constant, e.g., NULL,
  unknown
• Use the attribute mean or mode
• Construct a data mining model that predicts the
  missing value

12
Noisy Data

• Examples
• Faulty data collection instruments
• Data entry problems, misspellings
• Data transmission problems
• Technology limitation
• Inconsistency in naming conventions
• Duplicate records with different values for a
  common field

13
Noisy Data Remove Outliers
14
Noisy Data Smoothing
y
Y1
Y1
x
X1
15
Noisy Data Normalization

• Scale data to fall within a small, specified
  range
• Leave out extreme order statistics
• Min-max normalization
• Z-score normalization
• Normalization by decimal scaling

16
Data Reduction

• Problem
• Data might not be at the right scale for
  analysis.Example Individual phone calls versus
  monthly phone call usage
• Complex data mining tasks might run a very long
  time.Example Multi-terabyte data warehousesOne
  disk drive About 20MB/s

17
Data Reduction Attribute Selection

• Select the relevant attributes for the data
  mining task
• If there are k attributes, there are 2k-1
  different subsets
• Example salary,children,byear,
  salary,children, salary,byear,
  children,byear, salary, children, byear
• Choice of the right subset depends on
• Data mining task
• Underlying probability distribution

18
Attribute Selection (Contd.)

• How to choose relevant attributes
• Forward selection Select greedily one attribute
  at a time
• Backward elimination Start with all attributes,
  eliminate irrelevant attributes
• Combination of forward selection and backward
  elimination

19
Data Reduction Parametric Models

• Main idea
• Fit a parametric model to the data (e.g.,
  multivariate normal distribution)
• Store the model parameters, discard the data
  (except for outliers)

20
Parametric Models Example

• Instead of storing (x,y) pairs, store only the
  x-value.Then recompute the y-value usingy ax
  b

y
x
21
Data Reduction Sampling

• Choose a representative subset of the data
• Simple random sampling may have very poor
  performance in the presence of skew

22
Data Reduction Sampling (Contd.)

• Stratified sampling Biased sampling
• Example Keep population group ratios
• Example Keep minority population group count

23
Data Reduction Histograms

• Divide data into buckets and store average (sum)
  for each bucket
• Can be constructed optimally for one attribute
  using dynamic programming
• ExampleDataset 1,1,1,1,1,1,1,1,2,2,2,2,3,3,4,4,
  5,5,6,6,7,7,8,8,9,9,10,10,11,11,12,12Histogram
  (range, count, sum)(1-2,12,16), (3-6,8,36),
  (7-9,6,48), (10-12,6,66)

24
Histograms (Contd.)

• Equal-width histogram
• Divides the domain of an attribute into k
  intervals of equal size
• Interval width (Max Min)/k
• Computationally easy
• Problems with data skew and outliers
• ExampleDataset 1,1,1,1,1,1,1,1,2,2,2,2,3,3,4,4,
  5,5,6,6,7,7,8,8,9,9,10,10,11,11,12,12Histogram
  (range, count, sum)(1-3,14,22), (4-6,6,30),
  (7-9,6,48), (10-12,6,66)

25
Histograms (Contd.)

• Equal-depth histogram
• Divides the domain of an attribute into k
  intervals, each containing the same number of
  records
• Variable interval width
• Computationally easy
• ExampleDataset 1,1,1,1,1,1,1,1,2,2,2,2,3,3,4,4,
  5,5,6,6,7,7,8,8,9,9,10,10,11,11,12,12Histogram
  (range, count, sum)(1,8,8), (2-4,8,22),
  (5-8,8,52), (9-12,8,84)

26
Data Reduction Discretization

• Same concept as histograms
• Divide domain of a numerical attribute into
  intervals.
• Replace attribute value with label for interval.
• Example
• Dataset (age salary)(2530,000),(3080,000),(27
  50,000),(6070,000),(5055,000),(2825,000)
• Discretized dataset (age, discretizedSalary)(25,
  low),(30,high),(27,medium),(60,high),(50,medium),
  (28,low)

27
Discretization Natural Hierarchies

• Replace low-level concepts with high-level
  concepts
• Example replacements
• Product SKU by category
• City by state

Year
Industry
Country
Quarter
Category
State
Month
Week
Product
City
Day
28
Data Reduction Aggregation

• Natural hierarchies on attributes can be used to
  aggregate data along the hierarchy

Year
Industry
Country
Quarter
Category
State
Month
Week
Product
City
Day
29
Aggregation Example
30
Data Reduction Other Methods

• Principal component analysis
• Fourier transformation
• Wavelet transformation

31
Data Preprocessing Summary

• Problems during data integration
• Different attribute names
• Different units
• Different scales
• Derived attributes
• Redundant data
• Missing values
• Imputation
• Prediction

• Noisy data
• Outlier removal
• Smoothing
• Normalization
• Data Reduction
• Attribute selection
• Fitting parametric models
• Sampling
• Histograms
• Discretization
• Aggregation

32
Data Analysis

• Data preprocessing
• Multidimensional data analysis
• Data mining
• Association rules
• Classification trees
• Clustering

33
Multidimensional Data Analysis

• Recall
• Transactions(ckey, timekey, pkey, units, price)
• Customers(ckey, cid, name, byear, city, state,
  country)
• Time(tkey, day, month, quarter, year)
• Products(pkey, pname, price, pid, category,
  industry)
• Hierarchies on dimensions

Year
Industry
Country
Quarter
Category
State
Month
Week
Product
City
Day
34
Multidimensional Data Analysis
Year
Industry
CountryUSA
Quarter
Category
State
Month
Week
Product
City
Day
35
Corresponding Query in SQL

• SELECT SUM(units)FROM Transactions T, Products
  P, Customers CWHERE T.pkey P.pkey AND T.ckey
  C.ckey AND C.country USAGROUP BY
  P.industry, C.state
• We think that Industry3 in CA is interesting.

Year
Industry
CountryUSA
Quarter
Category
State
Month
Week
Product
City
Day
36
Slice and Drill-Down
Year
IndustryIndustry3
Country
Quarter
Category
StateCA
Month
Week
Product
City
Day
37
Corresponding Query in SQL

• SELECT SUM(units)FROM Transactions T, Products
  P, Customers CWHERE T.pkey P.pkey AND T.ckey
  C.ckey AND P.industry Industry3 AND C.state
  CAGROUP BY P.category, C.city
• We think that Category3 is interesting.

Year
IndustryIndustry3
Country
Quarter
Category
StateCA
Month
Week
Product
City
Day
38
Slice and Drill-Down
Year
Country
Industry
Quarter
StateCA
CategoryCategory3
Month
Week
City
Day
Product
39
Corresponding Query in SQL

• SELECT SUM(units)FROM Transactions T, Products
  P, Customers CWHERE T.pkey P.pkey AND T.ckey
  C.ckey AND C.state CA AND P.category
  Category3GROUP BY P.product, C.city
• Nothing new in this view of the data.

Year
Country
Industry
Quarter
StateCA
CategoryCategory3
Month
Week
City
Day
Product
40
Pivot To (City, Year)
Year
Country
Industry
Quarter
StateCA
CategoryCategory3
Month
Week
City
Day
Product
41
Corresponding Query in SQL

• SELECT SUM(units)FROM Transactions T, Products
  P, Customers CWHERE T.pkey P.pkey AND T.ckey
  C.ckey AND C.state CA AND P.category
  Category3GROUP BY C.city, T.year

Year
Country
Industry
Quarter
StateCA
CategoryCategory3
Month
Week
City
Day
Product
42
Multidimensional Data Analysis

• Set of data manipulation operators
• Roll-up Go up one step in a dimension hierarchy.
  Example month -gt quarter
• Drill-down Go down one step in a dimension
  hierarchy. Example quarter -gt month
• Slice Select a subset of the values of a
  dimension. Example All categories -gt only
  Category3
• Dice Select all values of a dimension. Example
  Only Category3 -gt all categories
• Pivot Select new dimensions to visualize the
  data. Example Pivot to Time(quarter) and
  Customer(state)

43
Visual Intuition Cube
roll-up to category
Customer Data Mart
roll-up to state
SH
SF
LA
Product1 Product2Product3 Product4Product5Produ
ct6
20 30 20 15 10 50
Product
roll-up to week
M T W Th F S S
Time
50 Units of Product6 sold on Monday in LA
44
OLAP Server Architectures

• Relational OLAP (ROLAP)
• Relational DBMS stores data mart
• OLAP middleware
• Aggregation and navigation logic
• Optimized for DBMS in the background, but slow
  and complex
• Basically only one vendor Microstrategy
• Multidimensional OLAP (MOLAP)
• Specialized array-based storage structure
• Vendors Hyperion (Essbase), Appix (iTM1),
  Oracle, Microsoft

45
OLAP Server Architectures

• Desktop OLAP (DOLAP)
• Performs OLAP directly at your PC
• Vendors Cognos (Powerplay), Business Objects,
  Brio Technology, Hummingbird
• Hybrids and Application OLAP
• More www.olapreport.com

46
The OLAP Market
47
Enterprise Reporting Tools
48
Summary Multidimensional Analysis

• Spreadsheet style data analysis
• Roll-up, drill-down, slice, dice, and pivot your
  way to interesting cells in the CUBE
• Mainstream technology
• Established enterprises already have OLAP
  installations
• When establishing your e-business, OLAP will be
  your first step in data analysis

49
Data Mining
50
Definition

• Data mining is the exploration and analysis of
  large quantities of data in order to discover
  valid, novel, potentially useful, and ultimately
  understandable patterns in data.
• Example pattern (Census Bureau Data)If
  (relationship husband), then (gender male).
  99.6

51
Definition (Cont.)

• Data mining is the exploration and analysis of
  large quantities of data in order to discover
  valid, novel, potentially useful, and ultimately
  understandable patterns in data.
• Valid The patterns hold in general.
• Novel We did not know the pattern beforehand.
• Useful We can devise actions from the patterns.
• Understandable We can interpret and comprehend
  the patterns.

52
Why Use Data Mining Today?

• Human analysis skills are inadequate
• Volume and dimensionality of the data
• High data growth rate
• Availability of
• Data
• Storage
• Computational power
• Off-the-shelf software

53
An Abundance of Data

• Supermarket scanners, POS data
• Preferred customer cards
• Credit card transactions
• Direct mail response
• Call center records
• Web server logs
• Customer web site trails
• ATM machines
• Demographic data

54
Evolution of Database Technology

• 1960s IMS and network DBMS
• 1970s The relational data model, small
  relational DBMS implementations
• 1980s Maturing RDBMS, application-specific DBMS
  (spatial data, scientific data, images, etc.)
• 1990s Mature, high-performance RDBMS technology,
  parallel DBMS, terabyte data warehouses,
  object-relational DBMS, middleware and web
  technology
• 2000s High availability, maintainability,
  seamless integration into business processes

55
Computational Power

• Moores Law In 1965, Intel Corp. cofounder
  Gordon Moore predicted that the density of
  transistors in an integrated circuit would double
  every year.
• Later changed to reflect 18 months progress.
• Experts on ants estimate that there are 1016 to
  1017 ants on earth. In the year 1997, we produced
  one transistor per ant.

56
OTS-Software for Data Mining

• ANGOSS KnowledgeStudio
• IBM Intelligent Miner
• Metaputer PolyAnalyst
• SAS Enterprise Miner
• SGI Mineset
• SPSS Clementine
• Many others
• More at http//www.kdnuggets.com/software

57
Why Use Data Mining Today?

• And competitive pressure!
• The secret of success is to know something that
  nobody else knows.
• Aristotle Onassis
• Competition on service, not only on price (Banks,
  phone companies, hotel chains, rental car
  companies)
• Personalization
• Your competitors already apply data mining

58
The Knowledge Discovery Process

• Steps
• Identify business problem
• Data preprocessing
• Data selection Identify target datasets and
  relevant fields
• Data cleaning Remove noise and outliers
• Data transformation
• Create common units
• Generate new fields
• Data mining and model evaluation
• Deployment and measurement of the results

59
Preprocessing and Mining
Knowledge
Patterns
PreprocessedData
TargetData
Interpretation
ModelConstruction
Original Data
Preprocessing
DataIntegrationand Selection
60
What is a Data Mining Model?

• A data mining model is a description of a
  specific aspect of a dataset. It produces output
  values for an assigned set of input values.
• Examples
• Linear regression model
• Classification model
• Clustering

61
Data Mining Models (Contd.)

• A data mining model can be described at two
  levels
• Functional level
• Describes model in terms of its intended
  usage.Examples Classification, clustering
• Representational level
• Specific representation of a model.Example
  Log-linear model, classification tree, nearest
  neighbor method.
• Black-box models versus transparent models

62
Data Mining Techniques

• Supervised learning
• Classification and regression
• Unsupervised learning
• Clustering
• Dependency modeling
• Associations, summarization, causality
• Outlier and deviation detection
• Trend analysis and change detection

63
Fields Related to Data Mining

• Database systems
• Machine learning
• Statistics
• Visualization
• Parallel computing

64
Traditional Analysis Tools

• Predefined set of reports
• Capture most important known business questions
• Generated at fixed points in time
• No support for impromptu queries
• SQL Write your own SQL query.
• Statistics department within a company
• Slow reaction to users needs
• Limited understanding of the business questions
• Problems communicating the findings

65
Example Application Sports

• IBM Advanced Scout analyzesNBA game statistics
• Shots blocked
• Assists
• Fouls
• http//www.research.ibm.com/scout/home.html

66
Advanced Scout

• Example pattern An analysis of thedata from a
  game played betweenthe New York Knicks and the
  CharlotteHornets revealed that When Glenn Rice
  played the shooting guard position, he shot 5/6
  (83) on jump shots."
• Pattern is interestingThe average shooting
  percentage for the Charlotte Hornets during that
  game was 54.

67
Example Application Sky Survey

• Input data 3 TB of image data with 2 billion sky
  objects, took more than six years to complete
• Goal Generate a catalog with all objects and
  their type
• Method Use decision trees as data mining model
• Results
• 94 accuracy in predicting sky object classes
• Increased number of faint objects classified by
  300
• Helped team of astronomers to discover 16 new
  high red-shift quasars in one order of magnitude
  less observation time

68
Gold Nuggets?

• Investment firm mailing list Discovered that old
  people do not respond to IRA mailings
• Bank clustered their customers. One cluster
  Older customers, no mortgage, less likely to have
  a credit card
• Bank of 1911
• Customer churn example

69
Market Basket Analysis

• Consider shopping cart filled with several items
• Market basket analysis tries to answer the
  following questions
• Who makes purchases?
• What do customers buy together?
• In what order do customers purchase items?

70
Market Basket Analysis

• Given
• A database of customer transactions
• Each transaction is a set of items
• ExampleTransaction with TID 111 contains items
  Pen, Ink, Milk, Juice

71
Market Basket Analysis (Contd.)

• Coocurrences
• 80 of all customers purchase items X, Y and Z
  together.
• Association rules
• 60 of all customers who purchase X and Y also
  buy Z.
• Sequential patterns
• 60 of customers who first buy X also purchase Y
  within three weeks.

72
Confidence and Support

• We prune the set of all possible association
  rules using two interestingness measures
• Confidence of a rule
• X gt Y has confidence c if P(YX) c
• Support of a rule
• X gt Y has support s if P(XY) s
• We can also define
• Support of an itemset (a coocurrence) XY
• XY has support s if P(XY) s

73
Example

• Examples
• Pen gt MilkSupport 75Confidence 75
• Ink gt PenSupport 100Confidence 100

74
Exercise

• Find all itemsets withsupport gt 75?

75
Exercise

• Can you find all association rules with support
  gt 50?

76
Extensions

• Imposing constraints
• Only find rules involving the dairy department
• Only find rules involving expensive products
• Only find expensive rules
• Only find rules with whiskey on the right hand
  side
• Only find rules with milk on the left hand side
• Hierarchies on the items
• Calendars (every Sunday, every 1st of the month)

77
Market Basket Analysis Applications

• Sample Applications
• Direct marketing
• Fraud detection for medical insurance
• Floor/shelf planning
• Web site layout
• Cross-selling

78
Beyond Support and Confidence

• Example 5000 students
• 3000 students play basketball
• 3750 students eat cereal
• 2000 students both play basketball and eat cereal

79
Misleading Association Rules

• Basketball gt Cereal (support 40, confidence
  66.7) is misleading because 75 of students eat
  cereal
• Basketball gt No cereal (support 20,
  confidence 33.3) is more interesting, although
  with lower support and confidence

80
Interest

• Interest of rule A gt B P(AB)/(P(A)P(B))
• Symmetric (uses both P(A) and P(B))
• Note that confidence is not symmetric(confidence
  of rule A gt B P(AB)/P(A))
• Interest values
• Interest 1 A and B are independent
  (P(AB)P(B)P(A))
• Interest gt 1 A and B are positively correlated
• Interest lt 1 A and B are negatively correlated

81
Interest Example
82
Extensions

• Imposing constraints
• Only find rules involving the dairy department
• Only find rules involving expensive products
• Only find expensive rules
• Only find rules with whiskey on the right hand
  side
• Only find rules with milk on the left hand side
• Hierarchies on the items
• Calendars (every Sunday, every 1st of the month)

83
Applications

• Sample Applications
• Direct marketing
• Fraud detection for medical insurance
• Floor/shelf planning
• Web site layout
• Cross-selling
• Case study

84
Summary

• Data preprocessing
• Quality analysis comes from quality data
• Multidimensional data analysis
• Interactive, spreadsheet-style data analysis
• Data mining
• The knowledge discovery process
• Association rules

85
Questions?

• (In the fourth lecture More data mining.)
