Web Sites: The Design Basics

1

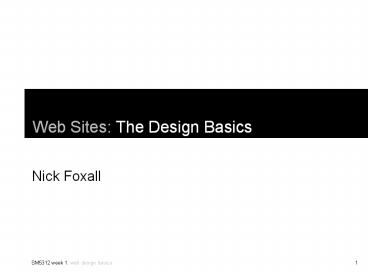

Web Sites The Design Basics

• Nick Foxall

2
Web Sites The Design Basics

• Design is not just what it looks like and feels
  like. Design is how it works.
• Steve Jobs

3
Principles of Web Design

• Get it Right
• Ensuring the site works properly, as intended,
  delivering the right information / services /
  experience to the user.
• Make it Nice
• Ensuring any visit to a site is a pleasant and
  rewarding one.
• Bottom line usability

4
What is a Web Page?

• A Web page is
• the basic element of the Web.
• not a physical object, but a collection of data
  that can be transmitted over the Internet and is
  displayed by a user agent, such as a Web browser.
• can contain time-based and interactive elements,
  but are subject to limitations imposed by maximum
  data rates and the diversity of hardware and
  software.

5
What is a Web Site?

• A Web site is a set of conceptually related Web
  pages, connected by links.
• Links connect Web pages into a network of
  hypermedia.
• The pages making up a site usually exhibit a
  unified style and layout.
• Typing a Web sites address takes you to its home
  page, which usually provides an introduction to
  the site and links to other pages.

6
Key Design Considerations

1. Content
2. Navigation
3. Layout
4. Personality

7
Content
1

• Purpose / Objectives
• What is the purpose of the site? What do you want
  to put out there? What do you want to achieve?
• Flexibility
• What do you want to do now? What do you want to
  do later?
• How will the content change over time?

8
Content
1

• Define the types of content for your site
• Text
• Images / photos
• Video
• Flash Animation
• Downloadables (PDFs, etc.)
• Sort and categorize that content
• e.g.
• Overview info (for the home page),
• contact info
• profile/background info
• service/product info

9
Navigation Architecture
2

• Define the main sections of your site
• Limit to 7 or 8 main sections (ideally 6 or
  less), which will always be available in your
  main navigation, or main menu bar
• Name those sections using clear, self-explanatory
  words
• Sub-sections
• List out sub-sections that might come under one
  of your main sections
• e.g. a portfolio section might have subsections
  entitled
• Photos
• Paintings
• Websites
• Videos

10
Navigation Architecture
2

• Information Architecture Models
• All-in-one the simplest possible model.
  Everything goes on a single Home page.
• Flat Pattern where all pages are arranged as
  peers, and every one is accessible from every
  other one.
• Common for simple sites, where there are a few
  standard topics, such as Home, About Us, Contact
  Us, Products. Also called a 'monocline grouping'.

11
Navigation Architecture
2

• Information Architecture Models
• Index like the flat structure, with an
  additional list of contents. Often organised in
  some way, to make stuff easier to find. E.g. a
  list of files in a web directory (the index
  page), or an index of people's names ordered by
  last name.

12
Navigation Architecture
2

• Information Architecture Models
• Strict Hierarchy describes a system where you
  can only access a lower-level page via its
  parent. Many data models have strict parent-child
  relationships, such as Message boards, Threads
  and Posts. Every thread belongs to one message
  board a message board can have many (child)
  threads. Each thread can have one or more
  subsequent (child) posts.

CAVEAT Even if there's a strictly hierarchical
real-world model, that doesn't mean that a strict
hierarchy is the best way to represent it online.
Consider your users' goals and contexts of use.
For example, while it's possible to arrange all
products by product category, that might not be
the most intuitive way for a user to find it.
Supermarkets often place the same items in more
than one place, knowing that consumers will think
about them and look for them under more than one
category.
13
Navigation Architecture
2

• Information Architecture Models
• Multi-dimensional Hierarchy where there are
  many ways of browsing to the same content. In a
  way, several hierarchies co-exist, overlaid on
  the same content. The structure of the content
  can appear to be different, depending on the mode
  you're looking in.E.G. Amazon.com

14
Navigation Architecture
2

• Information Architecture Models
• Search strictly more a navigation tool than an
  architecture, a search tool is often built into a
  site's architecture. Search functions present a
  dynamic view of a set of content, and offer
  instant links to each result. This allows users
  to jump straight to content, without having to
  browse through hierarchies or indexes.

15
Layout (page layout)
3

• No hard and fast rules, but
• a number of common formats have evolved.
• These layout formats work, because they offer
  flexibility without sacrificing usability /
  readability.
• Most web page designs today use some form of
  multicolumn layout
• Because long lines of text (i.e. that are very
  wide) are difficult to read, and because they can
  comply with Web Standards (more about web
  standards later).

16
Layout position in browser
3
Fixed width,Left aligned The page (i.e. the area
that encloses all the key content) is always
aligned to the left edge of the browser window,
no matter how wide the user makes the
window. santafecounty.com
17
Layout position in browser
3
Fixed width,centre floated The page is aligned
in the centre of the browser window, no matter
how wide the user makes the window. This is
called floating the page in the window area
many designers prefer this, because it can help
stage the page design, providing even margins
on both the left and right of the
page. sumagency.com mpa-i.org
18
Layout position in browser
3
Liquid, or flexible width The page is usually
left-aligned in the browser window, but the page
can also expand to fill the window if the user
makes the window area larger (i.e. pulls the
window out to the right). The width of the page
can be also be specified as a percentage of the
browser window width as well, e.g. the page may
stretch across 70 of the browser window, leaving
a 30 margin area on the right side. Multicolumn
hybrid pages can also be made, where one column
is always a fixed width, while another column
expands according to the browser width.
Rhizome.org
19
Layout grids
3
A layout grid Creating a layout grid for your
page design is a key step in generating visual
consistency for your site. Most sites today have
a fixed-height header area at the top (which
usually runs the full width of the page), with a
variable height content area below (that can be
divided into columns).
Header area
Content area
20
Layout grids
3
Creative, but consistent You dont have to follow
the same format as everybody else, but at least
make your design consistent. plainsimple.dk This
designers site uses an innovative centre-floated
box to stage his site, but within the box is a
simple narrow-header, 2-column grid.
21
Layout columns
3
2 columns One large column for main content One
small column for supplementary content, such as
links to additional pages (latest links, etc), or
advertising panels, sponsors links,
etc. revolutiontea.com mezzoblue.com
Header area
Column 1
Column 2
22
Layout columns
3
3 columns One large column for main content One
small column for supplementary content, such as
links to additional pages (latest links, etc) A
second small column for advertising panels,
sponsors links, or other tertiary
content. we-make-money-not-art.com alistapart.com
Header area
Column 1
Column 2
Column 3
23
Layout columns
3
2- and 3-column mix Go through the different
sections of the www.alistapart.com site. Notice
how they use 3 columns for some pages (e.g. the
home page, where there are links to various
articles and sponsors), and 2 columns for others
(e.g. article pages, where the focus is the
discussion itself). You can mix 2- and 3-column
layouts but do it within a consistent grid
Header area
24
Layout columns
3
More than 3 columns Apples redesigned website
(as of June 2007) uses a 5-column grid. apple.com
25
Layout
3

• Break the rules
• but know what they are first!
• Consistency works
• Consistent usability positive experience
  trust

26
Personality
4

• The visual look-and-feel of a web site (mostly)
• What is the overall message that you want to put
  across?
• What is the image you want to project?
• How will the visitor engage with your site?
• What is the experience you want to generate?
• In the corporate world, this is called branding.

27
Personality
4

• Visual look-and-feel
• Use of colour and graphic elements (shadows,
  etc.) to accent or offset page areas
• Colour schemes
• Defining a colour palette for your site
• White on black, or black on white
• Typography
• Deciding the types of font to use (serif or sans
  serif)
• Limiting the number of fonts used
• Determining size of fonts, line spacing,
  paragraph spacing, margins, font colours, etc.

28
And finally

• When things go wrong! Sites that dont work
• fargohomes.com
• Complex and confusing navigation too many
  buttons that are difficult to read
• globalaigs.org
• Bad colour scheme and ill-defined layout. Use of
  HMTL frames is discouraged these days
• frysteel.com
• Unnecessary and pointless use of Flash animations
• vatican.va
• Using graphics to create everything on the page
  leads to usability/accessibility issues, as well
  as download overhead
