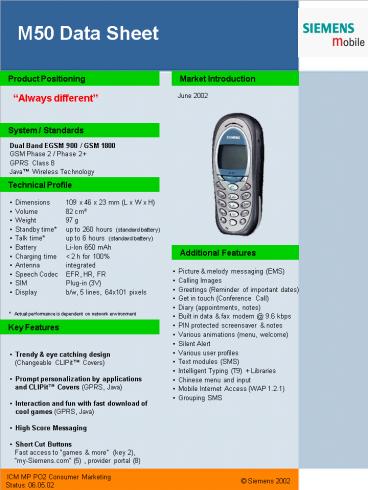

M50 Data Sheet
Product Positioning
Market Introduction
Always different
June 2002
System / Standards
Dual Band EGSM 900 / GSM 1800 GSM Phase 2 /
Phase 2 GPRS Class 8 Java Wireless Technology
Technical Profile

• Dimensions 109 x 46 x 23 mm (L x W x H)
• Volume 82 cm³
• Weight 97 g
• Standby time up to 260 hours (standard battery)
• Talk time up to 6 hours (standard battery)
• Battery Li-Ion 650 mAh
• Charging time lt 2 h for 100
• Antenna integrated
• Speech Codec EFR, HR, FR
• SIM Plug-in (3V)
• Display b/w, 5 lines, 64x101 pixels

Additional Features

• Picture melody messaging (EMS)
• Calling Images
• Greetings (Reminder of important dates)
• Get in touch (Conference Call)
• Diary (appointments, notes)
• Built in data fax modem _at_ 9.6 kbps
• PIN protected screensaver notes
• Various animations (menu, welcome)
• Silent Alert
• Various user profiles
• Text modules (SMS)
• Intelligent Typing (T9) Libraries
• Chinese menu and input
• Mobile Internet Access (WAP 1.2.1)
• Grouping SMS

Actual performance is dependent on network
environment
Key Features

• Trendy eye catching design
• (Changeable CLIPit Covers)
• Prompt personalization by applications
• and CLIPit Covers (GPRS, Java)
• Interaction and fun with fast download of cool
  games (GPRS, Java)
• High Score Messaging
• Short Cut Buttons
• Fast access to games more (key 2),
• my-Siemens.com (5) , provider portal (8)

2
M50 Data Sheet
Original Accessories
Supported Supplementary Services

• CLIPitTM Covers
• MP3-Player USB
• HomeStation
• NiMH Battery 550 mAh
• Li-Ion Battery 650 mAh
• Desk Top Charger (dual slot)
• Travel Charger
• Car Charger
• Mobile Holder
• Mobile Holder Antenna
• Headset PTT
• Retractable Headset
• Carry Set
• Leather Holster
• Leather Case
• Belt Case
• Loop Case
• Grip Case
• Neoprene Case

• ALS Alternative Line Service
• AOCC Advice of Charge Charging. Control
• of Units used with preset Limit.
• AOCI Advice of Charge Information. Display
• of units with Cost Conversation.
• CAI Display of Charge Advice Information
• CB Call Barring (all GSM options)
• CCBS Call Completion to Busy Subscriber
• CF Call Forwarding
• CH Call Hold
• CLIP Calling Line Identification Presentation
• CLIR Calling Line Identification Restriction
• CPHS 4.2 Common PCN Handset Specification
• CT Call Transfer
• CUG Closed User Group
• CW Call Wait
• ECT Explicit Call Transfer
• FDN Fixed Dialing Numbers
• HZI Home Zone Indicator

Data Services

• GPRS class 8 B/C, 4 Tx, 1 Rx, CS1-4, MSgt 2
• Mobile Internet Access (WAP 1.2.1)
• Data, Modem and Fax Services _at_ 9.6 kbps
• Remote Control (via AT Cellular)
• Data Download OTA

Standard Package

• M50 handset
• Li-Ion 650 mAh
• Standard Charger
• User Guide

SIM Functionality / Security Controls

• SIM Application Toolkit (class 3)
• SIM Lock, various levels
• PIN 12 Control
• Ciphering A5.1 and A5.2

Colour Variants

• Chromium Blue
• Chromium Orange
