Title: MIRACLE WORKERZ TRAINING COURSE


1

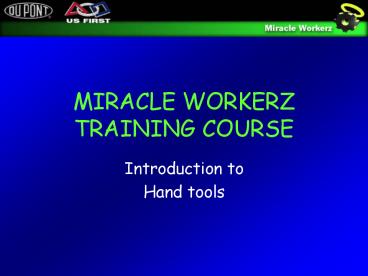

MIRACLE WORKERZ TRAINING COURSE
  • Introduction to
  • Hand tools

2
Hand Tools- Metal removal
  • Drill Motor
  • Taps / Wrench - for making threads
  • File
  • Hacksaw
  • Dremel tool
  • Reciprocating saw

3
Drill motor
4
Taps for making threads - holes
5
Taps special
6
FILES- ASSORTEDcuts on push strokea handle MUST
be used
7
Hacksaw-cuts on push stroke only
8
Rotary tool-grinds and/or cuts
9
Wrenches - tighten or measure
  • Screw drivers (Phillips conventional)
  • Allen (hex) wrenches
  • Socket wrenches - hex head
  • Torque wrenches - measure
  • Adjustable wrench
  • Pliers- vise grip, needle nose, arc joint, etc.

10
Allen wrenches - hex wrench
11
Hex socket wrench
12
Special Hand Tools
  • Dial calipers - measure
  • Micrometer - measure
  • Retaining ring pliers - install/remove
  • Deburring tool - removes burrs
  • Center punch - impression for drill etc.
  • Pop rivet - joins

13
Calipersmeasures - inside/outside
14
Retaining ring pliers
