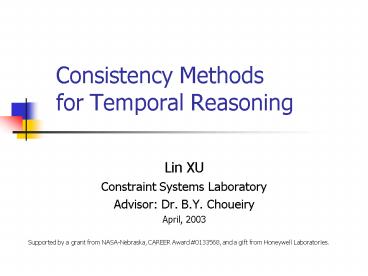

Consistency Methods for Temporal Reasoning

1
Consistency Methods for Temporal Reasoning

• Lin XU
• Constraint Systems Laboratory
• Advisor Dr. B.Y. Choueiry
• April, 2003

Supported by a grant from NASA-Nebraska, CAREER
Award 0133568, and a gift from Honeywell
Laboratories.
2
Outline

• Temporal Reasoning
• motivation background
• Simple Temporal Problem (STP) Temporal
  Constraint Satisfaction Problem (TCSP)
• what are they how to solve them
• Contribution
• 3 research questions
• their solutions
• empirical evidence
• Summary future directions for research

3
Time, always time!

• Tom wants to serve tea
• Clear tea pot 3 min
• Clear tea cups 10 min
• Boil water 15 min
• With little reasoning, the task
• takes 18 min instead of 28 min

4
Temporal Reasoning in AI

• Temporal Logic
• Temporal Networks
• Qualitative interval algebra, point algebra
• Before, after, during, etc.
• Quantitative temporal constraint networks
• Metric 10 min before, during 15 min, etc.
• Simple TP (STP) Temporal CSP (TCSP)

5
Temporal Network example
Tom has class at 800 a.m. Today, he gets up
between 730 and 740 a.m. He prepares his
breakfast (10-15 min). After breakfast (5-10
min), he goes to school by car (20-30 min). Will
he be on time for class?
6
Simple Temporal Network (STP)

• Variable Time point for an event
• Domain A set of real numbers
• Constraint distance between time points ( 5,
  10 ? 5?Pb-Pa?10 )
• Solution A value for each variable such that all
  temporal constraints are satisfied

7
More complex example
Tom has class at 800 a.m. Today, he gets up
between 730 and 740 a.m. He either makes his
breakfast himself (10-15 min), or gets something
from a local store (less than 5 min). After
breakfast (5-10 min), he goes to school either by
car (20-30 min) or by bus (at least 45 min).
8
Possible questions

• Can Tom arrive school in time for class?
• Is it possible for Tom to take the bus?
• If Tom wanted to save money by making breakfast
  for himself and taking the bus, when should he
  get up?

9
Temporal CSP

• Constraint a disjunction of intervals 10, 15
  ? 0, 5
• Rest, same as STP
• Variable Time point for an event
• Domain A set of real numbers
• Solution Each variable has a value that
  satisfies all temporal constraints

10
Temporal Networks STP TCSP

• Simple temporal problem (STP)
• One interval per constraint
• Can be solved in polynomial time
• Floyd-Warshall F-W algorithm (all-pairs
  shortest-paths)
• Temporal Constraint Satisfaction Problem (TCSP)
• A disjunction of intervals per constraint
• is NP-hard
• Solved with Backtrack search (BT-TCSP)
  Dechter

11
Solving the TCSP

• Formulate TCSP as a meta-CSP
• Given
• Variables Edges in constraint network
• Domains of variables edge labels in constraint
  network
• A unique global constraint (? checking
  consistency of an STP)
• Find all solutions to the meta-CSP

12
BT search for meta-CSP
ltnew treegt big
13
Solving the TCSP

• Requires finding all solutions to the meta-CSP
• Every node in the search tree is an STP to be
  solved
• ? An exponential number of STPs to be solved ?

14
Questions addressed

• Is there a better algorithm for STP than F-W?
• exploiting topology of the constraint graph
• exploiting semantic properties of the temporal
  constraints
• Is there a consistency filtering algorithm for
  reducing the size of TCSP?
• Can we improve performance of BT-TCSP
• By using a better STP solver?
• By avoiding to check STP consistency at every
  node?
• By exploiting the topology of the constraint
  graph? ? again!
• By finding a good variable ordering heuristic?

15
Contributions

• Two new algorithms for solving STP
• Partial Path Consistency adapted
  from Bliek Sam-Haroud
• ?STP
  Xu Choueiry, TIME 03
• A new algorithm for filtering TCSP
• ?AC
  Xu Choueiry, submitted
• Three heuristics to improve search
• Articulation points (AP)
  classical, never tested
• New cycle check (NewCyc) Xu
  Choueiry, submitted
• Edge ordering (EdgeOrd)
  Xu Choueiry, submitted
• ? Random generators 2 for STP 2 for TCSP

16
Contributions

• Two new algorithms for solving STP
• Partial Path Consistency adapted
  from Bliek Sam-Haroud
• ?STP
  Xu Choueiry, TIME 03
• A new algorithm for filtering TCSP
• ?AC
  Xu Choueiry, submitted
• Three heuristics to improve search
• Articulation points (AP)
  classical, never tested
• New cycle check (NewCyc) Xu
  Choueiry, submitted
• Edge ordering (EdgeOrd)
  Xu Choueiry, submitted
• ? Random generators 2 for STP 2 for TCSP

17
Algorithms for solving the STP
?Our approach requires triangulation of the
constraint graph
18
Partial Path Consistency (PPC)

• Known features of PPC Bliek
  Sam-Haroud, 99
• Applicable to general CSPs
• Triangulates the constraint graph
• In general, resulting network is not minimal
• For convex constraints, guarantees minimality
  (same as F-W, but much cheaper in practice)
• Adaptation of PPC to STP this
  thesis
• Constraints in STP are bounded difference, thus
  convex, PPC results in the minimal network

19
?STP TIME 03
?STP considers the temporal graph as composed by
triangles instead of edges
?STP
PPC
Temporal graph
F-W
20
Advantages of ?STP

• A finer version of PPC
• Cheaper than PPC and F-W
• Guarantees the minimal network
• Automatically decomposes the graph into its
  bi-connected components
• binds effort in size of largest component
• allows parallellization
• Best known algorithm for solving STP
• ? use it in BT-TCSP where it is applied an
• exponential number of times

21
Finding the minimal STP
22
Determining consistency of STP
23
Contributions

• Two new algorithms for solving STP
• Partial Path Consistency adapted
  from Bliek Sam-Haroud
• ?STP
  Xu Choueiry, TIME 03
• A new algorithm for filtering TCSP
• ?AC
  Xu Choueiry, submitted
• Three heuristics to improve search
• Articulation points (AP)
  classical, never tested
• New cycle check (NewCyc) Xu
  Choueiry, submitted
• Edge ordering (EdgeOrd)
  Xu Choueiry, submitted
• ? Random generators 2 for STP 2 for TCSP

24
Filtering algorithm ?AC
Remove inconsistent intervals from the label of
edge before search.
Polynomial number of polynomial-size ternary
constraints
One global, exponential size constraint
25
?AC reduces size of TCSP
26
Advantages of ?AC

• It is powerful, especially under high density
• It uses special, poly-size data structures
• It is sound, effective, and cheap O (n E k3)
• We show how to make it optimal to be
  proved
• It uncovers a phase transition in TCSP

27
Contributions

• Two new algorithms for solving STP
• Partial Path Consistency adapted
  from Bliek Sam-Haroud
• ?STP
  Xu Choueiry, TIME 03
• A new algorithm for filtering TCSP
• ?AC
  Xu Choueiry, submitted
• Three heuristics to improve search
• Articulation points (AP)
  classical, never tested
• New cycle check (NewCyc) Xu
  Choueiry, submitted
• Edge ordering (EdgeOrd)
  Xu Choueiry, submitted
• ? Random generators 2 for STP 2 for TCSP

28
Articulation points (AP)

• Decompose the graph into bi-connected components
• Solve each of them independently
• Binds the total cost by the size of largest
  component
• Classical solution, never implemented or tested

29
New cycle check (NewCyc)

• Checks presence of new cycles O (E )
• Checks consistency only if a new cycle is added

30
Advantages of NewCyc

• Restricts effort to new bi-connected component

• Reduces effort of consistency checking
• Does not affect of nodes visited in BT-TCSP

31
Edge Ordering in BT-TCSP

• Repeat your graph

32
EdgeOrd Heuristic
Order the edges using triangle
adjacency Priority list is a by-product of
triangulation
33
Advantages of EdgeOrd

• Localized backtracking
• Automatic decomposition of the constraint graph
• ? no need for AP

34
Experimental evaluations

• With/without ?AC, AP, NewCyc, EdgeOrd

35
Number of solutions
36
Nodes visited (without ?AC)
37
Nodes visited (after ?AC)
38
CC for DPC-TCSP (without ?AC)
39
CC for DPC-TCSP (after ?AC)
40
CC for PPC-A-TCSP (without ?AC)
41
CC for PPC-A-TCSP (after ?AC)
42
CC for ?STP-TCSP BEST
43
Random generators

• STP generators
• Implemented two new
• Tested three
• GenSTP-1 Xu
  Choueiry, submitted
• GenSTP-2 Courtesy of
  Ioannis Tsamardinos
• SPRAND (sub-class of SPLIB)
  Public domain
• TCSP generator
• Implemented two new
• Tested 1 GenTCSP-1 Xu Choueiry,
  submitted

44
Output from thesis

• 1 paper accepted in TIME-ICTL 2003
• 2 papers submitted to CP 2003
• 2 papers submitted to IJCAI 2003 workshop on
  Spatial Temporal Reasoning

45
Answers to Question I

• Is there a better algorithm for STP than F-W?
• Exploiting topology
• AP improves any STP solver
• Constraint semantic convexity
• ?STP is more efficient than F-W and PPC

46
Answer to Question II

• Is there a consistency filtering algorithm for
  reducing the size of TCSP?
• ?AC reduces the size of meta-CSP by eliminating
  intervals from the domain of edge
• Effective, cheap, almost optimal

47
Answers to Question III

• Can we improve the performance of BT-TCSP
• by using a better STP solver?
• Yes, ?STP is better than DPC to reduce cost of
  BT
• By avoiding to check STP consistency at every
  node?
• Yes, NewCyc avoids unnecessary checks
  localizes updates
• By exploiting the topology of the constraint
  graph?
• Yes, using articulation points
• By finding a good variable ordering heuristic
• We propose EdgeOrd, significantly reduces
  cost of search

48
Future work

• Improve ?AC, establish optimality
• Integrate ?AC
• with ULT (a closure algorithm)
• with search, as in forward-checking
• Exploit interchangeability in BT-TCSP, best
  method for finding all solution

49
The End

• Thank you for your attention
• Questions comments are welcome
