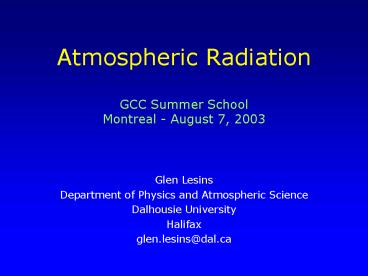

Atmospheric Radiation GCC Summer School Montreal August 7, 2003

1
Atmospheric RadiationGCC Summer SchoolMontreal
- August 7, 2003

• Glen Lesins
• Department of Physics and Atmospheric Science
• Dalhousie University
• Halifax
• glen.lesins_at_dal.ca

2
Outline

• Introductory concepts
• Radiation and Climate
• Radiative Transfer Theory
• Remote Sensing

3
Credits

• K.N. Liou, An Introduction to Atmospheric
  Radiation, 2nd Ed., 2002
• Web Lecture Notes by Prof. Irina Sokolik,
  http//irina.colorado.edu/teaching.htm

4
Global Annual Energy Balance
Kiehl and Trenberth (1997) IPCC (2001)
5
(No Transcript)
6
What is the Solar Constant?

• 1366 W m-2
• How constant?
• Earths orbit and tilt (annual)
• Sunspot cycle (11 years)
• Longer time variations

7
Solar Irradiance Variation from ACRIM
8
http//science.nasa.gov/headlines/images/sunbathin
g/sunspectrum.htm
9
Solar vs. Terrestrial Radiation
10
Absorption of Radiation by Gases
1. Ionization/Dissociation - UV 2. Electronic
Transition - UV 3. Vibrational/Rotational
Transition - Visible/IR 4. Pure Rotational - IR
11
Transmission through the Atmosphere
Terrestrial
Solar
IR Window
12
Radiative Interactions - Dipole Transitions
13
Vibrational Modes
14
Ozone (O3)

• Electrostatic potentialmap shows both
  endoxygens are equivalentwith respect to
  negativecharge. Middle atomis positive.

www.facstaff.oglethorpe.edu/mwolf/PowerPoint/
CareyOrgPP/sections1st/Chapter201bx.ppt
15
Absorption by Gases
16
(No Transcript)
17
Solar Irradiance
18
Scattering of Radiation
Size Parameter, a a 2pr/l
19
Rayleigh Scattering
http//hyperphysics.phy-astr.gsu.edu/hbase/atmos/b
lusky.htmlc2
20
Mie Theory for mr1.5
21
Normalized Phase Functions From Mie Theory
22
Global Annual Energy Balance
Kiehl and Trenberth (1997) IPCC (2001)
23
Zonal Average Irradiance
Solar
Terrestrial
Net
Meridional Transport
24
Cloud Radiative Forcing from ERBE
25
Radiative Equilibrium Role of Convection
26
Solar Heating Rates from Model
27
Zonal Annual Average from Satellite
28
Results from SOCRATES (2-D Radiative-Chemical)
http//acd.ucar.edu/models/SOCRATES/socrates/socra
tes1.html
http//acd.ucar.edu/models/SOCRATES/socrates/socra
tes1.html
29
Annual Mean Net Radiation Flux from Surface Based
Measurements
30
Terrestrial IR Spectra
31
Modelled IR Fluxes
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
Global Annual Energy Balance
Kiehl and Trenberth (1997) IPCC (2001)
36
Radiative Transfer Equation
Radiance
Cosine of solar zenith angle
Azimuthal Angle
Beers Law
Source Function
Optical Depth
37
Plane Parallel Radiances
38
Solution to the Radiative Transfer Equation
Upward Radiance
Downward Radiance
39
Single Multiple Scattering Source
Source Function
Multiple Scattering Term
Single Scattering Term
40
Surface Reflectance
41
Bi-directional Reflectance Distribution Function
(BRDF)
42
Surface Albedo
43
Remote Sensing of Clouds
44
Effect of Clouds from Radiative-Convective Model
45
Solar Albedo of Clouds - Theory
46
Indirect Aerosol Effect - ShiptracksL1B true
color RGB composite (25 April 2001)
47
Effective radius retrieval (using 2.1 µm band,
all phases)
60
45
re (µm)
30
15
0
48
Shiptracks from MODIS Indirect Aerosol Effect
July 1, 2003
49
Global Annual Energy Balance
Kiehl and Trenberth (1997) IPCC (2001)
50
IR Brightness Temperature from ER-2 (Clear)
51
Brightness Temperatures From ER-2 (Various Clouds)
52
Polarization of Sunlight Reflected by Venus
PointsObs LinesTheory
Hansen and Hovenier, 1974
53
POLDER Polarization for Ice Habits
54
Ice Crystal Phase Functions
55
Cloud Fraction from Satellites
http//isccp.giss.nasa.gov
56
TERRA - Launched Dec. 18, 1999(MODIS, ASTER,
MISR, CERES, MOPITT)

• MODIS
• 1-2 day global coverage in 36 wavelengths from
  250 m to 1 km resolution
• MISR
• Stereo images at 9 look angles
• ASTER
• Hi-resolution, multi-spectral images from 15 m to
  90 m resolution, plus stereo
• MOPITT
• Global measures of CH4 CO
• CERES
• Measures Earths shortwave, longwave,
• net radiant energy budget

http//modis-atmos.gsfc.nasa.gov/reference.html
57
MODIS Atmospheric Products

• Pixel-level (level-2) products
• Cloud mask for distinguishing clear sky from
  clouds
• Cloud radiative and microphysical properties
• Cloud top pressure, temperature, and effective
  emissivity
• Cloud optical thickness, thermodynamic phase, and
  effective radius
• Thin cirrus reflectance in the visible
• Aerosol optical properties
• Optical thickness over the land and ocean
• Size distribution (parameters) over the ocean
• Atmospheric moisture and temperature gradients
• Column water vapor amount
• Gridded time-averaged (level-3) atmosphere
  product
• Daily, 8-day, and monthly products
• 1 x 1 equal angle grid
• Mean, standard deviation, marginal probability
  density function, joint probability density
  functions
• modis-atmos.gsfc.nasa.gov

58
(No Transcript)
59
MODIS - TERRA True colour image Dust over
the Mediterranian March 12, 2003
60
CO2 Slicing Method

• CO2 slicing method
• ratio of cloud forcing at two near-by wavelengths
• assumes the emissivity at each wavelength is
  same, and cancels out in ratio of two bands
• The more absorbing the band, the more sensitive
  it is to high clouds
• technique the most accurate for high and middle
  clouds
• MODIS is the first sensor to have CO2 slicing
  bands at high spatial resolution (1 km)
• technique has been applied to HIRS data for 20
  years
• retrieved for every 5 x 5 box of 1 km FOVs, when
  at least 5 FOVs are cloudy, day night

61
Brightness Temperature in 15 mm CO2 band
Arrows at Wavelengths Measured by VTPR
62
Retrieval of Cloud Optical Depth and Effective
Radius

• The reflection function of a nonabsorbing band
  (e.g., 0.86 µm) is primarily a function of
  optical thickness
• The reflection function of a near-infrared
  absorbing band (e.g., 2.14 µm) is primarily a
  function of effective radius
• clouds with small drops (or ice crystals) reflect
  more than those with large particles
• For optically thick clouds, there is a near
  orthogonality in the retrieval of tc and re using
  a visible and near-infrared band

63
Cloud Optical DepthApril 2001
20
10
0
64
Cloud Effective Particle RadiusApril 2001
40
22
4 mm
65
(No Transcript)
66
Remote Sensing of Aerosols
67
Global Annual Energy Balance
Kiehl and Trenberth (1997) IPCC (2001)
68
Global Aerosol Emissions (Tg / yr)
69
Annual Global Volcanic Aerosol Loading
70
Aerosol Optical Weighting Functions
Kl(a)pa2Qen(a)Qe/reff
71
Model Aerosol Type Optical Thickness
http//www.giss.nasa/gov/data
72
MODIS Aerosol Optical Properties

• Seven MODIS bands are utilized to derive aerosol
  properties
• 0.47, 0.55, 0.65, 0.86, 1.24, 1.64, and 2.13 µm
• Ocean
• reflectance contrast between cloud-free
  atmosphere and ocean reflectance (dark)
• aerosol optical thickness (0.55-2.13 µm)
• size distribution characteristics (fraction of
  aerosol optical thickness in the fine particle
  mode effective radius)
• Land
• dense dark vegetation and semi-arid regions
  determined where aerosol is most transparent
  (2.13 µm)
• contrast between Earth-atmosphere reflectance and
  that for dense dark vegetation surface (0.47 and
  0.66 µm)
• enhanced reflectance and reduced contrast over
  bright surfaces (post-launch)
• aerosol optical thickness (0.47 and 0.66 µm)

73
Gobi Desert Dust Storm - March 20, 2001 MODIS
ta (0.55 µm)
2.0
1.0
0
74
Aerosol Optical Thickness - MODISFine Particle
Mode
ta (0.55 µm)
0.8
0.4
0
75
TOMS - Aerosol Index - Feb 26, 2000
http//toms.gsfc.nasa.gov/index.html
76
LITE - Lidar In space Technology
Experiment September 1994 - Space Shuttle
Deep Convection
Saharan Dust
http//www-lite.larc.nasa.gov/
77
(No Transcript)
78
Remote Sensing of Gases
79
Radiative Forcing Between 1850 to 2000
80
Global Annual Energy Balance
Kiehl and Trenberth (1997) IPCC (2001)
81
Atmospheric Transmittances in the Microwave
82
Microwave Emissivity of Ocean Surface
83
Microwave Brightness Temperature
84
(No Transcript)
85
(No Transcript)
86
(No Transcript)
87
Precipitable Water
88
Source/Aerosol 355nm N2
387nm Water Vapour 408nm
http//www.arm.gov/docs/instruments/static/rl.html
89
Raman Lidar to Measure Water Vapour Profile
90
(No Transcript)
91
GPS Signals to Measure Water Vapour
92
(No Transcript)
93
http//atmos.af.op.dlr.de/projects/scops/
94
Normalised weighting functions for the High
Resolution Infrared Sounder (HIRS) on NOAA
satellites. Each function indicates the relative
contribution of the atmosphere from a given level
to the radiance observed at the satellite through
the numbered channel.
95
Satellite Limb Scanning
96
Limb Scanning Weighting Functions
97
Global Annual Energy Balance
Kiehl and Trenberth (1997) IPCC (2001)
98
Final Comments

• Ultimately radiation drives all processes in the
  atmosphere
• Remote sensing will continue to grow as a source
  of atmospheric measurements
• New suite of satellites will require more
  atmospheric scientists in this area

99
