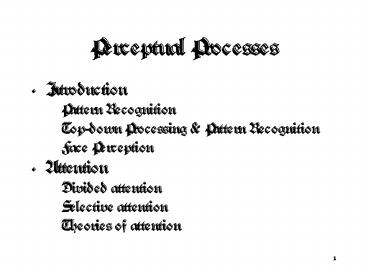

Perceptual Processes

1
Perceptual Processes

• Introduction
• Pattern Recognition
• Top-down Processing Pattern Recognition
• Face Perception
• Attention
• Divided attention
• Selective attention
• Theories of attention

2
Perception

• Process that uses our previous knowledge to
  gather and interpret the stimuli that our senses
  register

3
Pattern Recognition

• The identification of a complex arrangement of
  sensory stimuli

4
Patterns
5
Glory may be fleeting
6
The Letter Z
7
Theories of Patter Recognition

• Template Matching Theory
• Prototype Models
• Distinctive Features Model
• Recognition by Components Model

8
Template Matching Theory

• Compare a new stimulus (e.g. T or 5) to a set
  of specific patterns stored in memory
• Stored pattern most closely matching stimulus
  identifies it.
• To work must be single match
• Used in machine recognition

9
Examples of Template Matching Attempts
10
Used in machine recognition
11
Problems for Template Matching

• Inefficient - large of stored patterns required
• Extremely inflexible
• Works only for isolated letters and simple objects

12
Prototype Theories

• Store abstract, idealized patterns (or
  prototypes) in memory
• Summary - some aspects of stimulus stored but not
  others
• Matches need not be exact

13
Forming Prototypes Faces--Faces Animated Version
Examine the faces below, which belong to two
different categories.
14
Forming Prototypes of Faces
15
Prototypes

• Family resemblances (e.g. birds, faces, etc.)
• Evidence supporting prototypes
• Problems - Vague not a well-specified theory of
  pattern recognition

16
Distinctive Features Models

• Comparison of stimulus features to a stored list
  of features
• Distinctive features differentiate one pattern
  from another
• Can discriminate stimuli on the basis of a small
  of characteristics features
• Assumption feature identification possible

17
Distinctive Features Models Evidence

• Consistent with physiological research
• Psychological Evidence
• Gibson 1969
• Neisser 1964
• Waltz 1975
• Pritchard 1961

18
Visual Cortex Cell Response
19
Gibson--Distinctive Features
20
Letter Scanning Example
First, scan for the letter Z in the first
column of letter strings. Next, scan for the
letter Z in the second column of letter
strings. Which is easier? Why?
21
How a Distinctive Features Model Might Work
Z
A
T
22
Distinctive Features

• Theory must specify how the features are
  combined/joined
• These models deal most easily with fairly simple
  stimuli -- e.g. letters
• Shapes in nature more complex -- e.g. dog, human,
  car, telephone, etc
• What would the features here be?

23
Recognition by Components Model

• Irving Biederman (1987, 1990)
• Given view of object can be represented as
  arrangement of basic 3-D shapes (geons)
• Geons derived features or higher level features
• In general 3 geons usually sufficient to identify
  an object

24
Examples of Geons
25
Status of Recognition by Components Theory

• Distinctive features theory for 3-D object
  recognition
• Some research consistent with the model some not

26
Support for Biederman
27
Summary

• Distinctive Features approach currently strongest
  theory
• Perhaps all 3 approaches (distinctive features,
  prototypes, recognition by components) are
  correct
• Regardless, pattern recognition is too rapid and
  efficient to be completely explained by these
  models

28
Two types of Processing

• Bottom-up or data-driven processing
• Top-down or conceptually driven processing
• Theme 5 -- most tasks involve bottom-up and
  top-down processing

29
Ambiguous Stimulus -The Man Ran
30
Ambiguous Stimulus - The Cat in the Hat
31
Fido is Drunk
32
Reversible Figure and Ground
33
Word Superiority Effect

• We can identify a single letter more rapidly and
  more accurately when it appears in a word than
  when it appears in a non-word.

34
Word Superiority- Non-word Trial
35
Word Superiority Word Trial
36
Single Letter K vs K in a word
37
Word Superiority Single Letter Trial
38
Word Superiority Word Trial
39
Altered Sentences in Warren and Warren (1970)
40
The Effect of Varying Sentence Frame Context on
Interpreting an Ambiguous Stimulus
botanist

• The __________ raised (________) to supplement
  his income.

lion tamer zoo keeper botanist dairy farmer
41
The Influence of Stimulus Features Sentence
Context on Word Identification
42
Attention
43
Definitions of Attention

• Concentration of mental resources
• Allocation of mental resources

44
Divided Attention
45
Reinitz Colleagues (1974)
Divided Attention Condition
Full Attention Condition
Subjects count the dots
No instruction about dots
46
Proportion of Responses that were old for Each
of Two Study Conditions and Two Test Conditions
(Reinitz Colleagues, 1994).
47
Divided Attention Practice

• Hirst, et. al. 1980
• Spelke, 1976

48
Selective Attention
49
Selective Attention (Dichotic Listening Task)

• Shadowing
• Irrelevant Channel
• Cocktail Party Effect - Morray (1959)
• Wood and Cowan (1995)
• Treisman (1960)

50
Dichotic Listening Task
T, 5, H
LEFT T 5 H
RIGHT S 3 G
51
Cocktail Effect -- Ziggy
52
Treismans Shadowing Study
53
Filter Models of Attention
54
Cerebral Cortex Attention
55
Capacity Model of Attention
56
Diagnostic Criteria for Automatic Processes
57
Darwin, Turvey, Crowder
