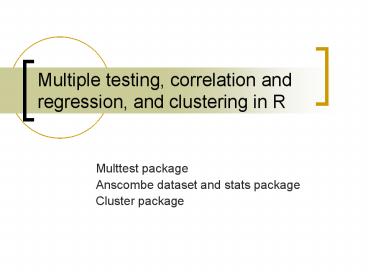

Multiple testing, correlation and regression, and clustering in R

1
Multiple testing, correlation and regression, and
clustering in R

• Multtest package
• Anscombe dataset and stats package
• Cluster package

2
Multtest package

• The multtest package contains a collection of
  functions for multiple hypothesis testing.
• These functions can be used to identify
  differentially expressed genes in microarray
  experiments, i.e., genes whose expression levels
  are associated with a response or covariate of
  interest.

3
Multtest package

• These procedures are implemented for tests based
  on tstatistics, Fstatistics, paired
  tstatistics, Wilcoxon statistics.
• The multtest package implements multiple testing
  procedures for controlling different Type I error
  rates. It includes procedures for controlling the
  familywise Type I error rate (FWER) Bonferroni,
  Hochberg (1988), Holm (1979).
• It also includes procedures for controlling the
  false discovery rate (FDR) Benjamini and
  Hochberg (1995) and Benjamini and Yekutieli
  (2001) stepup procedures.

4
Data Analysis

• Leukemia Data by Golub et al. (1999)
• gt library(multtest, verbose FALSE)
• gt data(golub)

5
Golub Data

• Golub et al. (1999) were interested in
  identifying genes that are differentially
  expressed in patients with two type of leukemias,
  acute lymphoblastic leukemia (ALL, class 0) and
  acute myeloid leukemia (AML, class 1).
• Gene expression levels were measured using
  Affymetrix highdensity oligonucleotide chips
  containing p 6, 817 human genes.
• The learning set comprises n 38 samples, 27 ALL
  cases and 11 AML cases (data available at
  http//www.genome.wi.mit.edu/MPR).

6
Golub Data

• Three preprocessing steps were applied to the
  normalized matrix of intensity values available
  on the website
• (i) thresholding floor of 100 and ceiling of
  16,000
• (ii) filtering exclusion of genes with max / min
  lt 5 or (max-min) lt 500, where max and min refer
  respectively to the maximum and minimum
  intensities for a particular gene across mRNA
  samples
• (iii) base 10 logarithmic transformation.
• Boxplots of the expression levels for each of the
  38 samples revealed the need to standardize the
  expression levels within arrays before combining
  data across samples. The data were then
  summarized by a 3, 05138 matrix X (xji), where
  xji denotes the expression level for gene j in
  tumor mRNA sample i.

7
Golub Dataset

• The dataset golub contains the gene expression
  data for the 38 training set tumor mRNA samples
  and 3,051 genes retained after preprocessing.
  The dataset includes
• golub a 3, 051 38 matrix of expression levels
• golub.gnames a 3, 051 3 matrix of gene
  identifiers
• golub.cl a vector of tumor class labels (0 for
  ALL, 1 for AML).

8
Golub Dataset

• gt dim(golub)
• gt 1 3051 38

9
Golub Dataset
10
Golub Dataset
11
The mt.teststat and mt.teststat.num.denum
functions

• Used to to compute test statistics for each row
  of a data frame, e.g., twosample Welch
  tstatistics, Wilcoxon statistics, Fstatistics,
  paired tstatistics, block Fstatistics.

12
usage

• mt.teststat(X,classlabel,test"t",na.mt.naNUM,non
  para"n")

'test"wilcoxon"'
'test"pairt"'
'test"f"'
mt.teststat.num.denum(X,classlabel,test"t",na.mt
.naNUM,nonpara"n")
13
twosample tstatistics

• comparing, for each gene, expression in the ALL
  cases to expression in the AML cases
• gt teststat lt- mt.teststat(golub, golub.cl)

14
QQ plot

• First create an empty .pdf file to plot the QQ
  plot.
• gt pdf("mtQQ.pdf")
• Plot the qqplot
• gt qqnorm(teststat)
• Plot a diagonal line
• gt qqline(teststat)
• Shuts down the graphical object (e.g., pdf file)
• gt dev.off()

15
What is a QQ plot?
16
What is a QQ plot?

• The quantile-quantile (q-q) plot is a graphical
  technique for determining if two data sets come
  from populations with a common distribution (e.g.
  normal distribution).
• A q-q plot is a plot of the quantiles of the
  first data set (expected) against the quantiles
  of the second data set (observed).

17
What is a QQ plot?

• By a quantile, we mean the fraction (or percent)
  of points below the given value. That is, the 0.3
  (or 30) quantile is the point at which 30
  percent of the data fall below and 70 fall above
  that value.
• A 45-degree reference line is also plotted.
• If the two sets come from a population with the
  same distribution, the points should fall
  approximately along this reference line.

18
Store the numerator and denominator of the test
stat.

• Create a variable tmp in which you store the
  numerators and denominators of the test statistic
• tmp lt- mt.teststat.num.denum(golub, golub.cl,
  test "t")
• Name the numerator as num (teststat.num atribute
  of the tmp object)
• gt num lt- tmpteststat.num
• Name the denominator as denum (teststat.denum
  atribute of the tmp object).
• gt denum lt- tmpteststat.denum

19
Plot the num to denum

• Create a pdf devise
• gt pdf("mtNumDen.pdf")
• Plot
• gt plot(sqrt(denum), num)
• Shut off the graphics
• gt dev.off()

20
Plot the num to denum
21
mt.rawp2adjp function

• This function computes adjusted pvalues for
  simple multiple testing procedures from a vector
  of raw (unadjusted) pvalues.
• The procedures include the Bonferroni, Holm
  (1979), Hochberg (1988), and Sidak procedures for
  strong control of the familywise Type I error
  rate (FWER), and the Benjamini and Hochberg
  (1995) and Benjamini and Yekutieli (2001)
  procedures for (strong) control of the false
  discovery rate (FDR).

22
Raw p-values (unadjusted)

• As a first approximation, compute raw nominal
  twosided pvalues for the 3051 test statistics
  using the standard Gaussian distribution. Create
  a variable known as rawp0 that contain the
  p-values of the 3051 test statistics.
• gt rawp0 lt- 2 (1 - pnorm(abs(teststat)))
• gt rawp015
• 1 0.07854436 0.36289759 0.92191171 0.73463771
  0.17063542

23
The order function

• gt aalt-c(3,5,2,1,9)
• gt ialt-order(aa) index order
• gt ia
• 1 4 3 1 2 5
• gt aaia order aa according to ia
• 1 1 2 3 5 9

24
Adjusted p-values

• Create a vector of character strings containing
  the names of the multiple testing procedures for
  which adjusted p-values are to be computed. This
  vector should include any of the following
  '"Bonferroni"', '"Holm"', '"Hochberg"',
  '"SidakSS"', '"SidakSD"', '"BH"', '"BY"'.
• gt procs lt- c("Bonferroni", "Holm",
• "Hochberg", "SidakSS", "SidakSD",
• "BH", "BY")

25
Adjusted p-values in the order of the gene list

• Adjusted pvalues can be stored in the original
  gene order in adjp using order(resindex)
• gt res lt- mt.rawp2adjp(rawp0, procs)
• gt adjp lt- resadjporder(resindex),

26
Adjusted p-values in the order of significance

• Adjusted pvalues can be stored in the order of
  significance
• gt adjp lt- resadjp
• gt adjp15,

27
mt.reject function to list number of genes
rejected
28
mt.reject function to list number of genes
rejected
29
Find the genes most significant
30
Get the data of significantly modulated genes

• gt which lt- mt.reject(cbind(rawp0, adjp),
  0.000001)which, 2
• gt sum(which)
• 1 143
• gt gsignificantlt-golubwhich,
• gt dim(gsignificant)
• 1 143 38
• gt gsignificant15,15
• ,1 ,2 ,3 ,4 ,5
• 1, -1.45769 -0.32639 -1.46227 -0.18983 -0.12402
• 2, 0.86019 -0.14271 0.67037 0.70706 0.87697
• 3, -1.00702 -0.89365 -1.21154 -1.40715 -1.42668
• 4, -1.27427 -0.66834 -0.58252 -1.40715 -0.03531
• 5, -0.45670 0.48916 -0.48474 0.02261 0.00704

31
mt.plot function

• The mt.plot function produces a number of
  graphical summaries for the results of multiple
  testing procedures and their corresponding
  adjusted pvalues.

32
mt.plot function

• To produce plots of adjusted pvalues for the
  Bonferroni, maxT, Benjamini and Hochberg 7
  (1995), and Benjamini and Yekutieli (2001)
  procedures use

33
Plot adjp values over number of rejected
hypotheses

• gt res lt- mt.rawp2adjp(rawp, c("Bonferroni", "BH",
  "BY"))
• gt adjp lt- resadjporder(resindex),
• gt allp lt- cbind(adjp, maxT)
• gt dimnames(allp)2 lt- c(dimnames(adjp)2,
  "maxT")
• gt procs lt- dimnames(allp)2
• gt procs lt- procsc(1, 2, 5, 3, 4)
• gt cols lt- c(1, 2, 3, 5, 6)
• gt ltypes lt- c(1, 2, 2, 3, 3)
• gt mt.plot(adjp,teststat,plottype "pvsr")

34
Correlation and Regression in R

• Anscombe dataset
• gt data(anscombe)
• gt ? anscombe

35
Anscombe dataset
36
Get summaries
37
cor function
38
Find correlation coefficient of all pairwise
combinations
39
Find correlation coefficient of specific pairs
gt cor(anscombe,1,anscombe,2) 1 1 gt
cor(anscombe,1,anscombe,4) 1 -0.5
40
cor.test function
41
cor.test

• gt cor.test(anscombe,1,anscombe,4)
• Pearson's product-moment correlation
• data anscombe, 1 and anscombe, 4
• t -1.7321, df 9, p-value 0.1173
• alternative hypothesis true correlation is not
  equal to 0
• 95 percent confidence interval
• -0.8460984 0.1426659
• sample estimates
• cor
• -0.5

42
Plot scatterplots

• gt plot(anscombe,1,anscombe,4)

43
Application to Golub dataset
44
Calculate the linear regression coefficients and
get a summary

• gt lllt-lm(anscombe,4 anscombe,1)
• gt summary(ll)

45
Get the anova table
46
Plot the regression line

• gt plot(anscombe,1,anscombe,4)
• gt abline(lm(anscombe,4 anscombe,1))

47
llfitted.values
48
llcoefficients, llresiduals
49
hclust function
50
hclust for golub data (correlation distance with
average linkage)
51
hclust for golub data (correlation distance with
complete linkage)
52
hclust for golub data (euclidean distance with
single linkage)
53
hclust for significant golub data (euclidean
distance with single linkage)
54
heatmap function
55
heatmap for significant genes

• gt attributes(clust.euclid.single)
• names
• 1 "merge" "height" "order"
  "labels" "method"
• 6 "call" "dist.method"
• class
• 1 "hclust"
• gt clust.euclid.singleorder
• 1 129 10 124 125 54 35 28 59 44 85 110
  90 106 15 137 138 139 37
• 19 47 126 63 88 27 134 79 80 76 121 131
  81 3 82 11 1 104 78
• 37 140 31 34 98 89 8 26 123 92 113 61
  127 16 95 29 96 39 142
• 55 7 57 128 14 32 6 67 9 71 133 52
  19 74 72 23 73 132 99
• 73 55 135 56 136 5 97 24 18 25 4 107
  84 94 109 114 51 68 69
• 91 45 65 46 41 75 49 102 122 50 100 83
  12 86 141 17 116 143 2
• 109 77 105 112 22 36 101 111 13 62 21 60
  87 38 58 118 115 119 93
• 127 30 33 108 43 120 91 70 130 53 40 66
  64 20 42 103 48 117
• gt gsignificantorderedlt-gsignificantclust.euclid.s
  ingleorder,
• gt heatmap(gsignificantordered)

56
Heatmap for significant genes
57
kmeans function
58
kmeans for samples based on significant genes
59
pam function
60
Pam on samples based on significant genes
61
Silioutte plot
gt plot(clust.pam.2)
62
Microarray Data Analysis Software

• http//rana.lbl.gov/EisenSoftware.htm
• http//classify.stanford.edu/
• http//www.broad.mit.edu/cancer/software/software.
  html
• http//homes.esat.kuleuven.be/dna/Biol/Software.h
  tml
• http//vortex.cs.wayne.edu/Projects.html
• http//visitor.ics.uci.edu/cgi-bin/genex/rcluster/
  index.cgi
• http//www-stat.stanford.edu/7Etibs/SAM/index.htm
  l
• http//maexplorer.sourceforge.net/
• http//ihome.cuhk.edu.hk/b400559/arraysoft.html
• http//genome.ws.utk.edu/resources/restech.shtml
