Title: A Brief Overview of the Unified Modeling Language

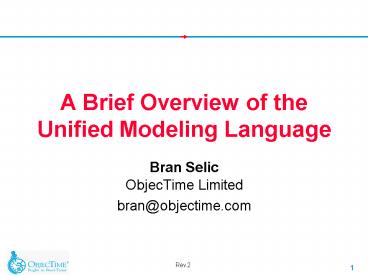

1
A Brief Overview of the Unified Modeling Language
  • Bran SelicObjecTime Limited
  • bran_at_objectime.com

Rev.2
2
Overview
  • Introduction
  • The Object Paradigm
  • Modeling with the UML
  • Summary

3
What is the UML?
  • General-purpose OO modeling language
  • convergence of a number of popular OO methods

Catalysis
ROOM
etc.
4
Inside the Standard
  • Semi-formal semantic meta model
  • defines the basic modeling concepts
  • object, class, association, etc.
  • includes formal well-formedness rules expressed
    as constraints in the Object Constraint Language
    (OCL)
  • Graphical notation for modeling concepts
  • 8 different diagram types
  • Two predefined domain extensions

5
  • Introduction
  • The Object Paradigm
  • Modeling with the UML
  • Summary

6
A Brief History of Objects
  • 1967 Simula programming language
  • 1970s Smalltalk programming language
  • 1980s Theoretical foundations, C,
    Objective-C, etc.
  • 1990s Object-oriented analysis and design
    methodologies (Booch, OMT, ROOM, etc.), Java
  • 1997 The Unified Modeling Language (UML)
    standardized by the Object Management Group (OMG)

7
The Object Paradigm
  • A synergistic combination of various proven
    techniques including
  • encapsulation
  • inheritance
  • polymorphism/genericity
  • Salient characteristic a software system is
    rendered as a structure of collaborating parts
  • the object paradigm is inherently structural

8
Structure
  • The individual parts of a system and their
    run-time topological relationships
  • Fundamental structural relationship types
  • Containment (strong and weak)

composition (strong)
aggregation (weak)
  • Layering
  • Communication (links)

9
Objects
  • Entities that model some physical or conceptual
    entity
  • a unique identity (dedicated memory)
  • the conceptual becomes physical!
  • a public interface
  • a hidden (encapsulated) implementation

methods
public attributes
Telephone1
busy boolean
public operations
offHook() onHook () ring()
10
Conceptual Objects
  • Not all objects necessarily require a physical
    underpinning
  • For example, the telephone call object

abortCall () addParty (tTelephone) reportDuration
()
11
Classes and Instances
  • Design-time specifications for one or more
    distinct objects with a common form (structure
    and behavior)

instance (run time)
class (design time)
12
Object Behavior
  • Simple basic reactive server model

InitializeObject
Handling depends on specific request type and
object state
Wait forRequest
HandleRequest
Invokes operations on other objects
TerminateObject
13
Programming Model
  • Combining objects into object structures

14
Object Engines
  • Passive objects depend on external motive power
    (e.g., main program thread)
  • Active objects self-powered (own thread of
    execution)

15
Inheritance and Polymorphism
  • Generalization and re-use mechanisms

Generalization (inheritance) association
16
  • Introduction
  • The Object Paradigm
  • Modeling with the UML
  • Summary

17
Why Build Models?
  • To understand the problem better
  • To communicate with stakeholders
  • To find errors or omissions
  • To plan out the design
  • To generate code

18
UML Model Views
  • Requirements (use case diagrams)
  • Static structure (class diagrams)
  • kinds of objects and their relationships
  • Dynamic behavior (state machines)
  • possible life histories of an object
  • Interactive behavior (activity, sequence, and
    collaboration diagrams)
  • flow of control among objects to achieve
    system-level behavior
  • Physical implementation structures (component and
    deployment diagrams)
  • software modules and deployment on physical nodes

19
Class Diagram - Static Structure
  • Shows the entities in a system and their general
    relationships

association class
Person
generalization
association
residence
0..
ordered
House
20
Object Instance Diagram
  • Shows object instances in a particular case

link
21
State Machine Diagram
  • Each state corresponds to a selective receive
    action

state machine
initial state
state
trigger
action expression
final state
transition
22
State Machine Behavior
  • Event handling details depend on state

start/master.ready()
23
Active Objects in the UML
  • Concurrent incoming events are queued and handled
    one-at-a-time regardless of priority
  • run-to-completion (RTC) execution model

24
RTC and Concurrency
  • Eliminates need to write complex and error-prone
    synchronization code
  • if all passive objects encapsulated by an active
    object, only a single thread can pass through
    each passive object

passive encapsulated objects (protected
attributes)
The event handler is an implicit critical region
25
RTC Semantics
  • RTC step semantics must not be confused with
    uninterruptibility or unpre-emptabilty
  • interrupts do not have to be blocked
  • an active object can be pre-empted by another
    active object responding to a higher-priority
    event
  • priority inversion only occurs when an active
    object blocks itself (i.e. it cannot block any
    other active object)
  • The effectiveness of this is supported by the
    following empirical results
  • most event handling is trivial
  • in computer terms, events occur infrequently

26
State-Based Actions
  • Entry action executed whenever a state is
    (re-)entered
  • Exit action executed whenever a state is
    departed
  • Internal transition a self transition executed
    without leaving and re-entering a state

entry/m.entered() exit/m.departed() poll/m.ack
()
27
Hierarchical States and Transitions
  • Allows step-wise refinement and viewing of
    complex behavior

group transition
default transition
composite state
28
Signals
  • Used for asynchronous communication
  • specified by a special type of class
  • can be organized into class hierarchies

29
Sequence Diagrams
  • Assertions of legal interactions between objects
    (e.g., operator-assisted call)

sequence diagram
30
Collaboration Diagram
  • Show generic structure and behavior

classifier role
P2TTSet
P1BusSet
P2TTSet
P1BusSet
31
  • Introduction
  • The Object Paradigm
  • Modeling with the UML
  • Summary

32
Summary the UML
  • An industry standard for analysis and design of
    object-oriented systems
  • based on extensive experience and best practices
  • gaining rapid acceptance (training, tools, books)
  • Comprises
  • set of modeling concepts
  • graphical notation
  • Leaf concepts organized into 8 diagram types
  • class, state machine, collaboration, use case,
    sequence, activity, component, deployment
  • The UML can be used in many different domains to
    capture domain-specific concepts and ideas
