Forces (gravity, pressure gradient force)

1

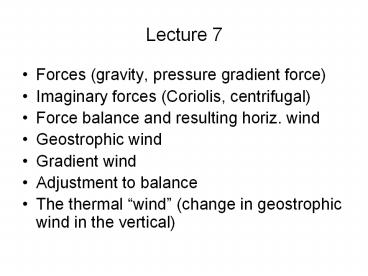

Lecture 7

• Forces (gravity, pressure gradient force)
• Imaginary forces (Coriolis, centrifugal)
• Force balance and resulting horiz. wind
• Geostrophic wind
• Gradient wind
• Adjustment to balance
• The thermal wind (change in geostrophic wind in
  the vertical)

2
Wind direction is the direction from which the
wind is blowing. Wind direction is expressed in
degrees
Units m/s or knots 1 knot 0.5 m/s 1knot 1
mile/hr
Wind speed is expressed in terms of the
flagpole
3
Newtons law of motion

• A body at rest tends to stay at rest a body in
  motion tends to stay in motion, traveling at a
  constant speed in a straight line.
• A force exerted on a body of mass m causes the
  body to accelerate in the direction of the
  applied force.
• Force mass x acceleration

4
A force has direction and magnitude (it is a
vector). Adding two forces is vector addition.
5
Forces that move the air

• Gravitational force (g9.8 m/s2)
• Pressure gradient force (-1/rho x dp/dx or
  --1/rho x dp/dy). It points toward lower p. The
  pressure gradients causing the wind are
  horizontal.
• Coriolis force
• Centrifugal force
• Frictional force

6
Pressure gradient force pushes from higher to
lower pressures
PGF
Magnitude depends on value of pressure gradient
7
Isobaric chart (height contours on a constant
pressure surface)
8
Pressure (p) as a function of height
9
Vertical structure in the atmosphere

• What about pressure?
• Hydrostatic equation balance between pressure
  gradient force and gravity.
• dp/dz - rho g
• Ideal gas law
• p rho R T

Lets go to the board!
z - H ln (p/p0), where H is scale height and
is only constant if T is constant. In other
words, p p0 exp(- z/H)
10
Next Coriolis forceEarths rotational speed is
greatest at the equator and exactly zero at the
poles
11
Coriolis deflection
Coriolis force deflects moving air to the right
in the Northern Hemisp.
Coriolis force deflects moving air to the left
in the S. Hemisphere
12
The magnitude of the Coriolis force (CF) is
proportional to the wind speed and sine of
latitude
CF f x V, Where f is 2xEarths rotation rate
xsin(latitude)
13
Centrifugal force arises because the trajectory
is curved. CENTF V2/R, where R (radius of
curvature) is positive for cyclones, negative for
anticyclones
14
Frictional force is proportional to the wind-
speed and directed opposite to the wind dir.
FF -k V (where k describes the roughness)
15
Summary The Forces

• Gravity the strong silent type
• PGF arises from pressure gradients generated by
  differential solar heating leads to wind. Only
  then do the other forces start acting.
• CF, CENTF, FF all depend of V, wind speed.

16
Atmospheric force balancesSum of forces mass x
accelerationBalance when the forces add up to
zero

• Hydrostatic balance in the vertical (gravity does
  not cause wind).
• Strong horizontal PGF means strong wind
• CF changes wind direction not speed
• CENTF only acts on curved flow
• FF slows down the wind (regardless of direction).

17
Geostrophic wind, geostrophic balancePGF CF 0
18
Wind blows counterclockwise around lows (cyclonic
wind in cyclones), clockwise around highs
(anticyclones)
Force balance not quite right since we have
curved flows
Add centrifugal force
19
Gradient balance and the gradient wind
20
Gradient balance results in gradient wind

• Represents balance of three forces
• It is an excellent approximation to free
  atmospheric flow.
• Around highs it is supergeostrophic
• Around lows it is subgeostrophic

21
Adjustment to balance

• The atmosphere tries hard to stay in balance, but
  it is constantly being pushed away from it.
• The atmosphere adjusts very quickly (in a matter
  of minutes) to imbalance.

22
Adjustment to balance with 3 forces
