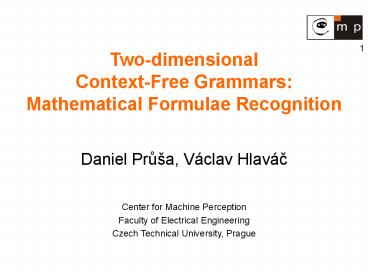

Two-dimensional Context-Free Grammars Mathematic
al Formulae Recognition
Daniel Prua, Václav Hlavác
Center for Machine Perception Faculty of
Electrical Engineering Czech Technical
University, Prague
2
Presentation Overview

• Formulae recognition, problem formulation
• Known methods
• General idea of structural recognition
• Two-dimensional context-free grammars
• Extension of the grammars
• Recognition tool, pilot implementation
• Results, future plans

3
Motivation for this work

• To test a theoretical construct on a practical
  pilot problem with explicit structure ?
  mathematical formulae
• The group of Schlesinger, Savchynskyy from Kiev
  works on music score recognition. We cooperate in
  a joint research project.

4
Math. formulae, off-line or on-line

• Formulae recognition can be divided into two
  groups by the type of input
• Off-line recognition a formula is depicted in a
  raster image.
• On-line recognition a formula represented by a
  sequence of pen strokes (growing importance due
  to tablet PCs).

5
Math. formulae recognition, usage

• Off-line recognition conversion of scanned
  printed mathematical texts into an electronic
  form.
• On-line recognition connected to pen-based
  computing technologies (electronic tablets).
• There are many papers on formulae recognition,
  but only a few commercial products (e.g.,
  xMathJournal by xThink)

6
Usual architecture

• Two independent layers
• Symbol detection and recognition.
• Structural analysis.

image, sequence of strokes
symbol recognition
symbols ( coordinates and font size)
error corrections (optional)
structural analysis
derivation tree
7
Symbol recognition methods

• Image segmentation OCR tool.
• Image segmentation and character recognition
  performed simultaneously (e.g., by Hidden Markov
  Models).
• It is very difficult to recover from errors made
  in segmentation phase.
• Semantic not taken into account.

8
Structural analysis methods

• Grammar based
• geometric grammars
• graph grammars
• Non-grammar based
• minimum spanning tree
• hard-coded rules

9
Our approach to structural recognition

• Based on general structural constructions by M.I.
  Schlesinger, V. Hlavác in Ten Lectures on
  Statistical and Syntactic Pattern Recognition
  (Kluwer Academic Publishers, 2002)
• Do not separate segmentation and parsing, perform
  them simultaneously.
• Suitable for recognition of objects with rich
  structure.
• Already successfully applied to music scores and
  electric circuits diagrams.

10
Structural Recognition General Idea
Assumptions input image, set of derivation rules
Recognition

• Algorithm starts with regions labeled by
  terminals
• - squares corresponding to one symbol,
• - regions detected by an external tool.
• Bigger regions labeled by non-terminals are
  derived by applying the rules, each derivation is
  assigned by a penalty.
• Result region matching the whole picture with
  the smallest penalty.

N
Region N is derived by a rule from regions A, B,
C, D
B
A
D
C
11
Structural Recognition Applied on Formulaeusing
2D Context-free Grammars

• Uniform shapes of regions considered rectangles
• 2D grammar for mathematical formulae designed.

• Terminals detection - detect all possible
  occurrences of elementary symbols using an OCR
  tool, evaluate the occurrences by a penalty
  (computed by the OCR tool).

fraction line, minus sign
symbol 5
12
Structural Recognition Applied on Formulaeusing
2D Context-free Grammars
Parsing let the structural analysis decide what
is the best segmentation and interpretation of
the elementary symbols, i.e. find derivation tree
covering the whole image, evaluated by the
smallest penalty.
-
5
2
13
Two-dimensional Context-free Grammars
set of terminals
set of non-terminals
initial non-terminal
set of productions
Three basic types of productions in P
Generalized form of productions
14
Interpretation of Productions
G generates pictures that can be named by the
initial non-terminal S
15
Theoretical Results on 2D CF Languages
L(2CFG) ... class of languages that can be
generated by a 2D CF grammar

• L(2CFG) includes 1D context-free languages

• L(2CFG) and L(2FSA) are not comparable

• There is no analogy to the Chomsky normal form of
  productions

• Basic form of productions is weaker than general
  one

• Emptiness problem is not decidable

• Languages in L(2CFG) can be recognized in
  polynomial time

Observation natural generalization, but the
properties of L(2CFG) differ to the properties
of the class of 1D context-free languages.
16
Recognition in Polynomial Time
2D CF grammars with productions in the basic form
Generated languages can be recognized in time
(M.I. Schlesinger)
picture size
Algorithm can be generalized on all languages in
L(2CFG)
Maximal number of rows on the right-hand side of
a production.
Maximal number of columns on the right-hand side
of a production.

• degree of the polynomial depends on size of the
  productions

17
Extension of 2D CF Grammars
2D context-free grammar are not power enough to
express complex structure of mathematical
formulae.
We need a formalism allowing to easily work with
relative positions and sizes of symbols, e.g. to
express relationships like a symbol is
superscript of another symbol, etc.
1
3
5
2

5
3
6
4
18
Extension of 2D CF Grammars

• Regions are still rectangles.

• Each derived region is assigned by a feature
  point (logical center). The feature point a
  derived region is determined by the applied
  production.

1
5
3
19
Extension of 2D CF Grammars

• Usage of productions is not limited on directly
  neighboring (touching) rectangles.
• Productions can specify a rectangular area where
  some specific point of a rectangle has to be
  contained.
• Position and sizes can be given relative to one
  of the rectangles.
• Restrictions on relative sizes of rectangles are
  also possible.

32
5
20
Penalty Computation
Based on summing partial penalties determined by
the following criterions

• Used production.
• Relative sizes and positions of regions the
  production is applied on (original regions).
• Number of black pixels in the new region that are
  not in the original regions.
• Penalty of the original regions.

21
Implementation of the Recognition Tool

• Off-line recognition.
• Implemented in Java.
• Trained and tuned for hand-written formulae.
• Black and white images (but can be extended on
  gray-scale images).
• The following constructs are supported
• variables, numbers, parenthesis,
• common unary and binary operators, power to
  operator,
• fractions, square root, subscripts, superscripts,
• sum, integral.
• Can deal with noise, ambiguities, touching or
  split symbols, etc. and also with misplaced
  symbols.

22
Tool Architecture
OCR tool
terminals detection
2D grammar
parsing
23
Terminals Detection
Ideally, all regions should be scanned for an
elementary symbol presence, but this consumes
much time, two smarter strategies implemented

• Scanning rectangular windows of some predefined
  sizes (not all sizes).
• Detection based on connectivity components.

Limitations of the method overlaping symbols
bounding boxes, symbols that intersect
Used OCR tool A simple method implemented -
feature vector extracted from image, k-nearest
neighbor classifier used to classify the vector.
Trained for all supported elementary symbols.
24
Remarks on Terminals Detection

• Symbols that do not have size limited by a
  constant are not treated as terminal symbols
  (e.g., fraction line, square root).
• In addition, square root cannot be separated from
  an image by a rectangle (it surrounds its
  argument).
• Solution Treat these cases as symbols composed
  of several terminal symbols, extend grammar by
  related productions.

25
Parsing Algorithm

• Bottom up approach, as described in the general
  structural recognition.
• Complexity depends on the number of terminals
  detected during the first phase in general, can
  be exponential, but it is substantially reduced
  by production restristions and usage of suitable
  data structures
• Data structures for orthogonal range queries
  (searching points that are located in a
  rectangle) used to speed up the algorithm.

26
Future Plans

• Focus on printed formulae
• Collect sufficiently large set of annotated
  printed formulae
• Apply learning methods learn etalons of
  elementary symbols and productions parameters
