Building Support Solutions with Windows PE

1

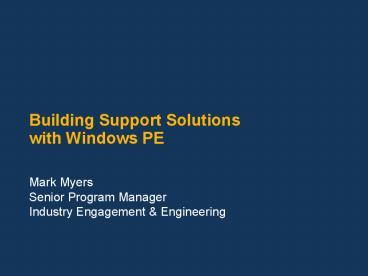

Building Support Solutions with Windows PE

• Mark Myers
• Senior Program Manager
• Industry Engagement Engineering

2
What Is Windows PE?

• Windows PE is a reduced version of Microsofts
  Windows Operating Systems
• ex. Windows XP, Windows Server 2003, and soon
  Windows codenamed Longhorn
• Windows PE is built using a command script to
  compile the correct binaries into a customized
  version of Windows PE
• Replacement to MS-DOS and 16-bit dependencies.
  Please be aware we are ending the availability of
  MS-DOS Licensing as of 12/31/05
• Windows PE will become the base platform for a
  variety of Longhorn features and support solutions

3
What Is Windows PE

• There are 3 hardware-specific versions of Windows
  PE available as of Windows Server 2003 SP1
• x86 32-bit
• x86 64-bit
• Itanium
• Windows PE was designed for a variety of
  support-based usage scenarios
• As a base platform for computer manufacturing
  tests, diagnostics, and OS deployments
• As a base platform for computer based recovery
  and support related solutions
• As a base platform for ISV and IHV retail support
  oriented solutions

4
Windows Preinstallation Environment
Windows PE
Windows XP Pro/2003
Customizable Boot Environment
Complete OS Solution
NTFS
Full Drivers
Windows PE is a scaled down copy of Windows XP
or Server 2003 It replaces MS-DOS in
deployment and diagnostic scenarios. Forced
reboot Every 24 hours of uptime
Full networking
Full APIs
Mass storage device support
16/32-bit program support
Integrated Development
Programming Frameworks
Application Services
NTFS
Limited Drivers
Media Services
API subset
TCPIP
Web Services
Hardware (x64, x86, Itanium)
File/Print Services
Mass storage device support
Network Access Services
Directory/Security Services
32/64-bit program support
5
Why Windows PE is Important

• Reduces both manufacturing and support related
  costs
• Eliminates dependencies on a variety of OS
  centric 3rd party tools (MS-DOS, Windows and
  others) thus reducing or eliminating development
  resources
• Performance increases with regard to
  manufacturing output (factory velocity)
• Provides for a Microsoft supported platform to
  build and ship PCs and deployment tools within
  the industry
• Ensures a faster time to market due to synergy
  between existing 32/64 bit drivers and Windows
  software solutions (porting of Windows apps is
  simple)
• Synergy between factory tools and enterprise
  customer deployment support tools (build it once,
  ship it internal and external)
• Works with non-MS products for OS deployment
• Ex. 3rd party PXE servers, variety of OS type
  deployments supported, etc
• Reduced Longhorn tools transition time and cost
  for OEMs, System Builders, and corporations
• Provides for a variety of 3rd party retail
  opportunities for ISV/IHVs to build and ship
  support or OS deployment solutions

6
Longhorn Version of Windows PE

• Feature parity with Windows Server 2003 SP1
  Windows PE feature sets
• WMI support for access to multiple hardware based
  providers and classes
• Windows based driver injection and PnP boot
  support
• Inject in Windows based 32/64-bit device drivers
  within Windows PE for reliable test and
  diagnostic results
• Ability to flash the system BIOS and device ROMs
  within Windows PE
• RAMDISK boot support for Hard Drive (HD), Compact
  Disc (CD), DVD, USB Flash Drive (UFD), and
  Pre-Boot eXecution Environment (PXE)
• Min 256MB required on boot machine
• Read only Ramdisk today
• Sub 30 second boot times possible using either
  network or USB Flash Drive (UFD)
• Internet Connection Firewall support
• Ensures Windows PE safe from viruses, worms, etc
• WinPE Boot support on USB Flash Devices
• Currently an OEM only feature in XP/Server 2003
• Supports sub-30 second boot times on platforms
  supporting USB 2.0 in core BIOS (IBM, Dell, and
  Gateway)
• Formal documentation Application debug and
  Win32/64-bit APIs NOT supported

7
Longhorn Version of Windows PE (cont)

• Additional features currently being finalized
• Support for PnP within Windows PE with faster
  driver PnP due to new inf. parsing design
• Ramdisk support for up to 32MB of Read/Write
  scratch space
• File-based Write Filter support for allowing
  writes (registry, drivers, etc.) even when booted
  on read-only media such as CD or DVD
• Implementing a boot manager on EFI just like x86
  32 and x64 based systems (ex. boot.ini)
• Smaller default size (under 100MB) with faster
  boot times based on WIM boot support. Compressed
  Windows PE at 60MB
• New servicing infrastructure on par with Longhorn
  solution (CBS/CSI)
• Additional F6 media supported (CD/DVD, UFD, and
  network shares)

8
Partner Solutions Built on Windows PE
9

Business Solution DemoEurosoft QA Win32
Boot2TestYour Key to Testing Success!

• Brad Marrs, Chief Technology Officer
• Sharon Richards, President Eurosoft (US)

10
How Eurosoft Diagnostics Work with Microsoft WinPE

• Developed internal WinPE build processes to includ
  e drivers, applications, etc.
• Gained technology knowledge RIS
• RIS boot WinPE allows total centralization and
  distribution of
• test image
• Special-case test issues covered
• Serial Port / Modem / Network / Video / WMI
• Read all about Eurosoft get your flier at back
  of room
• Visit www.eurosoft-uk.com/windowspe for
  information

11
Time is money. Reboots Take TimeWinPE Saves
Reboots!

• UFD is your key to testing success!
• Test image centralization is not a requirement
• Fast with USB 2.0 core in the BIOS
• Eurosoft Boot2Test gives the best of both test
  worlds
• Initial Boot into Eurosoft Pc-Check Memory Test
• Quick Reboot (no POST) into WinPE to
  run QAWin32 tests
• Results linked as series can be centralized in
  PC Builder
• Read all about Eurosoft get your flier at back
  of room
• Visit www.eurosoft-uk.com/windowspe for
  information

12
Business Solution DemoSoftthinks Windows PE
Solutions

• Steven Benton, Director of OEM Sales
• Grant Barry, Field Application Engineer

13
Unattended System Deployment in WinPE
Windows 2003 RIS Server
Notebook
Desktop
- PXE Boot on RIS Server
- Transmit Sales Order or Model
- Create Recovery Partition
- Win PE Download and Boot
- Download Software Test Suite to Recovery
Partition
- Disconnect from Server and Deploy Software to
User Partition
- Reboot to Windows, Install S/W run
Manufacturing Test (Seal Image)
14
SoftThinks WinPE Tools
Hard Disk Defrag
Antivirus
File Explorer
LAN Internet Access
LAN Email Access
Data Backup
Partitioning Tools
Recovery Partition Creation
System Recovery
15
Call to Action

• Migrate all DOS-based test, diagnostic and
  manufacturing toolsets to 32- or 64-bit,
  including 3rd party vendors as soon as possible
• As an OEM or System builder, ensure your BIOS
  supports USB 2.0 booting as a core supported
  scenario
• If your interested in licensing Windows PE,
  please email Licwinpe _at_ microsoft.com

16
