Ernest Orlando Lawrence Berkeley National Laboratory

1

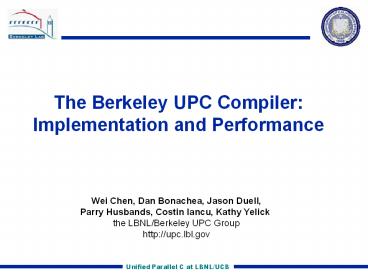

The Berkeley UPC Compiler Implementation and
Performance
Wei Chen, Dan Bonachea, Jason Duell, Parry
Husbands, Costin Iancu, Kathy Yelick the
LBNL/Berkeley UPC Group http//upc.lbl.gov
2
Outline

• An Overview of UPC
• Design and Implementation of the Berkeley UPC
  Compiler
• Preliminary Performance Results
• Communication Optimizations

3
Unified Parallel C (UPC)

• UPC is an explicitly parallel global address
  space language with SPMD parallelism
• An extension of C
• Shared memory is partitioned by threads
• One-sided (bulk and fine-grained) communication
  through reads/writes of shared variables
• Collective Efforts by industry, academia, and
  government
• http//upc.gwu.edu

Shared
X0
X1
XP
Global address space
Private
4
UPC Programming Model Features

• Block cyclically distributed arrays
• Shared and private pointers
• Global synchronization -- barriers
• Pair-wise synchronization locks
• Parallel loops
• dynamic shared memory allocation
• Bulk Shared Memory accesses
• Strict vs. Relaxed memory consistency models

5
Design and Implementation of the Berkeley UPC
Compiler
6
Overview of the Berkeley UPC Compiler
Two Goals Portability and High-Performance
Lower UPC code into ANSI-C code
Translator
UPC Code
Shared Memory Management and pointer operations
Platform- independent
Translator Generated C Code
Berkeley UPC Runtime System
Network- independent
Compiler- independent
GASNet Communication System
Language- independent
Network Hardware
Uniform get/put interface for underlying networks
7
A Layered Design

• Portable
• C is our intermediate language
• Can run on top of MPI (with performance penalty)
• GASNet has a layered design with a small core
• High-Performance
• Native C compiler optimizes serial code
• Translator can perform high-level communication
  optimizations
• GASNet can access network hardware directly

8
Implementing the UPC to C Translator
Preprocessed File

• Based on the Open64 compiler
• Source to source transformation
• Convert shared memory
• operations into runtime library
• calls
• Designed to incorporate existing
• optimization framework in open64
• Communicate with runtime via a
• standard API

C front end
Whirl w/ shared types
Backend lowering
Whirl w/ runtime calls
Whirl2c
ANSI-compliant C Code
9
Shared Arrays and Pointers in UPC
A0 A2 A4 B0 B1 B4 B5 C0 C1
C2
A1 A3 A5 B2 B3 B6 B7
T1
T0

• Cyclic shared int An
• Block Cyclic shared 2 int Bn
• Indefinite shared 0 int C
• (shared 0 int ) upc_alloc(n)
• Use global pointers (pointer-to-shared) to access
  shared (possibly remote) data
• Block size part of the pointer type
• A generic pointer-to-shared contains
• Address, Thread id, Phase

10
Accessing Shared Memory in UPC
start of array object
start of block
Shared Memory

block size
Phase

Thread 1
Thread N -1
Thread 0
0
2
addr
11
Phaseless Pointer-to-Shared

• A pointer needs a phase to keep track of where
  it is in a block
• Source of overhead for pointer arithmetic
• Special case for phaseless pointers Cyclic
  Indefinite
• Cyclic pointers always have phase 0
• Indefinite pointers only have one block
• Dont need to keep phase in pointer operations
  for cyclic and indefinite
• Dont need to update thread id for indefinite
  pointer arithmetic

12
Pointer-to-Shared Representation

• Pointer Size
• Want to allow pointers to reside in a register
• But very large machines may require a longer
  representation
• Datatype
• Use of scalar types (long) rather than a struct
  may improve backend code quality
• Faster pointer manipulation, e.g., ptrint as
  well as dereferencing
• Portability and performance balance in UPC
  compiler
• 8-byte scalar vs. struct format (configuration
  time option)
• The pointer representation is hidden in the
  runtime layer
• Modular design means easy to add new
  representations

13
Performance Results
14
Performance Evaluation

• Testbed
• HP AlphaServer (1GHz processor), with Quadrics
  interconnect
• Compaq C compiler for the translated C code
• Compare with HP UPC 2.1
• Cost of Language Features
• Shared pointer arithmetic, shared memory
  accesses, parallel loops, etc
• Application Benchmarks
• EP no communication
• IS large bulk memory operations
• - MG bulk memget
• CG fine-grained vs. bulk memput
• Potentials of Optimizations
• Measure the effectiveness of various
  communication optimizations

15
Performance of Shared Pointer Arithmetic
1 cycle 1ns Struct 16 bytes

• Phaseless pointer an important optimization
• Packed representation also helps.

16
Cost of Shared Memory Access

• Local accesses somewhat slower than private
  accesses
• Layered design does not add additional overhead
• Remote accesses a few magnitude worse than local

17
Parallel Loops in UPC

• UPC has a forall construct for distributing
  computation
• shared int v1N, v2N, v3N
• upc_forall(i0 i lt N i v3i)
• v3i v2i v1i
• Affinity tests performed on every iteration to
  decide if it should execute
• Two kinds of affinity expressions
• Integer (compare with thread id)
• Shared address (check the affinity of address)

18
Application Performance
19
NAS Benchmarks (EP and IS)

• EP shows the backend C compiler can still
  successfully optimize translated C code
• IS shows Berkeley UPC compiler is effective for
  communication operations

20
NAS Benchmarks (CG and MG)

• Berkeley UPC compiler scales well

21
Performance of Fine-grained Applications

• Doesnt scale well due to nature of the benchmark
  (lots of small reads)
• HP UPCs software caching helps performance

22
Observations on the Results

• Acceptable worst-case overhead for shared memory
  access latencies
• lt 10 cycle overhead for shared local accesses
• 1.5 usec overhead compared to end-to-end
  network latency
• Optimizations on pointer-to-shared representation
  are effective
• Both phaseless pointers and packed 8-byte format
• Good performance compared to HP UPC 2.1

23
Communication Optimizations for UPC
24
Communication Optimizations

• Hiding Communication Latencies
• Use of non-blocking operations
• Possible placement analysis, by separating
  get(), put() as far as possible from sync()
• Message pipelining to overlap communication with
  more communication
• Optimizing Shared Memory Accesses
• Eliminating locality test for local shared
  pointers flow- and context-sensitive analysis
• Transforming forall loops into equivalent for
  loops
• Eliminate redundant pointer arithmetic for
  pointers with same thread and phase

25
More Optimizations

• Message Vectorization and Aggregation
• Scatter/gather techniques
• Packing generally pays off for small (lt 500 byte)
  messages
• Software Caching and Prefetching
• A prototype implementation
• Local knowledge only no coherence messages
• Cache remote reads and buffer outgoing writes
• Based on the weak ordering consistency model

26
Example Optimizing Loops
27
Experimental Results

• Computation/communication overlap better than
  communication/communication overlap, for Quadrics
• Results likely different for other networks

28
Example Optimizing Local Shared Accesses
29
Experimental Results

• Neither compiler performs well for naïve version
• Culprit pointer-to-shared operations affinity
  tests
• Privatizing local shared accesses improves
  performance by an order of magnitude

30
Compiler Status

• A fully UPC 1.1 compliant public release in April
• Supported Platforms
• HP AlphaServer, IBM SP, Linux x86/Itanium, SGI
  Origin2000, Solaris Sparc/x86, Mac OSX PowerPC
• Supported Networks
• Quadrics/Elan, Myrinet/GM, IBM/LAPI, and MPI
• A release this summer will include
• Pthreads/System V shared memory support
• GASNet Infiniband support

31
Conclusion

• The Berkeley UPC Compiler achieves both
  portability and good performance
• Layered, modular design
• Effective pointer-to-shared optimizations
• Good performance compared to commercially
  available UPC compiler
• Still lots of opportunities for communication
  optimizations
• Available for download at
• http//upc.lbl.gov
