CS 2200 Lecture 4 Instruction Set Architectures ISAs

1

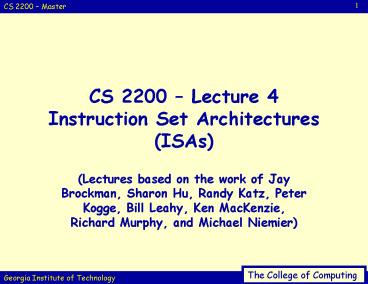

CS 2200 Lecture 4Instruction Set Architectures
(ISAs)

• (Lectures based on the work of Jay Brockman,
  Sharon Hu, Randy Katz, Peter Kogge, Bill Leahy,
  Ken MacKenzie, Richard Murphy, and Michael
  Niemier)

2
How does code translate to instuctions?

• g h A8
• load s0,8(s3)
• actually
• lw s0,8(s3) lw dest, offset(base)
• add s1, s2, s0 add dst, src1, src2
• Notice Registers contain data or addresses!!

3
Slightly more complex

• A12 h A8
• Compile it?
• lw s0, 8(s3)
• add s0, s2, s0
• sw s0, 12(s3)

4
Variable Array Index?

• g h Ai
• add a0, s2, s3 i addr(A)
• lw a1, 0(a0) a1 ? Ai
• add s0, s1, a1 g ? h Ai

5
Flashback How many registers?

• Early machines had about 1 (Accumulator)
• PDP-11 series had 8
• Typical 32 bit processors today have 32.
• Why not more?
• What happens when there are more variables than
  registers?
• Spillage Putting less commonly used variables
  back into memory.

6
Mips Register Conventions
Name
R
Usage
Preserved on call
zero
0
The constant value 0
n.a.
at
1
Reserved for assembler
n.a.
v0-v1
2-3
Values for results and expression evaluation
no
a0-a3
4-7
Arguments
no
t0-t7
8-15
Temporaries
no
s0-s7
16-23
Saved
yes
t8-t9
24-25
More temporaries
no
k0-k1
26-27
Reserved for use by operating system
n.a.
gp
28
Global pointer
yes
sp
29
Stack pointer
yes
fp
30
Frame pointer
yes
ra
31
Return address
yes
7
LC2200 Register Conventions
Name
R
Usage
Preserved on Call
zero
0
The constant value 0
n.a.
at
1
Reserved for assembler
n.a.
v0
2
Return value
no
a0-a4
3-7
Argument or temporary
no
s0-s3
8-11
Saved general purpose registers
yes
k0
12
Reserved for OS/traps
n.a.
sp
13
Stack pointer
yes
fp
14
Frame pointer
yes
ra
15
Return address
yes
8
Decisions, decisions...

• The affects of branch instructions are a big
  source of research in computer architecture
• In this class
• Jump will refer to unconditional changes in
  control
• Branch will refer to conditional changes in
  control
• And there are 4 main types of control-flow
  change
• Conditional branches (most frequent)
• Jumps
• Procedure calls
• Procedure returns

9
which break down like this
s for benchmark Suite on load/store machine
10
Where jumps and branches go

• Always to some specified destination address
• Most often, address is specified in instruction
• Procedure return is an exception however
• (Return target is not known at compile time)
• Usually, address specified relative to the PC
• PC Program Counter indexes executing
  instructions
• Control instructions specified as such are
  PC-relative
• Good b/c target often near current instruction
  (indexed by PC) specified by fewer bits
• Allows for position independence program can
  run independently of where its loaded

11
Target Unknown

• So what about these unknown addresses?
• Target NOT known at compile time
• Cant use PC relative must specify target
  dynamically so we can change it at runtime
• Some options
• Put target address in a register
• Let jump permit any addr. mode to supply target
  address
• Register indirect jumps useful for following
  constructs
• Case/Switch select among one of several
  alternatives
• Dynamically shared libraries library loaded
  when invoked
• No compile time target load from memory with
  register indirect jump

12
Some basic branch facts

• Branches usually use PC-relative addressing
• But how far is target from instruction?
• The answer to this question will tell us
• Which branch offsets to support
• How long an instruction is/how it should be
  encoded
• Note the gory interdependencies!!!
• Most branches are in the forward direction and
  only 4-7 instructions away
• Short displacement should suffice
• increased code density w/shorter instructions

13
How do we know where to go?
Often branch is simple inequality test or
compares with 0 architectures make this is a
special case and make it fast!
14
if statement

• if (i j) goto L1
• f g h
• L1 f f - i
• beq s3, a4, L1 if ij goto L1
• add s0, s1, s2 f g h
• L1 sub s0, s0, s3 f f - i

15
Did we just use a go to???
16
if statement

• if (i ! j)
• f g h
• f f - i
• beq s3, a4, L1
• add s0, s1, s2
• L1 sub s0, s0, s3

17
if-then-else

• if (i j)
• f g h
• else
• f g
• beq s3, a4, Then if opp is T
• add s0, s1, zero f g h
• beq zero, zero, Exit
• Then add s0, s1, s2 f g h
• Exit

reg
contents
s0
f
s1
g
s2
h
s3
i
a4
j
The LC2200 has no BNE
18
Loop with Variable Array Index

• Loop g g Ai
• i i j
• if (i ! h) goto Loop

reg
contents
s0
g
s1
h
s2
i
s3
j
Loop add a1, s2, a0 lw a1,
0(a1) add s0, s0, a1 add
s2, s2, s3 beq s2, s1, Exit
beq zero, zero, Loop Exit
a0
addr of A
Plus some temps
19
While Loop
reg
contents

• while (savi k)
• i i j
• Loop add a1, s1, s0
• lw a2, 0(a1)
• beq a2, s3, Skip
• beq zero, zero, Exit
• Skip add s1, s1, s2
• beq zero, zero, Loop
• Exit

s0
addr(sav)
s1
i
s2
j
s3
k
a1
temp
a2
temp
20
Case/Switch

• switch (k)
• case 0 f i j break
• case 1 f g h break
• case 2 f g - h break
• case 3 f i - j break
• slt t3, s5, zero If k lt 0
• bne t3, zero, Exit Exit
• slt t3, s5, t2 If k gt 4
• beq t3, zero, Exit Exit
• add t1, s5, s5 mpy k by 4
• add t1, t1, t1

Mips
21
Case/Switchcontinued

• switch (k)
• case 0 f i j break
• case 1 f g h break
• case 2 f g - h break
• case 3 f i - j break

Jmptbl Address(L0) Address(L1) Address(L2)
Address(L3)
22
Case/Switchcontinued

• switch (k)
• case 0 f i j break
• case 1 f g h break
• case 2 f g - h break
• case 3 f i - j break

add t1, t1, t4 t1 Jmptabk lw t0,
0(t1) jr t0 jump based
on reg t0 L0 add s0, s3, s4 j
Exit etc...
23
Procedures (the previous examples were just
if statements, case statements, and loops what
about something like a function call)
24
Procedures

• Procedure abstraction
• What is the programmers model?
• What does the compiler have to do?
• Remember functions are not compiled at the same
  time
• Simple hardware to support procedures?

25
What do we need?

• What do we need to support procedure calls in
  assembly language?
• Nested modules/Recursion
• Pass values to modules
• Return value(s) from module
• Asynchronous compilation
• Need to do things in a uniform way
• Continue execution after module finishes

26
Another way to look at it

• What does a programmer expect?
• 1. arguments bound to formal parameters
• 2. space for local variables
• 3. means to return a value (or values)
• 4. arbitrary nesting of procedure invocations
• e.g. for recursion

foo() bar(int a)
bar(42) int temp 3
... return(temp a)

27
Procedure Issues

• Hardware instructions to support this model?
• Call/return
• Remember where we are in the program. Why?
• Program counter (PC)
• What should happen on every instruction
  execution?
• Would we need a PC if there were no procedure
  abstraction?
• Load/store
• Stack
• Push and pop
• Stack pointer (sp)
• Stack frames
• What do we store and restore on call/return?

28
More procedure issues

• Software conventions (Why?)
• Reserve some of registers for parameters,
  return values, return address
• e.g. LC2200
• 5 for params, 1 for return values, one for return
  address
• JALR ltproc-addr in reggt, ra (ra is
  return-addr)
• JALR ra, zero Where does this go?
• What if we have more params or return values?
• Common use stack/memory
• Registers used in procedures
• Temporary registers
• Caller does not expect value to be preserved upon
  return
• LC2200 a0 to a4
• Saved registers
• Caller does expect value to be preserved on
  return
• LC2200 s0 to s3 (simplifies amount of state to
  be saved)

29
MIPS Registers
FYI
30
LC2200 Registers
Recall
31
A simple example
foo addi a0, zero, 42 constant
addi at, zero, bar jalr at, ra
jump-and-link ...
halt bar addi s0, zero, 3
temp 3 add v0, a0, s0 a
temp jalr ra, zero return!
32
Procedure calls

• Its not just a matter of going somewhere else
  we also may need to save state
• At least return address must be saved (the PC)
• Some architectures provide a mechanism to save
  registers, others make compiler do it
• Two basic conventions used
• Caller saving Calling procedure must save the
  registers it wants to use after return
• Callee saving Called procedure must save the
  registers it wants to use after return
• Most compilers conservatively caller save any
  variable that might be accessed during a call

33
Procedure call issues to think about

• Assume procedure P1 calls procedure P2
• Both procedures manipulate global variable x
• If P1 put x in a register, it needs to tell P2
  about it
• But what if P2 calls P3 which uses a register
  where x was put by P1? And P3 shouldnt touch
  x.
• Some programs may work more efficiently with the
  caller saving, others might benefit from callee
  saving.
• Most sophisticated compilers use a combination of
  both for maximum efficiency
