Cause: A rare inherited disease

1

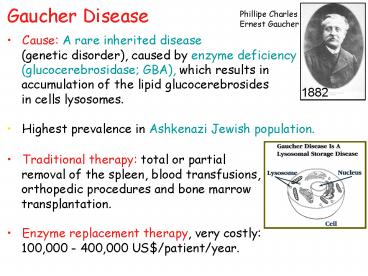

Gaucher Disease
Phillipe Charles Ernest Gaucher

• Cause A rare inherited disease
• (genetic disorder), caused by enzyme
  deficiency
• (glucocerebrosidase GBA), which results in

• accumulation of the lipid glucocerebrosides
• in cells lysosomes.
• Highest prevalence in Ashkenazi Jewish
  population.

1882

• Traditional therapy total or partial
• removal of the spleen, blood transfusions,
• orthopedic procedures and bone marrow
• transplantation.
• Enzyme replacement therapy, very costly
• 100,000 - 400,000 US/patient/year.

2
Gaucher Disease
Characterization remarkable degree of
variability in clinical signs and
symptoms. Clinical signs anemia, bone damage,
enlarged liver and spleen (most patients have
Type 1 disease), some develop additional severe
central nervous system damage (Type 2 3,
neuronopathic). Type 1 is the most common
genetic disease affecting Ashkenazi Jews. As
many as 1 in 10 Ashkenazi Jews and 1 in 100
people in the general population may be
carrying the gene mutation that causes Type 1
Gauchers.
3
What is OMIM ? Online Mendelian Inheritance
in Man. A catalog of human genes and genetic
disorders.
Using OMIM

• Start with a syndrome search or a gene using
  OMIM.
• Identify the gene for the syndrome (if not
  known).
• Locate the gene on the genome ( other genes
  nearby).
• Information about the gene in LocusLink.
• Links to sequences and structure information.
• View structurally similar proteins.

4
http//www.ncbi.nlm.nih.gov/entrez/query.fcgi?dbO
MIM
http//bioinformatics.weizmann.ac.il/cards/
5
OMIM search - Gaucher
6
http//bioinformatics.weizmann.ac.il/cards/
7
NCBI
ENTREZ - PubMed
http//www.ncbi.nlm.nih.gov/
http//www.ncbi.nlm.nih.gov/Sitemap/index.html
8
NCBI-ENTREZ

• A Web-based retrieval system
• developed by NCBI at the NLM,
• part of NCBI's Entrez.
• PubMed is a database of bibliographic
  information drawn
• primarily from the life sciences literature.
• Links to full-text articles as well as links
  to other sites
• such as libraries and sequencing centers.
• PubMed provides access and links to the
  integrated molecular
• biology databases maintained by NCBI.

The diagram illustrates the relationships between
the primary information resources in Entrez.
9

• The largest, most used and best known of NLM
  databases (90 of all bio-medical searches done),
  available free on the internet.
• Citations From 4,300 worldwide journals
  currently in
• 30 languages.
• Weekly update 8,000 completed references are
  added each Saturday (gt 400,000 added per year).
• Time coverage 1966-present (a few references
  from
• the late 1800?s).
• Content gt 40 databases online.
• Database size gt 20 x 106 records.
• End result gt 9 million searches per month.

http//www.nlm.nih.gov/bsd/pubmed_tutorial/m1001.h
tml
http//www.nlm.nih.gov/medlineplus/
http//www4.ncbi.nlm.nih.gov/PubMed/
10
http//www.nlm.nih.gov/mesh/meshhome.html
http//www.ncbi.nlm.nih.gov/PubMed/meshbrowserhelp
.html
MeSH is a vocabulary of medical and scientific
terms assigned to most documents in PubMed by a
team of experts. It is most useful in starting a
search.
11
(No Transcript)
12
Searching the Literature

• PubMed Indexing
• MESH (Medical Subject Heading)
• Use a term to limit retrieval Human, animal,
  male, female, age group,
• organism, etc..
• Publication Type
• Review, clinical trial, letter, journal article,
  etc.
• Search Terms By
• Author name, title word, text word, journal
  title,
• publication date, phrase, or any combination of
  these.
• NOTE Words are automatically added, but
  Boolean operators
• (AND, OR, NOT, in UPPER CASE) are welcome.
• Guide to Using PubMed http//www.lib.ucdavis.edu/
  healthsci/usingpubmedfull.html

13
Searching the Literature
Entrez - Boolean operators

• AND, OR, NOT
• Bacteria AND virus NOT phage
• (bacteria AND virus) NOT phage
• HIV-1 OR bacterial protease
• hiv OR (bacterial AND protease)

14
Searching the Literature
http//www.ncbi.nlm.nih.gov/RefSeq/key.html
Entrez - Using limits
15
Start query using NUCLEOTIDE and GENES NAME
16
A Simple GenBank Record from ENTREZ
II
I
citation
17
Keyword, Source-Organism (I)
Accepted common name
Keywords. SOURCE human. ORGANISM
Homo sapiens Eukaryota Metazoa Chordata
Craniata Vertebrata Euteleostomi
Mammalia Eutheria Primates Catarrhini
Hominidae Homo
Scientific name
Taxonomic lineage according to GenBank
18
Sequences and Databases (II) locus, accession
, gi, acc. version
GB Division
Sequence Length
Modification Date
Locus Name
Mol. Type
LOCUS NM_000157 2275 bp mRNA PRI
27-AUG-2001
DEFINITION Homo Sapiens glucosidase, beta acid
(includes glucosylceramidase) (GBA), ,mRNA
The number a sequence gets when
published, unique to entry. does not change when
record is updated.
Accession Num.
ACCESSION NM_000157
VERSION NM_000157.1 GI 4503934
gi? Num.
Gene info identifier The number a sequence
gets when entering database (GB).
Accession Version
19
Feature Table
FEATURES Location/Qualifiers source
1..2275 /organism"Homo sapiens" /db_xref"
taxon9606" /chromosome"1" /map?"1q21"? gene
1..2275 /gene"GBA" /note"GLUC" /db_xref"
LocusID2629" /db_xref"MIM230800"

• Additional information
• References
• Variations

20
Feature Table - cont.
atgcgtcgctatgataaccgggc..gtagagtcagagtcggatag
CDS 123..1733 (protein coding sequence,
including stop) /gene"GBA" /ECnumber"3.2.1.45" /
note"Glucosidase, beta acid" /codonstart1 /db_x
ref"LocusID2629" /db_xref"MIM230800" /product
"glucosidase, beta acid (includes
glucosylceramidase)" /protein_id"NP
000148.1" /db_xref"GI4503935" /translation"MEFS
SPSREECPKPLSRVSIMAGSLTGLLLLQAVSWASGARPCI PKSFGYSSV
VCVCNATYCDSFDPPTFPALGTFSRYESTRSGRRMELSMGPIQANHTGT
GLLLTLQPEQKFQKVKGFGGAMTDAAALNILALSPPAQNLLLKSYFSEEG
IGYNIIRV PMASCDFSIRTYTYADTPDDFQLHNFSLPEEDTKLKIPLIH
RALQLAQRPVSLLASPW TSPTWLKTNGAVNGKGSLKGQPGDIYHQTWAR
YFVKFLDAYAEHKLQFWAVTAENEPS AGLLSGYPFQCLGFTPEHQRDFI
ARDLGPTLANSTHHNVRLLMLDDQRLLLPHWAKVV LTDPEAAKYVHGIA
VHWYLDFLAPAKATLGETHRLFPNTMLFASEACVGSKFWEQSVR LGSWD
RGMQYSHSIITNLLYHVVGWTDWNLALNPEGGPNWVRNFVDSPIIVDITK
DTF YKQPMFYHLGHFSKFIPEGSQRVGLVASQKNDLDAVALMHPDGSAV
VVVLNRSSKDVP LTIKDPAVGFLETISPGYSIHTYLWHRQ"
Reading frame
Protein id
Protein sequence
nucleotide sequence
21
Start query using PROTEIN and GENES NAME
22

• Amino acids Nucleotide sequences.

23
FASTA format
24
Common Database Identifiers

• Locus name - original identifier of GenBank
  record.
• Originally - first 3 letters of organism followed
  by code for gene
• (example HUMBB for human beta-globin).
• Problems unmaintainable due to growth of data.
• Homologous genes not named the
  same.
• Accession number - has no biological meaning.
• Originally - Uppercase letter followed by 5
  digits (example U00002).
• Currently - 2 uppercase letters followed by 6
  digits (example BC037153).
• Versions BC03715.1
• GenInfo number - identifier for a particular
  sequence only.
• Each entry gets a unique gi number (example GI
  22477487).
• Not subject to versioning - entry always remains
  the same.
• PubMed number.

http//www.ncbi.nlm.nih.gov/Sitemap/samplerecord.h
tmlLocusA
25
Related records in PubMed, OMIM, RefSeq,
GenBank nucleotide, Protein, HomoloGene,
UniGene, Variation data (dbSNP).
http//www.ncbi.nlm.nih.gov/LocusLink/list.cgi
http//www.ncbi.nlm.nih.gov/LocusLink/help.htmlqu
ery
26
Identify Known Mutations (SNP link)
27
Identify Known Mutations (Allelic Variants
section)
28
Information Obtained So-Far About Gaucher Disease

• Cause Glucocerebrosidase deficiency
• (parallel names of the defective enzyme).
• Clinical signs.
• Frequency High in Ashkenazi Jewish population.
• Diagnosis Between one week of life and 86
  years.
• Autosomal recessive disorder.
• Classification 3 Types (I -non-cerebral, II,
  III -cerebral).
• Gene map locus 1q21.
• Presence of pseudo-gene.
• Another gene involved Prosaposin - found in
  locus 10q22.1.

29

• Other Biological Text Based
• Searches
• SRS (sequence retrieval system)
• at EBI, England.
• http//srs.ebi.ac.uk/
• STAG at DDBJ, Japan.
• http//stag.genome.ad.jp/
• Expasy at SIB
• (Swiss Institute of
• Bio informatics),
• Switzerland.
• http//www.expasy.org/

30
SRS Sequence Retrival Systemhttp//srs.ebi.ac.uk
/
31
Deambulum
http//www.infobiogen.fr/services/deambulum/englis
h/
