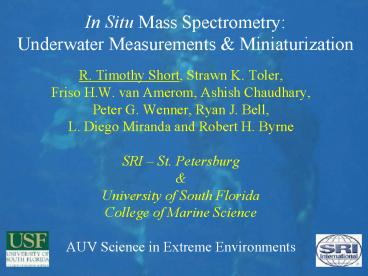

In Situ Mass Spectrometry: Underwater Measurements

1
In Situ Mass SpectrometryUnderwater
Measurements Miniaturization

• R. Timothy Short, Strawn K. Toler,
• Friso H.W. van Amerom, Ashish Chaudhary,
• Peter G. Wenner, Ryan J. Bell,
• L. Diego Miranda and Robert H. Byrne
• SRI St. Petersburg
• University of South Florida
• College of Marine Science
• AUV Science in Extreme Environments

2
In Situ Mass Spectrometer Activitiesat USF SRI
St. Petersburg

• Underwater Membrane Inlet MS
• Variety of Deployments
• Cylindrical Ion Trap MS
• Extreme Miniaturization

3
MS Versatile Chemical Sensor

• Trace Elements
• Isotope Ratios
• Pollutants/VOCs
• Dissolved Gases
• Proteins/Amino Acids
• Bacterial Signatures

No configuration valid for all analytes
4
Membrane Inlet Mass Spectrometry (MIMS)
Ion source Electron impact
Mass-filter Quadrupole
Detector Electron multplier
Membrane
e-


Ion and fragments
Mass-scan
5
Principle Features of UMS
6
New 200 amu In Situ Mass Spectrometer
7
Simultaneous Detection of Multiple Analytes

• Dissolved Gases
• e.g. Nitrogen, Oxygen, Argon, Carbon Dioxide,
  Methane, Hydrogen Sulfide
• Volatile Organic Compounds
• e.g. Toluene, Benzene, Dimethyl Sulfide,
  Chloroform
• Larger MW Compounds with Modification
• e.g. PCBs, Pesticides, Drugs, Toxins

8
Calibration - Instrument Parameters

• Physical parameters that affect instrument
  response
• Detector settings
• Filament settings
• Residual gas
• Membrane geometry
• Membrane temperature
• Sample velocity
• Hydrostatic pressure

Constant during deployment
Variable during deployment
9
Calibration - Method

• Two solutions with known gas concentrations are
  mixed at various ratios to allow for intermediate
  concentrations and in situ automated calibration

• Shipboard apparatus allows in-field sample
  preparation and calibration

10
Calibration - Screenshot
Nitrogen (m/z 28)
Oxygen (m/z 32)
Methane (m/z 15)
11
Deployment Methods
12
Lake Maggiore Chemical Surveys

• Mass spectrometer deployed aboard an unmanned
  surface vehicle
• Mapping variation of dissolved gas ion
  intensities
• Develop surface contour maps based on gas ion
  intensity data
• Carbon dioxide oxygen data displayed

13
Lake Maggiore, St Petersburg, FL
O2 and CO2 are inversely correlated in areas of
active photosynthesis and respiration
m/z 32 - Oxygen
m/z 44 - Carbon Dioxide
14
Depth Profiles of Dissolved Gases

• Vertical profiles of dissolved gases with
  underwater mass spectrometer in Gulf of Mexico
• Mount instrument on custom frame along with CTD,
  DO and pH Sensors
• Communicate with instrument through standard
  UNOLS CTD tether using Seabird Modem
• Determine dissolved gas concentrations from mass
  spec data with the aid of a portable calibration
  unit

15
Pre-Deployment Calibration
16
(No Transcript)
17
Depth Profile Data (MC118)
18
Future Plans for Underwater MS

• Deployment Opportunities
• Methane Hydrates Gulf of Mexico
• Subglacial Antarctic Lake Environments
• AUV in Extreme Environments?
• Alternative Sampling Interfaces
• Wider range of analytes
• Unattended Operation/ Full Ocean Depths
• Ocean Observatories
• Extreme MS Miniaturization
• MEMS Microfabrication

19
Miniaturization of Ion Trap Mass Spectrometers

• Hyperbolic Electrodes
• Quadrupole Potential
• Mass Instability Scan

20
Cylindrical Ion Trap MS Arrays
Hyperbolic Surfaces

• Cylindrical Geometry?Miniaturize
• Microtrap ? Lower Sensitivity
• Array ? Increased Sensitivity
• Microfab ? Tolerances

Cylindrical Surfaces
21
Advantages of Miniaturizationof Mass Analyzer

• Lower voltages/lower power
• Reduced vacuum requirements
• Overall system reduction
• Reduced cost
• MS sensor networks

22
Microfabricated CIT Arrays (MEMS)
Silicon Wafer
Process flow
Cylindrical ion trap
23
SEM of Half-Array of Micro-Cylindrical Ion Traps
in Silicon
Fabricated CIT Half-Ring Electrodes with Endplates
24
Packaging Method for Micro-CITs
6 x 6 Micro-CIT Array
Gold plated PCB for mounting and electrical
connections
25
Spectrum of TCE recorded with micro Cylindrical
Ion Trap (ro 360 microns)
26
Miniaturization and Integration of Peripherals
GC column
Pump
Inlet system
Detector
Ionization source
Volume of vacuum chamber, overall size and power
consumption drastically reduced
27
Future Plans for Micro MS

• Optimize performance of micro-CIT array
• Optimize and integrate ion source arrays
• Fabrication and integration of other components
• Detectors
• Vacuum and sampling systems
• Pre-separation stage (e.g., GC)
• Handheld MS sensor
• Merge with Underwater MS program

28
Acknowledgements

• Faculty, staff and students at the USF Center for
  Ocean Technology and College of Marine Science
• Staff at USF MEMS Facility
• Funding from U.S. Office of Naval Research (ONR)
  Grant No. N00014-03-1-0479 and U.S. Army Space
  and Missile Defense Command (SMDC) Grant No.
  DASG60-00-C-0089.
