Title: MIPAS InOrbit Operations and Failure Recoveries


1

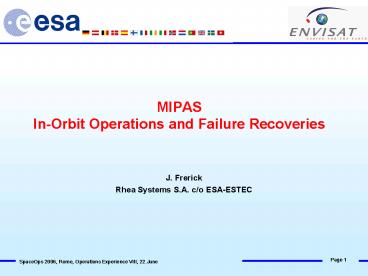

MIPAS In-Orbit Operations and Failure Recoveries
  • J. Frerick
  • Rhea Systems S.A. c/o ESA-ESTEC

2
Content
  • Introduction
  • The MIPAS experiment
  • Interferometer layout
  • Operational experience
  • Phase I Launch April 2004
  • Phase II Anomaly investigation
  • Interferometer Speed control
  • Classification of Velocity Errors
  • Investigation Objectives
  • Special tests
  • Investigation summary
  • Phase III Since January 2005
  • Summary
  • The Team

3
Introduction (1)The MIPAS experiment
  • Michelson Interferometer for passive
    atmospheric sounding
  • On-board ENVISAT (Launch March 2002)
  • Limb sounding IR instrument

4
Introduction (2)The MIPAS experiment
  • Targeting atmospheric species relevant for
  • Ozone chemistry
  • Green house effect

5
Introduction (3)The interferometer Layout
  • Double slide interferometer
  • 100 mm rails
  • Nominal speed 25 mm/s

6
Operational Experience (1)Phase I Launch until
April 2004
  • Very reliable, autonomously working instrument
  • Easy going mechanics (interferometer, Stirling
    Cooler)
  • High data quality (very) satisfied users
  • Only a few un-planned unavailabilities
  • However Since April 2003 there were signs of a
    degrading interferometer subsystem.
  • Warnings from on-board monitoring (so called
    differential speed monitoring errors) with no
    operational consequences.
  • Later Increasing number of so called velocity
    errors, which forced the instrument into
    Heater/Refuse mode, requiring manual recovery
    from ground.
  • Substantial instrument unavailabilities.
  • Specifically alarming in some anomaly cases the
    recovery showed a risk for a permanent failure

7
Operational Experience (2)Phase II The Anomaly
investigation
  • Interferometer speed control

Reference Laser Fringe count (1 msec)
Absolute position sensor count (10.65 msec)
Heater refuse If v1 and/or v2 gt30 mm/s
Heater refuse If gt 15
Check Vopt
Check V1 , V2
If lt15
Check V1-V2D
Increase/Decrease currents of both, Slide 1 and
Slide 2
Increase/Decrease currents of Slide 1 and Slide
2 by D/2
If gt4, differential speed monitoring error
8
Operational Experience (3)Phase II The Anomaly
investigation
  • Classification of velocity errors
  • Turnaround (principally known)
  • In sweep (unexpected)
  • With critical initialization
  • During a critical initialization, slide 2 has to
    pass the former launch lock position. An
    increasing number of attempts was necessary to
    move the slide across this point. This was
    regarded a risk of permanent failure.

9
Operational Experience (4)Phase II The Anomaly
investigation
  • Investigation objectives
  • To eliminate the source of the problem
  • Reference laser
  • Absolute position sensor
  • Rails
  • Bearings
  • Temperature effects
  • Any combination of all
  • To eliminate/reduce risk of permanent failure
  • How to avoid getting trapped by the launch lock?
  • To reduce operational effort
  • How to minimize manual operations/instrument
    recoveries?
  • To minimize outage times

10
Operational Experience (5) Phase II The Anomaly
investigation
  • Special tests
  • Static Mode tests
  • Moving the slides slowly, but individually and
    monitor drive force
  • No conclusive results
  • Reduced Resolution tests
  • Better performance could have been a hint for
    rail depended problem at turnaround points (i.e.
    the end of the rails).
  • No conclusive results regarding interferometer
    performance
  • Positive effect on avoiding critical
    initializations.
  • Tests on instrument redundant side
  • To elude error sources like the reference laser,
    the absolute position sensor
  • Similar performance as on nominal side ? switch
    back to nominal
  • Tests in back up mode
  • Single slide operations with one slide fixed in
    the middle.
  • Does one slide have a better performance than the
    other?
  • Not conclusive.

11
Operational Experience (6)Phase II The Anomaly
investigation
  • Investigation Summary (1)
  • Explanation of error
  • Overall degradation of non-redundant parts
    performance (most likely bearings) in combination
    with inflexible control loop layout (it was
    impossible to change control loop thresholds by
    software).
  • Risk of critical initializations could be
    minimized by optimization of spectral resolution.
  • 41 of maximum (full) resolution turned out to be
    the optimum.

12
Operational Experience (7)Phase II The Anomaly
investigation
  • Investigation Summary (2)
  • Minimization of outage times/operational effort
  • By performing a planned interferometer
    initialization every orbit.
  • By reducing the duty cycle (as the performance
    indicators showed relaxation after longer periods
    of outage).

13
Operational Experience (8)Phase III Since
January 2005
  • The concept is working
  • Operations is stabilized (no more manual
    intervention due to velocity errors)
  • The total outage due to velocity error is reduced
    from former 3 orbits (best case) to lt 0.5 orbit,
    nominally.
  • Critical initializations occurred only once in
    almost 18 month.
  • Reduction of spectral resolution only had limited
    scientific impact due to the originally
    implemented over-design.
  • The number of interferometer errors is still high
    and even showing seasonal maxima
  • Evidently, there is more than one error
    mechanism.
  • However, the main conclusion remains the control
    system is too inflexible to cope with a changing
    environment.

14
Summary
  • An interferometer control problem interrupted the
    so far very successful MIPAS experiment on-board
    ENVISAT in April 2004.
  • Intense failure investigation was performed until
    end 2004, taking advantage of various and
    numerous special on-board test possibilities, the
    most important ones being
  • Single slide/ backup mode tests
  • Tests on redundant electronics
  • Variation and finally reduction of stroke length
    (i.e. spectral resolution)
  • Analysis concluded that a degradation in non
    redundant parts in combination with the
    inflexible design of the interferometer control
    caused the observed problems.
  • A new operations scheme could be implemented
    successfully
  • Minimizing risk of permanent failure
  • Minimizing the operational effort for recoveries
  • Minimizing the outage and thus leading again to a
    stable mission
  • The new concept took advantage of a very flexible
  • Instrument design
  • The mandatory reduction of spectral resolution
    could be compensated without significant
    reduction of scientific data quality
  • Mission planning design
  • With reasonable effort the new, campaign
    oriented way replaced the former continuous
    operations.

15
The Team
ESA-ESTEC/PLSO Investigation/coordination
supported by Rhea Systems S.A.
ESA-ESOC Operations supported by Vega
Group SciSys GmbH
Industry/EADS-Astrium Performance
Evaluation/Investigation Supported by Officine
Galileo AEA Technology
ESA-ESRIN Data quality analysis Mission
planning supported by Rhea Systems S.A. SERCO
Spa
