CDOT MicroStation and InRoads Transition

1

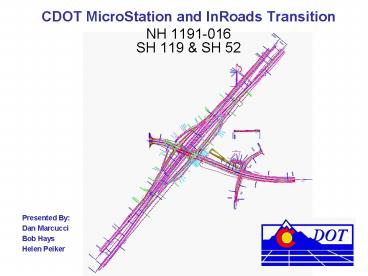

• CDOT MicroStation and InRoads Transition
• NH 1191-016SH 119 SH 52

Presented By Dan Marcucci Bob Hays Helen Peiker
2
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52Location Map

• BNSF Railroad

Office Park
Future Hotel
IBM
IBM
SH 52
SH 52
City of Boulder Open Space
SH119
SH 119
BNSF Railroad
3
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• General Project Information
• Located in Boulder County at the intersection of
  SH119 and SH 52.
• Requested and supported by the local agencies of
  Boulder County, City of Boulder, and City of
  Longmont.
• City of Boulder Open Space is located in the
  south-east corner of the project.
• BNSF Railroad runs through the project.
• IBM located on the West side of the project.
• Black tailed prairie dogs are located throughout
  the project.

4
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Engineering Project Information
• Surveyed 3 different times (1992, 2001,
  2003-2004) over the course of 12 years and each
  survey had additional surveys within the time
  periods they were done. Translated survey into
  InRoads Survey via CDOT translator program. It
  took approximately 200 hours to translate the
  survey into MicroStation. The survey was
  translated for graphics uses only (approximately
  95 complete) because there were to many
  unresolved issues, due to different types of data
  involved in the different surveys. (conventional
  - coordinated base, conventional - azimuth based,
  RTK etc..). As a result no dtm was generated so
  the existing terrain was converted into InRoads
  from the original AutoCAD PICS files.
• Consultant designed project to FIR using AutoCAD
  and MX.
• CDOT translated project to AutoCAD and InRoads
• Each team member created their own levels and
  features so there was little consistency.
• Team members learning InRoads.
• No training or support available.
• Became a First Adopter project and translated
  project to MicroStation and InRoads.
• Team members started using standard levels and
  features.
• Each time the configuration was updated team
  members had to update levels and features.

5
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Roadway Engineering Design Team
• Varied from 2 to five people for differing
  lengths of time and include Bob Hays, Dan
  Marcucci, Helen Peiker, Gerald Fielding, and
  Megan Christensen (student intern).
• With a team of people coming and going the
  project was broken into parts where each person
  could easily work on their area while allowing
  others to work on theirs (SH119, Ramps A, B, C,
  D, SH 52, local roads, and bike paths). All team
  members were located in one office so constant
  communication and updating of team members and
  files could take place.
• Survey Team
• Varied over the years and include Mark Guerrero,
  Ed Warwick, Charlie Northrup, Bill Aldorfer,
  Helen Peiker, Lee Groves, Jerry Johnson, Art
  Lacombe

6
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Roadway Engineering Programming Challenges
• Complicated typical sections which included
  pavement, curb gutter, sidewalks, concrete or
  metal beam guardrail, drainage ditches, and walls
  all starting, stopping, and varying in width at
  different locations.
• Multiple walls and levels of walls due to tight
  right-of-way.
• Raised medians crossing back and forth across
  centerline with varying widths.
• Curb and Gutter transitions from catch to spill
  type.
• Mainline super elevation rotating one direction
  while an auxiliary lane is developed that super
  elevates the other direction. Or gores that have
  several break points (edge of travel for mainline
  and ramp).
• Toes that needed to tie into existing ground at a
  certain locations.
• Tying together mainlines, ramps, bike paths,
  gores, local roads, structures, and walls into
  one dtm.
• Connecting ramp and mainline features at
  intersections.
• Modeling Subgrade Features for Cross Sections and
  Volumes where various alignments converge and
  diverge (mainlines, ramps, and bike paths).
• Creating the variable slope and width depressed
  median.

7
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Complicated Typical Sections
• Typical Section SH 119 Mainline
• Typical Section Ramp

8
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Roadway Engineering Programming Challenges
• Complicated typical sections which included
  pavement, curb gutter, sidewalks, concrete or
  metal beam guardrail, drainage ditches, and walls
  all starting, stopping, and varying in width at
  different locations.
• Used a variety of InRoads options
• Creating an alignment from template segments
  using Import Geometry from Graphics to tie into.
  (daylight slopes, gores, supers going different
  directions)
• Created an alignment for the template segments to
  go and intersectd on a certain slope. (RE Walls)
• Station offset command in the modeler. (widening
  of a segment)
• Transition between templates (spill to catch curb
  gutter, segment widening)
• Created one surface and had another surface
  interface into it. (depressed medians)

9
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Multiple walls and levels of walls

10
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Multiple walls and levels of walls
• Created separate wall alignments (horizontal and
  vertical) for top of walls.
• Developed a decision table to create the bottom
  of the walls.
• Tied segments from Ramps and mainlines by
  horizontal and vertical controls to the walls.

11
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Modeling Subgrade Features for Cross Sections and
  Volumes where various alignments converge and
  diverge (mainlines, ramps, and bike paths).

12
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Modeling Subgrade Features for Cross Sections and
  Volumes where various alignments converge and
  diverge (mainlines, ramps, and bike paths)
• Shoulder feature of the ramp would be copied into
  the bike path surface using copy portion of
  surface.
• Bike path surface the feature would be partially
  deleted, giving only the area desired.
• Use the generate longitudinal feature tool to
  offset both vertically and horizontally to obtain
  a subgrade surface that ties into the ramp
  subgrade surface.

13
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Toes that needed to tie into existing ground at a
  certain locations.

14
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Toes that needed to tie into existing ground at a
  certain locations.
• Identified feature in original survey that the
  roadway needed to tie into.
• Used a decision table to have roadway template
  tie into that survey dtm Features X, Y, Z
  coordinates.

15
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Raised medians crossing back and forth across
  centerline with varying widths.

16
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Raised medians crossing back and forth across
  centerline with varying widths.
• Created horizontal alignments (left and right) of
  median edge of oil using MicroStation.
• Created horizontal alignment of medians by using
  the Import Geometry from Graphics command.
• Ran a dummy template with super elevation along
  CL of roadway with dummy segments following
  median alignments with fixity being variable
  width, resulting with the feature having the
  correct elevations.
• Import the resulting feature as the main
  horizontal and vertical alignments by using the
  Import Geometry from Graphics command.
• Created templates (left, right, catch and spill
  curb gutter, travel lanes, and shoulders) and
  ran them along the new edge of oil alignments
  creating top of template.

17
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Curb and Gutter transitions from catch to spill
  type

• Catch Type

• Spill Type

18
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Curb and Gutter transitions from catch to spill
  type.
• Created two median typical sections (catch and
  spill) and had InRoads transition between them
  over 50 feet.

19
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Mainline super elevation rotating one direction
  while an auxiliary lane is developed that super
  elevates the other direction. Or gores that have
  several break points (edge of travel for mainline
  and ramp).

20
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Mainline super elevation rotating one direction
  while an auxiliary lane is developed that super
  elevates the other direction. Or gores that have
  several break points (edge of travel for mainline
  and ramp).
• Took the feature that was created from the
  mainline template and created an alignment using
  the Import Geometry from Graphics command.
• Ran template along new alignment with proposed
  super elevation and roadway library to create the
  auxiliary lane with the correct widths and
  elevations.

21
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Connecting ramp and mainline features at
  intersections.

• Before

• After

22
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Connecting ramp and mainline features at
  intersections.
• To create feature between edge of oils of
  adjoining roadways used Fillet Feature command
• Used the Partial Delete Command to trim out the
  middle.
• Created decision table to run along that feature
  to create curb and gutter, sidewalk and slopes.
  Note This does not work for toes on small radius
  curves. For those toes used the Fillet Feature
  command.

23
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Tying together mainlines, ramps, bike paths,
  gores, local roads, structures, and walls into
  one dtm.

24
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Tying together mainlines, ramps, bike paths,
  gores, local roads, structures, and walls into
  one dtm.
• Used the Copy Portion of Surface command and
  copies the source surface (surface to be added)
  into the destination surface (combination of all
  surfaces) to combine all the surfaces.
• Trimmed overlapping features using the Partial
  Delete and Delete Duplicate Features command.
  Note fillet returns before adding to combined
  surface.

25
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Creating the variable slope and width depressed
  median.

26
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Creating the variable slope and width depressed
  median.
• Created a dummy south bound surface with all
  the varying median slopes. The side slopes were
  developed several hundred feet wide so the north
  bound surface would interface into it developing
  a feature in the correct location with the
  elevations.
• Using the Import Geometry from Graphics command
  made the feature into an alignment and had side
  slopes of both north and south bound tie into it
  creating the depressed median of varying width
  and side slopes.

27
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Intersection example

28
CDOT MicroStation and InRoads TransitionNH
1191-016, NH 119 SH 52

• Gore Example
