Comprehensive Evaluations of LNG Transfer Technology for Offshore LNG Development

1

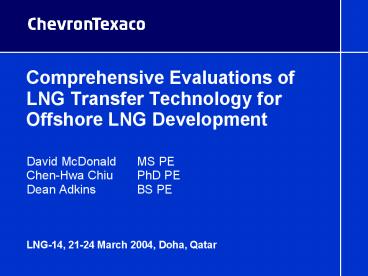

Comprehensive Evaluations of LNG Transfer
Technology for Offshore LNG Development

• David McDonald MS PE

  Chen-Hwa Chiu PhD PE

  Dean Adkins BS PE


• LNG-14, 21-24 March 2004, Doha, Qatar

2
Summary

• Marine LNG terminal concepts
• LNG transfer system technologies
• LNG system component
• System evaluations
• Conclusions

3
GBS - Port Pelican Project
ChevronTexaco
4
Floating LNG Facilities
Courtesy of IHI
5
Floating Storage Regasification Unit
FSRU
Courtesy of Moss Maritime
6
LNG Transfer Technologies

• Boom to tanker and tandem loading systems (BTT)
• Offshore cryogenic loading system (OCL)
• Soft yoke system (SBM)
• Big sweep system (Bluewater)
• Eurodim conceptual systems (Eurodim)

7
Boom to Tanker (BTT)
Courtesy of FMC
8
OCL System
Courtesy of OCL Group
9
SBM Floating Soft Yoke
Courtesy of SBM
10
FLNG-based Big Sweep
Courtesy of Bluewater
11
Eurodim Concepts
Courtesy of Eurodim
12
System Components

• FMC Chicksan loading arms
• Cryogenic loading hoses
• - Coflexip aerial hose floating hose
• - OCL system cryogenic hoses
• Amplitude LNG Loading System (ALLS)
• Subsea cryogenic pipelines
• - Jacket insulated pipelines
• - Vacuum Insulated Pipelines

13
Subsea Cryogenic Pipelines

• ITP InTerPipe subsea cryogenic pipelines
• - Nickel alloy inner pipe, carbon steel outer
  pipes
• - Eliminate the need for a jetty
• - Not limited by length, diameter or water
  depth
• Chart Industries vacuum insulated pipelines
• - Connect pipe section with bellow
  arrangements
• - Used at Trinidad LNG plant as a 4 cool down
  line
• - Used at Everett LNG receiving terminal

14
System Evaluations Criteria

• Technical status and qualification
• System design and performance
• Operability and maintainability
• Safety and environmental
• Cost and schedule
• Shipping and marketing
• Subjective weighting of each criterion above is
  project specific

15
Technical Status / Qualification

• Level of development
• Technical maturity level
• Quality and depth of program
• Gap identification and closure
• Participation by certifying agency
• Success confidential level

16
Rating and Scoring
17
Common Concerns

• Lack of a common connector technology
• - Bow loading system
• - Amidships loading system
• Flexibility for terminal and ship
• - To send our LNG carriers to any terminals
• - To accept any LNG carriers at our terminals

18
Conclusions

• Many innovative offshore LNG transfer systems are
  available and reviewed
• Criteria for evaluation are safety,
  environmental, technical, commercial and
  political drivers
• Common connectors and interfaces are important
• Need to maximize the utilization of vessels and
  offshore LNG terminals
• This paper offers a methodology for evaluating
  various LNG transfer technologies for successful
  deployment of offshore LNG
