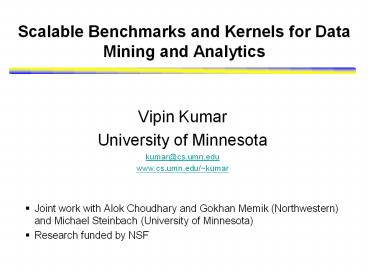

Scalable Benchmarks and Kernels for Data Mining and Analytics

1
Scalable Benchmarks and Kernels for Data Mining
and Analytics

• Vipin Kumar
• University of Minnesota
• kumar_at_cs.umn.edu
• www.cs.umn.edu/kumar
• Joint work with Alok Choudhary and Gokhan Memik
  (Northwestern) and Michael Steinbach (University
  of Minnesota)
• Research funded by NSF

2
Need for High Performance Data Mining

• Todays digital society has seen enormous data
  growth in both commercial and scientific
  databases
• Data Mining is becoming a commonly used tool to
  extract information from large and complex
  datasets
• Advances in computing capabilities and
  technological innovation needed to harvest the
  available wealth of data

Homeland Security
Biomedical Data
Internet
Geo-spatial data
Computational Simulations
Sensor Networks
3
Data Mining for Climate Data

• NASA ESE questions
• How is the global Earth system changing?
• What are the primary forcings?
• How does Earth system respond to natural
  human-induced changes?
• What are the consequences of changes in the Earth
  system?
• How well can we predict future changes?

• Global snapshots of values for a number of
  variables on land surfaces or water

NASA DATA MINING REVEALS A NEW HISTORY OF NATURAL
DISASTERS NASA is using satellite data to paint a
detailed global picture of the interplay among
natural disasters, human activities and the rise
of carbon dioxide in the Earth's atmosphere
during the past 20 years.http//www.nasa.gov/ce
nters/ames/news/releases/2003/03_51AR.html

• High Resolution EOS Data
• EOS satellites provide high resolution
  measurements
• Finer spatial grids
• 1 km ? 1 km grid produces 694,315,008 data points
• Going from 0.5º ? 0.5º degree data to 1 km ? 1 km
  data results in a 2500-fold increase in the data
  size
• More frequent measurements
• Multiple instruments
• High resolution data allows us to answer more
  detailed questions
• Detecting patterns such as trajectories, fronts,
  and movements of regions with uniform properties
• Finding relationships between leaf area index
  (LAI) and topography of a river drainage basin
• Finding relationships between fire frequency and
  elevation as well as topographic position
• Leads to substantially high computational and
  memory requirements

Detection of Ecosystem Disturbances
This interactive module displays the locations on
the earth surface where significant disturbance
events have been detected.
Disturbance Viewer
4
Data Mining for Cyber Security

• Due to proliferation of Internet, more and more
  organizations are becoming vulnerable to
  sophisticated cyber attacks
• Traditional Intrusion Detection Systems (IDS)
  have well-known limitations
• Too many false alarms
• Unable to detect sophisticated and novel attacks
• Unable to detect insider abuse/ policy abuse
• Data Mining is well suited to address these
  challenges

MINDS Minnesota Intrusion Detection System

• Large Scale Data Analysis is needed for
• Correlation of suspicious events across network
  sites
• Helps detect sophisticated attacks not
  identifiable by single site analyses
• Analysis of long term data (months/years)
• Uncover suspicious stealth activities (e.g.
  insiders leaking/modifying information)

• Incorporated into Interrogator architecture at
  ARL Center for Intrusion Monitoring and
  Protection (CIMP)
• Helps analyze data from multiple sensors at DoD
  sites around the country
• Routinely detects Insider Abuse / Policy
  Violations / Worms / Scans

5
Data Mining for Biomedical Informatics

• Recent technological advances are helping to
  generate large amounts of both medical and
  genomic data
• High-throughput experiments/techniques
• Gene and protein sequences
• Gene-expression data
• Biological networks and phylogenetic profiles
• Electronic Medical Records
• IBM-Mayo clinic partnership has created a DB of 5
  million patients
• NIH Roadmap
• Data mining offers potential solution for
  analysis of large-scale data
• Automated analysis of patients history for
  customized treatment
• Design of drugs/chemicals
• Prediction of the functions of anonymous genes

Protein Interaction Network
6
Role of Benchmarks in Architecture Design

• Benchmarks guide the development of new processor
  architectures in addition to measuring the
  relative performance of different systems
• SPEC General purpose architecture
• (Advances in the microprocessor industry would
  not have been possible without the SPEC
  benchmarks - David Patterson)
• TPC Database Systems
• SPLASH Parallel machine architectures
• Mediabench Media and Communication Processors
• NetBench Network/Embedded processors

7
Do We Need Benchmarks Specific to Data Mining?

• Performance metrics of several benchmarks
  gathered from Vtune
• Cache miss ratios, Bus usage, Page faults etc.
• Benchmark applications were grouped using Kohenen
  clustering to spot trends

8
Recently funded NSF project Scalable Benchmarks,
Software and Datafor Data Mining, Analytics and
Scientific DiscoveriesPIs A. Choudhary and
Gokhan Memik (NW) , V. Kumar and M. Steinbach
(UM)

• Goal Establish a comprehensive benchmarking
  suite for data mining applications.
• Motivate the development of new processor
  architectures and system design for data mining
• Motivate the implementation of more sophisticated
  data mining algorithms that can work with the
  constraints imposed by current architecture
  designs
• Improvement the productivity of scientists and
  engineers using data mining application in a wide
  variety of domains

9
Data Mining Tasks
Data
Clustering
Predictive Modeling
Anomaly Detection
Association Rules
Milk
10
Key Data Mining Algorithms

• Clustering
• K-means, EM, SOM
• Single link / Group Average hierarchical
  clustering
• DBSCAN, SNN
• Classification
• Bayes
• SVM
• Decision trees, Rule based systems
• Association Rule Mining
• Apriori, FP-Growth
• Anomaly Detection
• Statistical methods
• Distance-based
• Clustering-based
• Preprocessing
• SVD, PCA

11
Major Data Mining Kernels

• Counting
• Given a set of data records, count types of
  different categories to build a contingency table
• Count the occurrence of a set of items in a set
  of transactions
• Pairwise computations
• Given a set of data records, perform pairwise
  distane/similarity computations
• Linear Algebra operations
• SVD, PCA

12
General Characteristics of Data Mining Algorithms

• Dense/Sparse data
• Hash table / Hash tree
• Linked Lists
• Iterative nature
• Data often too large to fit in main memory
• Spatial locality is critical

13
Constructing a Decision Tree
Employed
14
Constructing a Decision Tree
Employed Yes
Employed No
15
Constructing a Decision Tree in Parallel
m categorical attributes
n records

• Partitioning of data only
• global reduction per node is required
• large number of classification tree nodes gives
  high communication cost

16
Constructing a Decision Tree in Parallel

• Partitioning of classification tree nodes
• natural concurrency
• load imbalance
• the amount of work associated with each node
  varies
• limited concurrency on the upper portion of the
  tree
• child nodes use the same data as used by parent
  node
• loss of locality
• high data movement cost

17
Speedup Comparison of the Three Parallel
Algorithms

• Data set used in SLIQ paper (Ref Mehta, Agrawal
  and Rissanen, 1996)
• IBM SP2 with 128 processors

• Dynamic load balancing inspired by parallel
  sparse Cholesky factorization and parallel tree
  search

18
Speedup of the Hybrid Algorithm with Different
Size Data Sets
19
Hash Table Access

• Some efficient decision tree algorithms require
  random access to large data structures.
• Example SPRINT (Ref Shafer, Agrawal, Mehta,
  1996)

Hash Table
Processor P0
Left
Right
Processor P1
Processor P2
20
ScalParC (Ref Joshi, Karypis, Kumar, 1998)

• ScalParC is a scalable parallel decision tree
  construction algorithm
• Scales to large number of processors
• Scales to large training sets
• ScalParC is memory efficient
• The hash-table is distributed among the
  processors
• ScalParC performs minimum amount of communication

21
This ScalParC Design is Inspired by..

• Communication Structure of Parallel Sparse
  Matrix-Vector Algorithms

Processor P0
Processor P1
Processor P2
Hash Table Entries
22
Parallel Runtime (Ref Joshi, Karypis, Kumar,
1998)
128 Processor Cray T3D
23
Computing Association Patterns
2. Find item combinations (itemsets) that
occur frequently in data
1. Market-basket transactions
3. Generate association rules
24
Counting Candidates

• Frequent Itemsets are found by counting
  candidates
• Simple way
• Search for each candidate in each transaction

Transactions
Candidates
Count
A B 0
A C 0
A D 0
A E 0
B C 0
B D 0
A B E 0
B C D 0
A B D E 0
A B C D E 0
A B C D
A C E
B C D
A B D E
B C E
B D
M
N
25
Parallel Association Rules Scaleup Results
(100K,0.25) (Ref Han, Karypis, and Kumar, 2000)
Efficient implementation of collective
communication
Dynamic restructuring of computation
26
Candidates for MineBench
27
Analysis of Benchmark Algorithms

• Explore the bottlenecks associated with the
  current general purpose sequential and parallel
  machines
• Explore how different architectural features
  impact the performance of data mining algorithms

28
Preliminary Evaluation of Some Sample Data Sets

• Example small (S), medium (M), and large (L) data
  set
• Execution time for some algorithms in the
  MineBench suite.

Reference Liu Y., Pisharath J., Liao W., Memik
G., Choudhary A., Dubey P., 2004
29
Designing Efficient Kernels for Data Mining

• Understanding of the bottlenecks in executing DM
  algorithms on current architectures will help
  design new, more efficient algorithms
• Focus will be on design frequently used kernels
  that dominates the execution time of most DM
  algorithms

• Both sequential and parallel versions will be
  developed

Frequency of Kernel Operations in Representative
Applications
Reference Pisharath J., Zambreno J.,
Ozisikyilmaz B., Choudhary A., 2006
30
Conclusions

• Data mining applications are becoming
  increasingly important
• Current systems design approach not adequate for
  DM applications
• MineBench a new benchmark suite which
  encompasses many algorithms found in data mining
• Initial findings
• Data mining applications are unique in terms of
  performance characteristics
• There exists much room for optimization with
  regards to data mining workloads

31
Bibliography

• Introduction to Data Mining, Pang-Ning Tan,
  Michael Steinbach, Vipin Kumar, Addison-Wesley
  April 2005
• Introduction to Parallel Computing, (Second
  Edition) by Ananth Grama, Anshul Gupta, George
  Karypis, and Vipin Kumar. Addison-Wesley, 2003
• Data Mining for Scientific and Engineering
  Applications, edited by R. Grossman, C. Kamath,
  W. P. Kegelmeyer, V. Kumar, and R. Namburu,
  Kluwer Academic Publishers, 2001
• J. Han, R. B. Altman, V. Kumar, H. Mannila, and
  D. Pregibon, "Emerging Scientific Applications in
  Data Mining", Communications of the ACMVolume
  45, Number 8, pp 54-58, August 2002
• C. Potter, P. Tan, M. Steinbach, S. Klooster, V.
  Kumar, R. Myneni, V. Genovese, Major Disturbance
  Events in Terrestrial Ecosystems Detected using
  global Satellite Data Sets, Global Change Biology
  9 (7), 1005-1021, 2003
• Vipin Kumar, Parallel and Distributed Computing
  for Cyber Security". An article based on the
  keynote talk by the author at 17th  International
  Conference on Parallel and Distributed Computing
  Systems (PDCS-2004). DS Online Journal, OLUME 6,
  NUMBER 10, October 2005
• Ying Liu, Jayaprakash Pisharath, Wei-keng Liao,
  Gokhan Memik, Alok Choudhary, and Pradeep Dubey.
  Performance Evaluation and Characterization of
  Scalable Data Mining Algorithms. In Proceedings
  of the 16th International Conference on Parallel
  and Distributed Computing and Systems (PDCS),
  November 2004.
• Joseph Zambreno, Berkin Ozisikyilmaz, Jayaprakash
  Pisharath, Gokhan Memik, and Alok Choudhary.
  Performance Characterization of Data Mining
  Applications using MineBench. In Proceedings of
  the 9th Workshop on Computer Architecture
  Evaluation using Commercial Workloads (CAECW-9),
  February 2006.
• Jayaprakash Pisharath, Joseph Zambreno, Berkin
  Ozisikyilmaz, and Alok Choudhary. Accelerating
  Data Mining Workloads Current Approaches and
  Future Challenges in System Architecture Design.
  In Proceedings of the 9th International Workshop
  on High Performance and Distributed Mining
  (HPDM), April 2006
