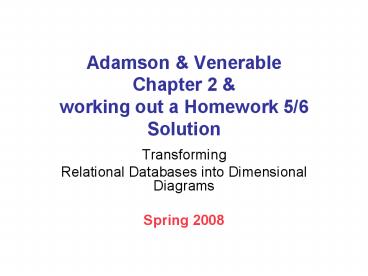

Adamson Venerable Chapter 2 working out a
Homework 5/6 Solution

• Transforming
• Relational Databases into Dimensional Diagrams
• Spring 2008

2
Dimensional modeling in Sales

• In a DW designed to analyze SALES data, important
  component of a dimensional model is the Product
  Dimension.
• Product dimension includes important
  characteristics used to differentiate the product
  in the marketplace, called Discriminators.

3
Key Business Term Discriminators

• Discriminators Descriptive characteristics of a
  product that further describe it and are relevant
  to purchasing decisions. Tracking discriminators
  allows the business analyst to monitor
  performance of various product styles,
  influencing production and marketing plans.
• Discriminators for a mens suit Cloth, color,
  style/cut, weight, size
• Discriminators for vehicles Model name, model
  styling package, line, category, exterior color,
  model year, interior color

4
Other Dimensions in Sales

• Time dimension Time key, month, day, date, year,
  day of week, quarter.
• Customer_Demographic dimension This does not
  require a row for each customer, but groups
  customers by different combinations of age,
  gender, income, and geography. The degree of
  demographic segmentation varies by industry.
• Dealer dimension Data on dealer performance are
  needed, to support decisions on which dealers
  should be eased out of business.
• Method_Of_Payment dimension (lease, financing
  options, etc.)

5
Fact Table Storing derived facts

• A commonly used derived fact should be stored,
  and not calculated in reports and queries.
  Cutting such redundant key measures from the
  fact table results in the following
• Development of reports gets more complex
• Increased potential for errors in reports
• Increased documentation requirements
• A Hundred dollars worth of disk space is saved
  (40 MB of space savings for a 10-million row fact
  table)

6
Transformation Stages(Key for Homework 5/6)

• De-normalization Process
• Start with Normalized Tables
• Determine Dimensions and Fact Tables
• Delete Relationships
• Rebuild Tables
• Rebuild Relationship Diagram as Star Diagram,
  a.k.a., Dimension Table
• Provides information needed to complete Homework
  6, too!

7
Premiere Products ERD
Redrawn to form most likely Star Diagram
8
Delete Relationships
9
Rebuild Tables

• Using copied operations database
• Be sure all ops. data is saved and backed up
  multiple times.
• Data staging cleansing
• Denormalize extra relationships
• OrderOrderLine
• CustomerSalesRep
• OrderOrderLine ? OrderDetail
• CustomerSalesRep ? OrderDetail
• Transform data for new tables in Access Make
  Table
• Export data files, if needed, to rebuild
  elsewhere (Excel)
• Additional Transformations as needed in Excel
• Create the Time dimension
• Re-Import data files to new tables

10
Order_OrderLine Query
11
Restructured Data -- Stage 1
12
Preparing RepCustomer
13
Join to Order_OrderLine
14
OrderDetail Query
Order of Columns Not critical Sort order not
critical but Good time to revise
15
Make-Table OrderDetail Query
16
OrderDetail Table
Set Primary Keys
17
Data Cleansing
Fix dates
18
Add Indexes
19
Build Star Diagram
Fact Table
Whats Missing?
20
Time Dimension
Use SQL to eliminate Redundant dates
21
Built-in Functions
22
Built-in Date/Time Functions
23
Excel Time Table

• Create Time table using
• Excel Formulas
• Fill
• Copy/paste
• Compute Quarter
• Conversion Formulas
• Etc.

24
Import Time Table to Access
25
Time Table w/Indexes
26
Premier Products Star Diagram
27
PP -- Relation List

• Fact Table
• OrderDetailOrderNum, PartNum, OrderDate, CustNo,
  RepNo, NumOrdered, Price
• Dimension Tables
• CustomerCustNum, CustName, Street, City, State,
  Zip, Balance, CreditLimit
• RepRepNum, LastName, FirstName, Street, City,
  State, Zip, Commission, Rate
• PartPartNum, Desc, OnHand, Class, Warehouse,
  Price
• TimeTimeKey, Day_of_Week, Month, Year,
  JulianDate, Quarter, etc.

28
Replacing OrderDate with Time_key
29
Tools/Analyze/Tables
30
Tools/Analyze/Tables
31
Tools/Analyze/Tables
32
Tools/Analyze/Documenter
33
Tools/Analyze/Documenter
CUSTOMER table
34
http//www.webopedia.com

• GUID Last modified Thursday, June 20, 2002
• Short for Globally Unique Identifier, a unique
  128-bit number that is produced by the Windows OS
  or by some Windows applications to identify a
  particular component, application, file, database
  entry, and/or user. For instance, a Web site may
  generate a GUID and assign it to a user's browser
  to record and track the session. A GUID is also
  used in a Windows registry to identify COM DLLs.
  Knowing where to look in the registry and having
  the correct GUID yields a lot information about a
  COM object (i.e., information in the type
  library, its physical location, etc.). Windows
  also identifies user accounts by a username
  (computer/domain and username) and assigns it a
  GUID. Some database administrators even will use
  GUIDs as primary key values in databases.
• GUIDs can be created in a number of ways, but
  usually they are a combination of a few unique
  settings based on specific point in time (e.g.,
  an IP address, network MAC address, clock
  date/time, etc.).

35
Tools/Analyze/Documenter
OrderDetail table
36
Henry Books ERD (before)
BookInventory
37
Henry Books ERD (before)
38
Update Query for Inventory TablePhysical
Inventory Date
39
Inventory Table Date Updated
40
BookInventory Fact TableNote 2 Time Keys Pick
one
41
BookInventory Fact TableNote 2 Time Keys Pick
one
42
BookInventory Fact TableNote 2 Time Keys Pick
one
43
BookInventory Fact TableNote 2 Time Keys Pick
one
44
Henry Books Star Diagram
45
HB -- Relation List

• Fact Table
• BookTransBookCode, AuthorNum, BranchNum,
  Sequence, PubCode, OnHand, InventoryDate
• Dimension Tables
• BookBookCode, Title, Type, Price, Paperback
• PublisherPubCode, PubName, City, State, Zip
• AuthorAuthorNum, LastName, FirstName,
• BranchBranchNum, BranchName, Location,
  Employees
• TimeTimeKey, Day_of_Week, Month, Year,
  JulianDate, Quarter, etc.

46
Summary

• Complete Transformations
• How normal are the resulting tables?
• 1NF, 2NF, 3NF?
• Document Transformation maps
• Prepare for Appending Tables with new data
• Tools/Analyze/Documenter (next time)
