ESS 8 Final Review

1

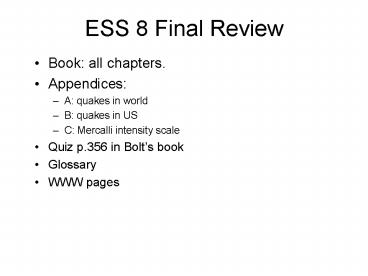

ESS 8 Final Review

• Book all chapters.
• Appendices
• A quakes in world
• B quakes in US
• C Mercalli intensity scale
• Quiz p.356 in Bolts book
• Glossary
• WWW pages

2
Map of major plates
Press, 20-3
3
Some facts

• There are 10 to 15 major plates
• The US is split, mostly on the North American
  Plate, but a western sliver on the Pacific Plate
• The boundaries between plates are faults
• but most faults are not plate boundaries
• Earthquakes are essentially the moving plates
  rubbing together

4
Plates are not continents

• And continental boundaries usually are not plate
  boundaries
• For example, east coast of US is far from the
  edge of the North American plate
• Continental lithosphere lighter silicates
• Oceanic lithosphere heavier basaltic rocks
  (olivine, pyroxene and plagioclase feldspar rich
  in iron, magnesium, calcium and aluminium)

5
(No Transcript)
6
Plate boundaries

• Divergent - plates pull apart Mantle material
  rises to fill the space between the separating
  plates.
• Example Pacific Atlantic Indian oceanic ridges
• Lot of small earthquakes, shallow.
• Convergent - plates collide One plate get
  pushed down while the other stays on top.
• Example Pacific rim subduction zones
• Lot of earthquakes, any magn. Down to 600km
  depth.
• Transform - plate rub against each other Both
  plates stay on surface and move sideways.
• Example San Andreas transform fault
• A lot of small events, some major ones, shallow
  (20km)

7
Mid-ocean ridge
Press, 20-4a
8
Rift valley
Press, 20-4b
9
Normal fault - divergence
Press, 18-12a,b
10
Oceanic crust over oceanic crust
Press, 20-6b
11
Continental crust over oceanic crust
Press, 20-6a
12
Continental collision
Press, 20-6c
13
Thrust fault - convergence
Press, 18-12a,c
14
Transform boundary
Press, 10-22
15
Strike-slip fault - transform
Left-lateral
Press, 18-12a,d
16
Other ways to deform rock
Press, 10-6
17
Convection

• Heat a liquid from below, cool it on top
• Cooler material is more dense
• Hotter material is less dense
• So the cool stuff on top sinks, and the warms
  stuff on the bottom rises
• The liquid continually overturns, like a pot on a
  stove
• Convection is tending to make everything have a
  more similar temperature

18
Convection in action

• Water on stove Tectonic plates on mantle

Press, 1-13a, 1-14a
19
Core, mantle, and crust
Press, 1-6c
20
Some facts

• Tectonic plates move 0 to 20 cm/year
• This is about 25 miles per million years
• The mantle is moving at similar velocities
• It takes about 100 million years for the mantle
  to overturn
• The outer core is a liquid, and it is also
  convecting, but much faster, creating the Earths
  magnetic field

21
Where are quakes?

• Mostly near plate boundaries Interplate
• Greatest number at subduction zones
• But also plenty at ridges and transform zones
• A few near hot spots Intraplate
• Well discuss with volcanoes
• Some anomalies in US, also intraplate
• Failed rift - New Madrid
• Unloading after ice age? East coast

22
Earthquakes Mgt5, 1963-1988
Keller, 1-5
23
Why dont quakes extend deeper?

• Deeper in the Earth, it is hotter
• There is also more pressure, variations in
  composition, and changes in crystal structure,
  but these dont matter as much
• If material is within a few hundred degrees of
  its melting temperature, it quietly flows rather
  than suddenly cracks in an earthquake

24
Tectonics of western N. Am.

• Pacific and North America are big plates
• Juan de Fuca, Cocos are smaller plates
• Mix of transform, ridge, and subduction
  boundaries
• Location of boundaries has evolved over past 30 My

25
US and Mexico coast

• Three little plates subducting offshore Oregon,
  Washington, and B. Columbia
• Juan de Fuca Plate
• Gorda Plate
• Explorer Plate
• Transform fault San Andreas Fault CA.
• Spreading ridge splitting Gulf of California
• Oblique because ridges are combined with
  transform faults
• Cocos Plate subducting to the south

26
N.Am.map
USGS Prof. Paper, 1-2
27
Why do we believePlate Tectonics?

• Evidence that Atlantic ocean was once closed
• Same rocks fossils on matching coasts
• East and west Atlantic coasts line up
• Age dating of seafloor rocks
• Other evidence for motion of plates
• Magnetic lineaments on oceanic crust
• Earthquakes focal mechanisms, glacial signs
• Now, we can record plate motion directly

28
History of plate tectonics

• 1660 - Francis Bacon, and probably many others,
  noticed similarity in coastlines, no idea what it
  meant
• 1912 Alfred Wegener noticed coastal fit and
  fossil and rock similarities, but very few others
  believe the theory (convection lacking)
• 1960s magnetic stripes, seafloor spreading and
  earthquake distributions convince scientific
  community

29
Supercontinents

• Pangaea is name for supercontinent that existed
  about 200 Mya
• All major continents, N. America near equator
• Gondwana is name for supercontinent at about 750
  Mya
• S. America, Africa, India, Antarctica, Australia
• Near South Pole
• Joined by rest of continents about 300-200 Mya gt
  Pangaea
• Supercontinent cycle of 500 Mya

30
More supercontinents

• Rodinia
• 1200 - 700 Mya
• Involved most continents
• But in different configuration than Pangaea
• Probably still more earlier supercontinents
• Age of the earth 4.5 billion years
• Age of the universe 15 billion years.

31
Liquids versus Solids

• Liquids flow viscosity h resists.
• Solids deform elasticity G resists.
• Maxwell characteristic time t h/G
• h is viscosity coefficient and G is elastic
  modulus
• t 10-12 seconds for water
• t 106 years for earth crust
• Time scale of deformation lt t gt solid
• Time scale of deformation gt t gt liquid
• See experiment with silly-putty

32
(No Transcript)
33
The earthquake cycle

• Before Loading After quake

34
(No Transcript)
35
Strain accumulation

• Steady strain rate over many years
• Distributed across zone about 100 km wide
• Only top 20 km build strain in California
• Deeper rocks seem to flow due to higher temp.
• We see strain accumulate with GPS
• Global Positioning System
• If steady, no clues of coming quakes

36
Elastic Rebound

• After 100 years of accumulating strain

old road
new road
37
Elastic Rebound

• After earthquake

old road
new road
38
Elastic Rebound

• Deformation during the earthquake cycle

time 0 yrs
width of deformed zone set by thickness of crust
time 100 yrs
after earthquake!
39
Maximum size of quakes

• Subduction zones
• Some bigger than M9
• 1960 Chile quake was 9.5
• 1964 Alaska quake was 9.2
• Larger volume with cold rock
• Bigger cracks, thus larger magnitudes
• Transform and ridge quakes
• Biggest quakes we have seen are M8
• San Francisco 1906 was 7.9
• Most are smaller than M7

40
Magnitudes and fault rupture sizes

• Magnitude 8 500 km
• Magnitude 7 70 km
• Magnitude 6 10 km
• Magnitude 5 1.5 km
• Magnitude 4 200 m
• Magnitude 3 30 m
• Magnitude 2 4 m

41
How faults break

• Rupture begins
• place on fault at that time closest to breaking
• Spreads outward over fault surface from focus
• At about 3 km/sec (near shear-wave velocity)
• Vslip 1m/s ltlt Vrupture 3 km/s lt Vsurface lt VS lt
  VP
• Larger area implies larger magnitude, and longer
  duration of rupture earthquake

42
Vocabulary

• Focus - point where the rupture started
• Hypocenter - location and time of quake beginning
• Epicenter - surface projection of hypocenter
• No clear pattern as to where hypocenter is on the
  fault plane
• Rupture - the sliding of one side of the fault
  against the other side

43
Epicenter and hypocenter
Tarbuck 6-3
44
Measuring earthquake size

• 1. Intensity
• Some famous old quakes
• 2. Magnitude
• 3. Seismic moment
• Some notable recent quakes

45
Local or Richter magnitude

• If seismograph not 100 km from epicenter
• ML log10 (A) C(D) where
• A is the maximum seismic wave amplitude in
  microns (10-6 m) recorded on a standard
  seismograph
• C is a correction factor that is a function of
  distance D from the seismograph to the epicenter

P
S
surface
A
46
Types of Magnitude

• ML - Local or Richter magnitude
• Original magnitude, developed by Charles Richter
  in 1930s
• uses S wave recorded within 300 km of epicenter
• mb - Body-wave magnitude
• uses P wave
• MS - Surface wave magnitude
• uses surface wave
• MW - Moment magnitude
• uses seismic moment

47
Definition of Seismic Moment

• M0 ? S D F D seismic moment
• Units are force-length, Newton-meters
• Varies over many orders of magnitude
• ? is the rigidity of the rock
• D is the amount of slip or offset between the two
  sides of the fault
• S is the surface area that ruptured
• MW (2/3)(log M0) - 6.0 is now replacing other
  magnitude scales, such as Richter magnitude or
  surface wave magnitude, because it provides a
  consistent measure of size of earthquakes from
  the smallest microtremors to the greatest
  earthquakes ever recorded

48
Rule of Thumb

• On average a magnitude m1 earthquake has
• 10 times greater peak amplitude of shaking than a
  magnitude m earthquake
• 30 times greater energy and moment release
• 3 (6-7) longer duration of slip for small (large)

49
P waves

• Longitudinal - material moves back and forth
  (vibrates) in same direction that wave travels,
  produces compression/dilatation cycle
• Fastest type of wave, so arrives first
• termed Primary wave
• Typical velocities in crust 5 - 7 km/sec
• Travels through solids or fluids

50
S waves

• Shearing - material moves back and forth
  perpendicular to the direction the wave travels
  in a twisting motion
• Slower than P wave, arrives second
• termed Secondary wave
• Typical velocities in crust 3-5 km/sec
• Travels through solids, but not fluids
• because there is no restoring force for the
  perpendicular motions

51
Surface Waves

• Two types
• Love waves
• Rayleigh waves
• Travel a bit slower than S waves
• Largest amplitude waves
• Need a surface to travel along, which is the
  rock-air interface at the Earths surface
• Motion is strongest near the surface
• Most strongly generated by earthquakes near the
  surface
• Technically, have the names of Love and Rayleigh
  waves

52
S wave
shadow
53
ReviewProfile ofthe Earth
54
Crust, Mantle, and Core

• Crust is thin veneer floating on mantle ,Rigid
  plates
• Layer of lighter composition than mantle (2.7
  g/cc ),
• Moho (Mohorovicic) is boundary between crust and
  mantle
• Thickness mapped by seismic work
• Thinner under oceans (4-6 km)
• Thicker under continents (25-80 km)
• Mantle is most of Earths mass, dense rock (3.3
  g/cc)
• Slowly flowing in convection
• Several phase changes in upper mantle
• Deeper rock is denser and stiffer due to
  increasing pressure
• Cores radius is about half of Earths radius
• Outer core is liquid iron (85), Convection leads
  to magnetic field
• Lower P velocity than mantle and no S waves
  allowed in liquid!
• Inner core is solid iron
• Inner core grows as outer core freezes Because
  Earth is cooling

55
Bigger magnitudemore fault area, more offset
9.2
9.5
Kovach, p. 47
56
Global counts of quakes
Rough numbers per year 2000 with M near 5 180
with M near 6 17 with M near 7 2 with M near
7.9 0.25 with M near 8.6
Note, there are several kinds of magnitudes and
we havent defined bins precisely
Kovach, p. 46
57
Gutenberg-Richter power law distribution
Log N a - b Mw
7.3
6.7
8
Mw (2/3) log M0 -6.0
58
Aftershocks

• smaller earthquakes following the largest
  earthquake of a sequence (the mainshock) near
  mainshock rupture zone
• follow almost all shallow earthquakes
• cover ruptured area
• can number in thousands
• can last for years or decades
• aftershocks of Northridge M 6.7 are still
  occurring

59
Aftershocks
Seismicity rate in South California, 1987-2000

• non-stationary seismicity rate
• increase of the seismicity rate after large
  earthquakes aftershocks

60
Numbers of aftershocks

• Northridge 13,523 aftershocks in 1994-1996
• Landers 65,380 aftershocks in 1992-1996
• 22 with M gt 5.0
• Most were M1 or 2
• There were many more too small to detect

61
Distribution of sizes

• As for mainshocks, there are many more small
  aftershocks in a sequence than big aftershocks
• If mainshock has M 6
• 1 or 2 aftershocks with M 5 to 6
• 10s of M 4 to 5
• If mainshock has M 8, an M 7 aftershock is likely

62
Probability of quake

• Find the faults
• Estimate how faults are segmented
• How does each segment behave
• Size of its quakes
• Time between quakes - recurrence interval
• Sum up risk from all segments of all faults
• (This exercise tells how much shaking)
• Then figure out expected damage

63
Fault zone segmentation

• Characteristic earthquake model
• Only one segment breaks at a time
• Segments defined by
• Ends of fault traces
• Fault intersections
• Best guesses - segment defined from prior quakes
• Not clear whether the concept of fault
  segmentation is correct

64
Wasatch Faultsegmentation
1
1
2
3
4
5
6
Keller, 8-21
65
HistoryofWasatchsegments
Age of faulting events on the Wasatch Fault
Pinter workbook 10-4
Now
6000
(years)
66
How does this apply to SoCal?

• Outline
• Segmentation of the San Andreas Fault
• Behavior of a segment on the San Andreas
• Probabilities for San Andreas segments
• Locations of all SoCal faults
• Total probability across SoCal

67
San Andreassegmentation
1906-type events
creep
Four major segments
1857-type events
Keller, 8-20
68
Big Onehistoryin SoCal
1857-type segment
Keller, 8-23
69
From this history

• 10 events in 1300 years
• An event every 130 years, on average
• Last event 140 years ago
• We are overdue!
• But events are not regularly timed
• So better guess would be
• about 25 chance of this quake in next 30 years
• (thats 30 years / 130 year repeat time)

70
30-yr probability of quakes in California
Parkfield
1906 repeat
1857 repeat
Yanev p. 39
1857-type is given 30 chance in 30 years
71
Avoid living in fault zone

• Should be zoned for parks
• Or, at a minimum, roadways
• It's best to live 5 miles or more away from
  faults
• Often unrealistic
• Even creeping faults are bad news

72
Relation of danger to faults

• Worst danger near faults
• Most damage within 50 km
• Occasional pockets of damage out to 100-200 km
  from rupture
• Usually due to very soft soil
• Shape of isoseismals
• M lt 6.5 form circular isoseismals
• Long rupture elongated isoseismals

73
Landslides

• Landslide a chunk of ground, usually wet and
  weak, breaks loose, then slides down hill
• Earthquakes often trigger landslides
• Landslide most common on hillsides, steep slopes
• From both natural and man-made causes

74
Summary of soft ground

• Landslides
• Can result from natural or man-made problems
• Biggest slides are natural
• Soft soils have several problems
• Liquefaction, landslide, settling, river banks
• Indications of various problems are similar
• Yanev (an engineer) says to consult an engineer
• Tsunamis can hit some of the same areas

75
Tsunamis

• Sea wave triggered by undersea event that uplifts
  or downdrops ocean floor
• Undersea earthquake
• Undersea landslide
• Undersea volcanic eruption
• Very occasionally, big meteorite impact!!
• These events can displace lots of water,
  producing a wave

76
Tsunami Hazards

• Several wave crests with 15 minutes between
  crests.
• Often water withdraws from shore first.
• People go to beach to look, gather clams, etc.
• Water returns very rapidly causing much damage.
• Avoid beach if you feel strong quake!

77
Convergence direction

• Indo- Autralian plate underthrusts Asia
• 4 cm/year
• more oblique to north

78
2004 Great Sumatra Earthquake map of Tsunami
energy propagation
Titov et al.
79
Structural componentsof a building

• Distributing elements
• Horizontal components
• Floors and roof
• Resisting elements
• Vertical
• Walls, columns, bracing
• Foundation
• Connections

80
Elements of a building

• Distributing elements
• Horizontal components
• Floors and roof
• Resisting elements
• Vertical
• Walls, columns, bracing
• Foundation
• Connections

81
Building materials

• Wood and steel preferred over concrete and brick
  because
• Light, which lessens weight that walls must
  support
• Flexible so it can deflect without cracking or
  breaking.
• But too much flexibility is bad, making bracing
  necessary

82
Wood-frame buildings

• If well-built, safest structures due to lightness
  and flexibility of wood
• May still have damage if
• On unstable ground
• Not well fastened to foundation
• Inadequate lateral bracing
• Poorly maintained
• Weak foundation

83
Diagonal bracing

• Some wood frame houses have only diagonal
  bracing, as opposed to plywood sheathing on shear
  walls
• Weak, and better construction is not expensive
• Sheet rock sheathing has little strength

84
Weak diagonal bracing
Soon covered by sheetrock Cut into boards
Yanev 89
85
Properplywoodbracing
Lots of nails Big pieces of wood Attach to
foundation
Yanev 90
86
(No Transcript)
