Title: Decision Support System for Ships in Degraded Condition

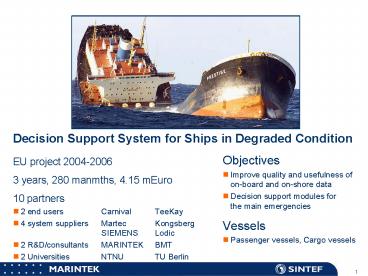

1
Decision Support System for Ships in Degraded
Condition
  • Objectives
  • Improve quality and usefulness of on-board and
    on-shore data
  • Decision support modules for the main
    emergencies
  • Vessels
  • Passenger vessels, Cargo vessels
  • EU project 2004-2006
  • 3 years, 280 manmths, 4.15 mEuro
  • 10 partners
  • 2 end users Carnival TeeKay
  • 4 system suppliers Martec Kongsberg SIEMENS Lod
    ic
  • 2 RD/consultants MARINTEK BMT
  • 2 Universities NTNU TU Berlin

2
Decision Support System for Ships in Degraded
Condition
  • Decision support modules for the main
    emergencies
  • Fire
  • Loss of propulsion and manoeuvring
  • Collision and Grounding
  • Flooding / damaged stability
  • Sealoads / Hull damage / Structural integrity
  • Security
  • Simulation/guidance modules for selected issues
  • Automated ship-shore data transfer of key
    performance indicators
  • Integration of weather and wave forecasts
  • Remote monitoring, decision support and crisis
    assistance
  • Consequence assessment of intentional grounding
    rational basis for last-resort assessment
  • Not part of scope
  • Improve quality and usefulness of on-board and
    on-shore data
  • Ensure that the right information is presented to
    the right levels of decision makers on board and
    ashore, at the right time
  • Alarm inflation analysis
  • Mapping of processes and decision makers
  • On-board sensing and monitoring systems extended
    with modules for Technical Condition Management
    trends and early warning of system deterioration
  • Common HMIs and mimics ergonomic control
    position

3
Decision support for decision makers on board
and ashore
  • How to operate the ship and onboard systems once
    damage has occurred
  • How to manoeuvre in critical waters
  • loss of propulsion
  • damaged manoeuvring systems
  • hull damage
  • How to operate to limit sea loads
  • Prevent hull damages from propagating to a
    critical level
  • To determine the consequences for running the
    ship aground
  • In other words to minimise the risk of further
    damage

4
Decision Support System for Ships in Degraded
Condition
  • What are my options?
  • When do I have to decide?

5
Remote monitoring, decision support and crisis
assistance
  • Provide on-shore crisis teams and vessel traffic
    control centres with the same guidance modules
    and vessel data as the crew.
  • automated ship-shore data transfer of guidance
    modules and vessel data
  • numerical models and static vessel data
    maintained and stored as part of the DSS system
    both on board and ashore
  • information on vessel condition, manoeuvrability
    read from on-board sensor systems
  • combined with available weather data
  • Monitoring of vessel condition from on-shore
    command centres
  • Closer integration of ship and shore based
    resources
  • Effective assistance from on-shore crisis teams
  • Improved basis for routing of ships in critical
    areas

6
Remote monitoring, decision support and crisis
assistance
7
Manoeuvring in critical waters
8
Consequence assessment of intentional grounding
  • Last resort in a critical situation run the
    ship aground
  • Develop simple procedures and tools to assess
    the consequences of ship grounding
  • Grounding simulation
  • likely damage of the ship bottom due to
    grounding
  • rupture of cargo tanks
  • amount of cargo spill
  • hull girders stresses versus ultimate hull
    girder resistance
  • Stranded analysis
  • prediction of potential damage escalation
  • weather forecasts
  • hull girder loads and strength assessment
  • tug forces to pull the ship off the ground

9
Load calculator - LODIC
10
Alarm analysis and context sensitive filtering
  • Alarm mapping
  • Provide the right information to the right levels
    of decision makers on board and ashore.

11
Integrate on-board sensing and monitoring systems
with Technical Condition Management
  • Detect trends and damage at an early stage
  • Provide early warning to the ship master and
    on-shore organisations
  • Give input for planning and optimisation of
    scheduled maintenance,
  • Provide required input for decision support
    systems on board and on shore

12
Integrate on-board sensing and monitoring systems
with Technical Condition Management
  • Methodology and models for representing technical
    condition and risk level for major ship
    equipment
  • Technical condition as trend indicator for
    documenting seaworthiness
  • Aggregation tool for visualisation of TCI and Risk

13
Integrate on-board sensing and monitoring systems
with Technical Condition Management
14
System architecture
  • On-board system
  • On-shore system
  • Ship-shore communication

15
Intentional Grounding
16
Module interrelationships
17
Module interrelationships
  • SHIP DESCRIPTION
  • Data needed for indentation analysis and hull
    girder section modulus and shear capacity
    assessment.
  • For the bottom damage simulation key data
  • Thickness of plating in outer and inner bottom
  • Stiffener dimensions and spacing
  • Longitudinal and transverse girders spacing
    and dimensions
  • Transverse and longitudinal bulkheads position
  • Longitudinal strength assessment
  • Plate thickness of decks and bulkheads
  • Longitudinal stiffeners dimension
  • Dimensions of any longitudinal stringers and
    girders

ENVIRONMENT Data related to environmental
conditions, i.e. tidal variations, wave height,
wind force and current direction. Updated
according to weather forecasts, for example
predicted evolution over say 3 days.
BOTTOM TOPOLOGY Data describing the geometry of
the sea floor. z z(x,y). The coordinate is
related to e.g. mean water level.
18
Module interrelationships
HULL GIRDER LOAD VS CAPACITY The ultimate
resistance of the hull girder in bending or shear
is visualised including the degradation in
capacity due to damaged bottom panels. The still
water loads and added wave loads are plotted.
The predicted increase of wave loads due to
forecasted aggravating weather and any
degradation of the capacity due to progressive
development of damage should be indicated. The
still water load may also change due to change in
contact force, flooding or outflow from tanks
etc...
VERES Calculates the wave induced bending moment
and shear force on the hull girder. Input to this
calculation is hull form, deadweight distribution
( from SHIPSHAPE), wave height and periods tide
from ENVIRONMENT.
19
Module interrelationships
Only for specialist support center
20
WP 2 Accident scenarios
  • 1.     Tanker maneuvering hazard, channel
    entrance (MARINTEK/Mo)
  • 2.     Tanker damaged hull, north sea
    (MARINTEK/Hellan)
  • 3.     Ship grounding, sand bank (MARINTEK/Mo)
  • 4.     Intentional grounding tanker
    (MARINTEK/Hellan)
  • 5.     Tanker container collision, open sea
    (BMT/Frederic)
  • 6.     Cruise ship collision, heavy traffic
    (MARINTEK/Mo)
  • 7.     Cruise ship collision, heavy traffic
    (Carnival/Strang)
  • 8.     Cruise collision, Specialist support
    service (NTNU/Amdahl)
  • 9.     Tanker stranding, Specialist support
    service (NTNU/Amdahl)
  • 10.  Weather information (TUB/ Böttner)
  • 11.  Ship-shore communication (TUB/ Böttner)
  • 12.  Automation tasks (Kongsberg/Foss)
  • 13.  Cruise collision, fire, tanker propulsion
    loss (MARTEC/Trubert)

21
Amalgamated scenarios
  • Three (four) amalgamated scenarios
  • A1 Cruise ship collision, alternative outcomes
  • A2 Tanker collision, abandon ship
  • A3 Cruise ship stranding after blackout, safe
    pull off and to port
  • A4 Tanker hull damage in heavy sea, with
    intentional stranding
  • A1 and A2 are most detailed
  • Used to test the concept of DSS-DC on the ship
    crew and managers
  • Specification of how emergencies are handled and
    actors cooperate
  • A3 and A4 define other settings and incidents
  • Must be used in conjunction with A1 and A2
  • Not complete Gives guidance on setting.
  • Basis for module functional specification.

22
All scenarios
  • Ship handling
  • Initial handling, damage control
  • Contact SAR and shore office, possibly specialist
    service
  • Continuously handling the situation
  • Ship office handling
  • Reduce work for crew, assist and plan
  • Liaison with SAR, rescue and salvage services,
    insurance, class, next of kin etc.
  • Alternative plans, alternative actions
  • Specialist services
  • Hull strength, stability, manoeuvring
  • SAR
  • Coordination of other ships and rescue operation

23
A1 Cruise collision
  • Story initiated
  • Assess situation, initial handling
  • Alternative outcomes
  • Abandon ship
  • Ship can sail to safe haven
  • Vessel afloat, awaiting SAR

24
A2 Tanker collision
  • Story initiated
  • Assess situation
  • Escalating situation
  • Damage control
  • Try to reach port
  • Increasing damage, abandon ship

25
Lessons learned - 1
  • Emergency operation on tanker Very few people
  • Master on bridge overall command
  • One officer to assist (records, communication)
  • First officer as On scene commander
  • Chief engineer in engine control room
  • Two or tree damage control/fire teams
  • Total of some 20 people onboard

26
Lessons learned - 2
  • Minimize detailed planning or operation onboard
  • Need to get fast and accurate advice
  • Advice and displays simple and to the point
  • Minimize detailed planning onboard
  • May be done by specialist centre
  • No time for lots of manual input or very detailed
    displays
  • Simple operation and fast response
  • Mostly applicable to tanker, but in general terms
    also cruise

27
Lessons learned - 3
  • Continuous communication with shore office
  • Send information to shore via DSS and phone
  • Signal on shore that new data is available
  • Acknowledge onboard that data has been read
  • Receive advice from shore
  • Signal and acknowledge as above
  • Show planning in progress (many alternatives)
  • Chat function?
  • Must be simple to use
  • As a common whiteboard?

28
Lessons learned - 4
  • Many alternatives are explored by shore office
  • Start many parallel actions
  • In case one fails or one develops as a better
    alternative
  • Explore different developments
  • Hidden damages?
  • Escalating damage?
  • Important to know timeframe for decision
  • When at the latest /earliest can we decide
  • Keep many opportunities open, only decide when
    you must!

29
Lessons learned - 5
  • When to decide?
  • Sometimes things move slowly (Prestige)
  • Sometimes things move fast (Estonia)
  • Ship is its own best lifeboat
  • Delay abandon ship as much as possible
  • Evacuation takes time
  • Start early enough

30
Lessons learned - 6
  • Communication bandwidth
  • DSS-DC part of the safety system?
  • Continuous availability is needed, also
    ship-shore
  • Cruise normally has good capacity
  • But may not be available in an emergency
  • Must not block telephone
  • Avoid transfer of large configuration data if
    possible
  • Inmarsat B
  • Typically also used for GMDSS
  • May be used as safety system
  • Although not necessarily always available
  • 9600 bits/sec.

31
  • EU Research and Technology Development
    Directorate
  • Integrated Projects (IP) allocated by
    industrial sector
  • European ship owners and operators Safe
    Maritime Operations
  • Indicative EC contribution 10 mEuro

32
  • CONDUCTION / NAVIGATION
  • Bridge instruments
  • Navigation aids
  • Intelligent monitoring and guidance systems
  • Electronic charts
  • Engine automation / monitoring reliability level
    for apparatus/machinery plants
  • Expert systems
  • Interfaces optimisation
  • Ergonomy of working spaces
  • COMMUNICATION
  • Highly reliable data transfer tools between
    on-board and a shore
  • On-line video communication
  • Low cost satellite communication
  • MAINTENANCE
  • Maintenance oriented design of plants / apparatus
    / machinery.
  • R.C.M.(Reliable Centred Maintenance)
  • Automated on-condition maintenance
  • Advanced tools for maintenance/diagnosis
  • On-line link between ship/ office and world wide
    internet for supply chain and spares management
  • CARGO HANDLING
  • Cargo control and monitoring
  • Tools for automated cargo tracking and
    recognition
  • Plants/solution/facilities for handling
    refrigerated car
  • DECISION SUPPORT TOOLS
  • For the management of the emergencies on board
    (fire-smoke-pollution-collision-etc.)
  • Automated collision prevention tools
  • HUMAN FACTORS
  • Safety culture
  • Working conditions / HSE
  • Analysis of working processes
  • Adaptation of working processes to new
    technologies
  • ENVIRONMENTAL ISSUES
  • Environmental protection culture
  • Emergency Preparedness
  • Salvage / Emergency lightering
  • MANAGEMENT/ INTEGRATION, ORGANIZATIONAL ISSUES
  • Technology for on-shore support of on-board
    operations
  • Remote monitoring and remote control of on board
    functions

33
Reduce risk to life, environment and property
Enhance capacity and reliability for freight and
passengers
Contribute to operational efficiency and
competitiveness
Have owners firmly in the driver seat
34
(No Transcript)
35
  • The vision of FLAGSHIP is to create the mechanism
    by which the expertise of all the required actors
    can be brought together in real time,
    independently of their location, and given the
    required information (in the right format, at the
    right time and incorporating the highest level of
    knowledge) to solve all the problems which
    confront a ship operator that includes problems
    relating to the ship itself and its equipment
    (e.g. hull monitoring, equipment diagnostics,
    maintenance planning), its day-to-day operation
    (e.g. navigation, cargo, rule compliance) as well
    as emergencies (collision, fire, etc.).

36
Partnership Structure
37
  • Users
  • Passenger / cruise
  • Tanker / general cargo
  • Container
  • Short sea
  • Authorities (environmental issues)
  • Deliverables
  • Functional systems on board and ashore
  • Improved infrastructures
  • Input to regulatory frameworks

Developments
  • Technology demonstration
  • RD
  • Implementation

University-programmes and basic research
Industrial RD
Technology demonstration
Implementation Commercialisation
Write a Comment
User Comments (0)
About PowerShow.com
